MGE GALAXY 3500 15KVA 400V
MSRP$23,965.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

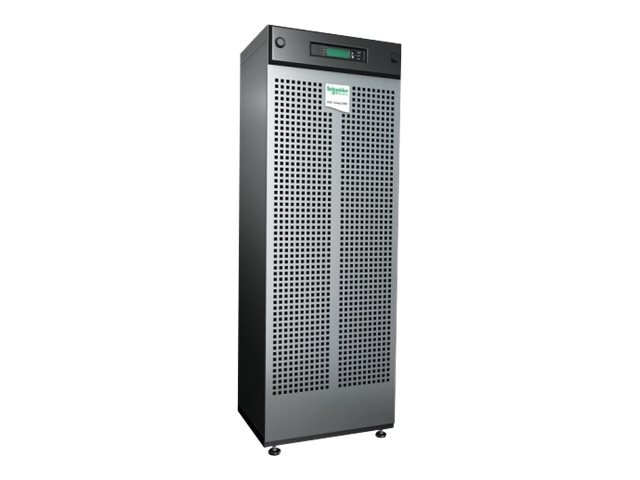

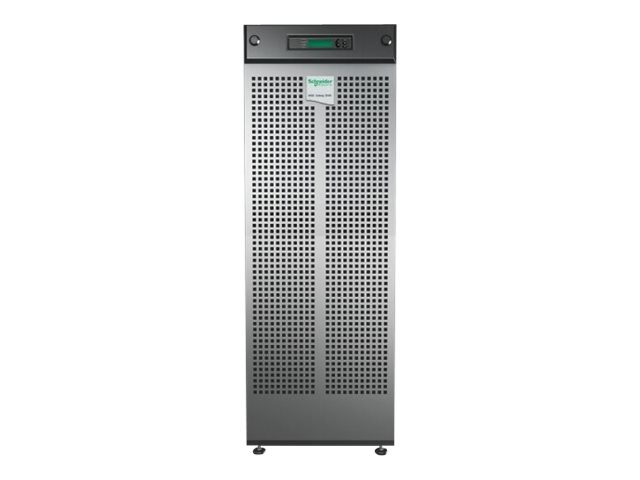

MGE GALAXY 3500 15KVA 400V
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $23,965.00 |
| Mfr Part #: | G35T15KH4B4S |
| SHI Part #: | 20541563 |
| Category: | Uninterruptible power supplies |
| UNSPSC: | 39121011 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Uninterruptible power supplies |
| Description | MGE GALAXY 3500 15KVA 400V |
| Manufacturer | APC by Schneider Electric |
| MSRP | $23,965.00 |
| UNSPSC | 39121011 |
| Main Specifications | |
| Dimensions & Weight / Depth | 83.8 cm |
| Dimensions & Weight / Height | 149 cm |
| Dimensions & Weight / Weight | 627 kg |
| Dimensions & Weight / Width | 52.3 cm |
| General / Subcategory | UPS |
| Header / Brand | MGE |
| Networking / Remote Management Interface | RS-232 |
| Packaged Quantity | 1 |
| Power Device / Form Factor | External |
| Power Device / Output Connector Qty | 3 |
| Power Device / Power Capacity (VA) | 15000 VA |
| Power Device / UPS Technology | On-line |
| Power Device / Voltage Required | AC 380/400/415 V |
| Product Type | UPS |
| Service & Support / Type | 1-year warranty |
| Battery | |
| Quantity | 4 |
| Recharge Time | 5 hours |
| Run Time (Up To) | 27.2 min at full load |
| Technology | Lead acid |
| Type | Expandable |
| Dimensions & Weight | |
| Depth | 83.8 cm |
| Height | 149 cm |
| Weight | 627 kg |
| Width | 52.3 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 106 cm |
| Shipping Height | 164 cm |
| Shipping Weight | 658 kg |
| Shipping Width | 65 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 51.3 dBA |
| Expansion / Connectivity | |
| Expansion Slots | SmartSlot |
| Interfaces |
|
| General | |
| Device Type | UPS - external |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Cables Included | Serial cable - external |
| Compliant Standards | ISO 9001, IEC 61000-3-2, IEC 61000-3-3, ISO 14001, EN 50091-2, IEC 62040-3, IEC 62040-1-1 |
| Features | Audible alarm, emergency power off, LCD display, built-in maintenance bypass, built-in static bypass |
| Included Accessories | Bolt down brackets |
| Networking | |
| Remote Management Interface | RS-232 |
| Remote Management Protocol | SNMP, HTTP |
| Power Device | |
| Frequency Provided | 47 - 53 Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | Hardwire 5-wire (3PH + N + G) |
| Input Voltage | AC 380/400/415 V |
| Input Voltage Range | AC 304 - 477 V |
| Input Voltage Range (Adjustable) | AC 340 - 460 V |
| Input Wiring | 3-phase |
| Output Voltage | AC 380/400/415 V ± 5% - 47 - 53 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 12 kW / 15000 VA |
| Power Output Connectors Details |
|
| UPS Technology | On-line |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
