Supermicro AOC-UINF-M2
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

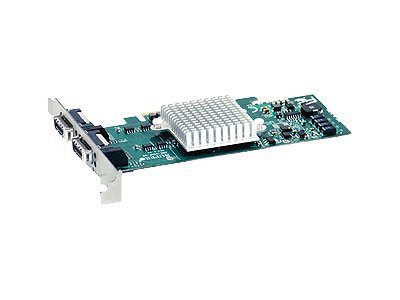

Supermicro AOC-UINF-M2
- Remote management adapter
- PCIe 2.0 x8
- InfiniBand
- 4x InfiniBand (SFF-8470)
- 2 ports
- for SUPERMICRO X7DCU, X7DWN+, X7DWU; A+ Server AS1011, Server AS1021; SuperServer 50XX, 60XX
| Additional Details | |
|---|---|
| Mfr Part #: | AOC-UINF-M2 |
| SHI Part #: | 19376090 |
| Category: | Network interface cards |
| UNSPSC: | 43201404 |
| Manufacturer: | Super Micro Computer |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network interface cards |
| Description | Supermicro AOC-UINF-M2 - Remote management adapter - PCIe 2.0 x8 - InfiniBand - 4x InfiniBand (SFF-8470) - 2 ports - for SUPERMICRO X7DCU, X7DWN+, X7DWU; A+ Server AS1011, Server AS1021; SuperServer 50XX, 60XX |
| Manufacturer | Super Micro Computer |
| UNSPSC | 43201404 |
| Main Specifications | |
| Header / Brand | Supermicro |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | InfiniBand |
| Networking / Data Transfer Rate | 20 Gbps |
| Networking / Type | Remote management adapter |
| Packaged Quantity | 1 |
| System Requirements / OS Required |
|
| Compatibility Information | |
| Designed For |
|
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Compatible Slots | 1 x PCI Express 2.0 x8 |
| Interfaces | 2 x InfiniBand |
| General | |
| Bus Voltage | 3.3 V |
| Device Type | Remote management adapter - 2 ports |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 2.0 x8 |
| Miscellaneous | |
| Compliant Standards | RoHS |
| Networking | |
| Cabling Type | 4x InfiniBand (SFF-8470) |
| Connectivity Technology | Wired |
| Data Link Protocol | InfiniBand |
| Data Transfer Rate | 20 Gbps |
| Features | QoS, RDMA support |
| Network / Transport Protocol | TCP/IP |
| Status Indicators | Link OK, link/activity |
| Software / System Requirements | |
| OS Required | Novell NetWare, Red Hat Linux, Microsoft Windows Server, Red Hat Fedora Core |
