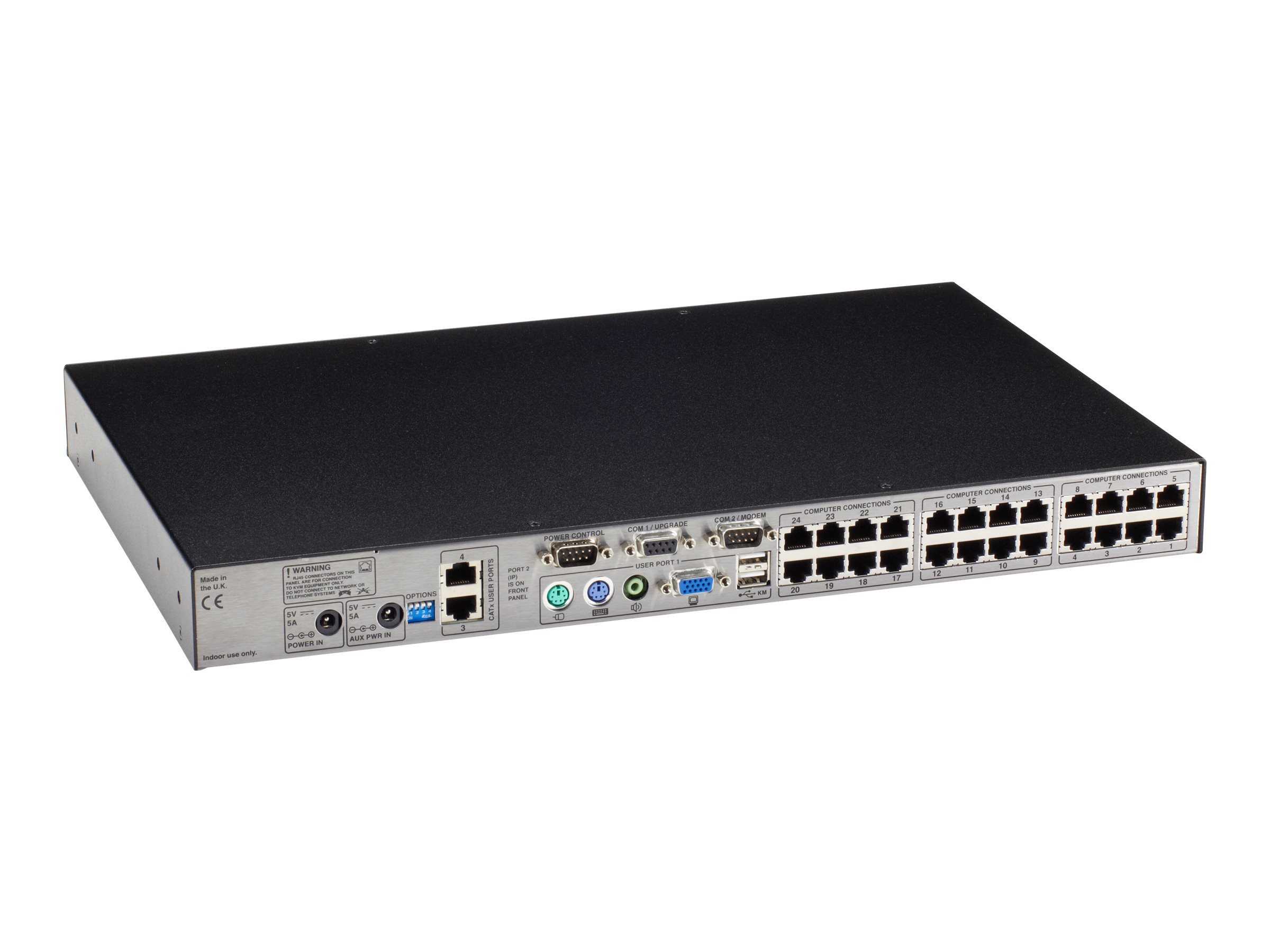

Black Box ServSwitch CX with IP


MSRP$3,859.17
$3,368.00
Black Box ServSwitch CX with IP

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • KVM / audio switch
  • CAT5
  • 24 x KVM / audio
  • 1 local user
  • 1 IP user
Black Box ServSwitch CX with IP
  • KVM / audio switch
  • CAT5
  • 24 x KVM / audio
  • 1 local user
  • 1 IP user
  • desktop
  Additional Details
Price: $3,368.00
MSRP: $3,859.17
Mfr Part #: KV1424A-R2
SHI Part #: 17733078
Category: Peripheral switch boxes
UNSPSC: 43211604
Manufacturer: Black Box
Product Type: Hardware

Control/Interface Boards

Black Box ServSwitch CX Server Access Module
  • KVM extender
  • RJ-45 / 4 pin USB Type A, 15 pin HD D-Sub (HD-15)
MSRP $155.54 $136.00
Black Box ServSwitch CX CATx KVM Receiver with USB
  • KVM / USB extender
  • receiver
MSRP $486.42 $425.00
Black Box ServSwitch CX Server Access Module
  • KVM extender
  • RJ-45 / 6 pin mini-DIN (PS/2 style), 15 pin HD D-Sub (HD-15)
MSRP $186.65 $163.00
General Information
CategoryPeripheral switch boxes
DescriptionBlack Box ServSwitch CX with IP - KVM / audio switch - CAT5 - 24 x KVM / audio - 1 local user - 1 IP user - desktop
ManufacturerBlack Box
MSRP$3,859.17
UNSPSC43211604
Main Specifications
Dimensions & Weight / Depth27.9 cm
Dimensions & Weight / Height4.4 cm
Dimensions & Weight / Width48.3 cm
Header / BrandBlack Box
Networking / Form FactorDesktop
Networking / Ports Qty24
Networking / TypeKVM / audio switch
Packaged Quantity1
Service & Support / Type2-year warranty
Dimensions & Weight
Depth27.9 cm
Height4.4 cm
Width48.3 cm
Expansion / Connectivity
Interfaces
  • 24 x KVM / audio RJ-45
  • 1 x serial (RS-232) DB-9
  • 1 x 9 pin D-Sub (DB-9) management
  • 1 x keyboard (PS/2)
  • 1 x mouse (PS/2)
  • 1 x audio mini-jack
  • 1 x VGA HD-15
  • 2 x USB Type A
  • 1 x serial (RS-232) DB-9 modem
  • 1 x LAN RJ-45
  • 2 x KVM / audio RJ-45
General
Device TypeKVM / audio switch - 24 ports - cascadable
Enclosure TypeDesktop 1U
Encryption Algorithm128-bit AES
FeaturesFirmware upgradable
Keyboard / Mouse InterfacePS/2
KVM IP Users Qty1 IP user
KVM Local Users Qty1 local user
Max Resolution1900 x 1440
Ports24 x KVM / audio
Server Connection Via Twisted PairCAT5
SubtypeKVM
Manufacturer Warranty
Service & SupportLimited warranty - 2 years
Miscellaneous
Rack Mounting KitIncluded
Power
FeaturesRedundant Power System (RPS) connector
Power DeviceExternal power adapter
Voltage RequiredAC 120/230 V (50/60 Hz)
