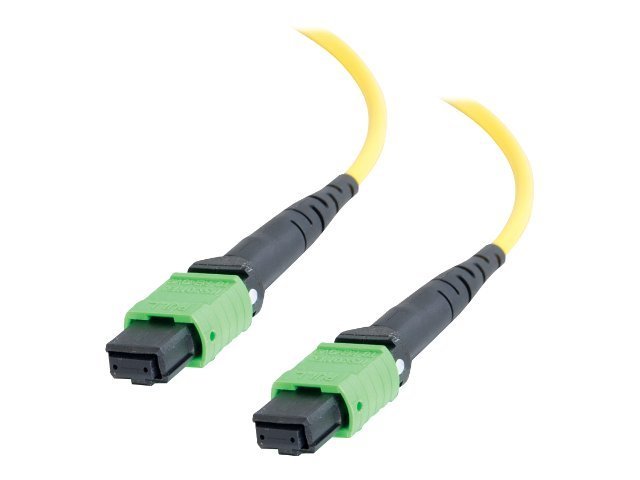

C2G 5m MTP 9/125 OS1 Single-Mode Fiber Optic Assembly Ribbon Cable LSZH

Make MTP your choice for high-density fiber networks; it's specifically designed for Fast Ethernet, Fibre Channel, ATM and Gigabit Ethernet applications. Save time and money with MTP's increased ease of installation - simply pull one cable rather than twelve. Each MTP fiber assembly consists of twelve 9/125µm single-mode fibers under one PVC (OFNR-rated) jacket. With the MTP, it's possible to run a single cable that automatically terminates twelve fibers in one easy plug-in. Plus, the small form factor of an MTP connector provides a higher port density.

The LSZH jacket is composed from materials that lessen the smoke and halogen emissions when the cable is exposed to extreme temperatures. This reduces the amount of harmful toxic and corrosive gases that cabling made with plastic materials would otherwise emit into the air during combustion. This construction makes LSZH cables ideal for use where the protection of people and equipment from harmful corrosive gases is absolutely critical.

With its push-pull release mechanism, the MTP connector is easy to engage and disengage. Plus, its latch design prevents the plug from snagging when jumper cables are being routed. Straight-through pinning; immune to electrical interference.
