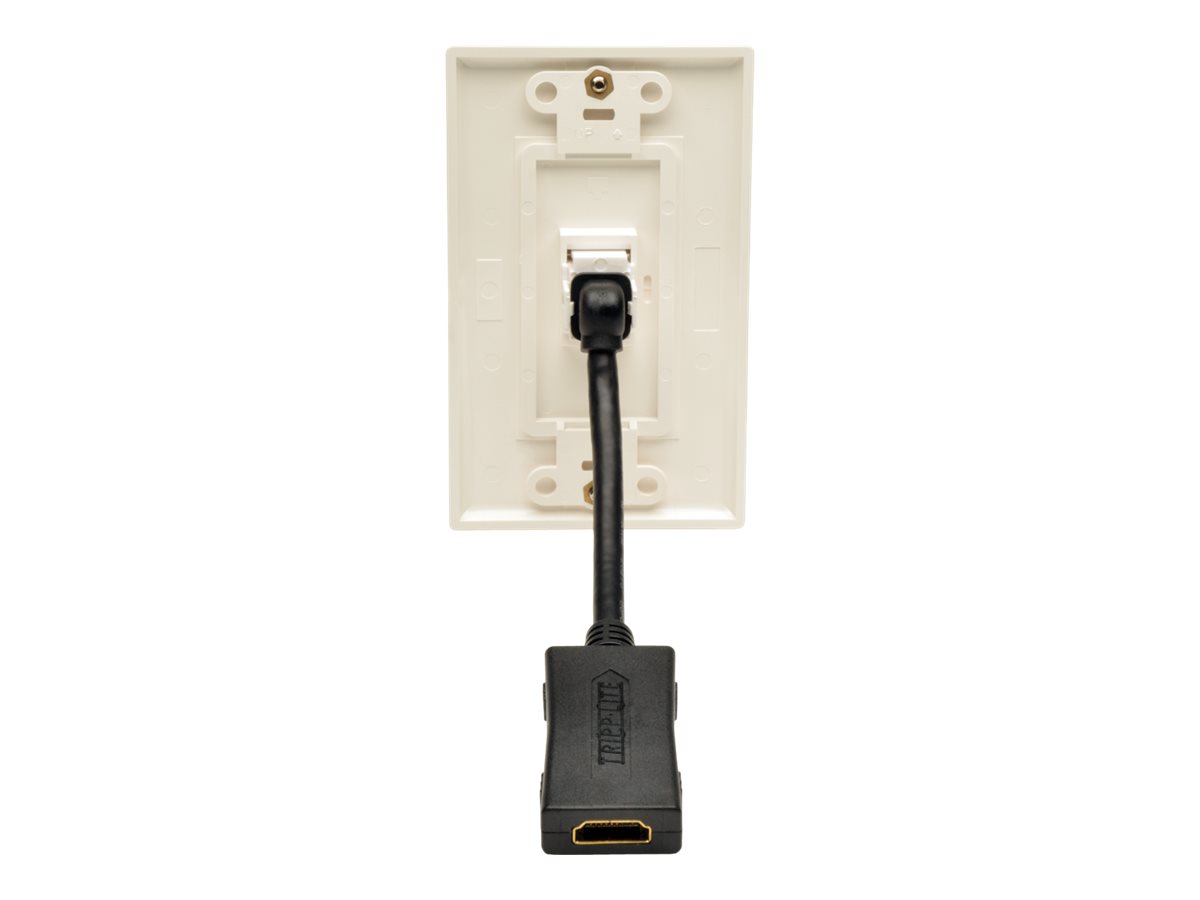

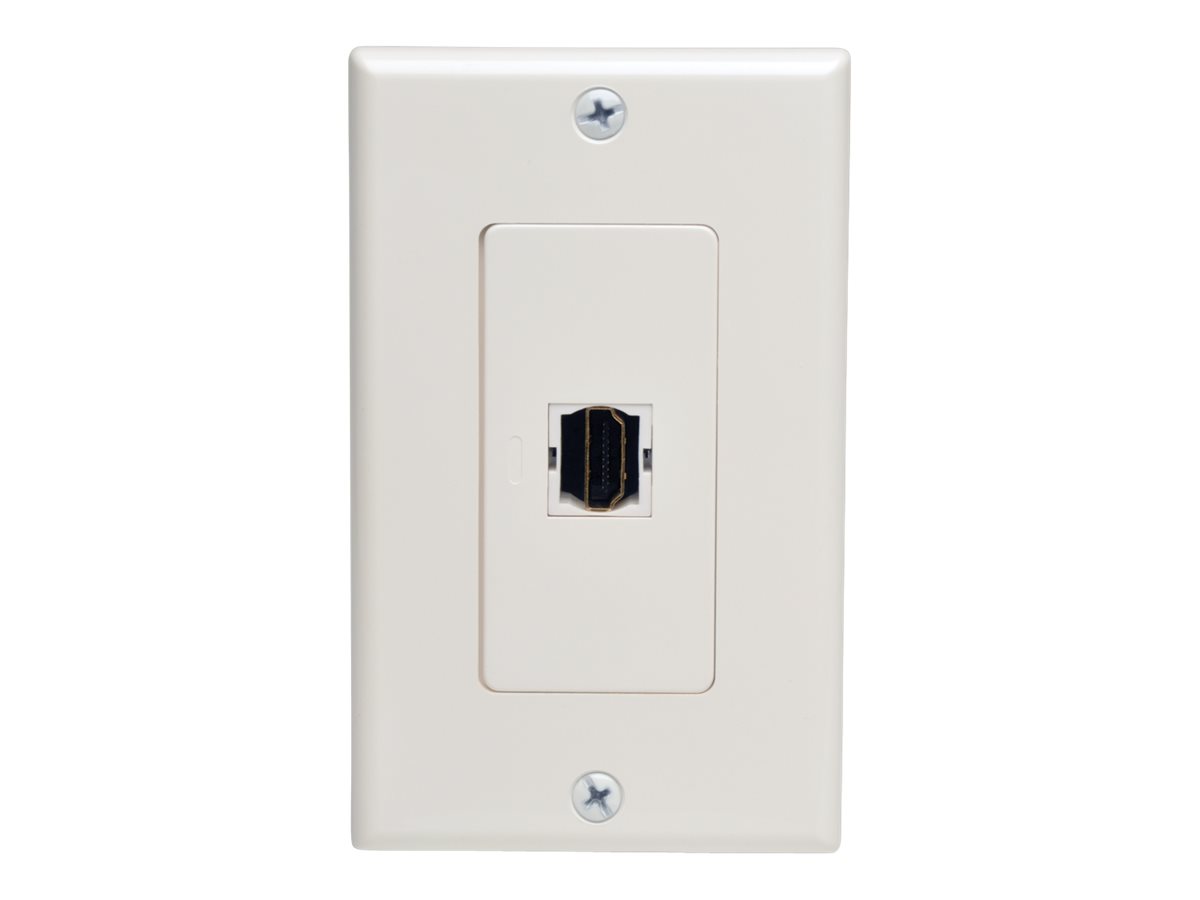

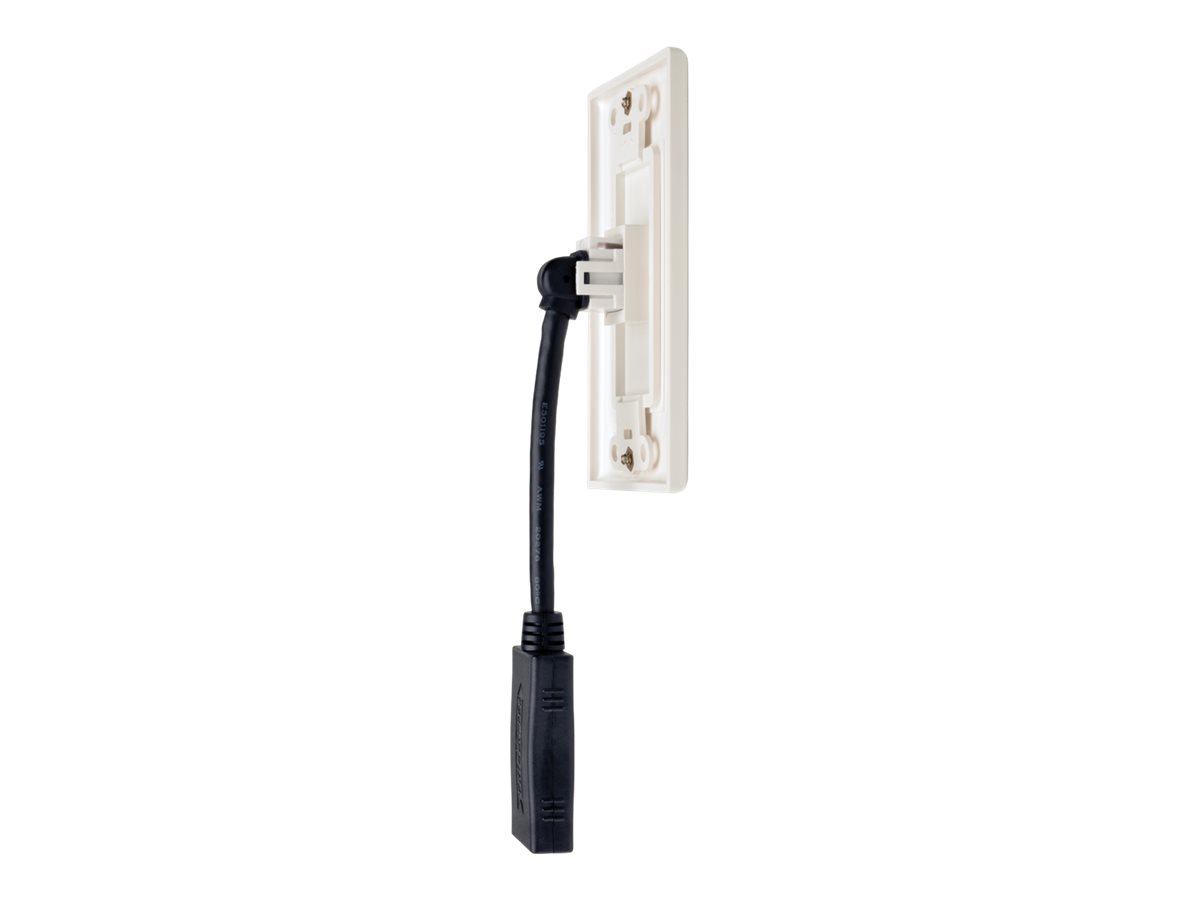

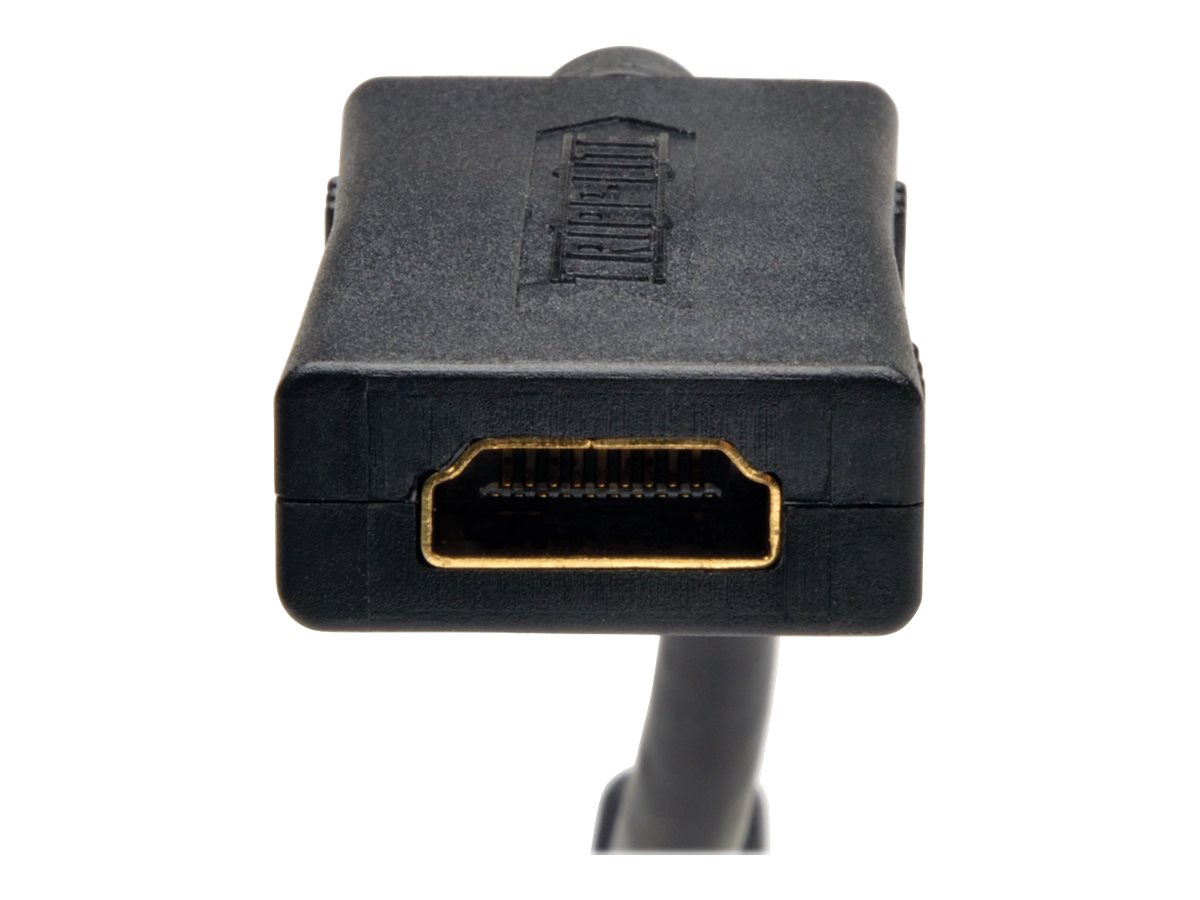

Tripp Lite HDMI Display-Side Wallplate with Active Signal Booster F/F

Tripp Lite's P166-001-A HDMI Display-side Wallplate with Signal Booster increases the distance a 1080p (24Hz) signal can be transmitted beyond the recommended 4.88 m (16-ft.) It supports video resolutions up to 1080p, and a maximum distance of 45.72 m (150-ft.) from the source. Use P568-Series HDMI cables in most applications. When extending a 1080p (24Hz) signal more than 22.86 m (75-ft.), use cable made with 24Awg wiring, such as the P568-100-HD. (Lengths over 30.5 m (100-ft.) are available from Tripp Lite as a custom order) 24Awg HDMI cable is also needed when extending a 3D signal more than 15.24 m (50-ft.) A 3D signal can be extended up to 38.1 m (125-ft.) using 24Awg HDMI cable. Simply connect the longer cable between the source and the P166-001-A, and the shorter cable (4.88 m (16-ft.) or less) between the adapter and the monitor. Software or drivers are not required. HDCP compliant.

Key Points

Product Features
