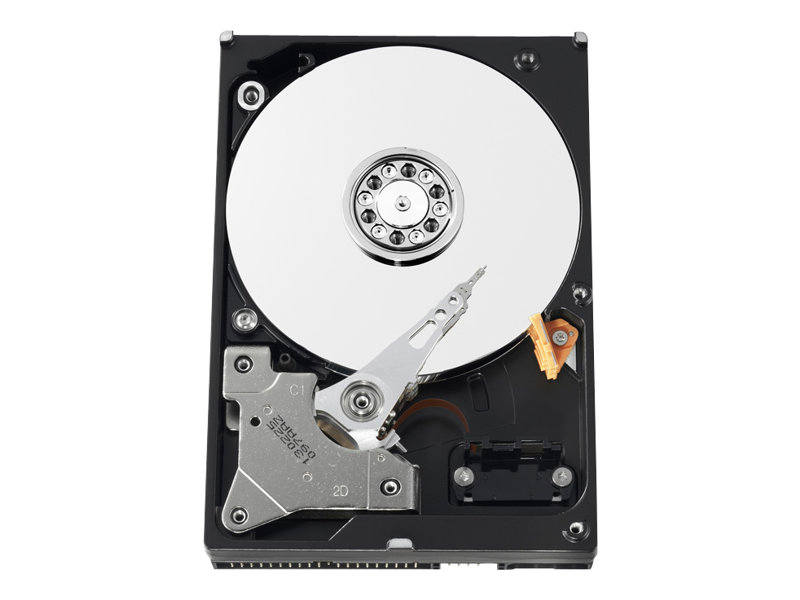

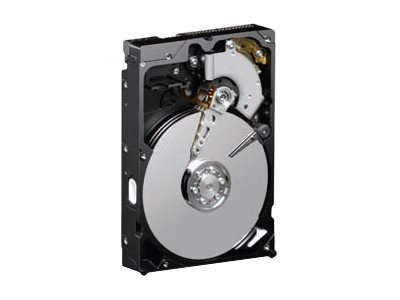

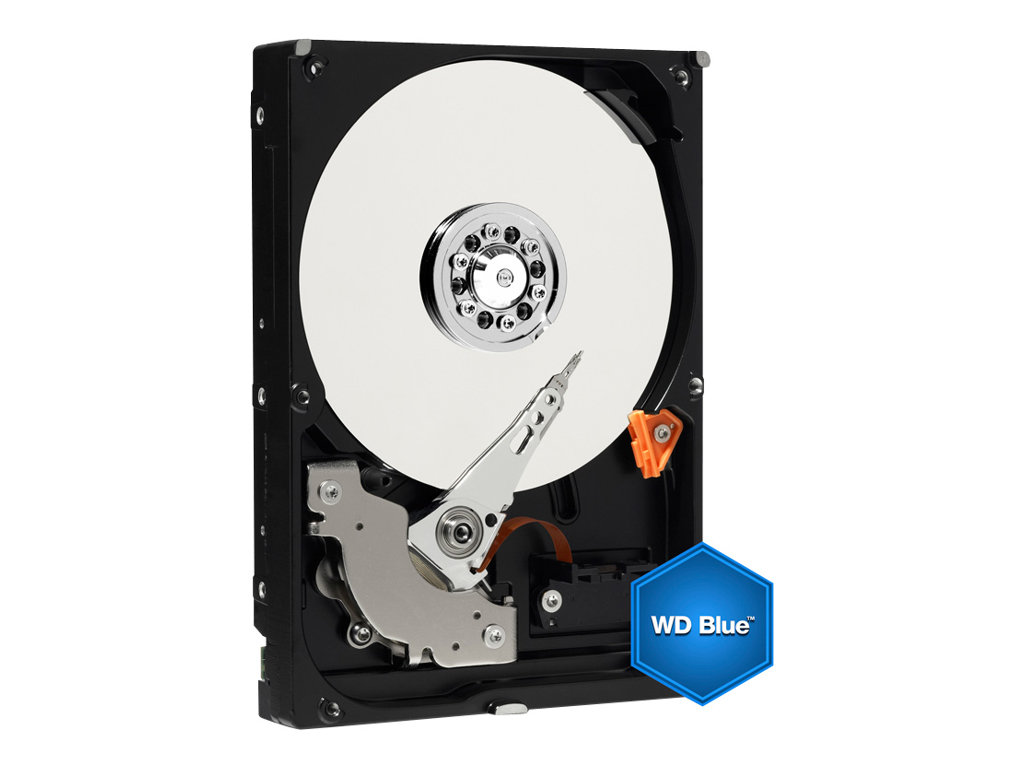

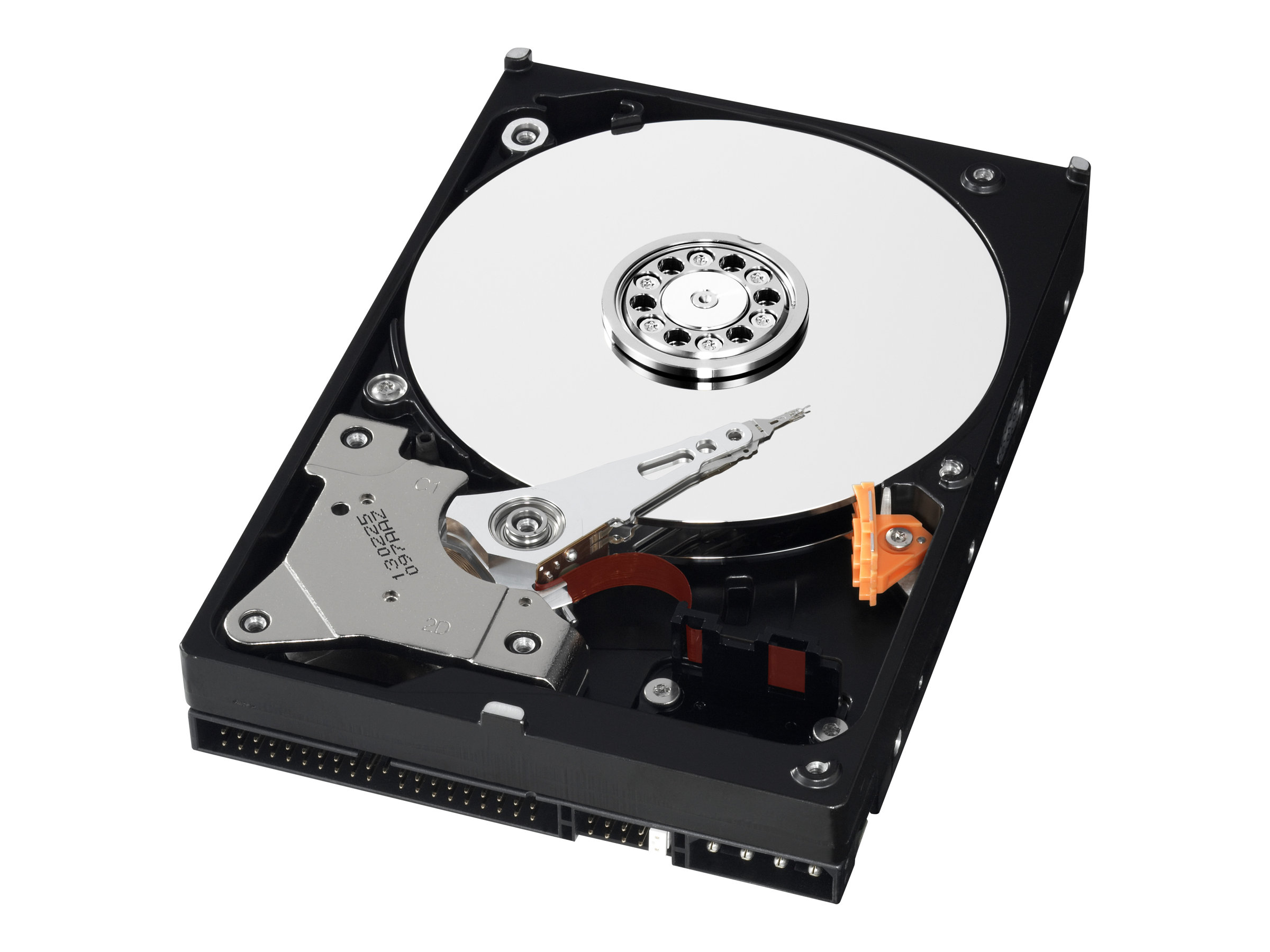

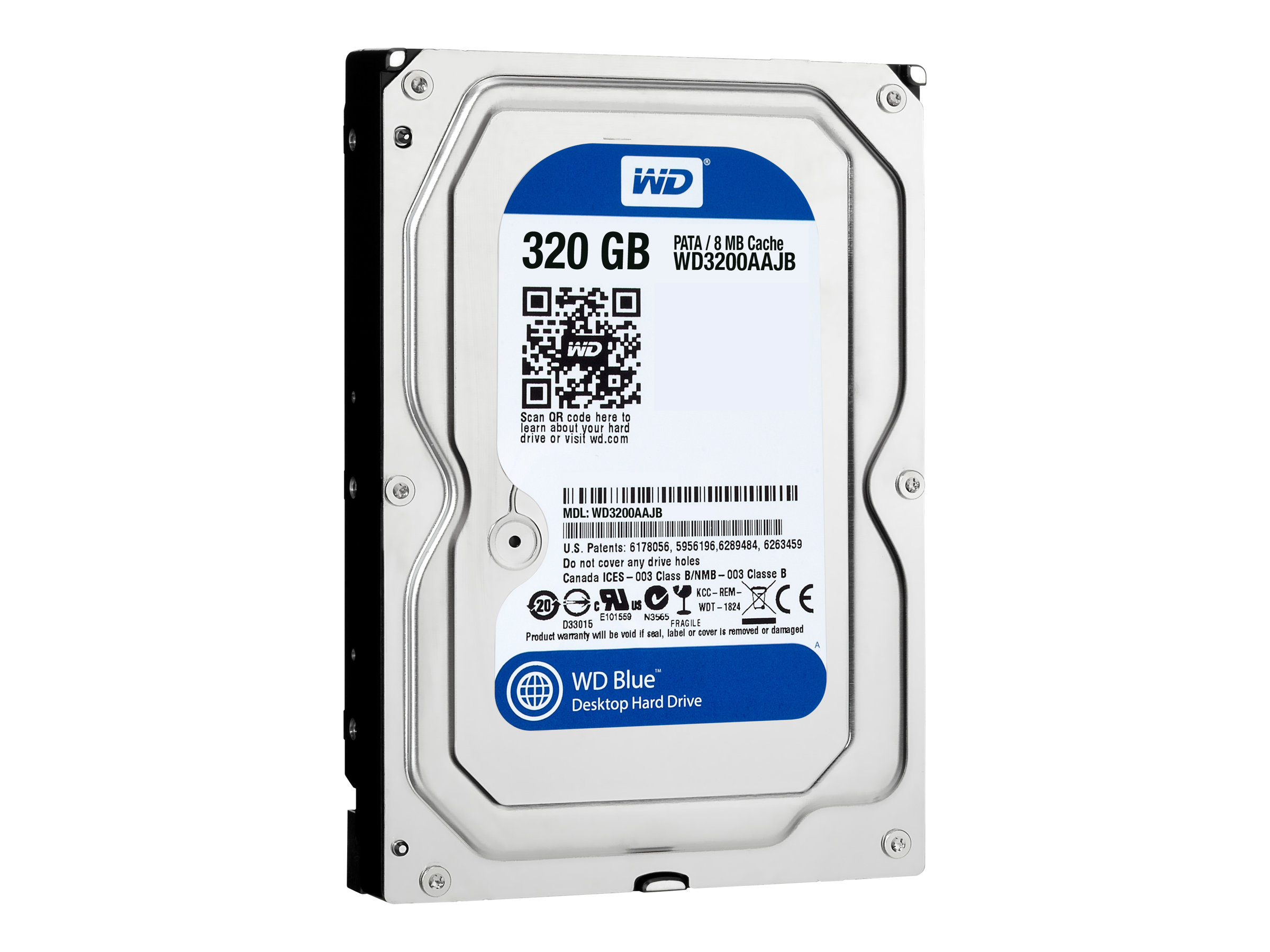

WD Blue WD3200AAJB - Hard drive
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
WD Blue WD3200AAJB - Hard drive
- 320 GB
- internal
- 3.5"
- ATA-100
- 7200 rpm
- buffer: 8 MB
| Additional Details | |
|---|---|
| Mfr Part #: | WD3200AAJB |
| SHI Part #: | 16868980 |
| Category: | Hard drives |
| UNSPSC: | 43201803 |
| Manufacturer: | Western Digital |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hard drives |
| Description | WD Blue WD3200AAJB - Hard drive - 320 GB - internal - 3.5" - ATA-100 - 7200 rpm - buffer: 8 MB |
| Manufacturer | Western Digital |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 14.7 cm |
| Dimensions & Weight / Height | 2.54 cm |
| Dimensions & Weight / Weight | 0.63 kg |
| Dimensions & Weight / Width | 10.2 cm |
| Hard Drive / Capacity | 320 GB |
| Hard Drive / Form Factor | 3.5" x 1/3H |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | ATA-100 |
| Hard Drive / Interface | ATA-100 |
| Header / Brand | WD |
| Packaged Quantity | 1 |
| Service & Support / Type | 2-year warranty |
| Storage / Type | Hard drive |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | 0 °C |
| Shock Tolerance | 65 g @ 2ms (operating) / 350 g @ 2ms (non-operating) |
| Sound Emission | 28 dBA |
| Vibration Tolerance | 0.75 g @ 20-300 Hz (operating) / 5 g @ 300-500 Hz (non-operating) |
| Expansion & Connectivity | |
| Compatible Bay | 3.5" x 1/3H |
| Interfaces | 1 x ATA-100 - 40 pin IDC |
| General | |
| Buffer Size | 8 MB |
| Capacity | 320 GB |
| Depth | 14.7 cm |
| Device Type | Hard drive - internal |
| Form Factor | 3.5" x 1/3H |
| Height | 2.54 cm |
| Interface | ATA-100 |
| Weight | 0.63 kg |
| Width | 10.2 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Performance | |
| Average Latency | 4.2 ms |
| Drive Transfer Rate | 100 MBps (external) |
| Seek Time | 8.9 ms (average) |
| Spindle Speed | 7200 rpm |
| Track-to-Track Seek Time | 2 ms |
| Reliability | |
| Start / Stop Cycles | 50,000 |
