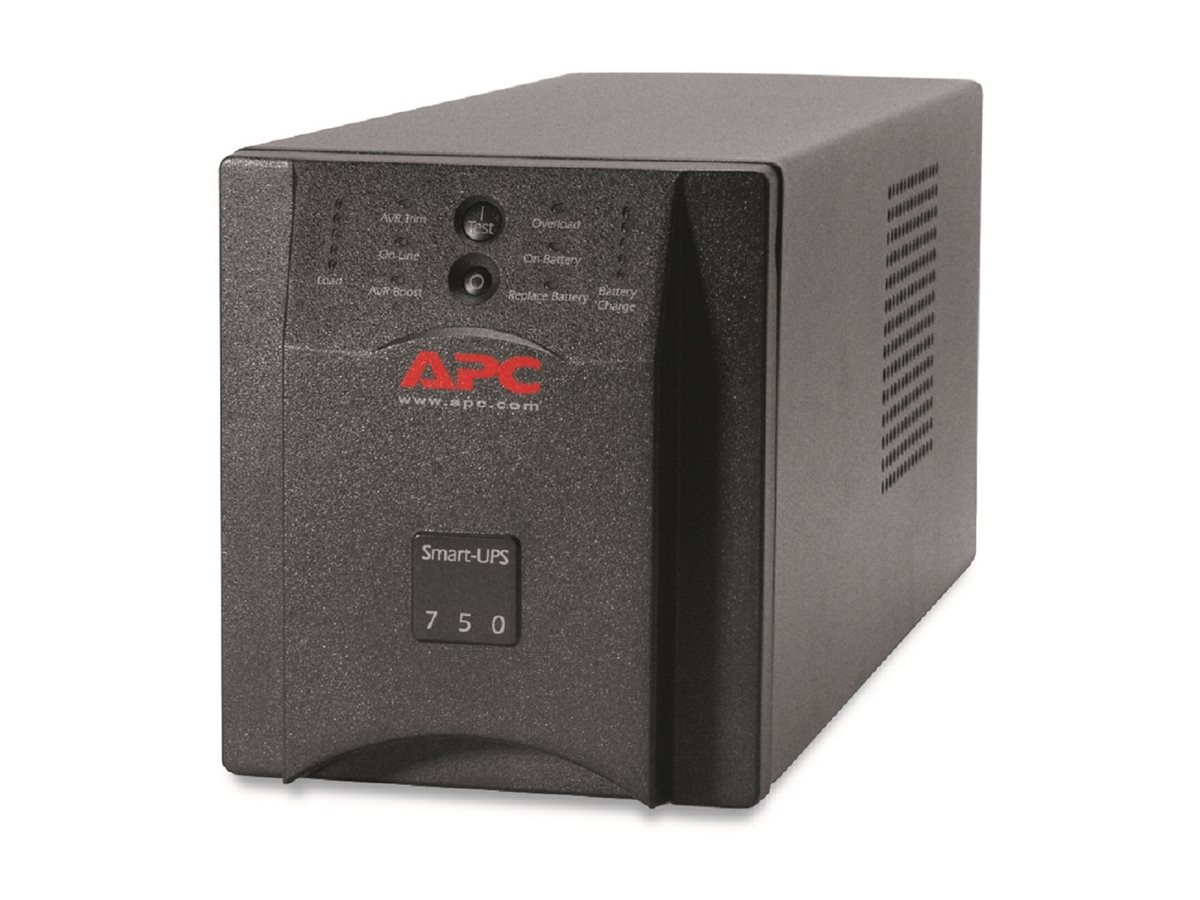

APC Smart-UPS 750 - UPS


MSRP$634.00
$483.00
APC Smart-UPS 750 - UPS

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • AC 230 V
  • 500 Watt
  • 750 VA
  • USB
  • 6 output connector(s)
APC Smart-UPS 750 - UPS
  • AC 230 V
  • 500 Watt
  • 750 VA
  • USB
  • 6 output connector(s)
  Additional Details
Price: $483.00
MSRP: $634.00
Mfr Part #: SUA750IX38
SHI Part #: 16843837
Category: Rechargeable batteries
UNSPSC: 26111701
Manufacturer: APC
Product Type: Hardware
Product Line: APC by Schneider Electric

Audio/Video Cables

APC - Serial cable - RJ-45 (M) to DB-9 (F)
  • 2 m
  • for P/N: SRV1KA-TW, SRV1KI-TW, SRV2KA-TW, SRV2KI-TW, SRV3KA-TW, SRV3KI-TW, SRV6KI-TW
MSRP $40.00 $32.00
APC - Serial cable - RJ-45 (M) to DB-9 (F)
  • 4.57 m
  • for P/N: SRV1KA-TW, SRV1KI-TW, SRV2KA-TW, SRV2KI-TW, SRV3KA-TW, SRV3KI-TW, SRV6KI-TW
MSRP $60.00 $49.00
APC Simple Signaling
  • Serial cable
  • for P/N: SRV1KA-TW, SRV1KI-TW, SRV2KA-TW, SRV2KI-TW, SRV3KA-TW, SRV3KI-TW, SRV6KI-TW
MSRP $102.00 $82.00

Control/Interface Boards

APC SmartSlot Triple Chassis
  • System bus extender
  • for P/N: G3H10K3IM6X710, G3H10K3IM9X710, SRC1KI, SYA8K16PX798, SYA8K16PXRX798, SYA8K8PX798
MSRP $593.00 $452.00
APC SmartSlot Expansion Chassis
  • System bus extender
  • for Matrix-UPS
MSRP $191.00 $141.00
General Information
CategoryRechargeable batteries
DescriptionAPC Smart-UPS 750 - UPS - AC 230 V - 500 Watt - 750 VA - USB - 6 output connector(s)
ManufacturerAPC
MSRP$634.00
UNSPSC26111701
Main Specifications
Dimensions & Weight / Depth35.8 cm
Dimensions & Weight / Height15.7 cm
Dimensions & Weight / Weight13.2 kg
Dimensions & Weight / Width13.7 cm
General / SubcategoryUPS
Header / BrandAPC
Miscellaneous / Product ColorBlack
Networking / Remote Management InterfaceUSB
Packaged Quantity1
Power Device / Form FactorExternal
Power Device / Output Connector Qty6
Power Device / Power Capacity (VA)750 VA
Power Device / UPS TechnologyLine interactive
Power Device / Voltage RequiredAC 230 V
Product TypeUPS
Battery
Quantity1
Recharge Time3 hours
Run Time (Up To)4.8 min at full load
TechnologyLead acid
Dimensions & Weight
Depth35.8 cm
Height15.7 cm
Weight13.2 kg
Width13.7 cm
Dimensions & Weight (Shipping)
Shipping Depth49.5 cm
Shipping Height27.9 cm
Shipping Weight14.6 kg
Shipping Width27.3 cm
Environmental Parameters
Humidity Range Operating0 - 95%
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Sound Emission55 dBA
Expansion / Connectivity
Expansion Slots1 (total) / 1 (free) x SmartSlot
Interfaces1 x management (USB) - 4 pin USB Type B
General
Battery Enclosure TypeInternal
ColorBlack
Device TypeUPS - external
Miscellaneous
Cables IncludedUSB cable
Compliant StandardsUL, C-Tick, GOST, UL 1449, VDE, IEC 60950, EN 50091-2, EN 50091-1
FeaturesAudible alarm, LED indicators
Networking
Remote Management InterfaceUSB
Power Device
Frequency Provided50/60 Hz
Frequency Required50/60 Hz
Input Connectors1 x power IEC 60320 C14
Input VoltageAC 230 V
Input Voltage RangeAC 160 - 286 V
Input Voltage Range (Adjustable)AC 151 - 302 V
Output VoltageAC 220/230/240 V ± 5% - 50/60 Hz
Output WaveformSinewave
Power Capacity500 Watt / 750 VA

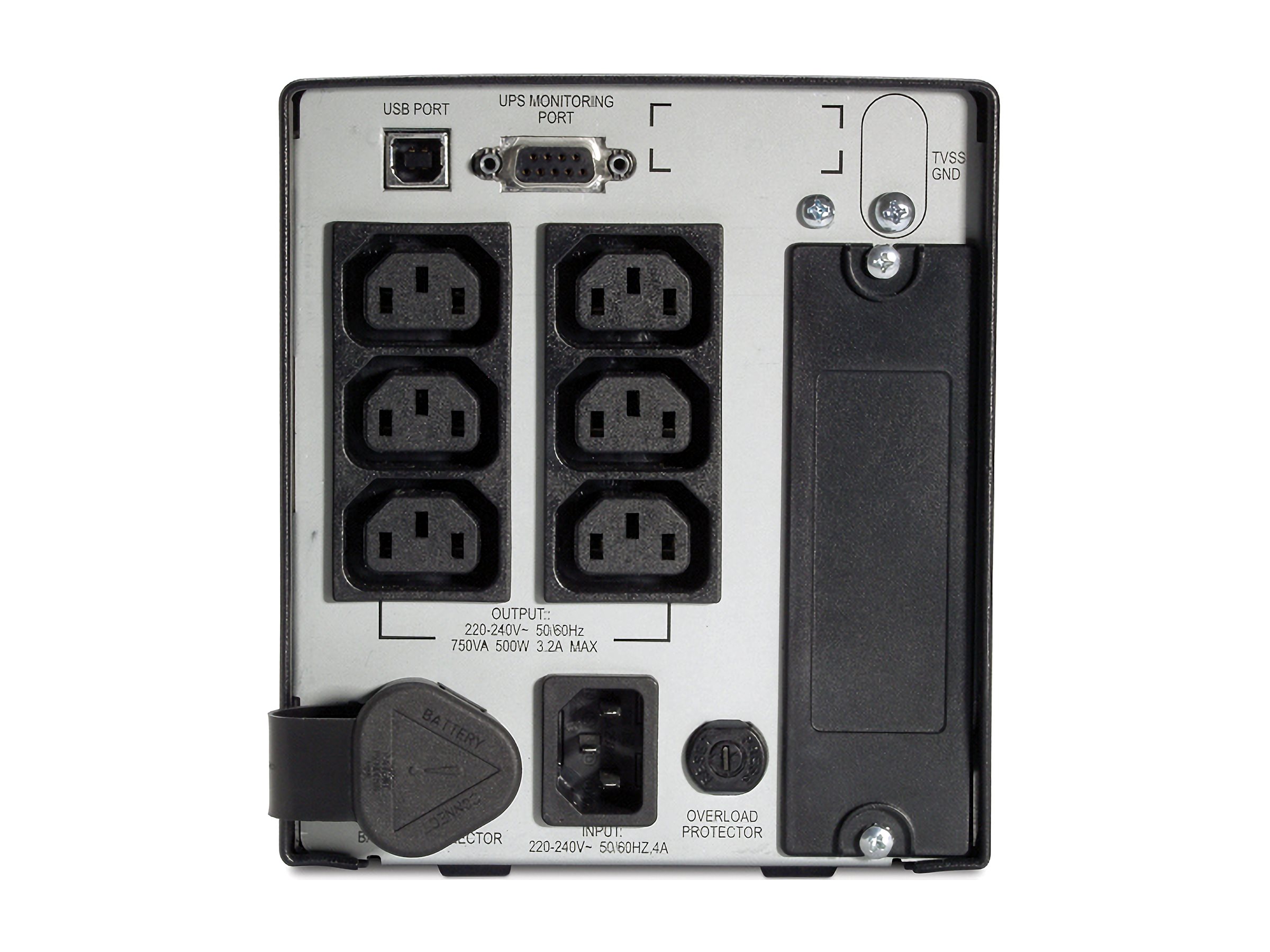

Power Output Connectors Details6 x power IEC 60320 C13
Surge Energy Rating340 Joules
Surge SuppressionYes
UPS TechnologyLine interactive
Software / System Requirements
Software IncludedDrivers & Utilities
