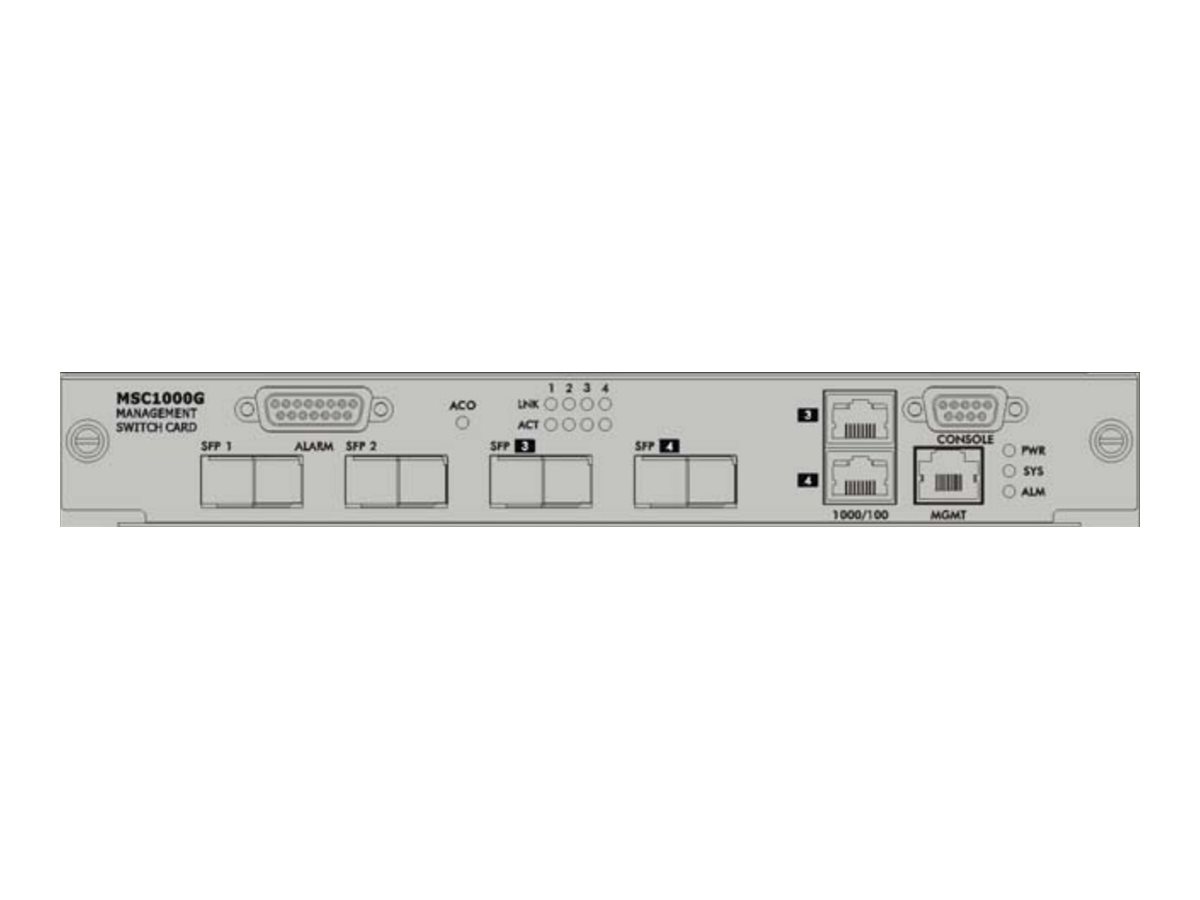

Zyxel MSC1000G - Management module
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Zyxel MSC1000G - Management module
- Gigabit SFP x 2 + combo Gigabit SFP x 2
- for IES 5005M, 5206M
| Additional Details | |
|---|---|
| Mfr Part #: | MSC1000G |
| SHI Part #: | 16624297 |
| Category: | Network interface cards |
| UNSPSC: | 43201404 |
| Manufacturer: | ZyXEL |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network interface cards |
| Description | Zyxel MSC1000G - Management module - Gigabit SFP x 2 + combo Gigabit SFP x 2 - for IES 5005M, 5206M |
| Manufacturer | ZyXEL |
| UNSPSC | 43201404 |
| Main Specifications | |
| Dimensions & Weight / Depth | 23.1 cm |
| Dimensions & Weight / Height | 3.755 cm |
| Dimensions & Weight / Weight | 1 kg |
| Dimensions & Weight / Width | 26.74 cm |
| Header / Brand | ZyXEL |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Type | Management module |
| Packaged Quantity | 1 |
| Compatibility Information | |
| Designed For | Zyxel IES 5005M, 5206M |
| Dimensions & Weight | |
| Depth | 23.1 cm |
| Height | 3.755 cm |
| Weight | 1 kg |
| Width | 26.74 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 65 °C |
| Min Operating Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Management module |
| Form Factor | Plug-in module |
| Miscellaneous | |
| Compliant Standards | FCC, ITU-T K.20, NEBS level 3, CSA 60950-1, EN 60950-1, IEC 60950-1, UL 60950-1, EMC, EN 300 386, EN 61000-3-2, EN 61000-3-3, EN55024 |
| Networking | |
| Cabling Type | Ethernet 100Base-TX, Ethernet 1000Base-T |
| Capacity | VLAN IDs: 4000 |
| Compliant Standards | IEEE 802.1ad, IEEE 802.1s, IEEE 802.1Q, IEEE 802.3, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Connectivity Technology | Wired |
| Data Link Protocol | Fast Ethernet, Gigabit Ethernet |
| Features | LACP support, MSTP support, full duplex mode, half duplex mode, switching, VLAN support |
| MAC Address Table Size | 16K entries |
| Performance | Switching fabric speed: 24 Gbps |
| Ports | Gigabit SFP x 2 + combo Gigabit SFP x 2 |
| Status Indicators | Alarm, power, system, link/activity |
| Power | |
| Power Consumption Operational | 20 Watt |
| Voltage Required | DC -36 V - -72 V |
