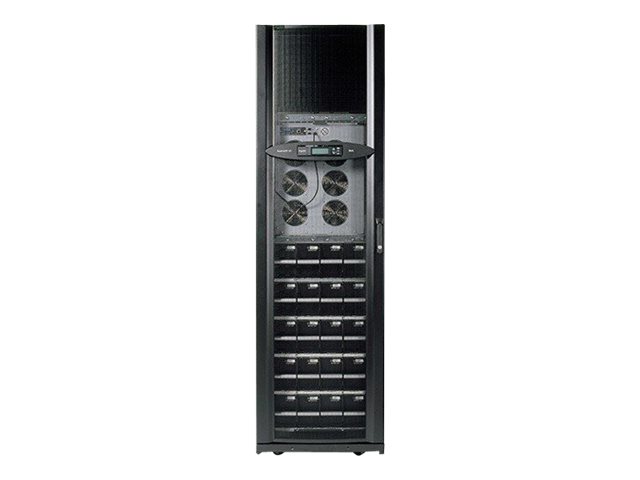

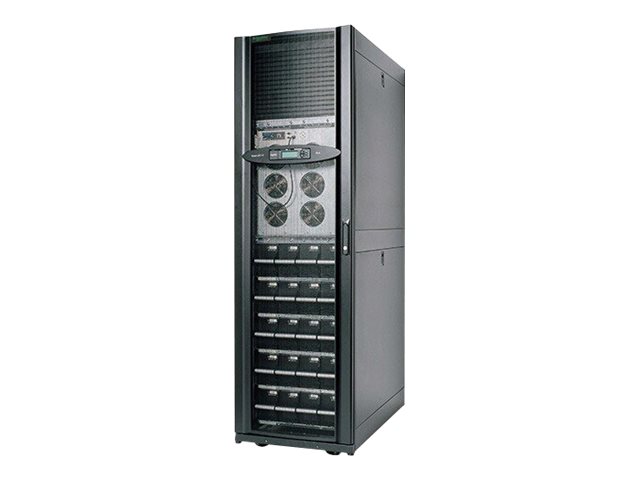

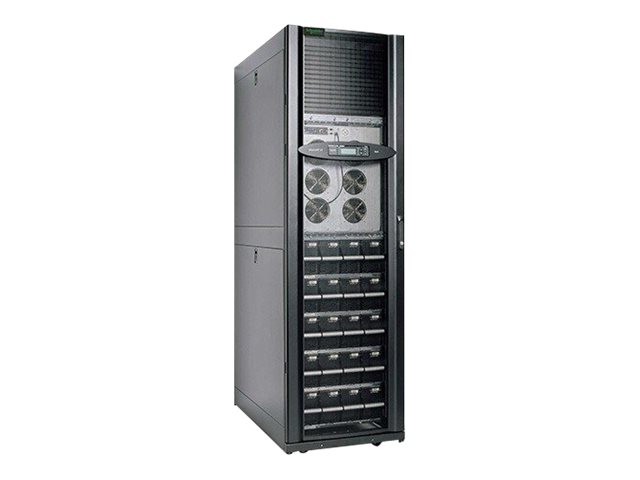

SMART UPS VT RACK MOUNTED 40KVA400V WITH 5 BATT MOD WITH PDU
MSRP$33,375.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
SMART UPS VT RACK MOUNTED 40KVA400V WITH 5 BATT MOD WITH PDU
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $33,375.00 |
| Mfr Part #: | SUVTR40KH5B5S |
| SHI Part #: | 16246103 |
| Category: | Power conditioning equipment |
| UNSPSC: | 39121000 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power conditioning equipment |
| Description | SMART UPS VT RACK MOUNTED 40KVA400V WITH 5 BATT MOD WITH PDU |
| Manufacturer | APC by Schneider Electric |
| MSRP | $33,375.00 |
| UNSPSC | 39121000 |
| Main Specifications | |
| Dimensions & Weight / Depth | 107.5 cm |
| Dimensions & Weight / Height | 199.5 cm |
| Dimensions & Weight / Weight | 749 kg |
| Dimensions & Weight / Width | 60 cm |
| General / Subcategory | UPS |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface | Ethernet 10/100 |
| Packaged Quantity | 1 |
| Power Device / Form Factor | External |
| Power Device / Output Connector Qty | 13 |
| Power Device / Power Capacity (VA) | 40000 VA |
| Power Device / UPS Technology | On-line |
| Power Device / Voltage Required | AC 380/400/415 V |
| Product Type | Power array |
| Service & Support / Type | 1-year warranty |
| Battery | |
| Quantity | 5 (installed) / 5 (supported) |
| Recharge Time | 3 hours |
| Run Time (Up To) | 8.6 min at full load |
| Technology | Lead acid |
| Dimensions & Weight | |
| Depth | 107.5 cm |
| Height | 199.5 cm |
| Weight | 749 kg |
| Width | 60 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 120.6 cm |
| Shipping Height | 209.5 cm |
| Shipping Weight | 873.18 kg |
| Shipping Width | 75.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 67 dBA |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Battery Enclosure Type | Internal |
| Color | Black |
| Device Type | Power array - external |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included | Serial cable - external |
| Compliant Standards | C-Tick, ISO 9001, IEC 61000-3-2, IEC 61000-3-3, ISO 14001, EN 50091-2, IEC 62040-3 |
| Features | Audible alarm, emergency power off, LCD display, built-in maintenance bypass, built-in static bypass, LED indicators |
| Networking | |
| Remote Management Interface | Ethernet 10/100 |
| Remote Management Protocol | SNMP, HTTP |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Provided | 50 Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 x hardwire 5-wire (3PH + N + G) |
| Input Voltage | AC 380/400/415 V |
| Input Voltage Range | AC 304 - 477 V |
| Input Wiring | 3-phase |
| Output Voltage | AC 230/380/400/415 V ± 5% - 50 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 40000 VA |
| Power Output Connectors Details |
|
| UPS Technology | On-line |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
