APC Symmetra LX 16kVA N+1 Extended Run Tower
MSRP$15,700.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
APC Symmetra LX 16kVA N+1 Extended Run Tower
- Power array
- AC 220/230/240/380/400/415 V
- 11.2 kW
- 16000 VA
- no battery
- Ethernet 10/100, RS-232
- output connectors: 1
- black, silver
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $15,700.00 |
| Mfr Part #: | SYAF16KXR9I |
| SHI Part #: | 14690306 |
| Category: | Uninterruptible power supplies |
| UNSPSC: | 39121011 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
Network Interface Cards
Storage Networking (SAN)
| General Information | |
|---|---|
| Category | Uninterruptible power supplies |
| Description | APC Symmetra LX 16kVA N+1 Extended Run Tower - Power array - AC 220/230/240/380/400/415 V - 11.2 kW - 16000 VA - no battery - Ethernet 10/100, RS-232 - output connectors: 1 - black, silver |
| Manufacturer | APC by Schneider Electric |
| MSRP | $15,700.00 |
| UNSPSC | 39121011 |
| Main Specifications | |
| Dimensions & Weight / Depth | 72.6 cm |
| Dimensions & Weight / Height | 93.7 cm |
| Dimensions & Weight / Weight | 182 kg |
| Dimensions & Weight / Width | 48.3 cm |
| General / Subcategory | UPS |
| Header / Brand | APC |
| Miscellaneous / Product Color |
|
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | External |
| Power Device / Output Connector Qty | 1 |
| Power Device / Power Capacity (VA) | 16000 VA |
| Power Device / UPS Technology | On-line |
| Power Device / Voltage Required | AC 220/230/240/380/400/415 V |
| Product Type | Power array |
| Service & Support / Type | 2-year warranty |
| Battery | |
| Quantity | 13 (supported) |
| Type | No battery |
| Dimensions & Weight | |
| Depth | 72.6 cm |
| Height | 93.7 cm |
| Weight | 182 kg |
| Width | 48.3 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 99.7 cm |
| Shipping Height | 118 cm |
| Shipping Weight | 214 kg |
| Shipping Width | 59.9 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 62 dBA |
| Expansion / Connectivity | |

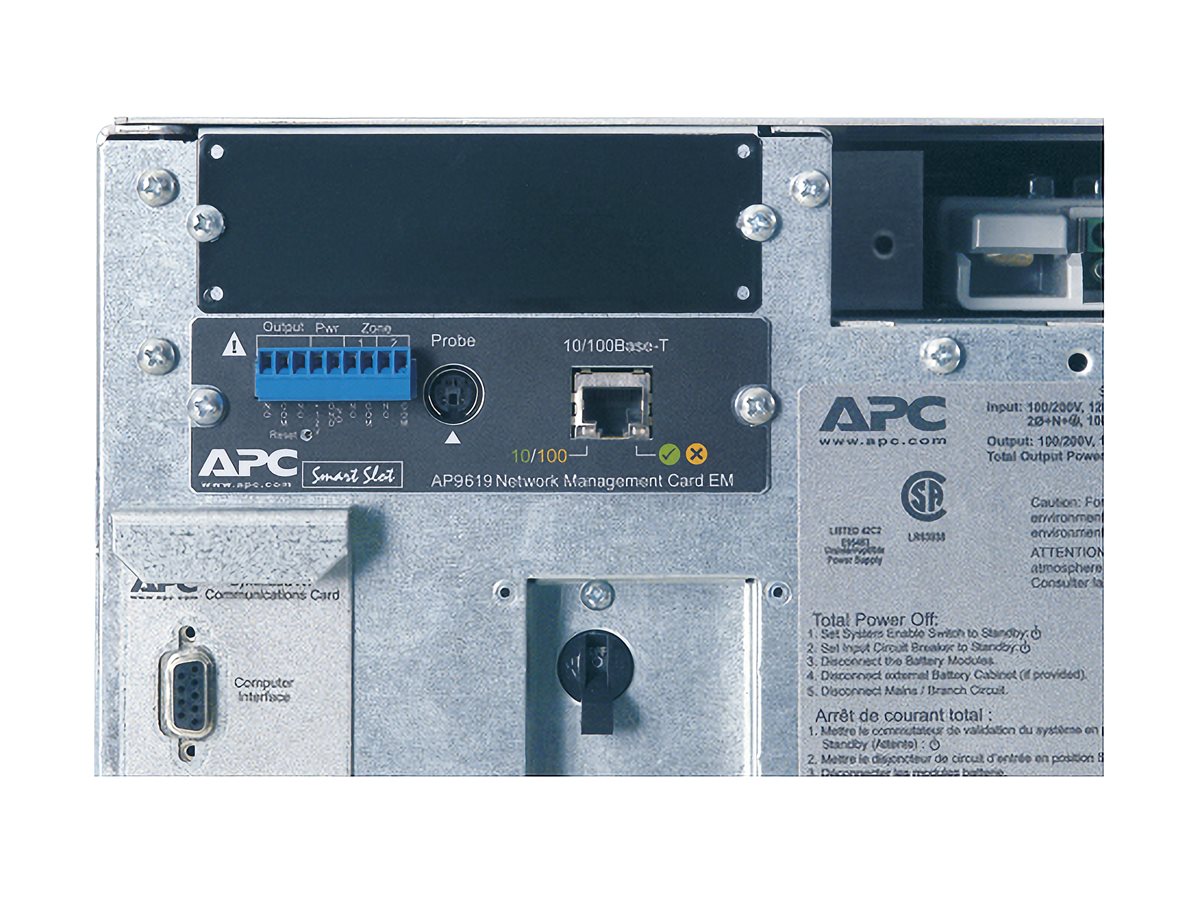

| Expansion Slots | 2 (total) / 1 (free) x SmartSlot |
| Interfaces |
|
| General | |
| Color | Black, silver |
| Device Type | Power array - external |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | C-Tick, EN 60950, VDE, IEC 60950, EN55024, EN55022 Class A, EN 50091-2, EN 50091-1 |

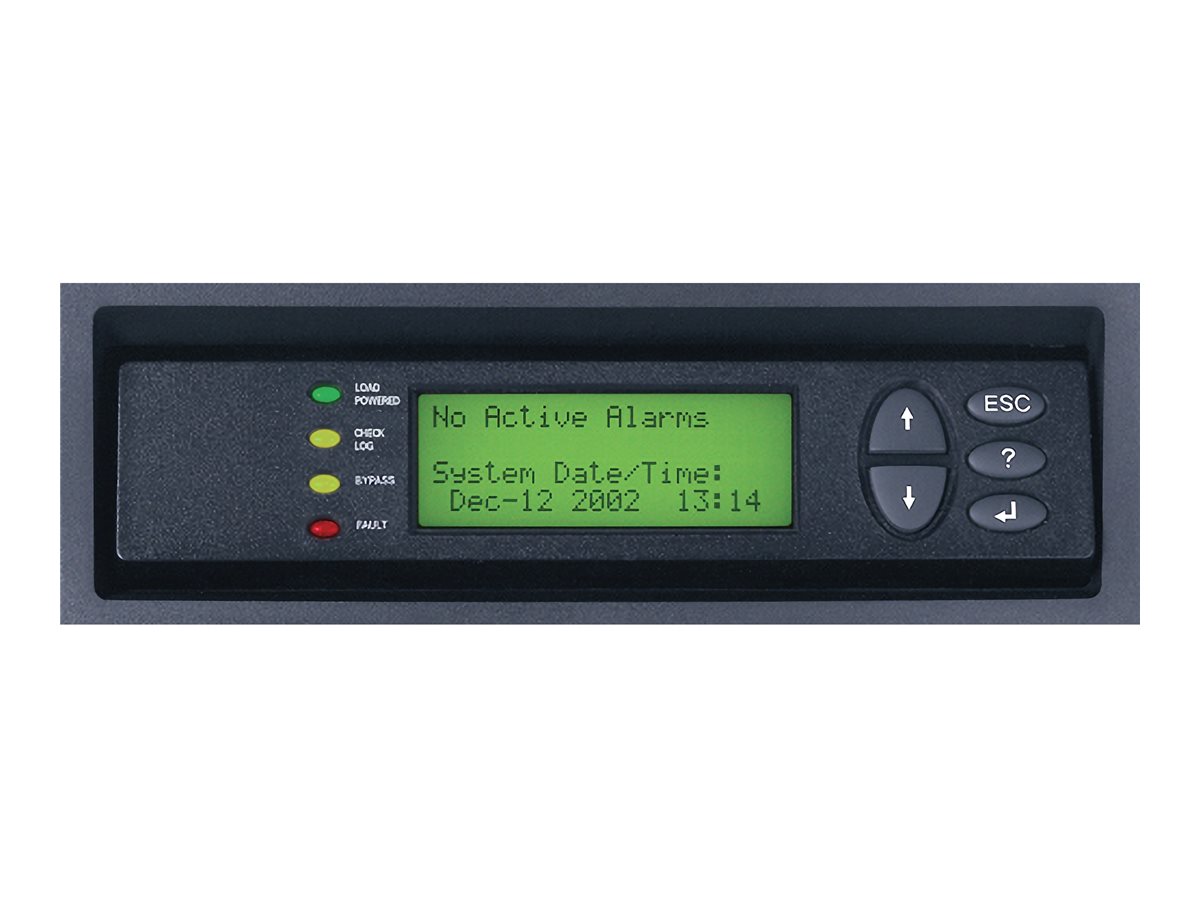

| Features | Audible alarm, emergency power off, LCD display, internal bypass |
| Networking | |
| Remote Management Interface | Ethernet 10/100, RS-232 |
| Remote Management Protocol | SNMP, Telnet, HTTP |
| Power Device | |
| Frequency Provided | 47 - 63 Hz |
| Frequency Required | 45 - 65 Hz |
| Input Connectors | 2 x hardwire 5-wire (3PH + N + G), hardwire 3-wire (1PH + N + G) |
| Input Voltage | AC 220/230/240/380/400/415 V |
| Input Voltage Range | AC 155/276 - 290/480 V |
| Output Voltage | AC 220/230/240 V ± 5% - 47 - 63 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 11.2 kW / 16000 VA |
| Power Output Connectors Details | 1 x hardwire 3-wire (HN + G) |
| Power Redundancy | Optional |
| Power Redundancy Scheme | N+1 (with optional power supply) |
| UPS Technology | On-line |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
