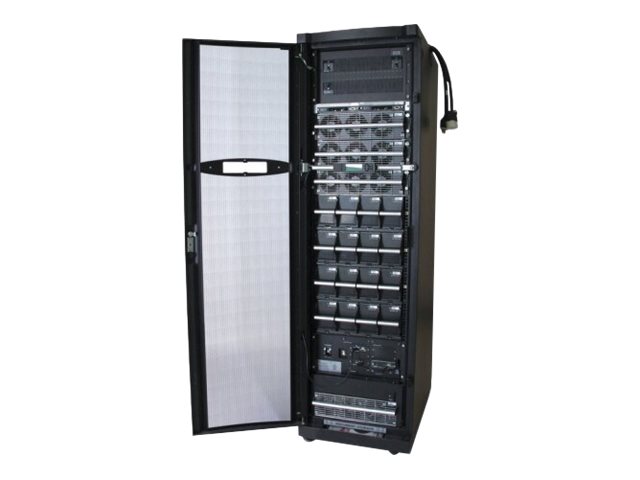

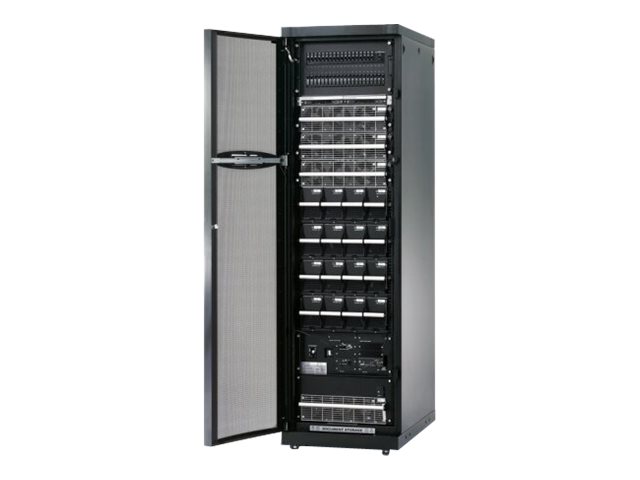

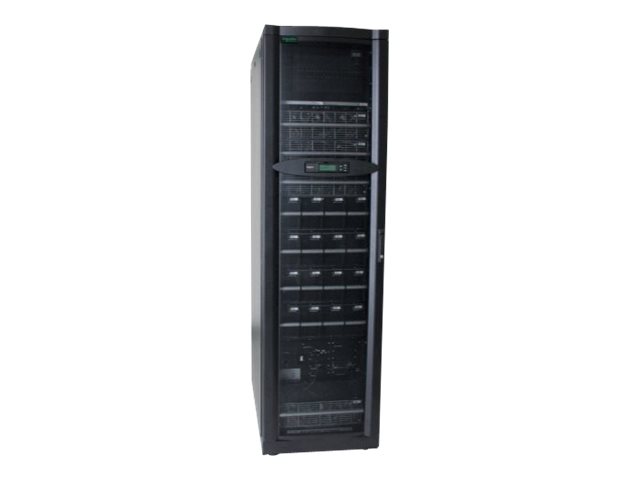

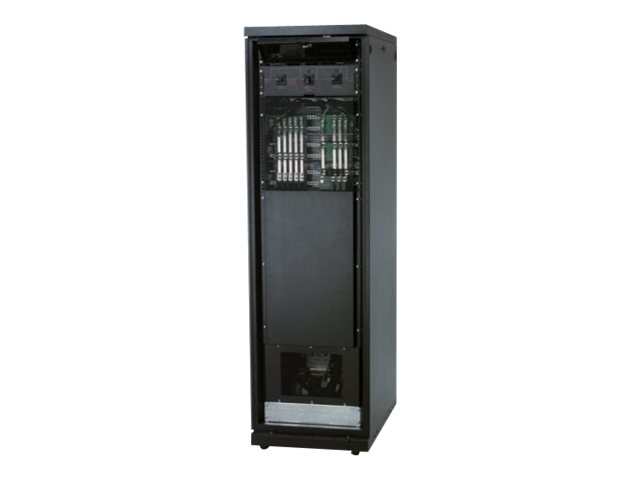

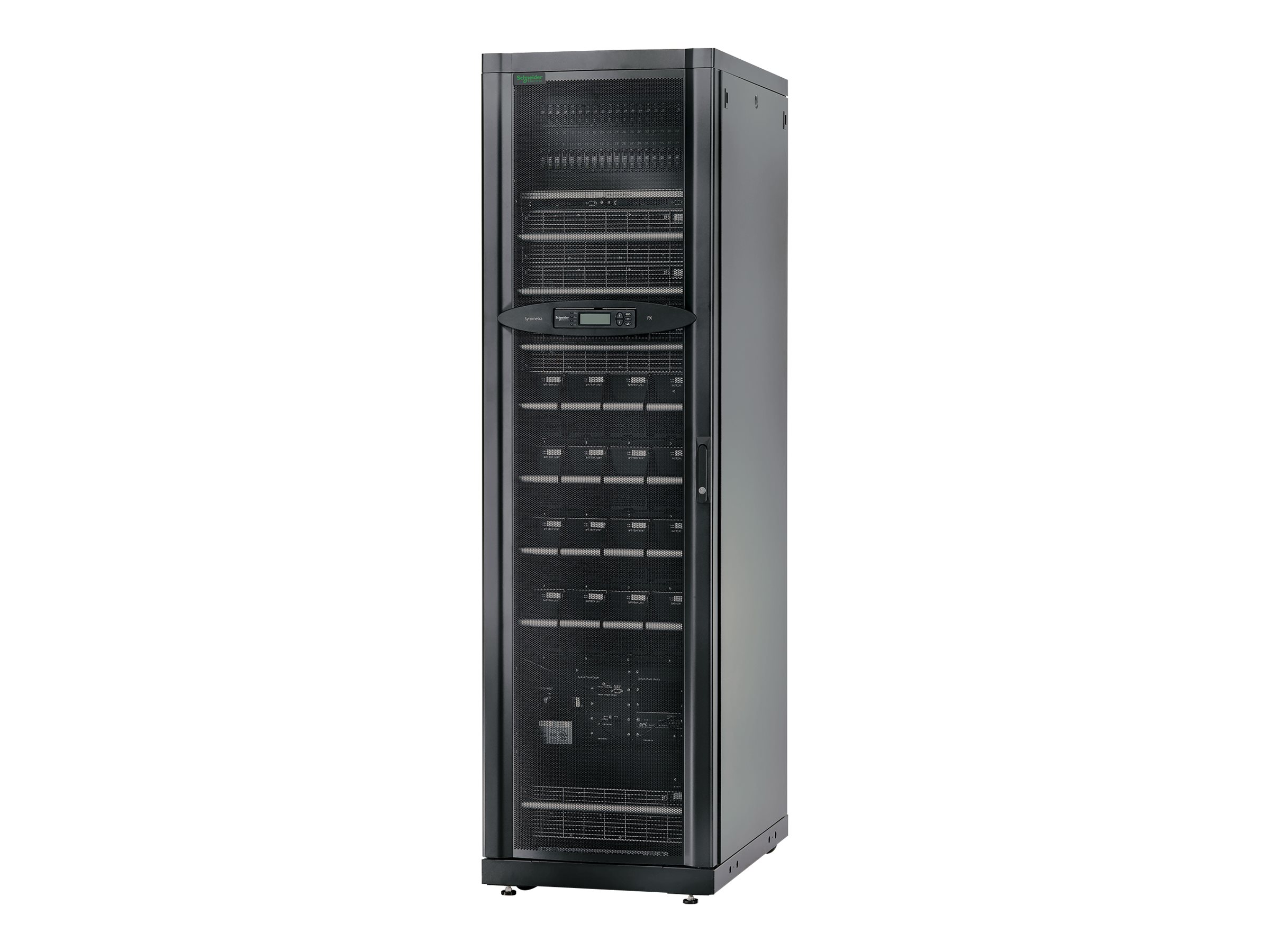

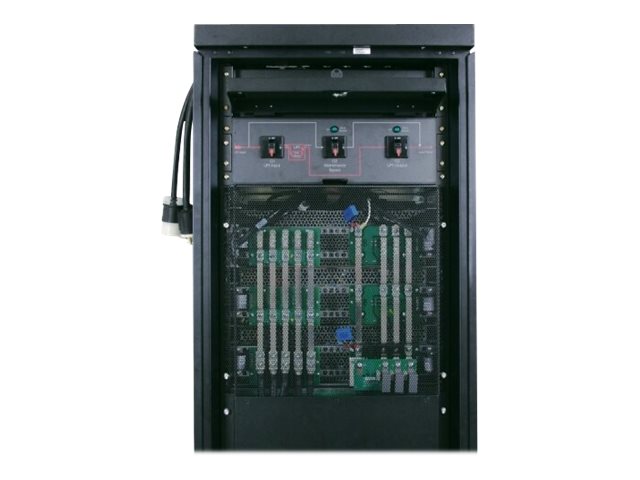

SYMMETRA PX INFRASTRUXURE 20KVA 208V 3PH HARDWIRED 42U SMART-SLOT
MSRP$61,005.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
SYMMETRA PX INFRASTRUXURE 20KVA 208V 3PH HARDWIRED 42U SMART-SLOT
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $61,005.00 |
| Mfr Part #: | ISX20K20F |
| SHI Part #: | 14617232 |
| Category: | Power conditioning equipment |
| UNSPSC: | 39121000 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power conditioning equipment |
| Description | SYMMETRA PX INFRASTRUXURE 20KVA 208V 3PH HARDWIRED 42U SMART-SLOT |
| Manufacturer | APC by Schneider Electric |
| MSRP | $61,005.00 |
| UNSPSC | 39121000 |
| Main Specifications | |
| Dimensions & Weight / Depth | 90.2 cm |
| Dimensions & Weight / Height | 207 cm |
| Dimensions & Weight / Weight | 670.5 kg |
| Dimensions & Weight / Width | 61 cm |
| General / Subcategory | UPS |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface | Ethernet 10/100 |
| Packaged Quantity | 1 |
| Power Device / Form Factor | External |
| Power Device / Output Connector Qty | 9 |
| Power Device / Power Capacity (VA) | 20000 VA |
| Power Device / Voltage Required | AC 208 V |
| Product Type | UPS |
| Service & Support / Type | 1-year warranty |
| Battery | |
| Technology | Lead acid |
| Dimensions & Weight | |
| Depth | 90.2 cm |
| Height | 207 cm |
| Weight | 670.5 kg |
| Width | 61 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Expansion Slots | SmartSlot |
| General | |
| Color | Black |
| Device Type | UPS - Power Factor Correction (PFC) - external |
| Enclosure Internal Space | 42 U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, CSA, IEC 61000-3-2, IEC 61000-3-3, UL 1778, FCC Part 15 |
| Features | Audible alarm |
| Networking | |
| Remote Management Interface | Ethernet 10/100 |
| Remote Management Protocol | SNMP, Telnet, HTTP |
| Power Device | |
| Frequency Provided | 60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | Hardwire |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 177 - 240 V |
| Output Voltage | AC 120/208 V 60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 20 kW / 20000 VA |
| Power Output Connectors Details | 9 x power NEMA L21-20 |
