SYMMETRA LX 12KVA SCALABLE TO16KVA N+1 208/240V NO RETURN


MSRP$36,450.00
$27,061.00
SYMMETRA LX 12KVA SCALABLE TO16KVA N+1 208/240V NO RETURN

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
SYMMETRA LX 12KVA SCALABLE TO16KVA N+1 208/240V NO RETURN
  Additional Details
Price: $27,061.00
MSRP: $36,450.00
Mfr Part #: SYA12K16PXR
SHI Part #: 14581006
Category: Rechargeable batteries
UNSPSC: 26111701
Manufacturer: APC
Product Type: Hardware
Product Line: APC by Schneider Electric

Audio/Video Cables

APC - Serial cable - RJ-45 (M) to DB-9 (F)
  • 2 m
  • for P/N: SRV1KA-TW, SRV1KI-TW, SRV2KA-TW, SRV2KI-TW, SRV3KA-TW, SRV3KI-TW, SRV6KI-TW
MSRP $40.00 $32.00
APC - Serial cable - RJ-45 (M) to DB-9 (F)
  • 4.57 m
  • for P/N: SRV1KA-TW, SRV1KI-TW, SRV2KA-TW, SRV2KI-TW, SRV3KA-TW, SRV3KI-TW, SRV6KI-TW
MSRP $60.00 $49.00
APC Simple Signaling
  • Serial cable
  • for P/N: SRV1KA-TW, SRV1KI-TW, SRV2KA-TW, SRV2KI-TW, SRV3KA-TW, SRV3KI-TW, SRV6KI-TW
MSRP $102.00 $82.00

Control/Interface Boards

APC SmartSlot Triple Chassis
  • System bus extender
  • for P/N: G3H10K3IM6X710, G3H10K3IM9X710, SRC1KI, SYA8K16PX798, SYA8K16PXRX798, SYA8K8PX798
MSRP $593.00 $452.00
APC SmartSlot Expansion Chassis
  • System bus extender
  • for Matrix-UPS
MSRP $191.00 $141.00
General Information
CategoryRechargeable batteries
DescriptionSYMMETRA LX 12KVA SCALABLE TO16KVA N+1 208/240V NO RETURN
ManufacturerAPC
MSRP$36,450.00
UNSPSC26111701
Main Specifications
Dimensions & Weight / Depth72.6 cm
Dimensions & Weight / Height151.6 cm
Dimensions & Weight / Width48.3 cm
General / SubcategoryUPS
Header / BrandAPC
Miscellaneous / Product Color
  • Black
  • Silver
Networking / Remote Management InterfaceEthernet 10/100
Packaged Quantity1
Power Device / Form FactorExternal
Power Device / Output Connector Qty1
Power Device / Power Capacity (VA)12000 VA
Power Device / Voltage RequiredAC 208/240 V
Product TypePower array
Service & Support / Type2-year warranty
Battery
Recharge Time3 hours
Run Time (Up To)30 min at full load
TechnologyLead acid
Dimensions & Weight
Depth72.6 cm
Height151.6 cm
Width48.3 cm
Environmental Parameters
Humidity Range Operating0 - 95%
Humidity Range Storage0 - 95%
Max Operating Temperature40 °C
Max Storage Temperature45 °C
Min Operating Temperature0 °C
Min Storage Temperature-15 °C
Sound Emission62 dB
Expansion / Connectivity
Expansion Slots3 (total) / 2 (free) x SmartSlot
Interfaces
  • 1 x management (RS-232) - 9 pin D-Sub (DB-9)
  • 1 x management (Ethernet) - RJ-45
General
ColorBlack, silver
Device TypePower array - external
Height (Rack Units)32U
Manufacturer Warranty
Service & SupportLimited warranty - 2 years
Miscellaneous
Compliant StandardsFCC Class A certified, CSA, UL 1778

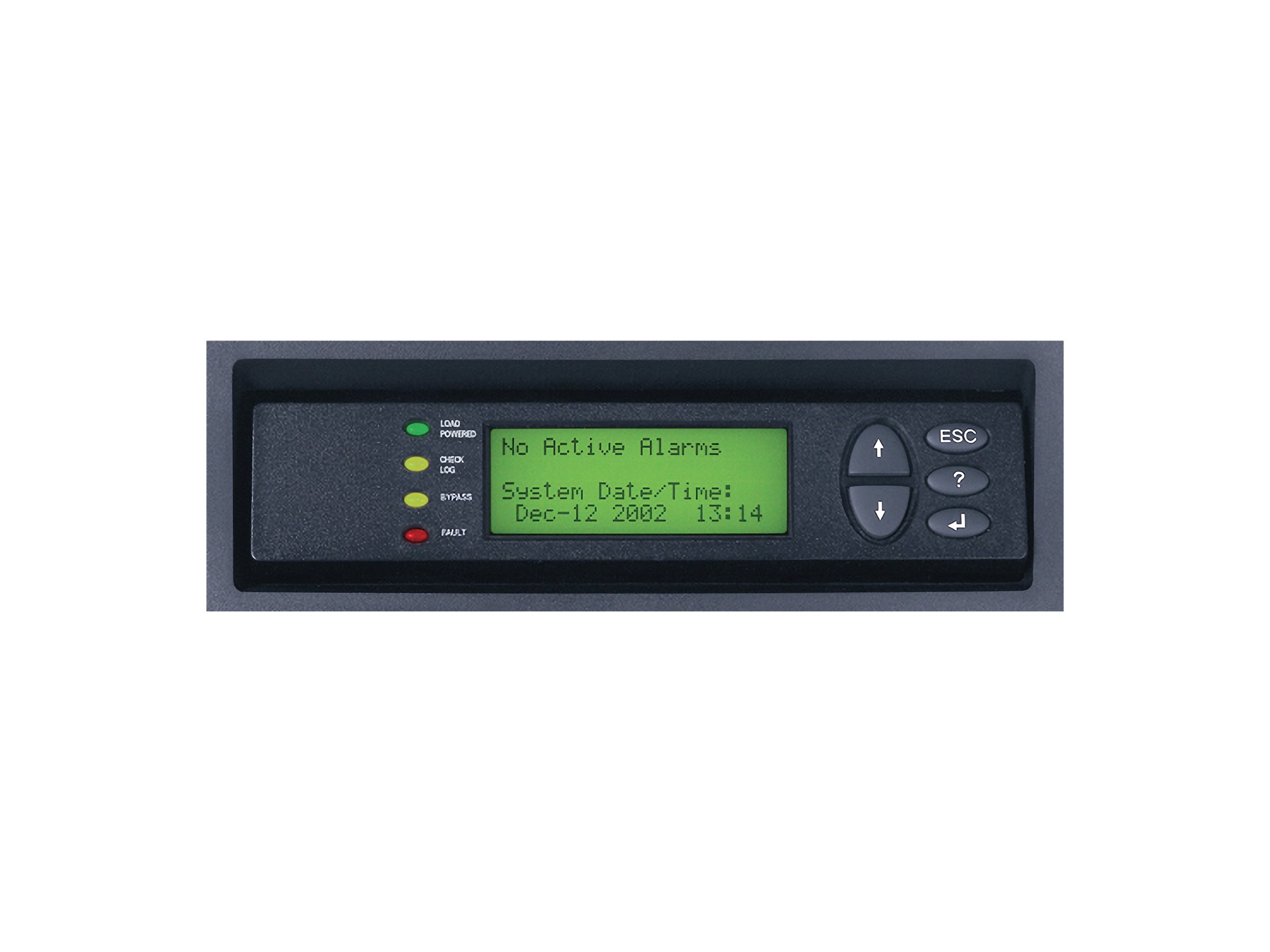

FeaturesEmergency power off, LCD display, audible alarm
Networking
Remote Management InterfaceEthernet 10/100
Remote Management ProtocolSNMP
Power Device
Frequency Provided47 - 63 Hz
Frequency Required45 - 65 Hz
Input Connectors1 x hardwire
Input VoltageAC 208/240 V
Input Voltage RangeAC 166 - 276 V
Output VoltageAC 120/208/240 V ± 5% - 47 - 63 Hz
Output WaveformSinewave
Power Capacity12000 VA
Power Output Connectors Details1 x hardwire
Supported Battery TechnologyLead acid
Software / System Requirements
Software IncludedAPC PowerChute Symmetra Bundle
