AXIS Q63 Series Q6300-E
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

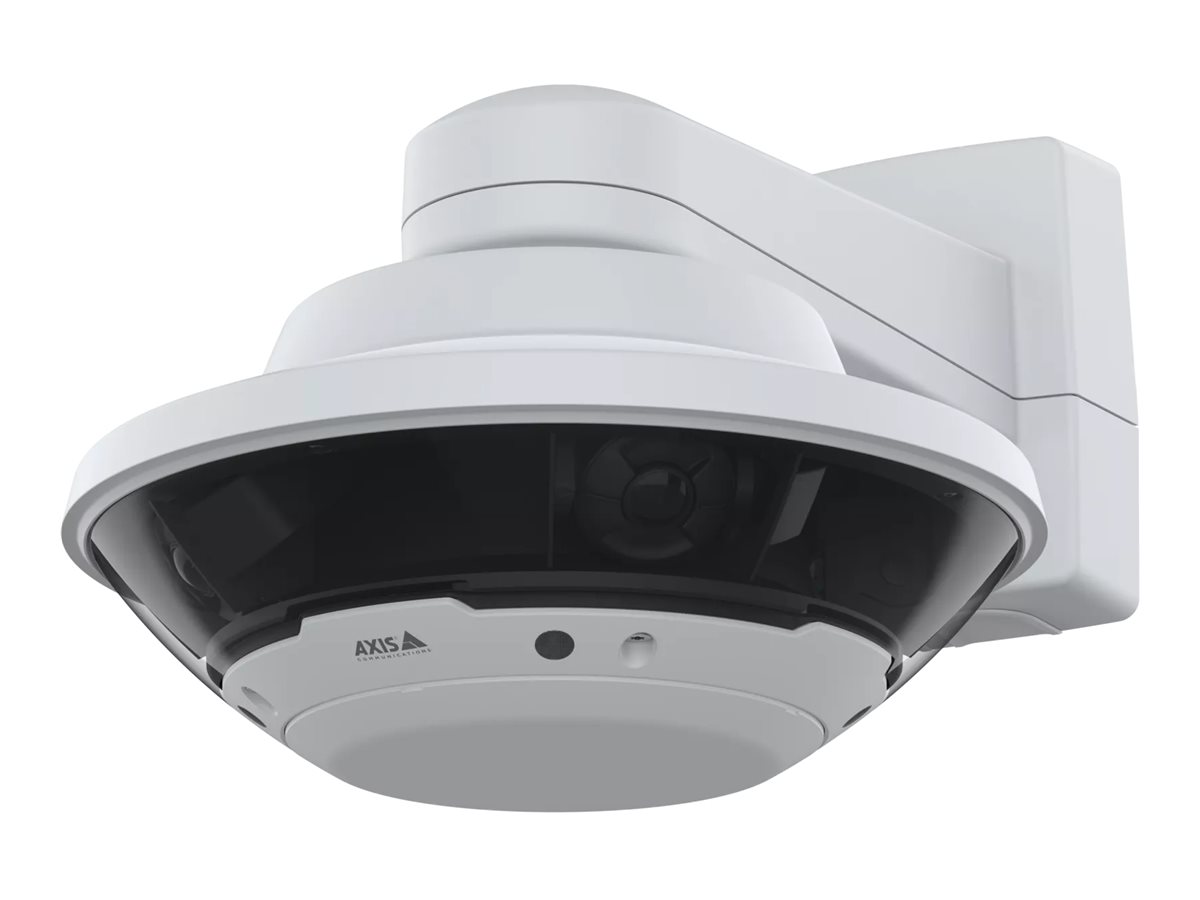

AXIS Q63 Series Q6300-E
- Network panoramic camera
- dome
- outdoor
- vandal / weatherproof
- color (Day&Night)
- 4 x 5 MP
- 2592 x 1944
- M14 mount
- fixed iris
- audio
- GbE
- H.264, H.265, MJPEG, MPEG-4 Part 10, MPEG-H Part 2
- High PoE Class 6
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 02943-001 |
| SHI Part #: | 50282289 |
| Category: | Cameras |
| UNSPSC: | 45121500 |
| Manufacturer: | Axis Communications |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Cameras |
| Description | AXIS Q63 Series Q6300-E - Network panoramic camera - dome - outdoor - vandal / weatherproof - color (Day&Night) - 4 x 5 MP - 2592 x 1944 - M14 mount - fixed iris - audio - GbE - H.264, H.265, MJPEG, MPEG-4 Part 10, MPEG-H Part 2 - High PoE Class 6 |
| Manufacturer | Axis Communications |
| MSRP | $2,409.00 |
| UNSPSC | 45121500 |
| Main Specifications | |
| Dimensions & Weight / Depth | 36.1 cm |
| Dimensions & Weight / Height | 17.91 cm |
| Dimensions & Weight / Weight | 4 kg |
| Dimensions & Weight / Width | 36.1 cm |
| Header / Brand | Axis |
| Header / Country Kits |
|
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Camera | |
| Digital Video Capture Resolution | 2592 x 1944, 320 x 320 |
| Digital Video Format | H.264, H.265, MJPEG, MPEG-4 Part 10, MPEG-H Part 2 |
| Exposure Range | 1/66500 sec - 2 sec |
| Features | Panorama Capture, Double Panorama Capture, Corridor mode, Wide Dynamic Range (WDR), 360° field of view, compression, auto gain control, auto low-light correction, brightness control, contrast control, day/night threshold, exposure control, exposure zone, Forensic WDR, image mirror, image overlay, polygon privacy mask, saturation control, sharpness control, text overlay, tone correction, white balance, adjustable zoom speed, digital PTZ function, guard tour, lens preset positioning, on-screen directional indicator, tour recording, Access Control, digest authentication, HTTPs encryption, IP address filtering, password protection, secure boot, signed firmware, active tampering alarm, Pixel Counter Support, Power over Ethernet, NAS-Ready, Lightfinder 2.0 technology, OptimizedIR, Axis Edge Vault, Zipstream technology, signed OS, remote focus, 95° rotation, noise reduction |
| Flash Memory | 8 GB |
| Frame Rate (max) | 30 frames per second |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 2592 x 1944 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 8 GB |
| Type | Color - Day&Night - fixed - outdoor - vandal / weatherproof |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -50 °C |
| Relative Humidity (operating) | 5 - 95% RH (non-condensing) |
| Expansion / Connectivity | |
| Encryption Algorithm | FIPS 140-3 Level 3 |
| Supported Memory Cards | SD Memory Card, SDHC Memory Card, SDXC Memory Card |
| General | |
| Audio Support | Yes |
| Camera Mount Type | Ceiling mount |
| Connectivity Technology | Wired |
| Depth | 36.1 cm |
| Device Type | Network panoramic camera |
| Form Factor | Dome |
| Height | 17.91 cm |
| Localization | Brazil, Japan, Korea, United States |
| Weight | 4 kg |
| Width | 36.1 cm |
| Image Sensor | |
| Type | 4 x 5 MP PS RGB CMOS 1/1.7" |
| Interfaces | |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | IPv4, IPv6, USGv6, ICMP, HTTP, HTTPS, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DDNS, NTP, NTS, RTSP, RTP, RTCP, SRTP, RTSPS, TCP/IP, UDP/IP, IGMP, DHCP, ARP, IGMPv2, IGMPv3, SSH, NTCIP, LLDP, CDP, MQTT, Syslog, Zeroconf |
| Lens Construction | |
| Focal Length | 3.7 mm |
| Focus Adjustment | Automatic |
| Horizontal Field of View (degree) | 360 |
| Lens Iris | F/2.0 fixed iris |
| Type | M14 mount |
| Vertical Field of View (degree) | 84 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | IK10, IP66, IP67, NEMA Type 4X, BFR-free, PVC-free, IEEE 802.1x, NEMA 4, IEEE 802.3af, IEEE 802.3at, AS/NZS CISPR 32 Class A, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, EN55024, FCC Part 15 B Class A, ICES-3(A)/NMB-3(A), IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC 60721-3-5 Class 5M3, IEC/EN 60529 IP66, IEC/EN 62262, IEC/EN 62471, IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, IPv6, KN32 Class A, KN35, NEMA TS-2-2016, NEMA250 Type 4X, NIST SP500-267, USGv6, VCCI Class A |
| Included Accessories | Drill hole template, cable gaskets, connector guard, I/O connector, Resitorx TR20 screw bit, mounting bracket, cable hole lid, view protector |
| Panning | |
| Range (degree) | 180 |
| Power | |
| Power Device | Power injector - external AC 100-240 V |
| Power Requirements | High PoE Class 6 |
| Software / System Requirements | |
| Software Included | Windows decoder 1-user license, AXIS Device Manager, AXIS Companion, AXIS Camera Station, AXIS Video Motion Detection |
| Tilting | |
| Range (degree) | -40 to +75 |
