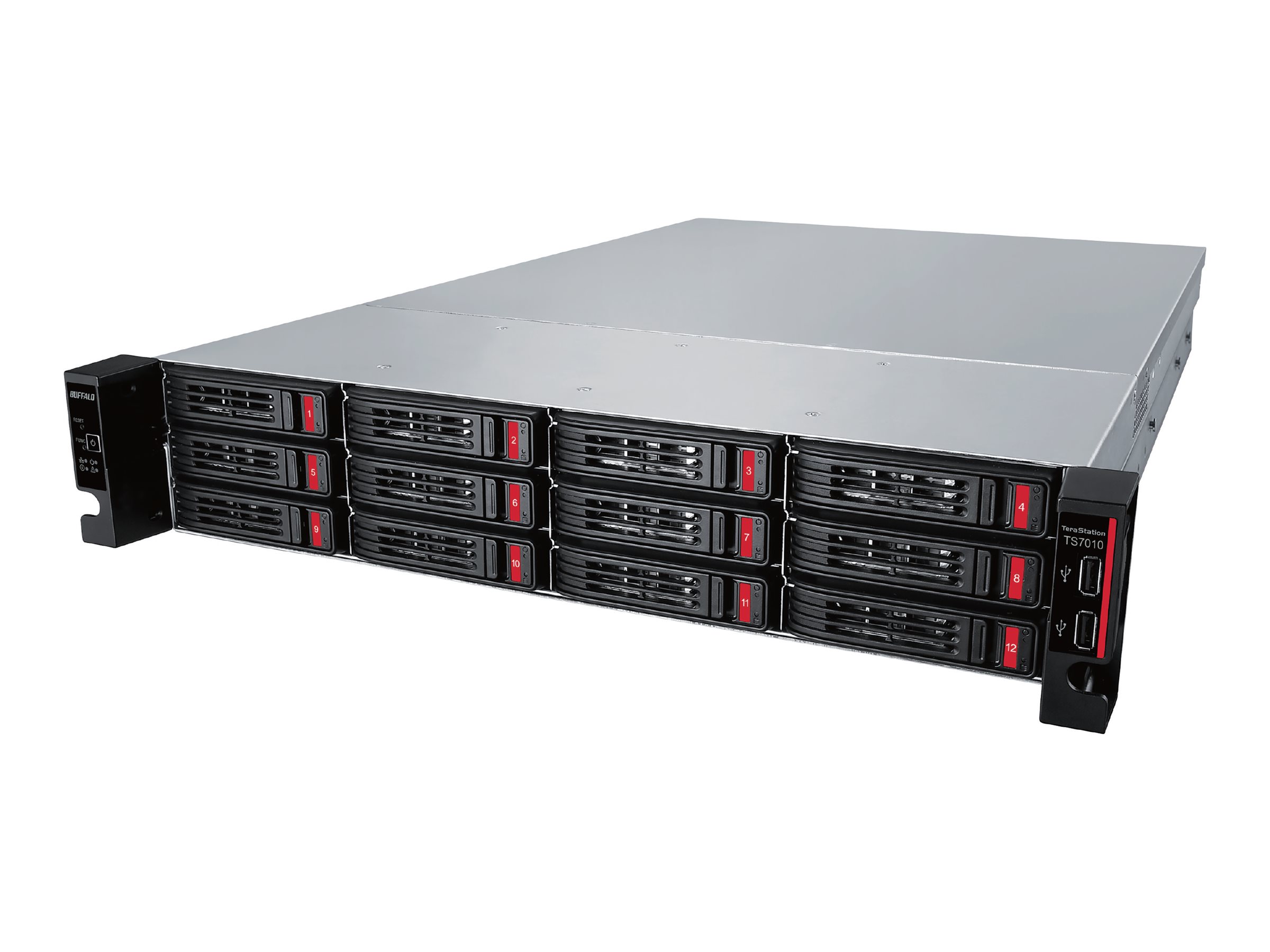

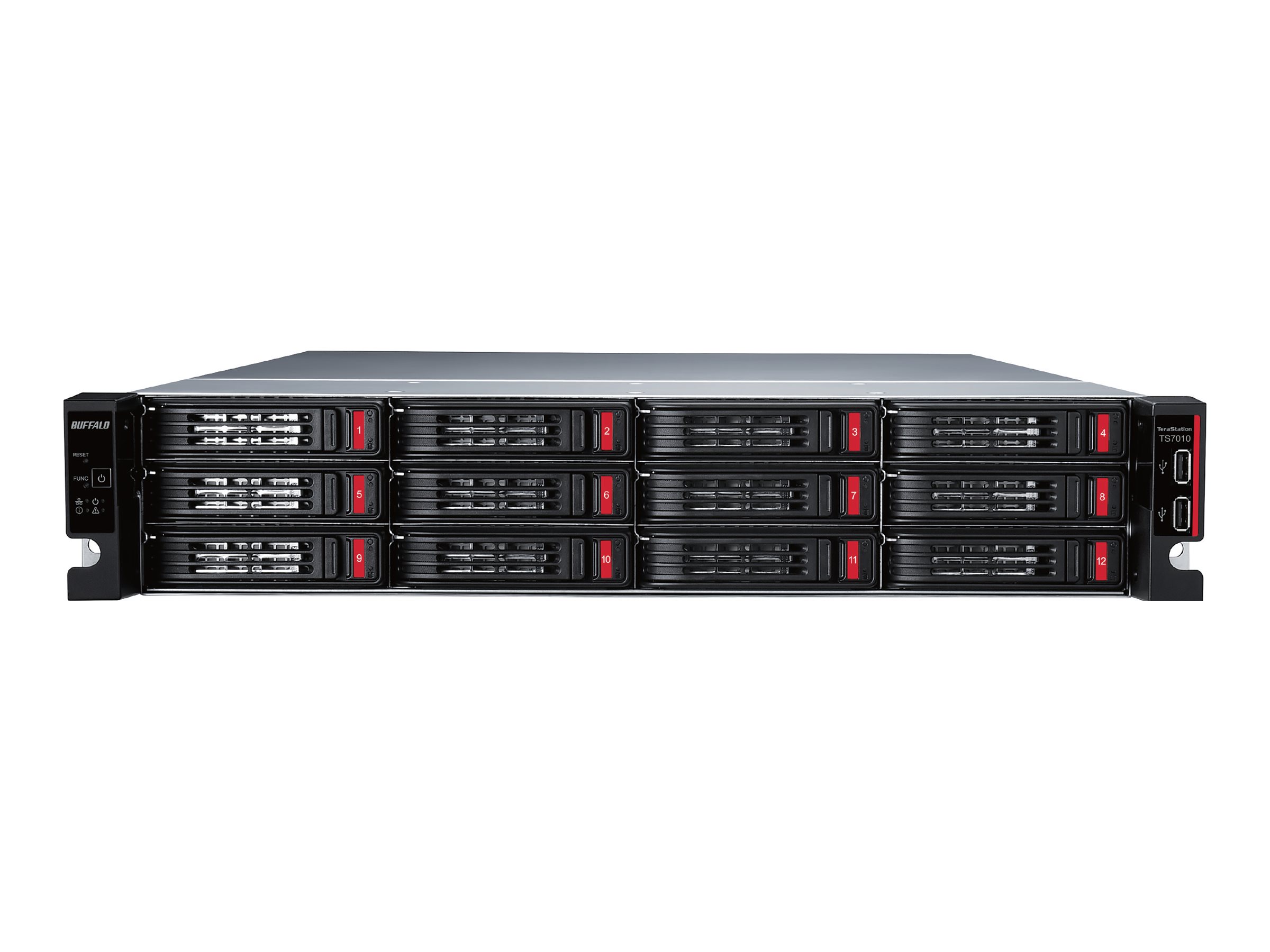

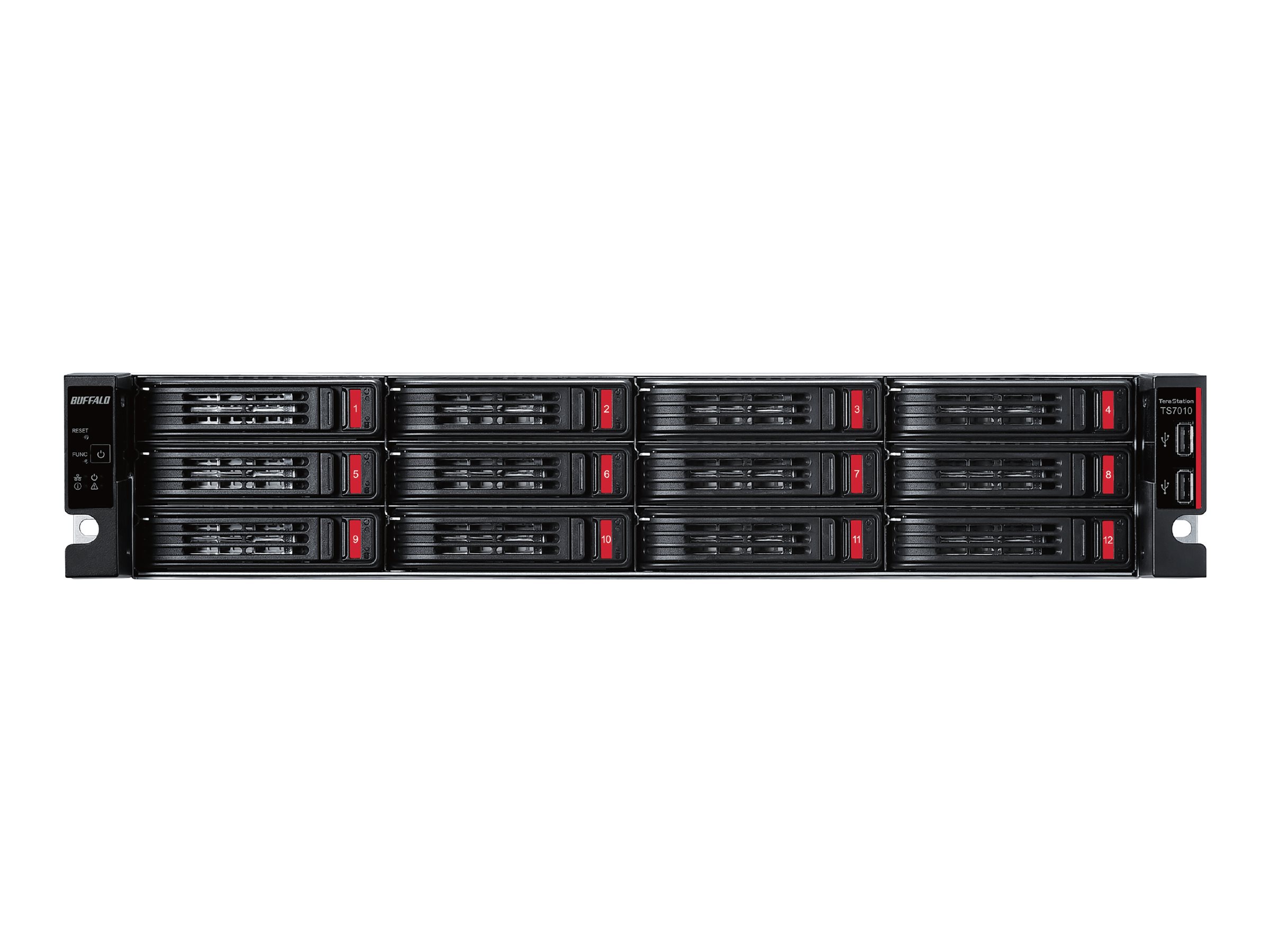

Buffalo TeraStation 71210RH Series TS71210RH24012
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Buffalo TeraStation 71210RH Series TS71210RH24012
- NAS server
- 12 bays
- 240 TB
- rack-mountable
- SATA 6Gb/s
- HDD 20 TB x 12
- RAID 0, 1, 5, 6, 10, JBOD
- RAM 16 GB
- 10 Gigabit Ethernet
- iSCSI support
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | TS71210RH24012 |
| SHI Part #: | 45832447 |
| Category: | Electronic data storage equipment |
| UNSPSC: | 43201800 |
| Manufacturer: | Buffalo Technology |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Electronic data storage equipment |
| Description | Buffalo TeraStation 71210RH Series TS71210RH24012 - NAS server - 12 bays - 240 TB - rack-mountable - SATA 6Gb/s - HDD 20 TB x 12 - RAID 0, 1, 5, 6, 10, JBOD - RAM 16 GB - 10 Gigabit Ethernet - iSCSI support - TAA Compliant |
| Manufacturer | Buffalo Technology |
| MSRP | $25,759.99 |
| UNSPSC | 43201800 |
| Main Specifications | |
| Dimensions & Weight / Depth | 73.69 cm |
| Dimensions & Weight / Height | 8.8 cm |
| Dimensions & Weight / Weight | 24.3 kg |
| Dimensions & Weight / Width | 48.1 cm |
| Hard Drive / Capacity | 20 TB |
| Hard Drive / Form Factor | 3.5" |
| Hard Drive / Interface | Serial ATA-600 |
| Hard Drive / Interface Type | Serial ATA-600 |
| Header / Brand | Buffalo |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Optical Storage / Type | None |
| Packaged Quantity | 1 |
| Processor / Processor Number | D-1713NT |
| Processor / Type | Xeon |
| Storage / Rack-mountable | Rack-mountable |
| System Requirements / OS Required |
|
| Environmental Parameters | |
| Humidity Range Operating | 10 - 85% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Expansion Bays | 12 (total) / 0 (free) x hot-swap - 3.5" |
| Expansion Slots |
|
| Interfaces |
|
| General | |
| Built-in Devices | 2 x 80 mm square double ball bearing fans |
| Depth | 73.69 cm |
| Device Type | NAS server |
| Enclosure Type | Rack-mountable |
| Height | 8.8 cm |
| Host Connectivity | 10 Gigabit Ethernet |
| Installed Devices / Modules Qty | 12 (installed) / 12 (max) |
| Storage Capacity Details |
|
| Total Storage Capacity | 240 TB |
| Weight | 24.3 kg () |
| Width | 48.1 cm |
| Hard Drive | |
| Capacity | 12 x 20 TB |
| Data Transfer Rate | 600 MBps |
| Features | Enterprise, Conventional magnetic recording (CMR), RAID 6 - factory configured, Nearline, hardware encryption |
| Interface Type | SATA 6Gb/s |
| Spindle Speed | 7200 rpm |
| Type | HDD - hot-swap - 3.5" |
| Miscellaneous | |
| Cables Included | 1 x network cable - 2 m |
| Compliant Standards | RoHS, VCCI Class A |
| Features | Hot spare support, replication, failover, online storage linkage, port trunking / NIC teaming, quota function, collective backup function |
| Included Accessories | Power cable, rack mounting kit |
| TAA Compliant | Yes |
| Networking | |
| Compliant Standards | IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.3an, IEEE 802.3ab |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE, 10GbE |
| Features | Btrfs, MFA, file system snapshot, WOL, time machine backup, Link Aggregation, flow control, Buffalo Web Access |
| Network / Transport Protocol | TCP/IP, FTP, FTPS, SFTP, HTTP, HTTPs |
| Network Services Compatibility | Microsoft CIFS, Server Message Block (SMB), Apple File Protocol (AFP), Network File System (NFS) |
| Remote Management Protocol | SNMP |
| Power | |
| Installed Qty | 2 |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Voltage Required | (50/60 Hz) |
| Processor / Memory | |
| Features | ECC |
| Number of Cores | Quad-Core |
| Processors Installed | Intel Xeon D-1713NT 2.2 GHz |
| RAM | 16 GB (installed) / 64 GB (supported) - DDR4 |
| Software / System Requirements | |
| OS Required | Microsoft Windows 10 / 11, Windows 8.1 (32/64 bits), Microsoft Windows Server 2019, Microsoft Windows Server 2016, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Apple macOS 10.13 or later |
| Software Included | NovaBACKUP Buffalo Edition |
| Storage Operating System | Linux |
| TAA Compliant | Yes |
| Storage Controller | |
| Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD |
| Type | RAID |
