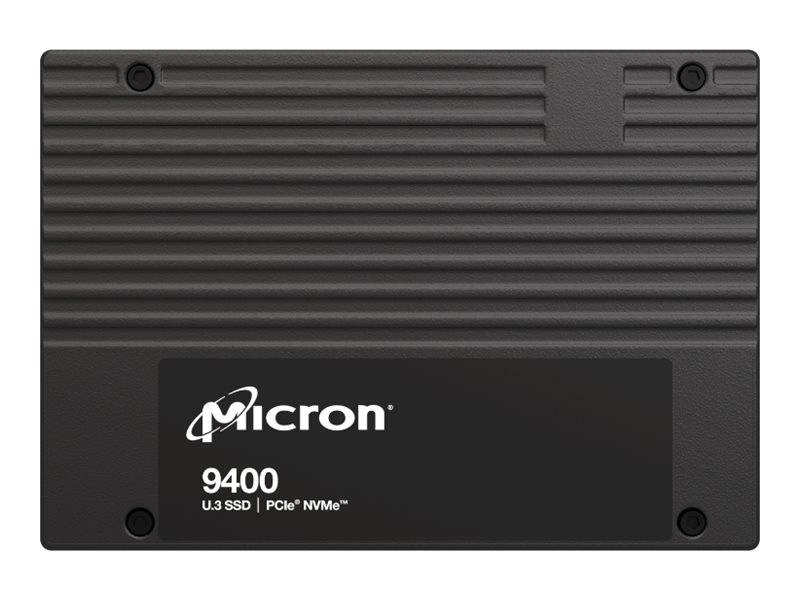

Micron 9400 MAX - SSD
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Micron 9400 MAX - SSD
- Enterprise
- encrypted
- 12800 GB
- internal
- 2.5"
- U.3 PCIe 4.0 x4 (NVMe)
- Self-Encrypting Drive (SED)
| Additional Details | |
|---|---|
| Mfr Part #: | MTFDKCC12T8TGJ-1BC1ZABYYR |
| SHI Part #: | 45650365 |
| Category: | Hard drives |
| UNSPSC: | 43201803 |
| Manufacturer: | Micron Technology |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Micron 9400 MAX - SSD - Enterprise - encrypted - 12800 GB - internal - 2.5" - U.3 PCIe 4.0 x4 (NVMe) - Self-Encrypting Drive (SED) |
| Manufacturer | Micron Technology |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 100.45 mm |
| Dimensions & Weight / Height | 15 mm |
| Dimensions & Weight / Weight | 235 g |
| Dimensions & Weight / Width | 69.85 mm |
| Hard Drive / Capacity | 12800 GB |
| Hard Drive / Form Factor | 2.5" |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | U.3 PCIe 4.0 x4 (NVMe) |
| Hard Drive / Interface | U.3 PCIe 4.0 x4 (NVMe) |
| Header / Brand | Micron |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Storage / Type | Solid state drive |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 1.651 cm |
| Shipping Height | 9.779 cm |
| Shipping Weight | 264 g |
| Shipping Width | 13.004 cm |
| Environmental Parameters | |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Expansion & Connectivity | |
| Compatible Bay | 2.5" |
| Interfaces | 1 x PCI Express 4.0 x4 (NVMe) |
| General | |
| Capacity | 12800 GB |
| Depth | 100.45 mm |
| Device Type | Solid state drive - internal |
| Features | Power loss data protection, Enterprise Data Path Protection, Firmware Upgrade without Reset, Secure Erase function, Secure Boot, Secure Firmware, Active Garbage Collection, TRIM support, Digitally Signed Firmware, NAND Block Erase, Cryptographic Erase, DMA supported, 176-layer 3D TLC NAND technology |
| Form Factor | 2.5" |
| Hardware Encryption | Yes |
| Height | 15 mm |
| Interface | U.3 PCIe 4.0 x4 (NVMe) |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Weight | 235 g |
| Width | 69.85 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | China RoHS, Taiwan BSMI RoHS, RoHS 2011/65/EU, REACH SvHC, RCM, WEEE, IC, Morocco, UkrSEPRO, UKCA |
| Package Details | Cardboard box |
| Performance | |
| 4KB Random Read | 1600000 IOPS |
| 4KB Random Write | 600000 IOPS |
| Drive Class | Enterprise |
| Drive Writes Per Day (DWPD) | 3 |
| Internal Data Rate | 7000 MBps (read) / 7000 MBps (write) |
| SSD Endurance | 70080 TB |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 2,000,000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
