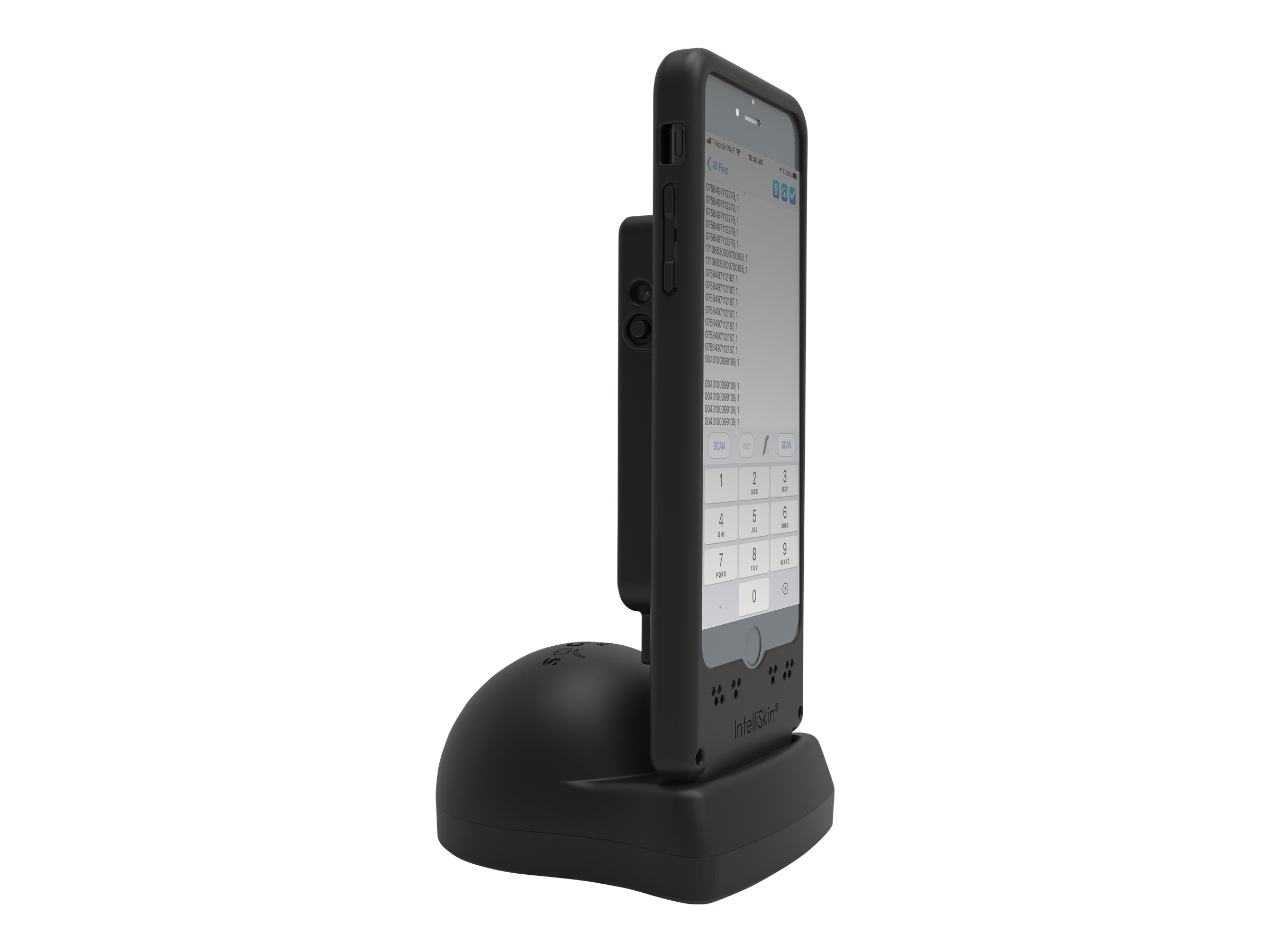

DuraSled DS800 - With charging dock
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
DuraSled DS800 - With charging dock
- barcode scanner
- companion
- linear imager
- decoded
- Bluetooth 2.1 EDR
| Additional Details | |
|---|---|
| Mfr Part #: | CX3589-2240 |
| SHI Part #: | 38680491 |
| Category: | Bar code equipment |
| UNSPSC: | 43211701 |
| Manufacturer: | Socket Mobile |
| Product Type: | Hardware |
Laptop Batteries
- lithium ion
- 700 mAh
- 2.59 Wh
- for DuraScan D800, D840, D860; DuraSled DS800, DS840, DS860; SocketScan S840; DuraSled DS840
- lithium ion
- 700 mAh
- 2.59 Wh (pack of 5)
- for DuraScan D800, D840, D860; DuraSled DS800, DS840, DS860; SocketScan S840; DuraSled DS840
- lithium ion
- 700 mAh
- 2.59 Wh (pack of 20)
- for DuraScan D800, D840, D860; DuraSled DS800, DS840, DS860; SocketScan S840; DuraSled DS840
| General Information | |
|---|---|
| Category | Bar code equipment |
| Description | DuraSled DS800 - With charging dock - barcode scanner - companion - linear imager - decoded - Bluetooth 2.1 EDR |
| Manufacturer | Socket Mobile |
| UNSPSC | 43211701 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16.64 cm |
| Dimensions & Weight / Height | 2.84 cm |
| Dimensions & Weight / Weight | 113.5 g |
| Dimensions & Weight / Width | 7.14 cm |
| Header / Brand | DuraSled |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Scanner / Type | Barcode scanner |
| Service & Support / Type | 1-year warranty |
| System Requirements / OS Required |
|
| Barcode | |
| Connectivity Technology | Wireless |
| Decode Capability | UPC-A, Bookland, Chinese 2 of 5, Discrete 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, Codabar, Code 11, Code 93, Code 39, Code 128, EAN-13, EAN-8, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Limited, GS1-128, ISBT 128, MSI, UPC-E, UPC-E1 |
| Features | Antimicrobial protection, Human Interface Device Profile (HID), Serial Port Profile (SPP) |
| Interface Type | Bluetooth 2.1 EDR |
| Max Working Distance | 61 cm |
| Minimum Bar Width | 5 mil |
| OK Notification | LED indicator |
| Print Contrast Signal (PCS) | 20% |
| Scan Element Type | Linear imager |
| TTL Decoding | Decoded |
| Dimensions & Weight | |
| Depth | 16.64 cm |
| Height | 2.84 cm |
| Weight | 113.5 g |
| Width | 7.14 cm |
| Environmental Parameters | |
| Drop Specification | 1 m to concrete |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Type | Barcode scanner - companion |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Cables Included | 1 x USB cable - external - 1.2 m |
| Compliant Standards | Bluetooth Class 2, MFI, IP40, IEC 60950-1, UL 60950-1, CAN/CSA C22.2, RoHS, C-Tick, EN55022, ICES-003, CISPR 22, RSS-210, FCC Part 15 C, TELEC, EN55024, IEC 60825-1, EN 60825-1, WEEE, IC |
| Included Accessories | Charging dock |
| Networking | |
| Wireless Connectivity | Bluetooth 2.1 EDR |
| Power | |
| Battery | 1 x lithium ion |
| System Requirements | |
| OS Required | Apple iOS, Android, Microsoft Windows 7 / 8 / 10 |
