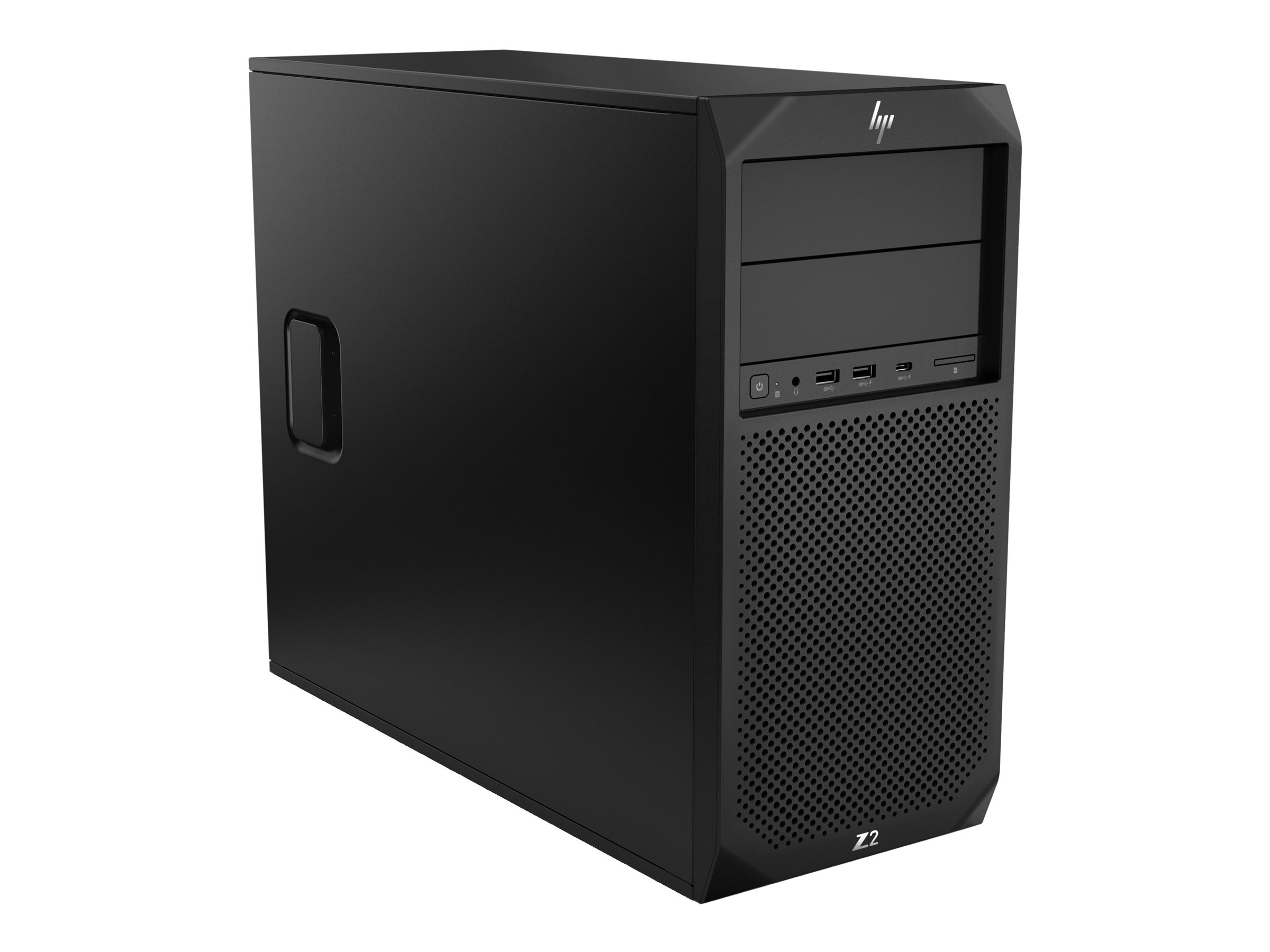

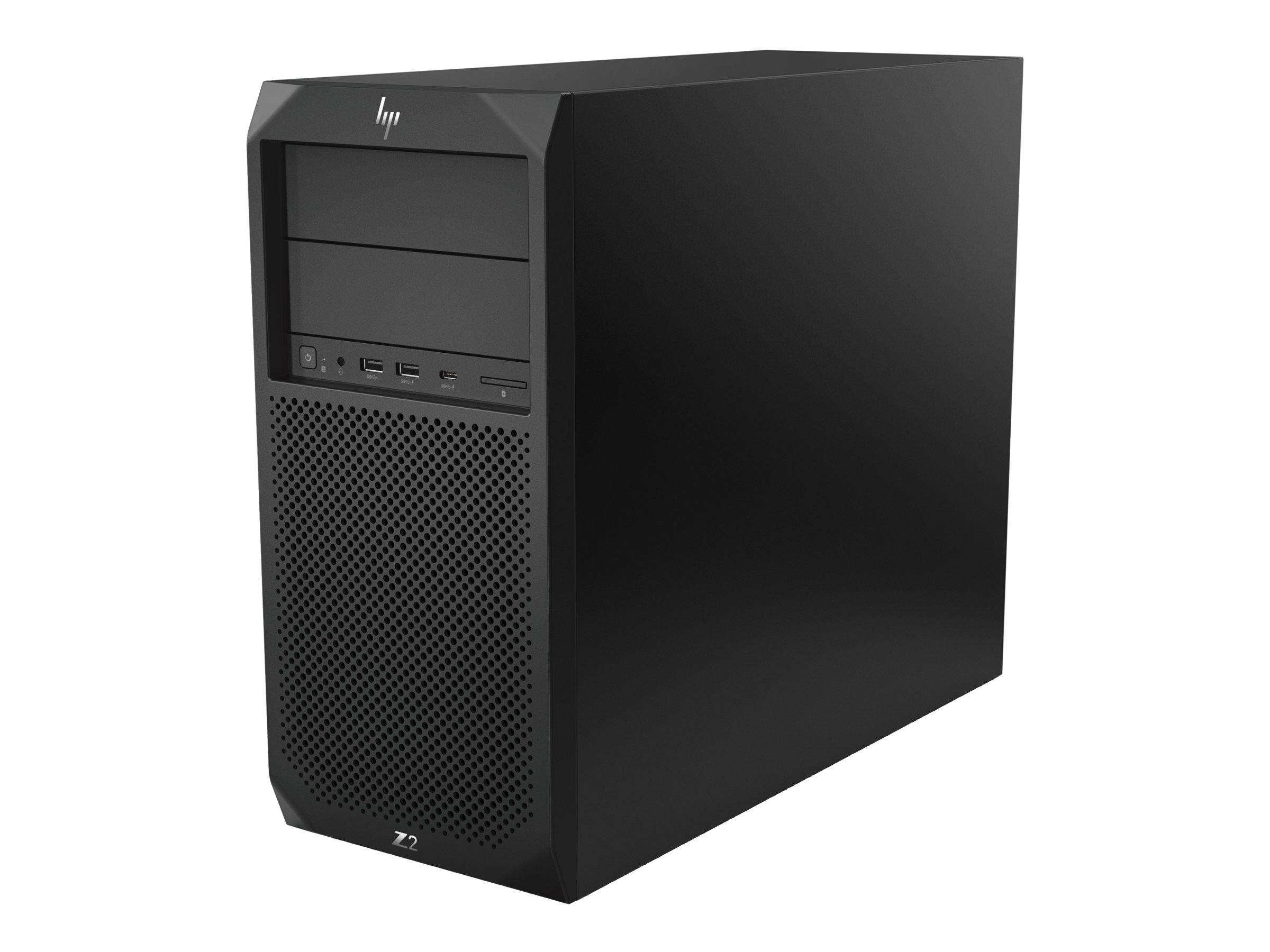

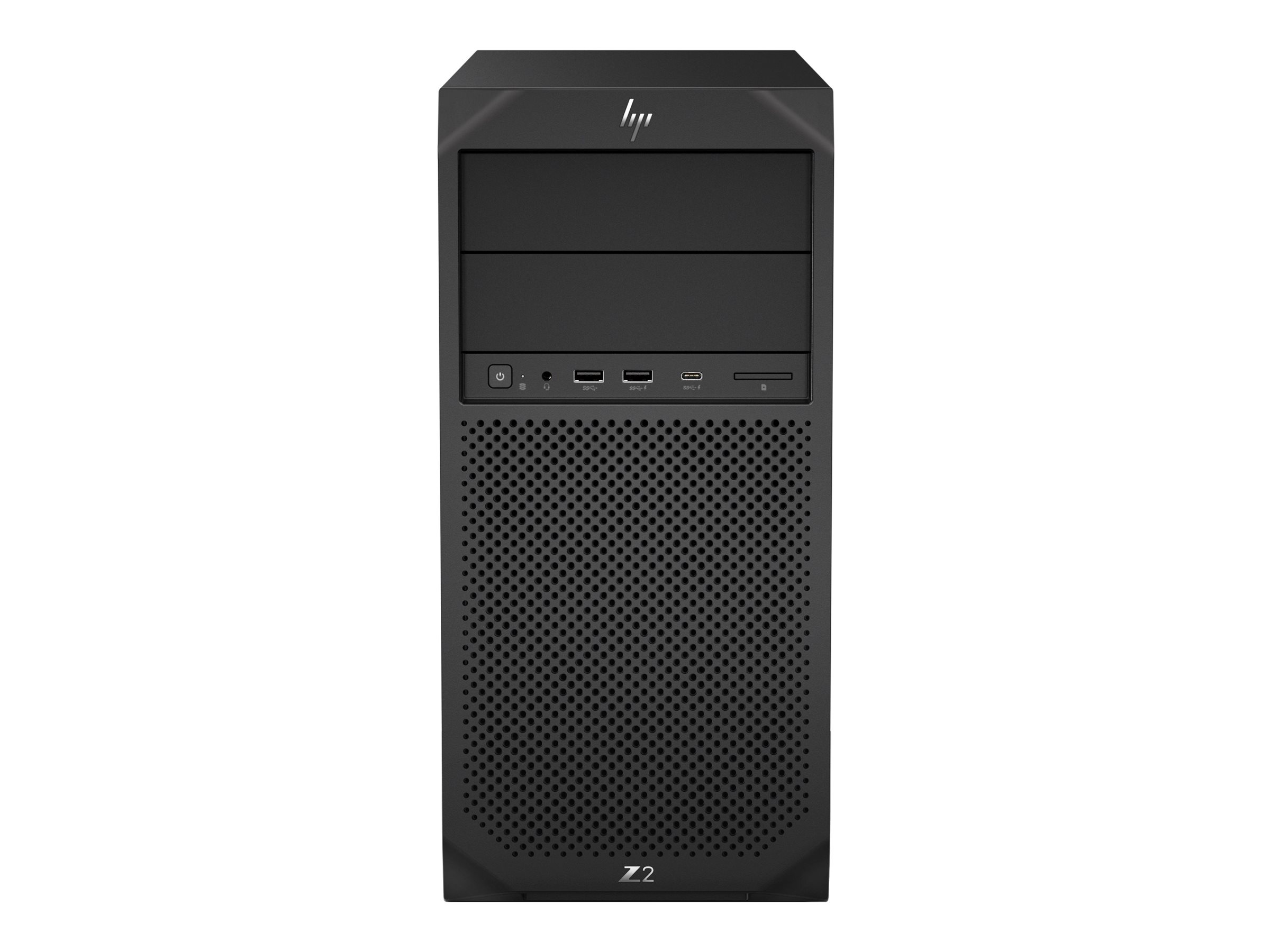

HP Workstation Z2 G4

Login for Price
HP Workstation Z2 G4
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • MT
  • 1 x Xeon E-2244G / 3.8 GHz
  • vPro
  • RAM 16 GB
  • HDD 1 TB
HP Workstation Z2 G4
  • MT
  • 1 x Xeon E-2244G / 3.8 GHz
  • vPro
  • RAM 16 GB
  • HDD 1 TB
  • DVD-Writer
  • Quadro P2200 / UHD Graphics P630
  • GigE
  • Win 10 Pro for Workstations
  • monitor: none
  • keyboard: US
  • Smart Buy
  Additional Details
Mfr Part #: 7ZE31UT#ABA
SHI Part #: 38135738
Category: Desktop computers
UNSPSC: 43211507
Manufacturer: HP, Inc.
Product Type: Hardware

Keyboards and Keypads

HP - Keyboard - USB
HP - Keyboard - USB
Login for Price
HP - Keyboard - USB - US
HP - Keyboard - USB - US
Login for Price

Audio/Video Cables

HP - DisplayPort adapter
HP - DisplayPort adapter
  • Mini DisplayPort (M) to DisplayPort (F)
  • for Elite 800 G9; Workstation Z2 G8, Z2 G9, Z4 G5, Z6 G5; ZBook Fury 15 G8, 16 G9, 17 G8
Login for Price
HP - DVI cable - DisplayPort (M) to DVI-D (F)
HP - DVI cable - DisplayPort (M) to DVI-D (F)
  • 19 cm
  • for Elite 600 G9, 800 G9, t655; EliteDesk 80X G8; Pro t550; ProOne 440 G9; Workstation Z2 G9
Login for Price
HP Internal USB Port Kit
HP Internal USB Port Kit
  • USB cable
  • USB (F)
  • for Workstation Z2 G4, Z230, Z240, Z4 G4, Z420, Z440, Z6 G4, Z620, Z640, Z840; ZCentral 4R
Login for Price
General Information
CategoryDesktop computers
DescriptionHP Workstation Z2 G4 - MT - 1 x Xeon E-2244G / 3.8 GHz - vPro - RAM 16 GB - HDD 1 TB - DVD-Writer - Quadro P2200 / UHD Graphics P630 - GigE - Win 10 Pro for Workstations - monitor: none - keyboard: US - Smart Buy
ManufacturerHP, Inc.
UNSPSC43211507
Main Specifications
Chassis / Form FactorTower
Dimensions & Weight / Depth43.5 cm
Dimensions & Weight / Height35.6 cm
Dimensions & Weight / Weight7 kg
Dimensions & Weight / Width16.9 cm
Display / TypeNone.
Hard Drive / Capacity1 TB
Hard Drive / InterfaceSerial ATA-600
Hard Drive / Interface TypeSerial ATA-600
Header / BrandHP
Header / Country KitsUnited States
Header / LocalizationEnglish
Mainboard / Chipset TypeIntel C246
Mainboard / Processor SocketLGA1151 Socket
Miscellaneous / Product ColorBlack
Networking / Data Link Protocol
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Optical Storage / Drive TypeDVD-Writer
Optical Storage / TypeDVD-Writer
OS Provided / TypeWindows 10 Pro for Workstations 64-bit Edition
Packaged Quantity1
Processor / Clock Speed3.8 GHz
Processor / ManufacturerIntel
Processor / Number of CoresQuad-Core
Processor / Processor NumberE-2244G
Processor / TypeXeon
RAM / Data Integrity CheckNon-ECC
RAM / Form FactorDIMM 288-pin
RAM / Memory Specification CompliancePC4-21333
RAM / Memory Speed2666 MHz
RAM / TechnologyDDR4 SDRAM
Service & Support / Type3-year warranty
System / Hard Drive Capacity1 TB
System / Platform TechnologyIntel vPro Platform
System / TypeWorkstation
Video Memory / TechnologyGDDR5X SDRAM
Video Output / Graphics ProcessorNVIDIA Quadro P2200 / Intel UHD Graphics P630
Audio Output
Compliant StandardsHigh Definition Audio
Cache Memory
Cache Per Processor8 MB
Installed Size8 MB
Dimensions & Weight
Depth43.5 cm
Height35.6 cm
Weight7 kg
Width16.9 cm
Dimensions & Weight (Shipping)
Shipping Depth29.5 cm
Shipping Height59.9 cm
Shipping Weight11.47 kg
Shipping Width49.9 cm
Environmental Parameters
Humidity Range Operating10 - 85% (non-condensing)
Max Operating Temperature35 °C
Min Operating Temperature5 °C
Expansion / Connectivity
Bays
  • 2 (total) / 1 (free) x external 5.25"
  • 2 (total) / 1 (free) x internal 3.5"
Interfaces
  • 6 x USB 3.0 (2 front, 4 rear) (one of them is charging)
  • 1 x headphones/microphone (1 in front)
  • 6 x DisplayPort
  • 2 x USB 2.0
  • 1 x LAN (Gigabit Ethernet)
  • 1 x audio line-in
  • 1 x audio line-out
Slots
  • 1 (total) / 0 (free) x PCIe 3.0 x16
  • 1 (total) / 1 (free) x PCIe 3.0 x16 (x4 mode)
  • 2 (total) / 2 (free) x PCIe 3.0 x4 (x1 mode)
  • 2 (total) / 2 (free) x M.2 Card (x4 mode)
  • 1 (total) / 1 (free) x M.2 Card (x1 mode)
General
Built-in DevicesSpeaker
ColorBlack
Embedded SecurityTrusted Platform Module (TPM 2.0) Security Chip
LocalizationLanguage: English / region: United States
Platform TechnologyIntel vPro Platform
Product Form FactorMT
TypeWorkstation
Graphics Controller
Graphics ProcessorNVIDIA Quadro P2200 / Intel UHD Graphics P630
Multi-GPU Configuration1 single GPU card / integrated GPU
Video InterfacesDisplayPort
Video Memory5 GB GDDR5X SDRAM
Hard Drive
Capacity1 x 1 TB
Interface TypeSATA 6Gb/s
Spindle Speed7200 rpm
TypeHDD
Input Device
TypeMouse, keyboard
Keyboard
InterfaceUSB
Keyboard NameHP Business Slim Keyboard
Localization & LayoutUS
Manufacturer Warranty
Service & SupportLimited warranty - parts and labor - 3 years - on-site
Miscellaneous
Compliant StandardsRoHS, WEEE
Manufacturer Selling ProgramHP Smart Buy
Security Slot TypeKensington security slot
Theft/Intrusion ProtectionSecurity lock slot (cable lock sold separately), padlock loop
Monitor
Monitor TypeNone.
Mouse
InterfaceUSB
TechnologyOptical
Networking
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1as, IEEE 802.3az
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
Ethernet ControllerIntel I219-LM
FeaturesWake on LAN (WoL), ACPI support, PXE support, Intel Active Management Technology (AMT) 12
Operating System / Software
OS ProvidedWindows 10 Pro for Workstations 64-bit Edition English
Optical Storage
TypeDVD-Writer
Power
Device TypePower supply
Efficiency90%
Power Factor CorrectionYes (active)
Power Provided500 Watt
Voltage RequiredAC 120/230 V (50/60 Hz)
Processor / Chipset
Chipset TypeIntel C246
Clock Speed3.8 GHz
CPUIntel Xeon E-2244G
CPU Qty1
CPU SocketLGA1151 Socket
CPU UpgradabilityUpgradable
Max CPU Qty1
Max Turbo Speed4.8 GHz
Number of CoresQuad-Core
Processor Main FeaturesIntel Turbo Boost Technology 2, Intel Smart Cache
RAM
Configuration Features2 x 8 GB
Effective Memory Speed2666 MHz
FeaturesUnbuffered
Form FactorDIMM 288-pin
Installed Size16 GB (installed) / 64 GB (max)
Memory Specification CompliancePC4-21333
RAM Supported
  • 64 GB unbuffered - ECC
  • 64 GB unbuffered - non-ECC
Rated Memory Speed2666 MHz
Slots4 (total) / 2 (empty)
TechnologyDDR4 SDRAM - non-ECC
Storage Controller
Channel Qty4
Controller Interface TypeSATA 6Gb/s
RAID LevelRAID 0, RAID 1
Type1 x SATA
