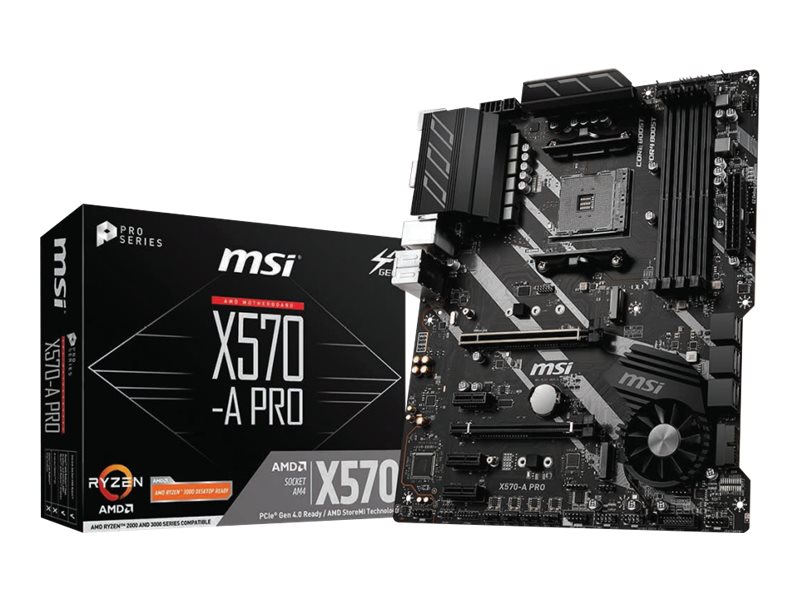

MSI X570-A PRO - Motherboard
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
MSI X570-A PRO - Motherboard
- ATX
- Socket AM4
- AMD X570 Chipset
- USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2
- Gigabit LAN
- onboard graphics (CPU required)
- HD Audio (8-channel)
| Additional Details | |
|---|---|
| Mfr Part #: | X570-A PRO |
| SHI Part #: | 37827096 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | MSI |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | MSI X570-A PRO - Motherboard - ATX - Socket AM4 - AMD X570 Chipset - USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel) |
| Manufacturer | MSI |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24.3 cm |
| Dimensions & Weight / Width | 30.4 cm |
| Header / Brand | MSI |
| Mainboard / Chipset Type | AMD X570 |
| Mainboard / Compatible Processors | Ryzen |
| Mainboard / Processor Socket | Socket AM4 |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Type | Graphics adapter (CPU required) |
| Audio | |
| Audio Codec | Realtek ALC1220 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces |
|
| Features | |
| BIOS Features | MSI ClickBIOS 5 |
| Hardware Features | AMD CrossFireX technology support, MSI Mystic Light, MSI Audio Boost 4, Nahimic 3 Sound Technology, MSI Core Boost, MSI PCIe Steel Slot, AMD StoreMI technology, MSI Frozr Heatsink Design, AMD Turbo USB 3.2 Gen 2 |
| General | |
| Chipset Type | AMD X570 |
| Compatible Processors | Ryzen (supports 2nd and 3rd Generation Ryzen / 1st and 2nd Generation Ryzen with Radeon Vega Graphics) |
| Max Processors Qty | 1 |
| Processor Socket | Socket AM4 |
| Product Type | Motherboard - ATX |
| Graphics | |
| Max Allocated RAM Size | 2048 MB |
| LAN | |
| Network Controller | Realtek RTL8111H |
| Network Interfaces | Gigabit Ethernet |
| Miscellaneous | |
| Cables Included | 2 x Serial ATA cable |
| Depth | 24.3 cm |
| Included Accessories | I/O back plate |
| Software Included | Drivers & utilities |
| Width | 30.4 cm |
| Supported RAM | |
| Bus Clock | 2400 MHz, 1866 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 3200 MHz, 3066 MHz |
| Features | Dual channel memory architecture, supported ECC modules operate in non-ECC mode, A-XMP support |
| Max Size | 128 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Technology | DDR4 |
