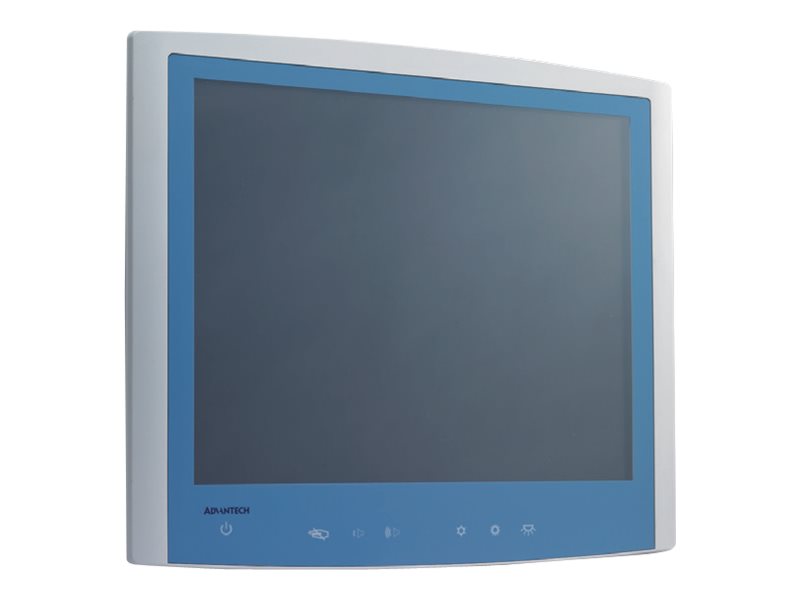

Advantech POC-S199 - All-in-one
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Advantech POC-S199 - All-in-one
- Core i7 6600U / up to 3.4 GHz
- RAM 4 GB
- HDD 500 GB
- HD Graphics 520
- Gigabit Ethernet
- no OS
- monitor: LED 19" 1280 x 1024 (SXGA) touchscreen
| Additional Details | |
|---|---|
| Mfr Part #: | POC-S199-A11D-ACE |
| SHI Part #: | 37545841 |
| Category: | Desktop computers |
| UNSPSC: | 43211507 |
| Manufacturer: | Advantech |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Desktop computers |
| Description | Advantech POC-S199 - All-in-one - Core i7 6600U / up to 3.4 GHz - RAM 4 GB - HDD 500 GB - HD Graphics 520 - Gigabit Ethernet - no OS - monitor: LED 19" 1280 x 1024 (SXGA) touchscreen |
| Manufacturer | Advantech |
| UNSPSC | 43211507 |
| Main Specifications | |
| Chassis / Form Factor | All-in-one |
| Dimensions & Weight / Depth | 7.564 cm |
| Dimensions & Weight / Height | 41.52 cm |
| Dimensions & Weight / Weight | 7.4 kg |
| Dimensions & Weight / Width | 47.05 cm |
| Display / Diagonal Size | 19 in |
| Display / Diagonal Size (metric) | 48.3 cm |
| Display / Native Resolution | 1280 x 1024 |
| Display / Type | LED |
| Display / Widescreen Display | No |
| Hard Drive / Capacity | 500 GB |
| Header / Brand | Advantech |
| Miscellaneous / Product Color |
|
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | No operating system |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 2.6 GHz |
| Processor / Generation | 6 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | Dual-Core |
| Processor / Processor Number | I7-6600U |
| Processor / Type | Core i7 |
| RAM / Technology | DDR4 SDRAM |
| System / Hard Drive Capacity | 500 GB |
| System / Type | Personal computer |
| Video Output / Graphics Processor | Intel HD Graphics 520 |
| Cache Memory | |
| Cache Per Processor | 4 MB |
| Installed Size | 4 MB |
| Dimensions & Weight | |
| Depth | 7.564 cm |
| Height | 41.52 cm |
| Weight | 7.4 kg |
| Width | 47.05 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Bays | 1 internal 2.5" |
| Interfaces |
|
| Slots |
|
| General | |
| Product Form Factor | All-in-one |
| Type | Personal computer |
| Graphics Controller | |
| Graphics Processor | Intel HD Graphics 520 |
| Video Interfaces | HDMI, DisplayPort |
| Hard Drive | |
| Capacity | 1 x 500 GB |
| Type | HDD |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified, UL 60601-1, EN 60601-1, IP54, IP65 |
| VESA Mounting Interface | 100 x 100 mm, 75 x 75 mm |
| Monitor | |
| Diagonal Size | 19" |
| Horizontal Viewing Angle | 170 |
| Image Aspect Ratio | 4:3 |
| Image Brightness | 350 cd/m² |
| Image Contrast Ratio | 1000:1 |
| Monitor Features | Projected Capacitive Touch (P-CAP) technology |
| Monitor Type | LED |
| Native Resolution | 1280 x 1024 (SXGA) |
| Pixel Pitch | 0.294 mm |
| Touchscreen | Yes (10-point multi-touch) |
| Vertical Viewing Angle | 160 |
| Widescreen Display | No |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Operating System / Software | |
| OS Provided | No operating system |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Device Type | Power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Processor / Chipset | |
| Clock Speed | 2.6 GHz |
| CPU | Intel Core i7 (6th Gen) 6600U |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Max Turbo Speed | 3.4 GHz |
| Number of Cores | Dual-Core |
| RAM | |
| Installed Size | 4 GB / 32 GB (max) |
| Technology | DDR4 SDRAM |
| Storage Controller | |
| Type | SATA |
