Tripp Lite HDMI over Cat6 Splitter/Extender with PoC, 4 Ports

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
4K x 2K @ 60 Hz, 4:4:4, HDR, 125 ft. (38.1 m), TAA Video/audio extender HDMI 4 ports up to 38.1 m

Tripp Lite HDMI over Cat6 Splitter/Extender with PoC, 4 Ports

4K x 2K @ 60 Hz, 4:4:4, HDR, 125 ft. (38.1 m), TAA
Video/audio extender
HDMI
4 ports
up to 38.1 m
TAA Compliant

Additional Details
Mfr Part #:	B127-100-H
SHI Part #:	37165773
Category:	Serial port cards
UNSPSC:	43201559
Manufacturer:	Eaton
Product Type:	Hardware

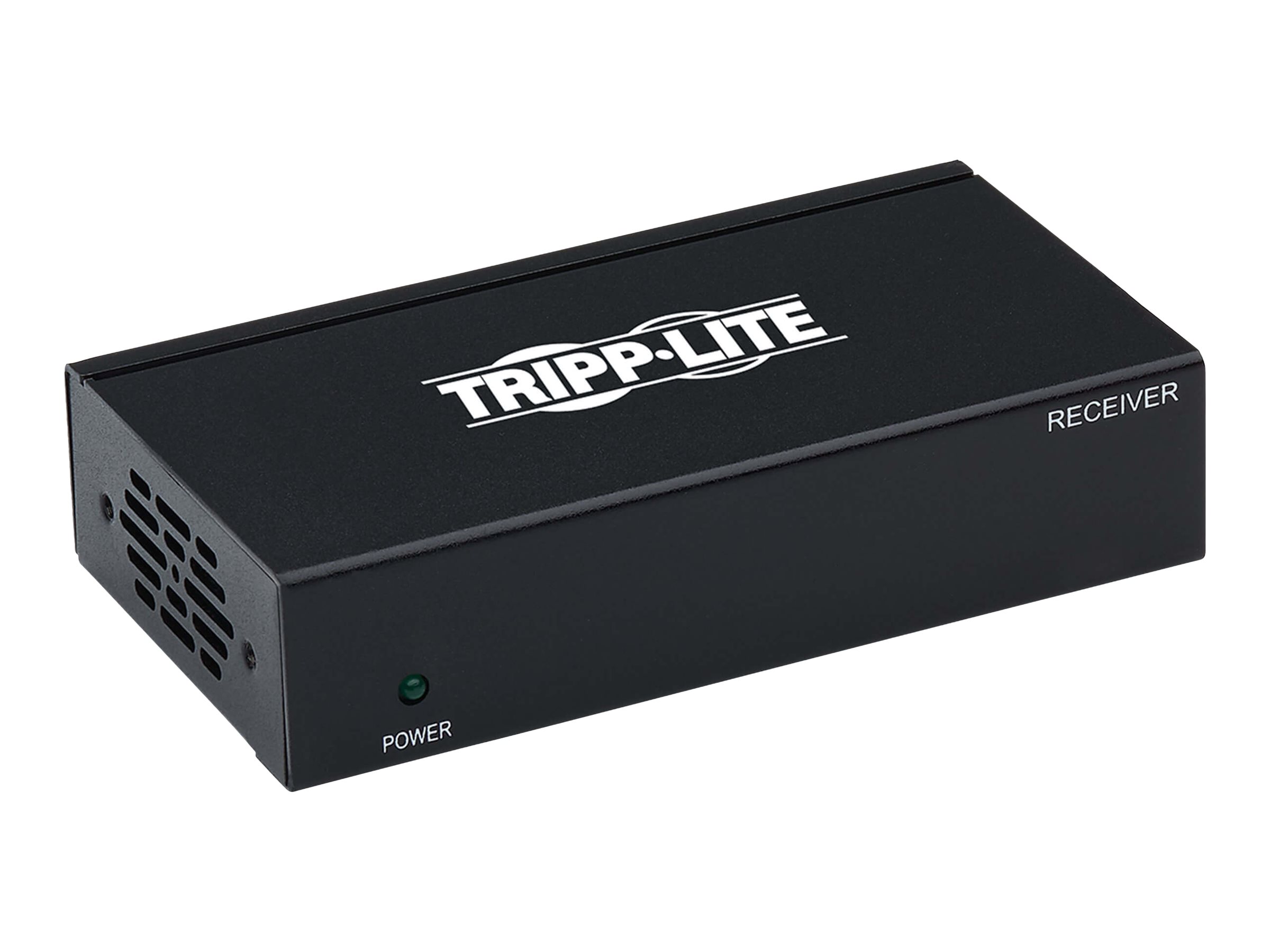

This box-style active remote receiver works in tandem with Tripp Lite's B127-002-H or B127-004-H transmitter to extend 4K video (at 60 Hz) and stereo audio from an HDMI source to an HDMI display up to 125 feet (38.1 meters) using Cat6 cabling. It can also extend a 4K HDMI signal (at 30 Hz) up to 150 feet (45.7 meters) and a 1080p HDMI signal (at 60 Hz) up to 200 feet (61 meters).

The B127-100-H is recommended for conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings and other digital signage applications where the source and display are farther apart than conventional A/V cables allow.

The B127-100-H supports Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz with full, rich uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital audio. Built-in equalization automatically fine-tunes the image quality at the remote display with no time-consuming manual fiddling needed. It's compatible with HDCP 2.2, EDID and HDMI 2.0 standards for carrying HDR (high dynamic range) signals. It also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

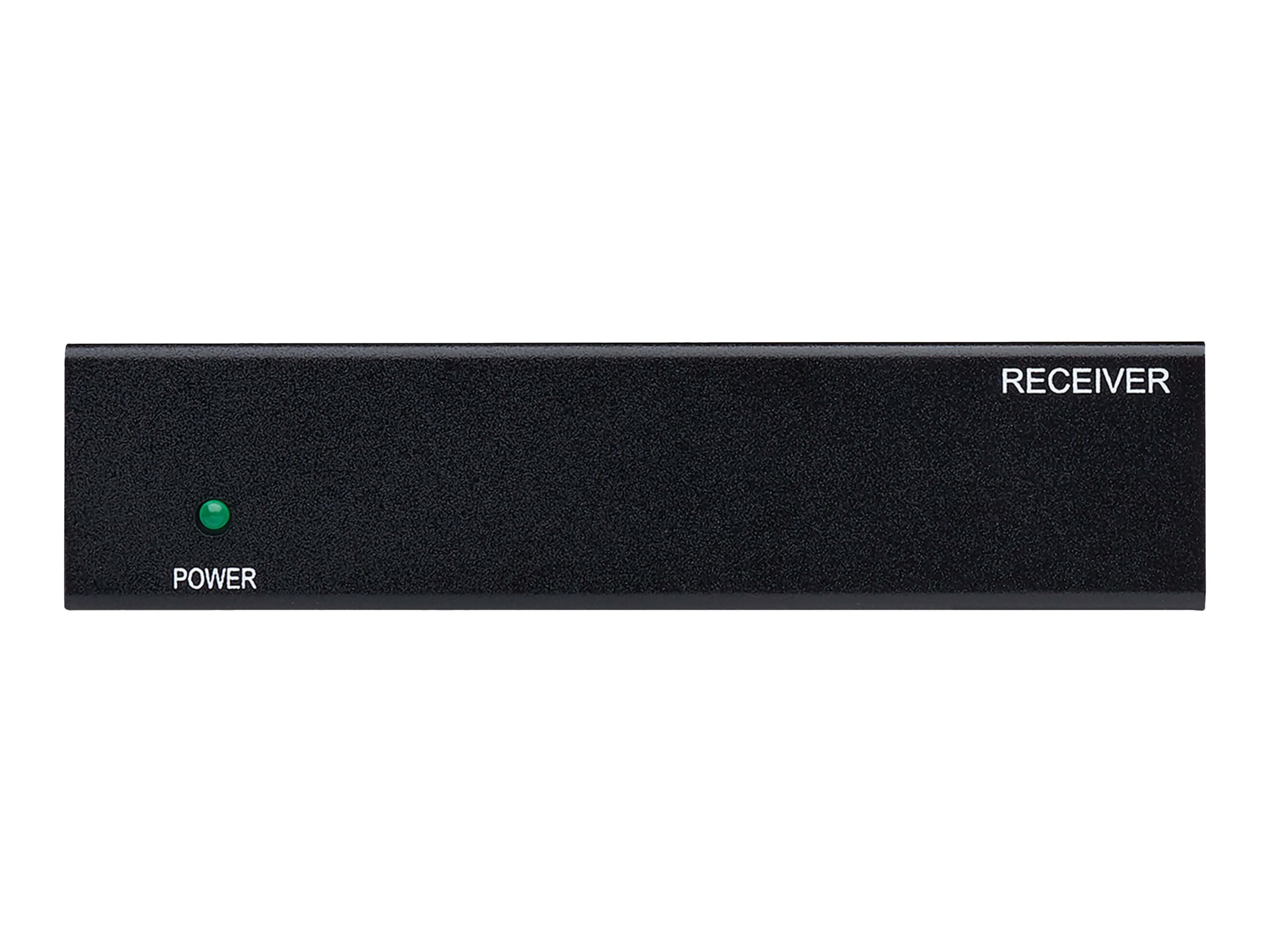

Built-in Power over Cable (PoC) technology powers the low-profile receiver over Cat6 cable. Green and orange LEDs will light up to indicate the unit is receiving power and a signal is being received. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the receiver away from an AC outlet.

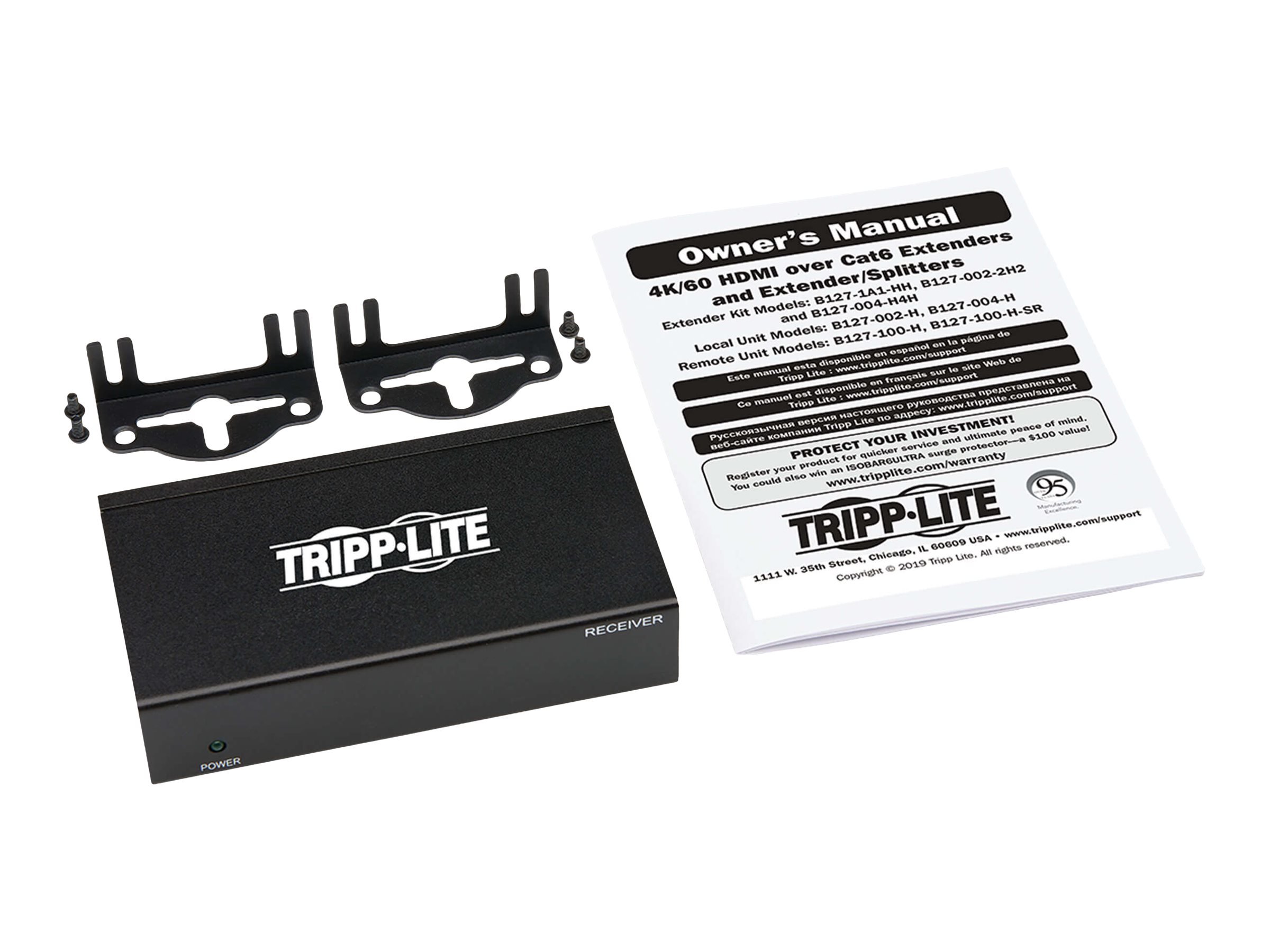

The receiver works right out of the box with no software or external power supply required. Mounting hardware is included for installing it on a wall, pole or 19-inch rack. Connect the receiver to the display with a user-supplied high-speed HDMI cable (such as Tripp Lite's P568- or P569-Series) and to the transmitter with Cat6 patch cable (such as Tripp Lite N202-Series cable).

The B127-100-H is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Audio/Video Cables

Eaton Tripp Lite Series 4K HDMI Cable (M/M)

4K 60 Hz, HDR, 4:4:4, Gripping Connectors, Black, 6 ft.
HDMI cable
HDMI male to HDMI male
1.83 m
shielded
black

MSRP $14.95

$7.00

Tripp Lite High-Speed HDMI Cable with Gripping Connectors 4K 60 Hz 4:4:4 M/M Black 3ft

HDMI cable
HDMI (M) to HDMI (M)
91 cm
shielded
black
molded

MSRP $13.80

$7.00

Tripp Lite 50ft Cat6 Gigabit Solid Conductor Snagless Patch Cable RJ45 M/M Blue 50'

Patch cable
RJ-45 (M) to RJ-45 (M)
15.3 m
CAT 6
booted, snagless, solid
blue

MSRP $50.88

$26.00

General Information
Category	Serial port cards
Description	Tripp Lite HDMI over Cat6 Splitter/Extender with PoC, 4 Ports - 4K x 2K @ 60 Hz, 4:4:4, HDR, 125 ft. (38.1 m), TAA - Video/audio extender - HDMI - 4 ports - up to 38.1 m - TAA Compliant
Manufacturer	Eaton
UNSPSC	43201559
Main Specifications
Dimensions & Weight / Depth	10 cm
Dimensions & Weight / Height	2.97 cm
Dimensions & Weight / Weight	295 g
Dimensions & Weight / Width	23.5 cm
Header / Brand	Tripp Lite
Header / Country Kits	Australia Europe North America United Kingdom
Networking / Connectivity Technology	Wired
Networking / Data Link Protocol	HDMI
Networking / Form Factor	Rack-mountable
Networking / Type	Video/audio extender
Packaged Quantity	1
Service & Support / Type	1-year warranty
Dimensions & Weight
Depth	10 cm
Height	2.97 cm
Weight	295 g
Width	23.5 cm
Environmental Parameters
Humidity Range Operating	0 - 85% (non-condensing)
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
Expansion / Connectivity
Interfaces	1 x HDMI (input) - Type A female 1 x HDMI (output) - Type A female 4 x network (output) - RJ-45 female
General
Color	Black
Device Type	Video/audio extender
Form Factor	Rack-mountable
Localization	Australia, North America, United Kingdom, Europe
Manufacturer Warranty
Service & Support	Limited warranty - 1 year
Miscellaneous
Compliant Standards	Plug and Play, FCC, RoHS, REACH
Included Accessories	4 power plug adapters
Mounting Kit	Included
Rack Mounting Kit	Included
TAA Compliant	Yes
Networking
Compliant Standards	HDCP 2.2
Connectivity Technology	Wired
Data Link Protocol	HDMI
Features	Wall mountable, HDTV Compatible, pole mountable, 4K resolution support, 7.1 channel audio support, metal housing, Dolby TrueHD support, 24-bit Deep Color support, DTS-HD support, HDR support
Max Resolution	3840 x 2160 @ 60 Hz
Max Transfer Distance	38.1 m
Ports Qty	4
Status Indicators	Power, active
Power
Power Device	External power adapter
Power Over Ethernet (PoE)	PoC
Voltage Required	AC 120/230 V (50/60 Hz)
