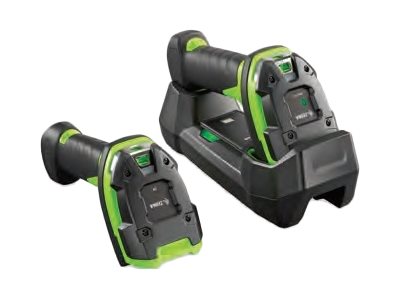

Zebra DS3678-ER - Barcode scanner
MSRP$1,444.65
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Zebra DS3678-ER - Barcode scanner
- portable
- 2D imager
- decoded
- Bluetooth 4.0
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,444.65 |
| Mfr Part #: | DS3678-ER2FCC3VTNA |
| SHI Part #: | 35504666 |
| Category: | Bar code equipment |
| UNSPSC: | 43211701 |
| Manufacturer: | Zebra Technologies |
| Product Type: | Hardware |
Audio/Video Cables
- 2 m
- molded
- for Symbol LI3608; Digital Scanner DS3608; Zebra DS3608, DS3678, LI3608, LI3678
- DB-9 (F) to RJ-45 (10 pin) (M)
- 2.8 m
- coiled, molded
- for Symbol LI3608; Digital Scanner DS3608; Zebra DS3608, DS3678, LI3608, LI3678
Network Interface Cards
- Network adapter
- serial
- Modbus, 10Mb LAN
- FRU
- for Zebra DS3608-ER, DS3678-ER
- Network adapter
- Ethernet
- with Cradle (STB3678- C100F3WW), Serial cable (CBARF5S07ZAR)
- for Symbol LI3608; Zebra DS3608, DS3678, LI3608, LI3678
| General Information | |
|---|---|
| Category | Bar code equipment |
| Description | Zebra DS3678-ER - Barcode scanner - portable - 2D imager - decoded - Bluetooth 4.0 - TAA Compliant |
| Manufacturer | Zebra Technologies |
| MSRP | $1,444.65 |
| UNSPSC | 43211701 |
| Main Specifications | |
| Dimensions & Weight / Depth | 14.2 cm |
| Dimensions & Weight / Height | 18.5 cm |
| Dimensions & Weight / Weight | 436 g |
| Dimensions & Weight / Width | 7.7 cm |
| Header / Brand | Zebra |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Scanner / Type | Barcode scanner |
| Service & Support / Type | 3-year warranty |
| Barcode | |
| Connectivity Technology | Wireless |
| Decode Capability | Aztec code, China Han Xin Code, Codabar, Code 11, Code 128, Code 3 of 5, Code 39, Code 93, Data Matrix, GS1 DataBar, Industrial 2 of 5, Italy Pharmacode, MaxiCode, Micro QR code, MicroPDF417, MSI-Plessey, NW-7, PDF417, QR code, TLC39, UPC/EAN supplementals |
| Features | Rugged |
| Interface Type | Bluetooth 4.0 |
| Minimum Bar Width | 3 mil |
| OK Notification | Beeper, LED indicator, vibration |
| Pitch (Degrees) | 60 |
| Print Contrast Signal (PCS) | 25% |
| Scan Element Type | 2D imager |
| Sensor Resolution | 1280 x 800 |
| Skew (Degrees) | 60 |
| TTL Decoding | Decoded |
| Dimensions & Weight | |
| Depth | 14.2 cm |
| Height | 18.5 cm |
| Weight | 436 g |
| Width | 7.7 cm |
| Environmental Parameters | |
| Drop Specification | 2.4 m to concrete |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -20 °C |
| General | |
| Color | Industrial green |
| Type | Barcode scanner - portable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | IP67, EN 50581:2012, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011, RoHS, IEC 60950-1:2005 + A1:2009 + A2:2013, CAN/CSA C22.2 No. 60950-1-07, UL 60950-1 Second Edition, CU, EN 62471:2008, IEC 62471:2006, UL, VDE, EN 55022:2010/AC:2011, EN 55024:2010, EN 61000-3-2:2006+A1:2009+A2:2009, EN 61000-6-2, EN 60601-1-2:2007, EN 61000-3-3:2013, FCC CFR47 Part 15 B Class B, ICES-003 issue 5 Class B, IEC 60601-1-2:2007 |
| TAA Compliant | Yes |
| Networking | |
| Wireless Connectivity | Bluetooth 4.0 LE |
| Power | |
| Battery | 1 x lithium ion |
| Power Device | Power adapter |
