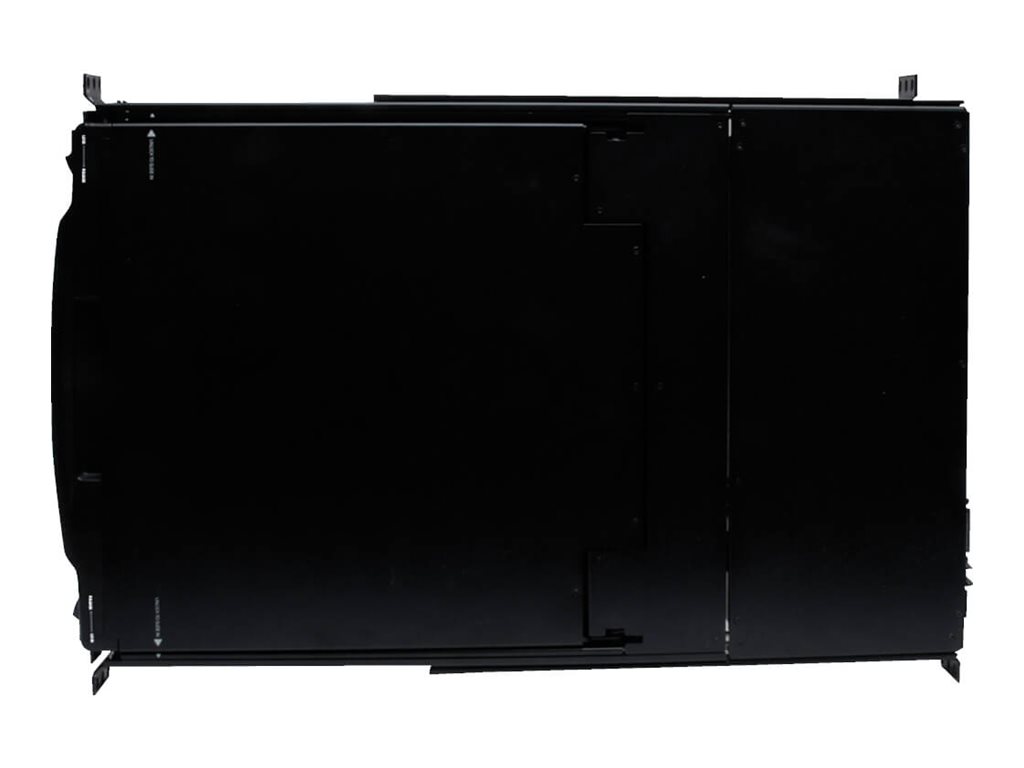

Tripp Lite 16-Port IP KVM Switch Rack Console w/ 19" LCD 1U

MSRP$5,002.00

$3,642.00

Tripp Lite 16-Port IP KVM Switch Rack Console w/ 19" LCD 1U

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
KVM console with KVM switch 16 ports PS/2, USB 19" rack-mountable

Tripp Lite 16-Port IP KVM Switch Rack Console w/ 19" LCD 1U

KVM console with KVM switch
16 ports
PS/2, USB
19"
rack-mountable
1280 x 1024 @ 75 Hz
VGA
black
1U

Additional Details
Price:	$3,642.00
MSRP:	$5,002.00
Mfr Part #:	B020-U16-19-IP
SHI Part #:	30733082
Category:	Flat panel displays
UNSPSC:	43211902
Manufacturer:	Eaton
Product Type:	Hardware

Complete Control from Anywhere

? Built-in IP access lets you control up to 16 computers directly from the next room, next door, or the next continent

? Remotely access computers via LAN, WAN or the Internet via Windows or Java

? Panel Array Mode allows remote monitoring of multiple ports at the same time

? Windows- and Java-based applications provide access without a browser

? Advanced on-screen display supports video resolutions up to 1280 x 1024 (@ 75 Hz) at the built-in 19-inch monitor and up to 1600 x 1200 (@ 60 Hz) at the remote console

Built-In Security to Keep Your Data Safe

? 3 levels of security (Admin, User and Select) allow you to delegate proper access

? Create up to 64 separate user accounts

? Features advanced encryption technologies, such as 512-bit RSA, 256-bit AES, 56-bit DES, 168-bit 3DES, 128-bit RC4 and 128-bit SSL

? Supports RADIUS and LDAP/S remote authentication

? LEDs indicate when a computer is connected, powered on and selected

? Included firmware upgrade cable keeps the software up to date

Versatile to Meet Your Specific Needs

? Increase the number of connected computers up to 264 by daisy-chaining up to 31 B020-U08 KVM switches.

? Compatible with all major operating systems

? User-friendly web management interface can be displayed in English, Spanish, French, German or Italian

? Included P778-Series cable kits let you use either USB or PS/2 keyboards and mice

? Supports both IPv4 and IPv6, as well as Link Local IPv6 Address and IPv6 Stateless Auto Configuration protocol

? External USB 1.1 port lets you add a flash drive or card reader to share external data among connected computers

Keep Your Colleagues in the Loop

? Windows-based log server records events and saves them to a searchable database

? Users who are logged in simultaneously can communicate via message board and manage port access

Rack-Mounted Convenience

? LCD folds down so the unit mounts into just 1U of rack space

? Mounts in racks from 26 in. to 38 in. deep

? Rugged steel housing and premium connectors built to last

? Console locks into place when not in use to prevent sliding out of the rack.

Audio/Video Cables

Tripp Lite 10ft Cat5e / Cat5 Snagless Molded Patch Cable RJ45 M/M Gray 10'

Patch cable
RJ-45 (M) to RJ-45 (M)
3 m
UTP
CAT 5e
booted, snagless

MSRP $8.50

$5.00

Tripp Lite 6ft USB / PS2 Cable Kit for KVM Switches B020-U08 / U16 & B022-U16 6'

Keyboard / video / mouse (KVM) cable
USB, PS/2, HD-15 (VGA) (M)
1.8 m
molded
black

MSRP $62.76

$32.00

Eaton Tripp Lite Series VGA to DisplayPort and USB-A Adapter Cable Kit for Tripp Lite B020-U and B022-U KVM, 6 ft. (1.8m)

Adapter cable
USB, DisplayPort (M) to HD-15 (VGA) (M)
DisplayPort 1.1
1.8 m
1080p support
black

MSRP $206.67

$106.00

Storage Networking (SAN)

Tripp Lite 2 Post Console KVM Rackmount Kit, B020,B021,B040, B070 Consoles

Rack mounting kit
black powder

MSRP $154.40

$103.00

Tripp Lite EdgeReady Micro Data Center, 21U, Quiet, 3 kVA UPS, Network Management and PDU, 120V Assembled/Tested Unit

Rack cabinet
floor-standing
21U
19"

MSRP $10,582.68

$6,863.00

Tripp Lite EdgeReady Micro Data Center

40U, 3 kVA UPS, Network Management and PDU, 120V Assembled/Tested Unit
Rack cabinet
floor-standing
40U
19"

MSRP $9,944.92

$6,449.00

General Information
Category	Flat panel displays
Description	Tripp Lite 16-Port IP KVM Switch Rack Console w/ 19" LCD 1U - KVM console with KVM switch - 16 ports - PS/2, USB - 19" - rack-mountable - 1280 x 1024 @ 75 Hz - VGA - black - 1U
Manufacturer	Eaton
MSRP	$5,002.00
UNSPSC	43211902
Main Specifications
Dimensions & Weight / Depth	68.6 cm
Dimensions & Weight / Height	4.39 cm
Dimensions & Weight / Weight	14.1 kg
Dimensions & Weight / Width	48 cm
Display / Diagonal Size	19 in
Display / Diagonal Size (metric)	48.3 cm
Display / Interface	VGA (HD-15)
Display / Native Resolution	1280 x 1024
Display / Type	KVM console
Header / Brand	Tripp Lite
Input Device / Type	Keyboard Touchpad
Miscellaneous / Compliant Standards	CSA cUL EN 60950-1 FCC FCC Part 15 A RoHS UL UL 60950-1
Miscellaneous / Product Color	Black
Networking / Ports Qty	16
Networking / Type	KVM switch
Packaged Quantity	1
Service & Support / Type	1-year warranty
Connectivity
Interfaces	16 x KVM Management (RJ-45) Stacking (DB-25)
Environmental Parameters
Humidity Range Operating	0 - 80% (non-condensing)
Max Operating Temperature	50 °C
Min Operating Temperature	0 °C
General
Color	Black
Diagonal Size	19"
Dimensions (WxDxH)	48 cm x 68.6 cm x 4.39 cm
Display Type	KVM console / TFT active matrix
Height (Rack Units)	1U
Native Resolution	1280 x 1024 at 75 Hz
Weight	14.1 kg
Input
Type	Keyboard, touchpad
KVM
Features	IP-based user connection
Keyboard / Mouse Interface	PS/2, USB
Type	KVM switch - 16 ports
Manufacturer Warranty
Service & Support	Limited warranty - 1 year
Miscellaneous
Cables Included	2 x keyboard / mouse / video / USB cable - 1.83 m 1 x data cable
Compliant Standards	CSA, UL, cUL, FCC, RoHS, UL 60950-1, EN 60950-1, FCC Part 15 A
Rack Mounting Kit	Included
Power
Input Voltage	AC 120/230 V (50/60 Hz)
Power Consumption (Typical)	23 Watt
