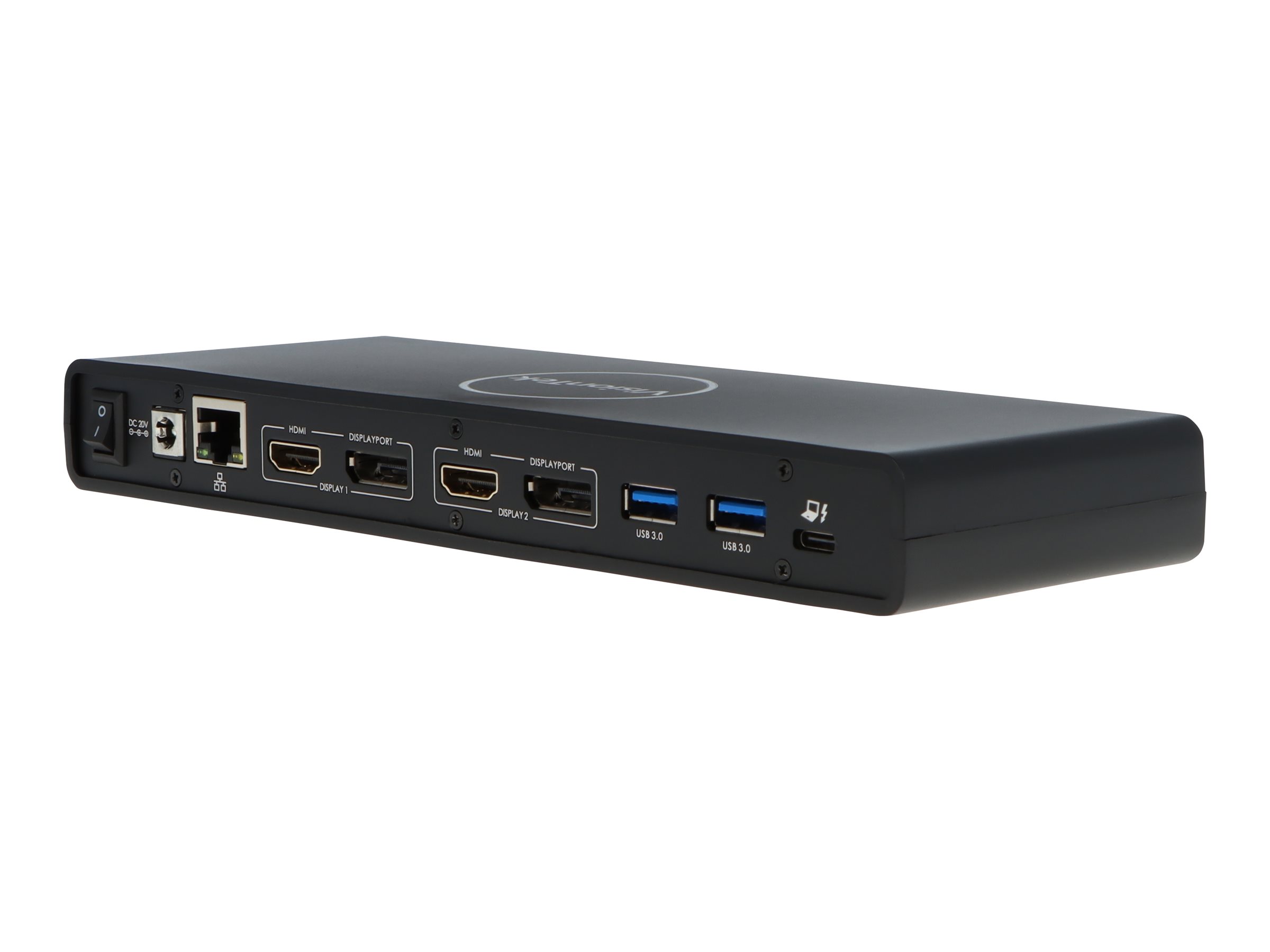

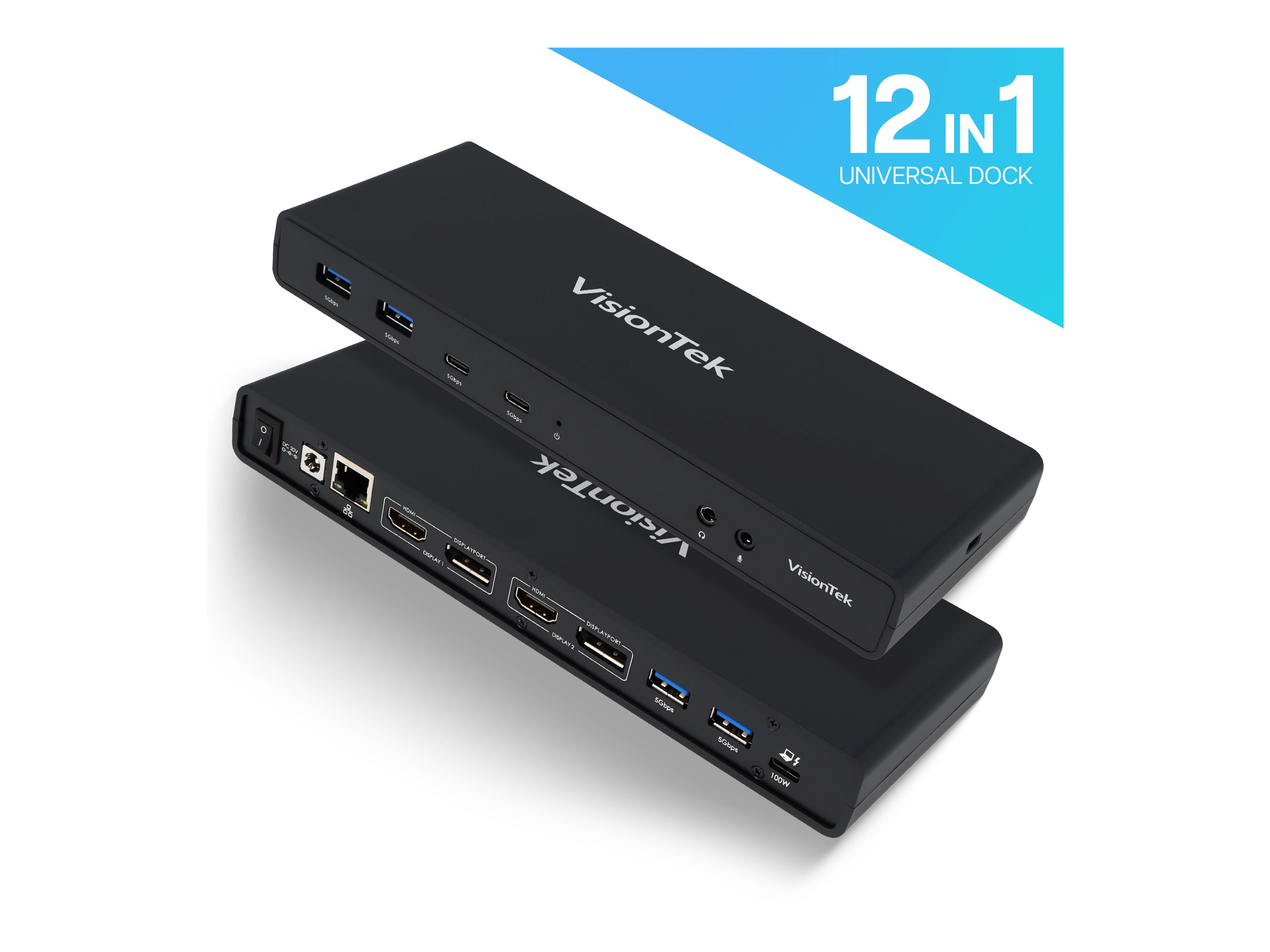

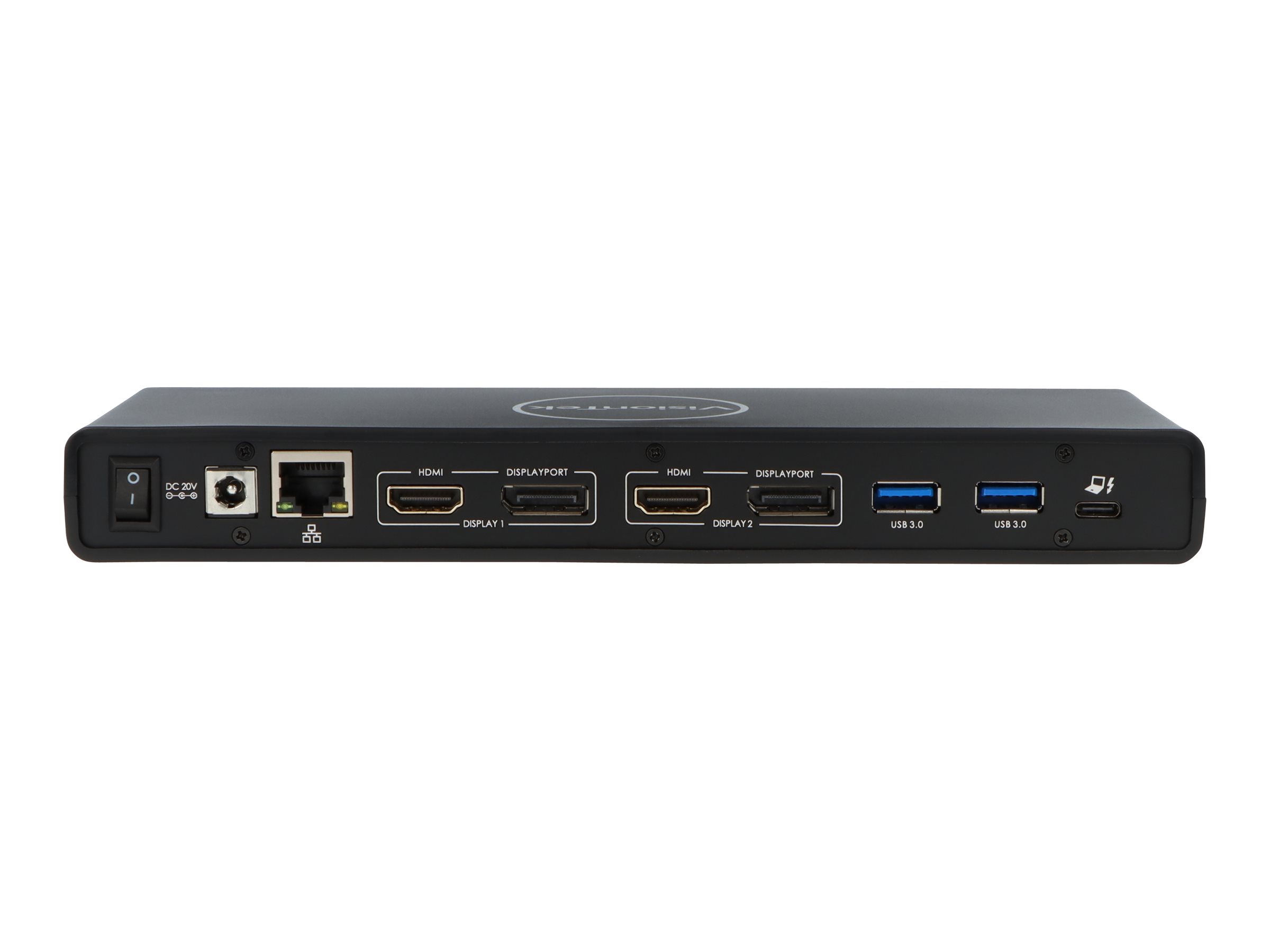

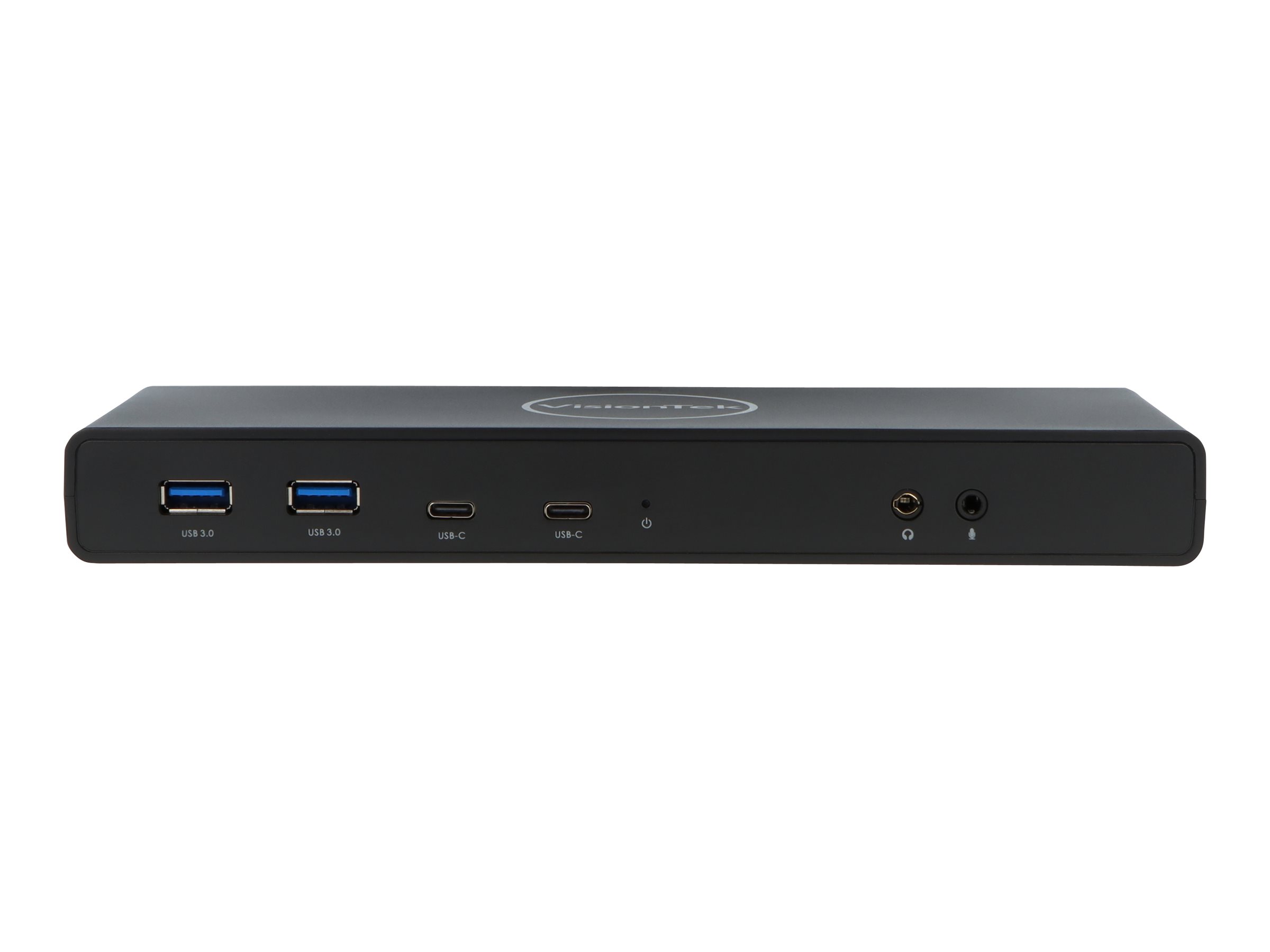

VisionTek VT4500 - Docking station


VisionTek VT4500 - Docking station

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • USB-C / USB 3.0
  • 2 x HDMI, 2 x DP
  • GigE
VisionTek VT4500 - Docking station
  • USB-C / USB 3.0
  • 2 x HDMI, 2 x DP
  • GigE
  Additional Details
Mfr Part #: 901250
SHI Part #: 29273803
Category: Docking stations
UNSPSC: 43211602
Manufacturer: VisionTek
Product Type: Hardware

Audio/Video Cables

VisionTek - HDMI cable
  • HDMI male to HDMI male
  • 1.83 m
  • 4K support
  • for VisionTek Dual 4K USB Dock, VT4500
MSRP $5.99 $2.00
VisionTek - DisplayPort cable
  • DisplayPort (M) to DisplayPort (M)
  • DisplayPort 1.4
  • 2 m
  • for VisionTek Dual 4K USB Dock, VT4500
$10.00
General Information
CategoryDocking stations
DescriptionVisionTek VT4500 - Docking station - USB-C / USB 3.0 - 2 x HDMI, 2 x DP - GigE
ManufacturerVisionTek
UNSPSC43211602
Main Specifications
Header / BrandVisionTek
Networking / Data Link Protocol
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Packaged Quantity1
Service & Support / Type3-year warranty with product registration
System / Device Type (AI)Docking station

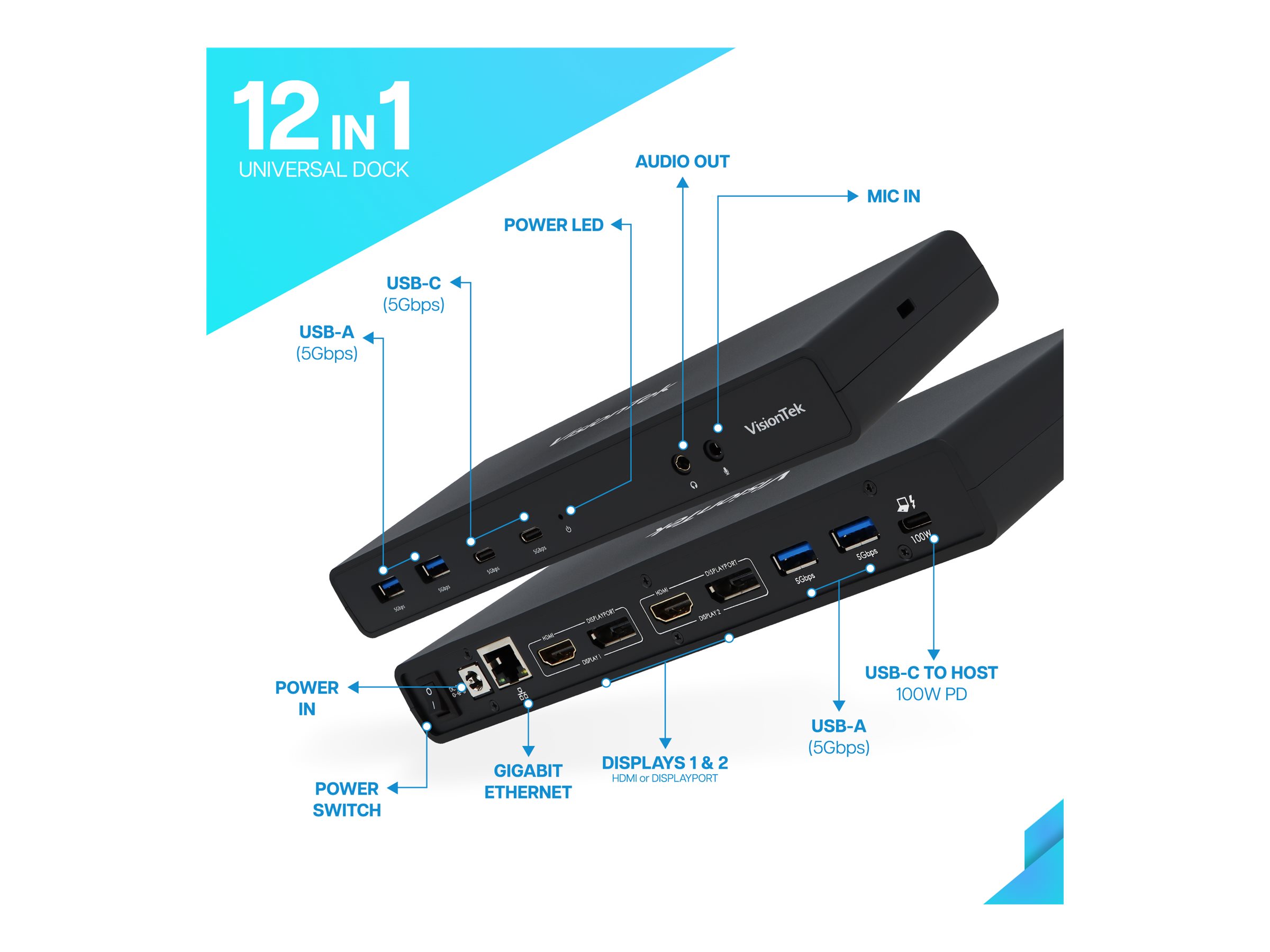

Expansion / Connectivity
Interfaces
  • 1 x network - RJ-45
  • 4 x SuperSpeed USB 3.0 - 9 pin USB Type A
  • 2 x display / video - DisplayPort - 20 pin DisplayPort
  • 2 x display / video - HDMI - 19 pin HDMI Type A
  • 2 x USB-C - 24 pin USB-C
  • 1 x docking / port replicator - 24 pin USB-C
  • 1 x headphones - mini-phone stereo 3.5 mm
  • 1 x microphone - mini-phone 3.5 mm
General
Product TypeDocking station
Manufacturer Warranty
Service & SupportLimited warranty - 3 years with product registration (within 30 days of purchase)
Miscellaneous

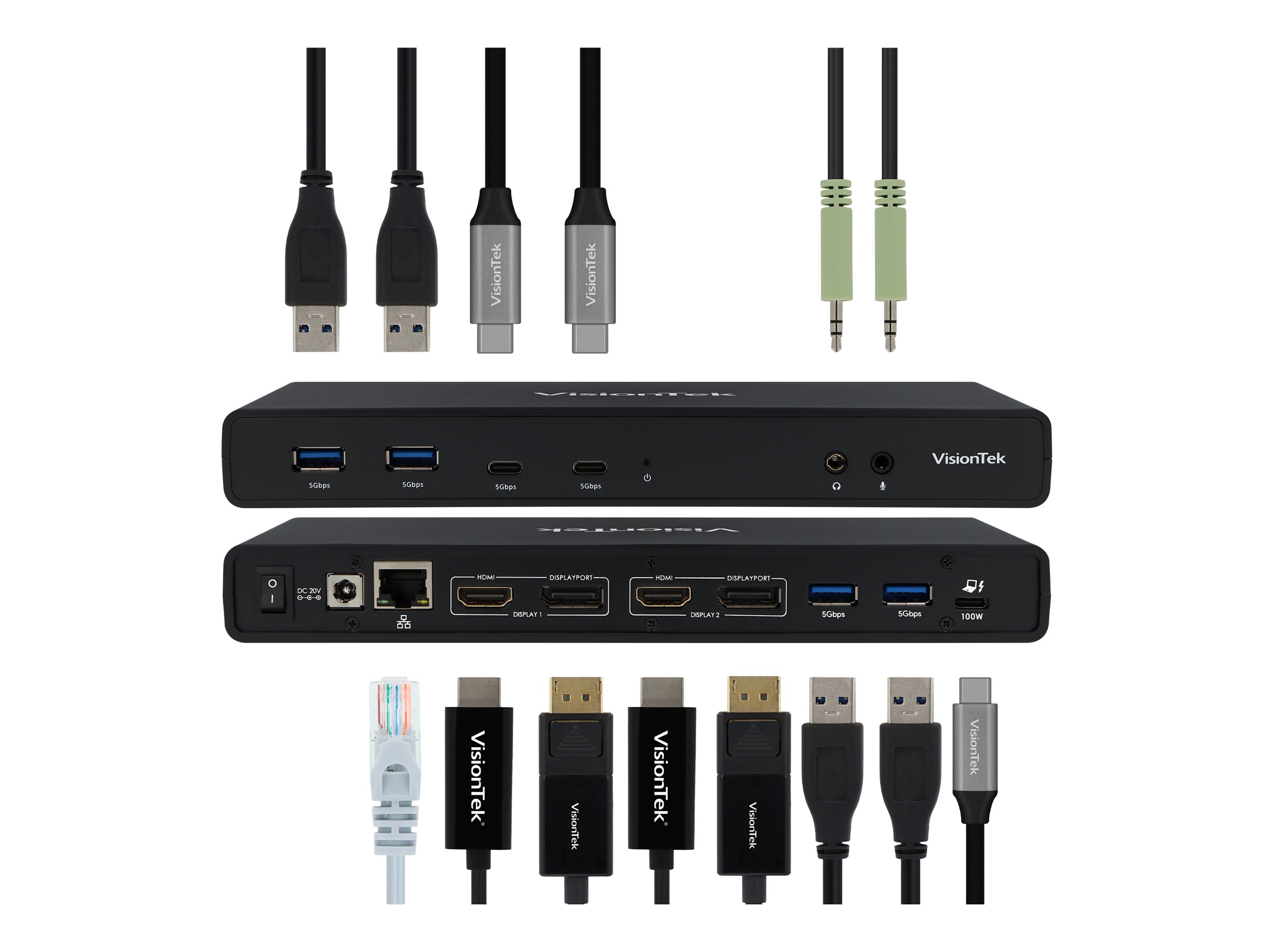

Cables Included
  • USB-C to USB 3.0 type A cable
  • SuperSpeed USB-C cable
Compliant StandardsPlug and Play
FeaturesSecurity lock slot (cable lock sold separately), on/off switch, dual monitor support, Preboot Execution Environment (PXE) support, 4K Ultra HD, maximum resolution: 4096 x 2160 at 60 Hz, 60W power delivery
Security Slot TypeKensington security slot
Networking
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
Power
Power DevicePower adapter
System Requirements
Additional Requirements4 GB RAM
OS RequiredApple MacOS X, Microsoft Windows 7 / 8.1 / 10
