Hardware Power Management

Power Management

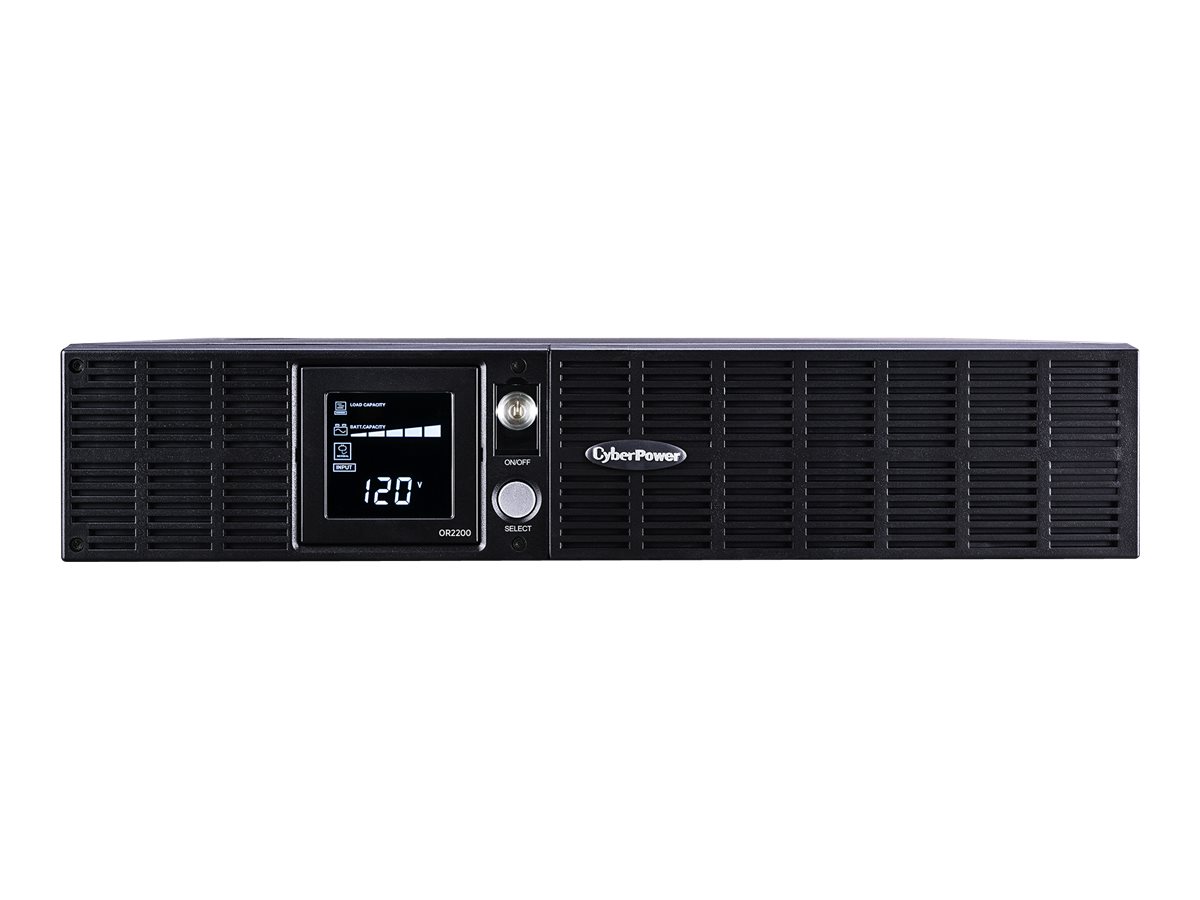

CyberPower Smart App Intelligent LCD OR2200LCDRT2U

MSRP$764.95

$733.00

CyberPower Smart App Intelligent LCD OR2200LCDRT2U

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
UPS (rack-mountable / external) AC 90-140 V 1320 Watt 2000 VA 9 Ah RS-232, USB

CyberPower Smart App Intelligent LCD OR2200LCDRT2U

UPS (rack-mountable / external)
AC 90-140 V
1320 Watt
2000 VA 9 Ah
RS-232, USB
output connectors: 8
2U

Additional Details
Price:	$733.00
MSRP:	$764.95
Mfr Part #:	OR2200LCDRT2U
SHI Part #:	28255950
Category:	Power conditioning equipment
UNSPSC:	39121000
Manufacturer:	CyberPower
Product Type:	Hardware

General Information
Category	Power conditioning equipment
Description	CyberPower Smart App Intelligent LCD OR2200LCDRT2U - UPS (rack-mountable / external) - AC 90-140 V - 1320 Watt - 2000 VA 9 Ah - RS-232, USB - output connectors: 8 - 2U
Manufacturer	CyberPower
MSRP	$764.95
UNSPSC	39121000
Main Specifications
Dimensions & Weight / Depth	40 cm
Dimensions & Weight / Height	8.89 cm
Dimensions & Weight / Weight	23.9 kg
Dimensions & Weight / Width	43.8 cm
Header / Brand	Cyberpower
Miscellaneous / Product Color	Black
Networking / Remote Management Interface	RS-232 USB
Packaged Quantity	1
Power Device / Form Factor	Rack-mountable / external
Power Device / Output Connector Qty	8
Power Device / Power Capacity (VA)	2000 VA
Power Device / UPS Technology	Line interactive
Power Device / Voltage Required	AC 90-140 V
Product Type	UPS
Service & Support / Type	3-year warranty
System Requirements / OS Required	Microsoft Windows 2000 Microsoft Windows 2003 Microsoft Windows Server 2008 Microsoft Windows Server 2012 Microsoft Windows Vista / XP / 7 / 8 (64-bit versions)
Battery
Capacity	9 Ah
Features	Sealed
Quantity	4
Recharge Time	8 hours
Run Time (Up To)	5 min at full load 13 min at half load
Technology	Lead acid
Transfer Time	10 ms
Voltage Provided	12 V
Dimensions & Weight
Depth	40 cm
Height	8.89 cm
Weight	23.9 kg
Width	43.8 cm
Environmental Parameters
Humidity Range Operating	0 - 95% (non-condensing)
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
Expansion / Connectivity
Interfaces	2 x management (RS-232) - 9 pin D-Sub (DB-9) 1 x management (USB) - 4 pin USB Type B
General
Device Type	UPS - rack-mountable / external
Height (Rack Units)	2U
Manufacturer Warranty
Service & Support	Limited warranty - 3 years
Miscellaneous
Cables Included	USB cable Serial cable Phone cable Power cable 3.05 m
Compliant Standards	cUL, DOC-B, UL 1778, FCC, CSA C22.2 No. 107.1, RoHS
Equipment Protection Value	300000 US Dollars
Features	Audible alarm, LCD display, current meter, Automatic Voltage Regulation (AVR), GreenPower UPS Technology, overload protection
Networking
Remote Management Interface	RS-232, USB
Power Device
Circuit Protection	Circuit breaker
Dataline Surge Protection	Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line Coaxial - 1 input line / 1 output line
Frequency Provided	60 Hz
Frequency Required	47 - 63 Hz
Input Connectors	1 x power NEMA 5-20
Input Voltage	AC 90-140 V
Output Voltage	AC 120 V ± 10% - 60 Hz
Output Waveform	Sinewave
Power Capacity	1320 Watt / 2000 VA
Power Output Connectors Details	8 x power NEMA 5-20 (UPS and surge)
Surge Energy Rating	1840 Joules
Surge Suppression	Yes
UPS Technology	Line interactive
Software / System Requirements
OS Required	Microsoft Windows 2000, Microsoft Windows 2003, Microsoft Windows Server 2008, Microsoft Windows Server 2012, Microsoft Windows Vista / XP / 7 / 8 (64-bit versions)
Software Included	PowerPanel Business Edition
Sustainability Information
ENERGY STAR	Yes
