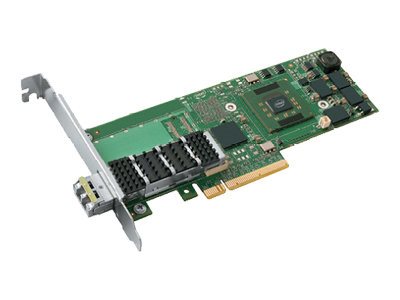

Intel 10 Gigabit XF SR Server Adapter
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Intel 10 Gigabit XF SR Server Adapter
- Network adapter
- PCIe 2.0 x8 low profile
- 10GBase-SR
| Additional Details | |
|---|---|
| Mfr Part #: | EXPX9501AFXSR |
| SHI Part #: | 17247637 |
| Category: | Network interface cards |
| UNSPSC: | 43201404 |
| Manufacturer: | Intel |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network interface cards |
| Description | Intel 10 Gigabit XF SR Server Adapter - Network adapter - PCIe 2.0 x8 low profile - 10GBase-SR |
| Manufacturer | Intel |
| UNSPSC | 43201404 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16.7 cm |
| Dimensions & Weight / Height | 7.9 cm |
| Header / Brand | Intel |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | 10 Gigabit Ethernet |
| Networking / Data Transfer Rate | 10 Gbps |
| Networking / Type | Network adapter |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| System Requirements / OS Required |
|
| Dimensions & Weight | |
| Depth | 16.7 cm |
| Height | 7.9 cm |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Compatible Slots | 1 x PCI Express 2.0 x8 - low-profile |
| Interfaces | 1 x 10GBASE-SR - LC multi-mode - x 2 |
| General | |
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.0 x8 |
| PCI Specification Revision | PCIe 2.0 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compatible with Windows 7 | "Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
| Compliant Standards | FCC Class B certified, UL, VCCI, C-Tick, BSMI, MIC, RoHS, Lead-Free |
| Included Accessories | Full-height bracket |
| Networking | |
| Cabling Type | Ethernet 10GBase-SR |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), WfM 2.0 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
| Features | Flow control, fault tolerance, load balancing, VLAN support, packet filtering, IPv6 support, Intel I/OAT, VMDq |
| Max Transfer Distance | 300 m |
| Network / Transport Protocol | TCP/IP, UDP/IP |
| Ports | 10GBase-SR |
| Remote Management Protocol | SNMP, DMI 2.0 |
| Status Indicators | Link OK, link/activity |
| Processor / Memory | |
| Processor | 1 x Intel 82598EB |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server 2003, SuSE Linux 9.2 Professional, Red Hat Enterprise Linux 4, Red Hat Fedora Core, Microsoft Windows Vista, FreeBSD 5.x or later, SuSE Linux Enterprise Server 10 |
| Software Included | Intel PROSet |
