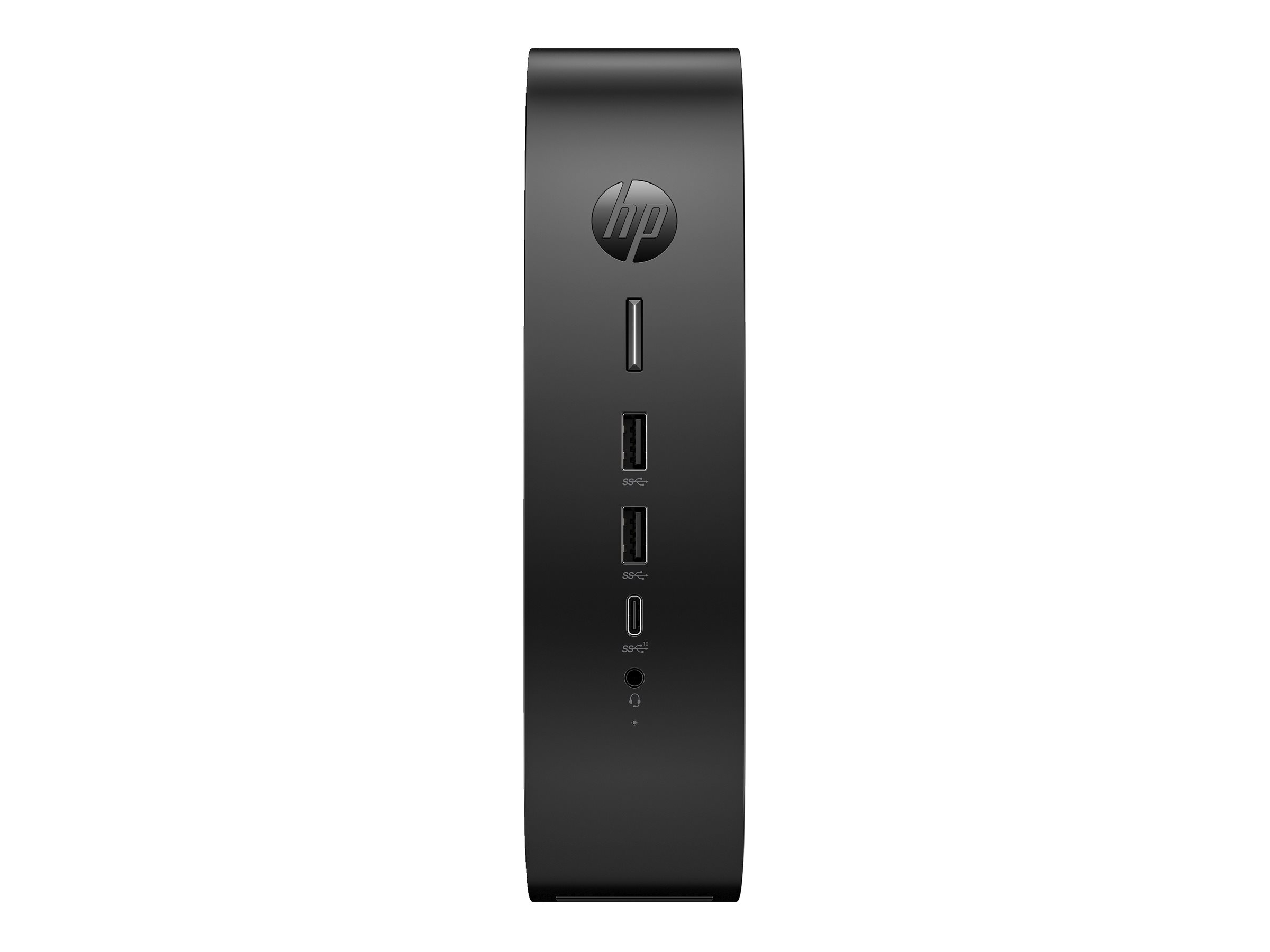

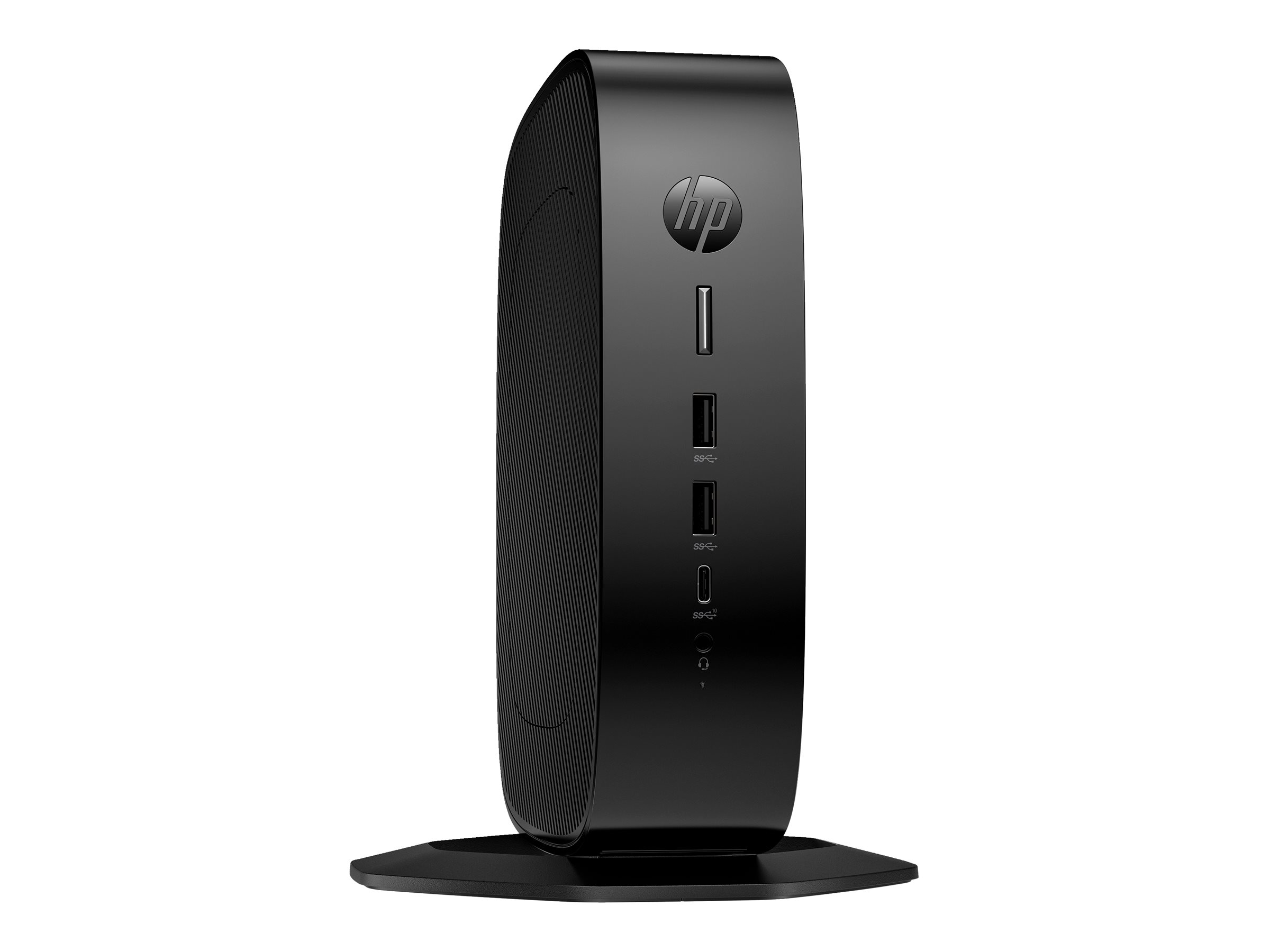

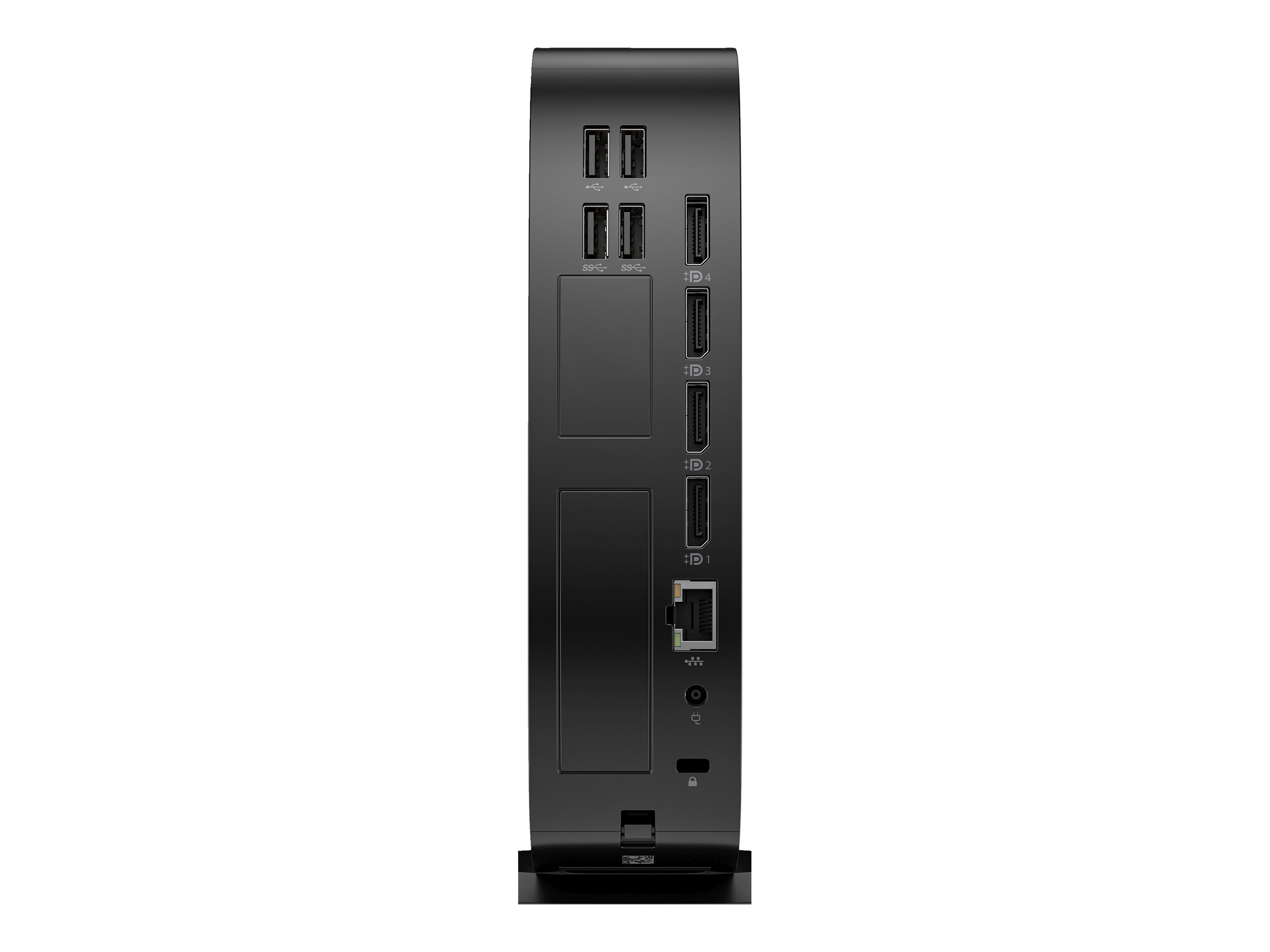

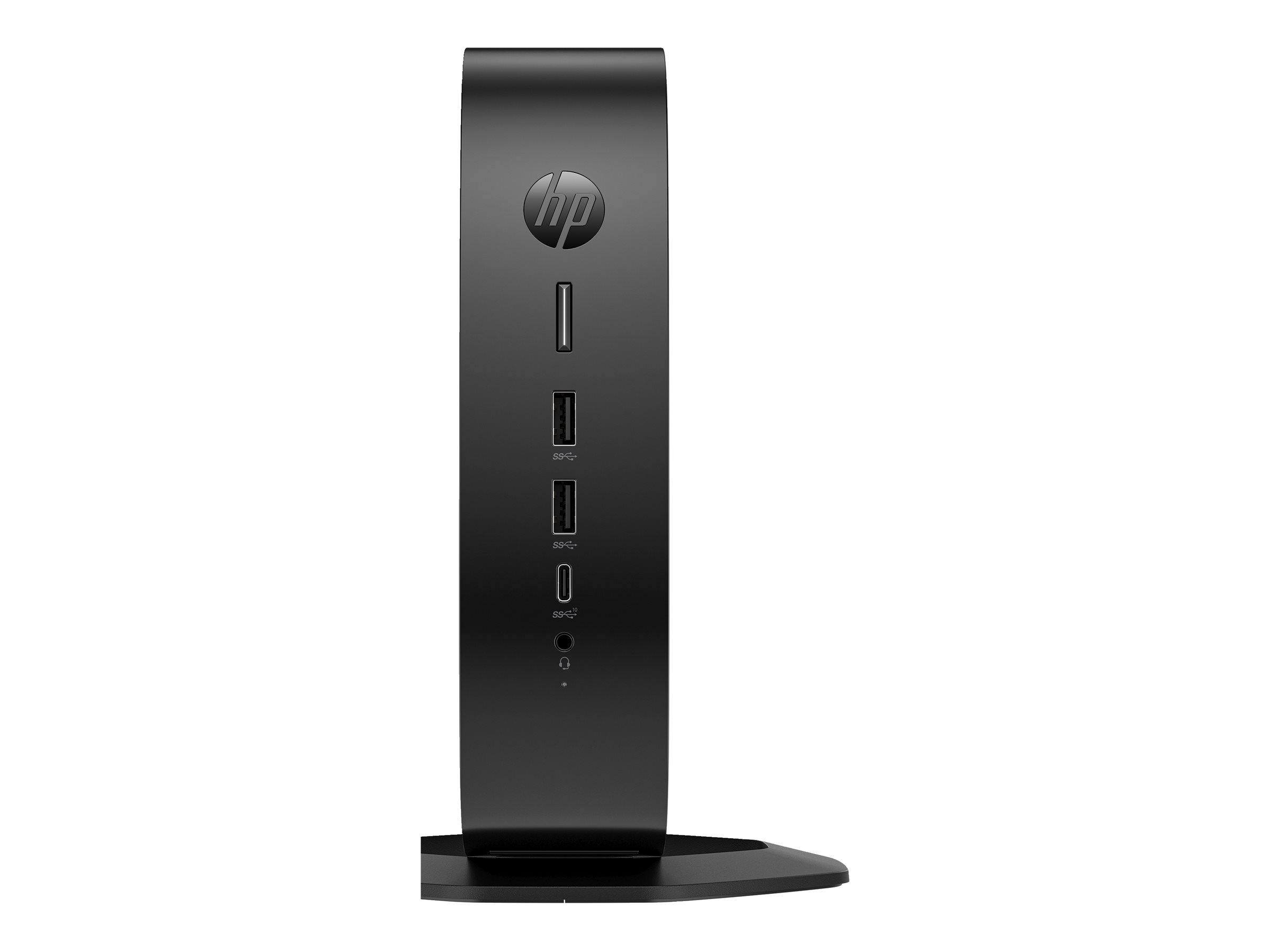

HP Elite t755 - Thin client
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
HP Elite t755 - Thin client
- SFF 1 x Ryzen Embedded V2546 / up to 3.95 GHz
- RAM 16 GB
- SSD 256 GB
- NVMe
- Radeon Graphics
- Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.3
- Win 11 IoT Enterprise
- monitor: none
- keyboard: US
- Smart Buy
- TAA Compliant
| Additional Details | |
|---|---|
| Mfr Part #: | B5VM3UT#ABA |
| SHI Part #: | 49612974 |
| Category: | Thin client or diskless workstations |
| UNSPSC: | 43211506 |
| Manufacturer: | HP, Inc. |
| Product Type: | Hardware |
Audio/Video Cables
- DisplayPort (M) to DisplayPort (M)
- 2 m
- for Elite t655; Presence Small Space Solution with Zoom Rooms; Pro t550
- USB 3.0
- 14.09 cm
- United States
- for HP 470 G8; Chromebook 11 G9, 14 G7; Chromebook x360; Elite x2; EliteBook 840; ProBook x360
Headsets
- wired
- USB
- shadow black
- for HP 245 G9, 256 G8, 25X G9, 34, 470 G9; EliteBook 1040 G9, 65X G9; ProBook 44X G9, 45X G9
- wired
- 3.5 mm jack
- shadow black
- for HP 245 G9, 256 G8, 25X G9, 34; EliteBook 1040 G9; Pro 260 G9; ProBook 44X G9, 45X G9
| General Information | |
|---|---|
| Category | Thin client or diskless workstations |
| Description | HP Elite t755 - Thin client - SFF 1 x Ryzen Embedded V2546 / up to 3.95 GHz - RAM 16 GB - SSD 256 GB - NVMe - Radeon Graphics - Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.3 - Win 11 IoT Enterprise - monitor: none - keyboard: US - Smart Buy - TAA Compliant |
| Manufacturer | HP, Inc. |
| UNSPSC | 43211506 |
| Main Specifications | |
| Chassis / Form Factor | Small form factor |
| Dimensions & Weight / Depth | 21 cm |
| Dimensions & Weight / Height | 21 cm |
| Dimensions & Weight / Weight | 1.4 kg |
| Dimensions & Weight / Width | 5 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 256 GB |
| Header / Brand | HP |
| Header / Country Kits | United States |
| Header / Localization | English |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Networking / Wireless LAN Supported | Yes |
| Networking / Wireless Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | Windows 11 IoT Enterprise |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 3 GHz |
| Processor / Manufacturer | AMD |
| Processor / Number of Cores | 6-core |
| Processor / Processor Number | V2546 |
| Processor / Type | Ryzen Embedded |
| RAM / Data Integrity Check | Non-ECC |
| RAM / Form Factor | SO-DIMM 260-pin |
| RAM / Memory Speed | 1600 MHz |
| RAM / Technology | DDR4 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 256 GB |
| System / Type | Thin client |
| Video Output / Graphics Processor | AMD Radeon Graphics |
| Audio Output | |
| Sound Output Mode | Stereo |
| Cache Memory | |
| Cache Per Processor | 8 MB |
| Installed Size | L3 cache - 8 MB |
| Dimensions & Weight | |
| Depth | 21 cm |
| Height | 21 cm |
| Weight | 1.4 kg |
| Width | 5 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 3.798 kg |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| Slots |
|
| General | |
| Built-in Devices | Speaker |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Localization | Language: English / region: United States |
| Product Form Factor | SFF |
| Type | Thin client |
| Graphics Controller | |
| Graphics Processor | AMD Radeon Graphics |
| Max Monitors Supported | 6 |
| Video Interfaces | DisplayPort |
| Hard Drive | |
| Capacity | 1 x 256 GB |
| Features | NVM Express (NVMe) |
| Interface Type | PCI Express |
| Type | SSD - M.2 |
| Input Device | |
| Type | Mouse, keyboard |
| Keyboard | |
| Keyboard Name | HP 125 |
| Localization & Layout | US |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years |
| Miscellaneous | |
| Compliant Standards | RoHS2, Energy-Related Products (ErP) Lot 3, CB, UL, GS, BSMI, FCC Class B certified, CISPR Class B, VCCI Class B, ICES Class B, AUS/NZ, CNS Class B, KCC Class B, CCC, FIPS 140-2, WEEE, CECP, SEPA, low halogen, HP GSE, EN60601-1-2, EMC |
| Included Accessories | HP 90W nPFC AC Adapter |
| Manufacturer Selling Program | HP Smart Buy |
| Security Slot Type | Kensington security slot |
| TAA Compliant | Yes |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| VESA Mounting Interface | 100 x 100 mm |
| Monitor | |
| Monitor Type | None. |
| Mouse | |
| Mouse Name | HP 125 |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 5.3 |
| Features | Dual stream (2x2) |
| Wireless LAN Supported | Yes |
| Wireless NIC | Realtek RTL8852BE |
| Operating System / Software | |
| OS Provided | Windows 11 IoT Enterprise English |
| Software | HP Device Manager, HP Easy Update, HP Easy Shell, HP Smart Zero Client Services, HP ThinUpdate, HP True Graphics, Microsoft SCCM/EDM-agent, HP Write Manager, HP User State Tool, HP USB Port Manager, Amazon WorkSpaces, Citrix HDX, Citrix ICA, Microsoft RemoteFX, Microsoft RDP, Azure Virtual Desktop |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Device Type | Power adapter |
| Power Device Name | HP Smart AC Adapter |
| Power Provided | 90 Watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Processor / Chipset | |
| Clock Speed | 3 GHz |
| CPU | AMD Ryzen Embedded V2546 |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Max Turbo Speed | 3.95 GHz |
| Number of Cores | 6-core |
| RAM | |
| Configuration Features | 2 x 8 GB |
| Effective Memory Speed | 1600 MHz |
| Form Factor | SO-DIMM 260-pin |
| Installed Size | 16 GB (installed) / 64 GB (max) |
| Rated Memory Speed | 1600 MHz |
| Slots | 2 (total) / 0 (empty) |
| Technology | DDR4 SDRAM - non-ECC |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| EPEAT Compliant | EPEAT Gold |
