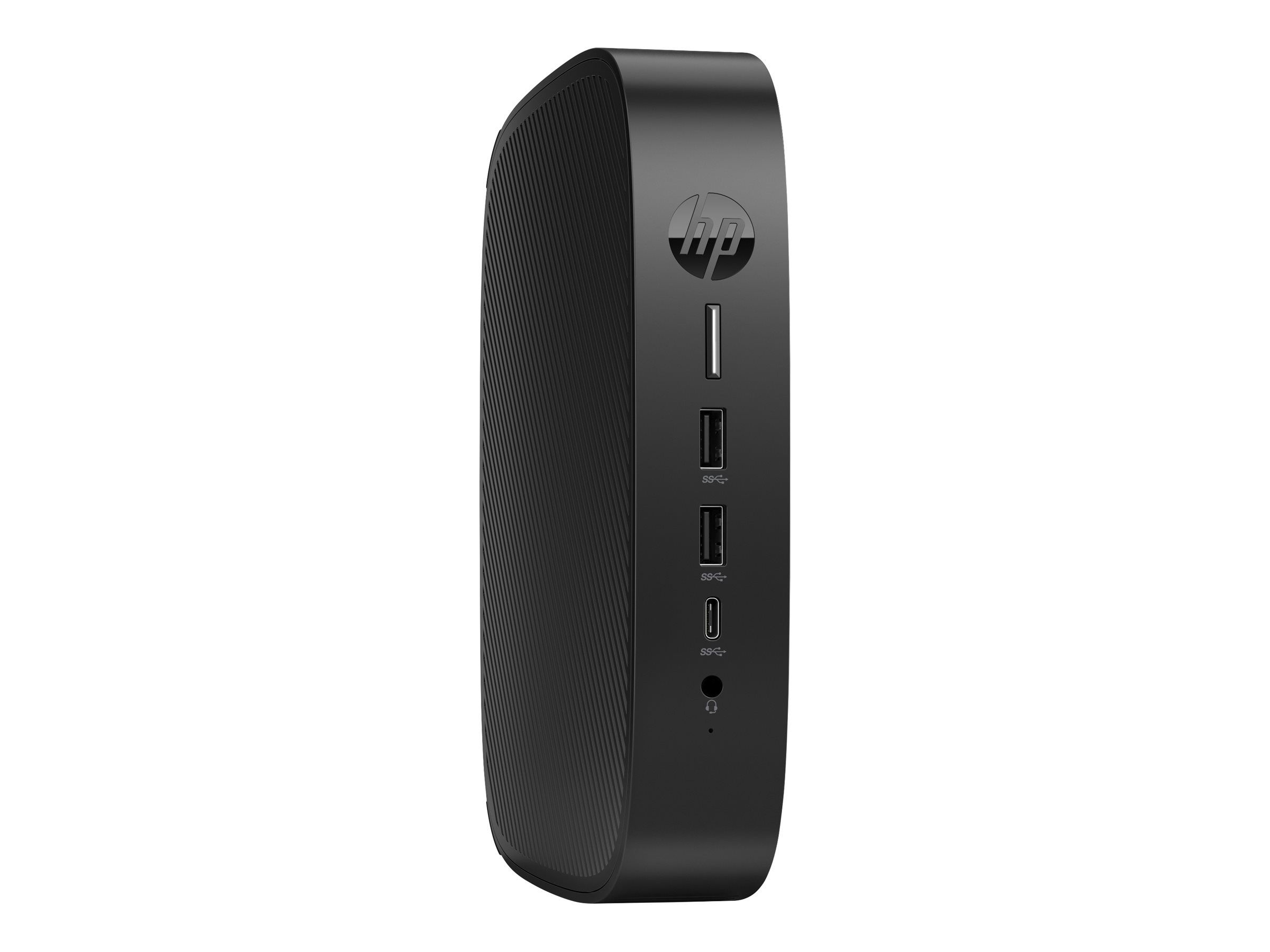

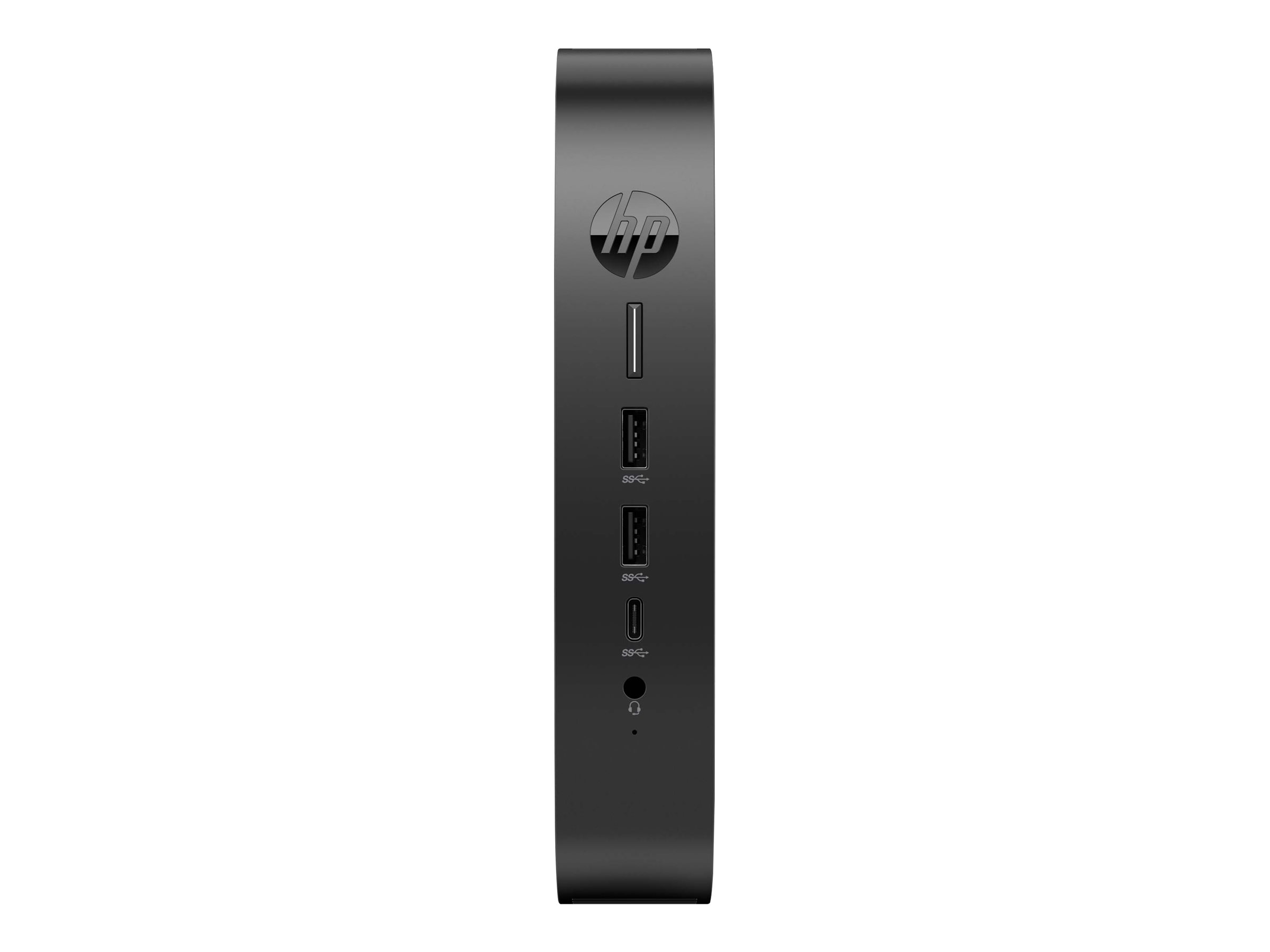

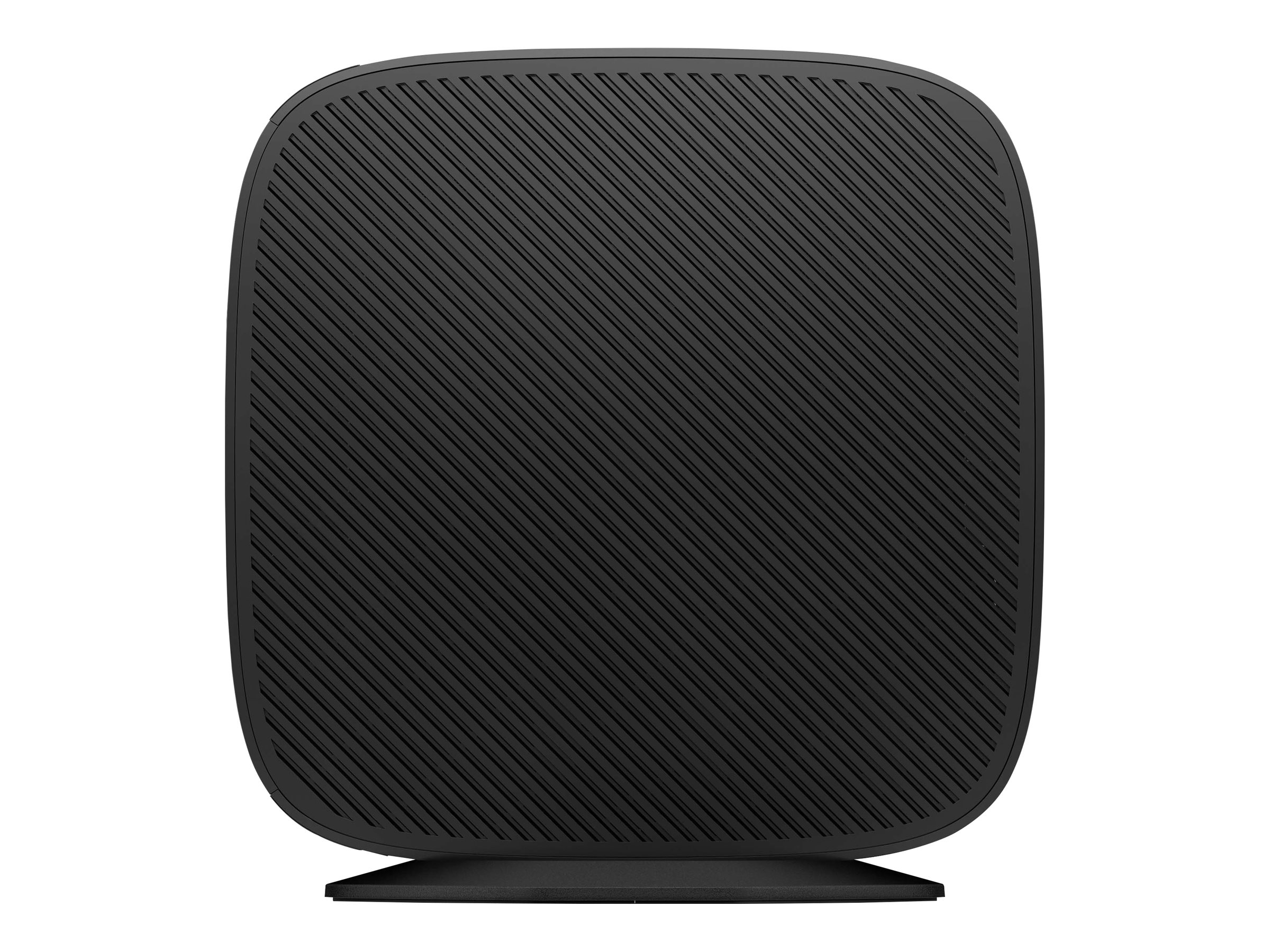

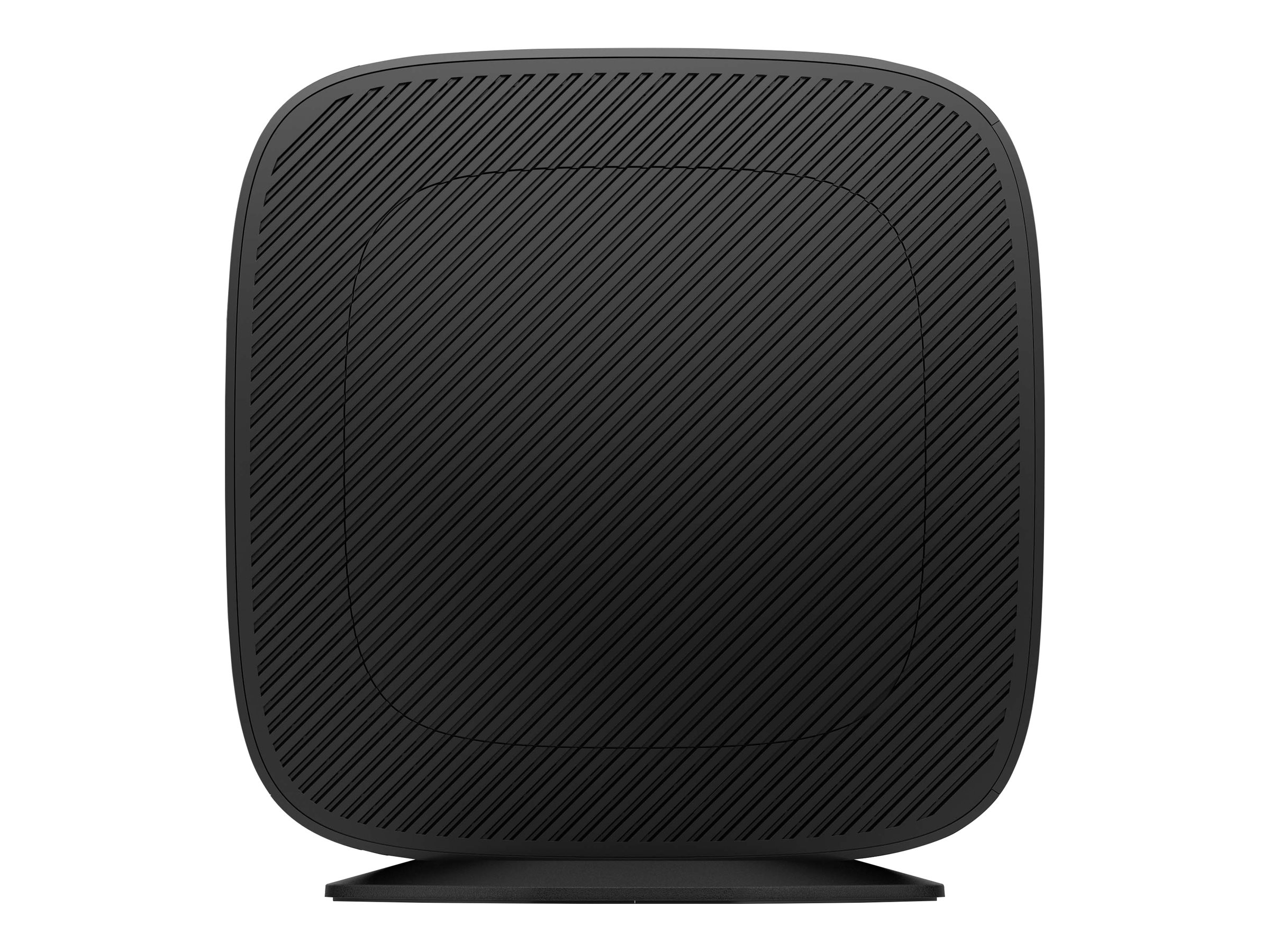

HP Elite t655 - Thin client
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
HP Elite t655 - Thin client
- SFF 1 x Ryzen Embedded R2314 / up to 3.5 GHz
- RAM 16 GB
- SSD 256 GB
- NVMe
- Radeon Graphics
- Gigabit Ethernet
- Win 10 IoT Enterprise
- monitor: none
- keyboard: US
- Smart Buy
| Additional Details | |
|---|---|
| Mfr Part #: | B5VH4UT#ABA |
| SHI Part #: | 49612954 |
| Category: | Thin client or diskless workstations |
| UNSPSC: | 43211506 |
| Manufacturer: | HP, Inc. |
| Product Type: | Hardware |
Audio/Video Cables
- DisplayPort (M) to DisplayPort (M)
- 2 m
- for Elite t655; Presence Small Space Solution with Zoom Rooms; Pro t550
- 19 cm
- for Elite 600 G9, 800 G9, t655; EliteDesk 80X G8; Pro t550; ProOne 440 G9; Workstation Z2 G9
Headsets
- headset
- on-ear
- wired
- USB-A
- black
- Certified for Microsoft Teams
- wired
- USB
- shadow black
- for HP 245 G9, 256 G8, 25X G9, 34, 470 G9; EliteBook 1040 G9, 65X G9; ProBook 44X G9, 45X G9
| General Information | |
|---|---|
| Category | Thin client or diskless workstations |
| Description | HP Elite t655 - Thin client - SFF 1 x Ryzen Embedded R2314 / up to 3.5 GHz - RAM 16 GB - SSD 256 GB - NVMe - Radeon Graphics - Gigabit Ethernet - Win 10 IoT Enterprise - monitor: none - keyboard: US - Smart Buy |
| Manufacturer | HP, Inc. |
| UNSPSC | 43211506 |
| Main Specifications | |
| Chassis / Form Factor | Small form factor |
| Dimensions & Weight / Depth | 20 cm |
| Dimensions & Weight / Height | 20 cm |
| Dimensions & Weight / Weight | 1.174 kg |
| Dimensions & Weight / Width | 3.5 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 256 GB |
| Header / Brand | HP |
| Header / Country Kits | United States |
| Header / Localization | English |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | Windows 10 IoT Enterprise |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 2.1 GHz |
| Processor / Manufacturer | AMD |
| Processor / Number of Cores | Quad-Core |
| Processor / Processor Number | R2314 |
| Processor / Type | Ryzen Embedded |
| RAM / Form Factor | SO-DIMM 260-pin |
| RAM / Memory Speed |
|
| RAM / Technology | DDR4 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 256 GB |
| System / Type | Thin client |
| Video Output / Graphics Processor | AMD Radeon Graphics |
| Audio Output | |
| Sound Output Mode | Stereo |
| Cache Memory | |
| Cache Per Processor | 2 MB |
| Installed Size | L2 cache - 2 MB |
| Dimensions & Weight | |
| Depth | 20 cm |
| Dimensions & Weight Details |
|
| Height | 20 cm |
| Weight | 1.174 kg |
| Width | 3.5 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 2.106 kg |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| Slots | 1 (total) / 0 (free) x M.2 Card (for internal storage) |
| General | |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Localization | Language: English / region: United States |
| Product Form Factor | SFF |
| Type | Thin client |
| Graphics Controller | |
| Graphics Processor | AMD Radeon Graphics |
| Max Monitors Supported | 3 |
| Video Interfaces | DisplayPort |
| Hard Drive | |
| Capacity | 1 x 256 GB |
| Features | NVM Express (NVMe) |
| Interface Type | PCI Express |
| Type | SSD - M.2 |
| Input Device | |
| Type | Mouse, keyboard |
| Keyboard | |
| Interface | USB |
| Localization & Layout | US |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years |
| Miscellaneous | |
| Compliant Standards | EMC, WEEE, EN 60601-1-2, ERP, CECP, RoHS2, SEPA, low halogen, HP GSE |
| Manufacturer Selling Program | HP Smart Buy |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| VESA Mounting Interface | 100 x 100 mm, VESA |
| Monitor | |
| Monitor Type | None. |
| Mouse | |
| Interface | USB |
| Mouse Name | HP 320M |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet Controller | Realtek RTL8111EPH-CG |
| Operating System / Software | |
| OS Provided | Windows 10 IoT Enterprise English |
| Software | HP Easy Tools, HP Device Manager, HP ThinUpdate, HP True Graphics, HP Easy Shell, Microsoft Edge, HP Write Manager, HP Cloud Endpoint Manager |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Device Type | Power adapter |
| Power Device Name | HP Smart AC Adapter |
| Power Provided | 45 Watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Processor / Chipset | |
| Clock Speed | 2.1 GHz |
| CPU | AMD Ryzen Embedded R2314 |
| CPU Qty | 1 |
| CPU Upgradability | Not upgradable |
| Max CPU Qty | 1 |
| Max Turbo Speed | 3.5 GHz |
| Number of Cores | Quad-Core |
| RAM | |
| Configuration Features | 1 x 16 GB |
| Effective Memory Speed | 1333 MHz |
| Form Factor | SO-DIMM 260-pin |
| Installed Size | 16 GB (installed) / 32 GB (max) |
| Rated Memory Speed | 1600 MHz |
| Slots | 2 (total) / 1 (empty) |
| Technology | DDR4 SDRAM |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
