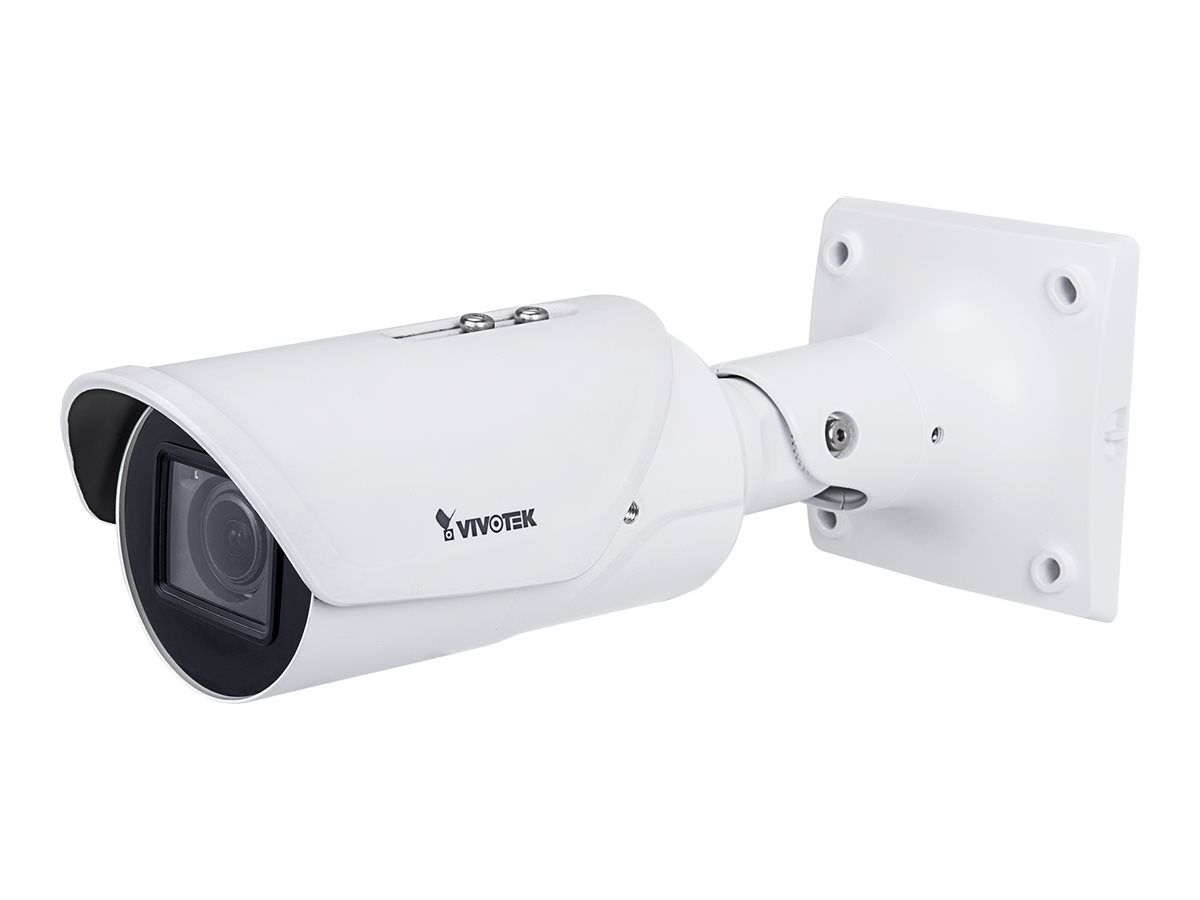

Vivotek S Series IB9387-LPR-V2-N
MSRP$1,600.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Vivotek S Series IB9387-LPR-V2-N
- Network surveillance camera
- bullet
- vandal / weatherproof
- color (Day&Night)
- 5 MP
- 2560 x 1920
- auto iris
- vari-focal
- audio
- LAN 10/100
- MJPEG, H.264, H.265
- PoE Class 4
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,600.00 |
| Mfr Part #: | IB9387-LPR-V2-N |
| SHI Part #: | 48724488 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | Vivotek |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Vivotek S Series IB9387-LPR-V2-N - Network surveillance camera - bullet - vandal / weatherproof - color (Day&Night) - 5 MP - 2560 x 1920 - auto iris - vari-focal - audio - LAN 10/100 - MJPEG, H.264, H.265 - PoE Class 4 |
| Manufacturer | Vivotek |
| MSRP | $1,600.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 29.4 cm |
| Dimensions & Weight / Height | 11.8 cm |
| Dimensions & Weight / Width | 11.8 cm |
| Header / Brand | Vivotek |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| System Requirements / OS Required |
|
| Camera | |
| Digital Video Format | MJPEG, H.264, H.265 |
| Digital Zoom | 48 |
| Exposure Range | 1/5 sec - 1/32000 sec |
| Features | License plate recognition (LPR), 3 video streams, 120 dB dynamic range, 60dB signal-to-noise ratio, ePTZ, Seamless Recording, embedded SOC processor, LED indicator, audio alarm, e-mail alerts, Event Notification, 10 access users, 3D Noise Reduction Technology, 802.1x authentication, AE speed adjustment, Backlight Compensation (BLC), brightness control, contrast adjustment, deep learning function, Defog, Electronic Image Stabilizer (EIS), exposure control, Gain Control, gamma control, Highlight Compensation (HLC), License Plate Capture (LPC), ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, password protection, P-Iris control, saturation control, secure boot, sharpness control, signed firmware, user access log, user account management, WDR technology, white balance, anti-overexposure, Smart IR II technology, image flip, image mirror, time stamp overlay, video title overlay, bit rate control, Smart Stream III, Removable IR-Cut Filter, Wide Dynamic Range (WDR) Pro II, Wiegand protocol supported |
| Flash Memory | 1 GB |
| Infrared LEDs | 6 |
| Max Digital Video Resolution | 2560 x 1920 |
| Minimum Illumination |
|
| RAM | 2 GB |
| Type | Color - Day&Night - fixed - vandal / weatherproof |
| Video Capture |
|
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -30 °C |
| Relative Humidity (operating) | 90% RH (non-condensing) |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.711, G.726 |
| Audio Support | Yes: two-way audio capability |
| Camera Mount Type | Wall mount |
| Connectivity Technology | Wired |
| Depth | 29.4 cm |
| Device Type | Network surveillance camera |
| Form Factor | Bullet |
| Height | 11.8 cm |
| Width | 11.8 cm |
| Image Sensor | |
| Type | 5 MP Progressive Scan CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | ARP, Bonjour, CIFS, SMB, DDNS, DHCP, DNS, FTP, SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QOS, CoS, DSCP, RTSP, RTP, RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP |
| Internet of Things (IoT) | |
| Supported Host Device Platform | Windows, MacOS |
| Lens Construction | |
| Diagonal Field of View (degree) | 34.9 - 131.5 |
| Focal Length | 3.2 mm - 10.5 mm |
| Focus Adjustment | Remote |
| Horizontal Field of View (degree) | 27.9 - 97.3 |
| Lens Iris | F/1.6-3.3 auto iris |
| Optical Zoom | 3.28 x |
| Type | Vari-focal |
| Vertical Field of View (degree) | 20.9 - 70.3 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | IEEE 802.1x, EN 55032 Class A, EN 55035, UKCA, BS EN 55032:2015+A11:2020 Class A, BS EN 55035:2017+A11:2020, FCC Part 15 B Class A, RCM, ICES-003 issue 7, AS/NZS CISPR 32 Class A, VCCI-CISPR 32 Class A, UL 62368-1, CB, IEC/EN 62368-1, IEC/EN 62471, CNS 15936, EMC, IK10, IEC 60529, IP66, BIS, IS 13252, BSMI, IP67 |
| Included Accessories | Screw pack, sunshield, alignment sticker, L-shaped wrench, waterproof accessory pack |
| Panning | |
| Range (degree) | 180 |
| Power | |
| Power Device | 29.5 Watt |
| Power Requirements | PoE Class 4 |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7 / 8 / 10, Apple macOS 10.12 |
| Software Included | Trend Micro IoT Security |
| Tilting | |
| Range (degree) | 90 |
