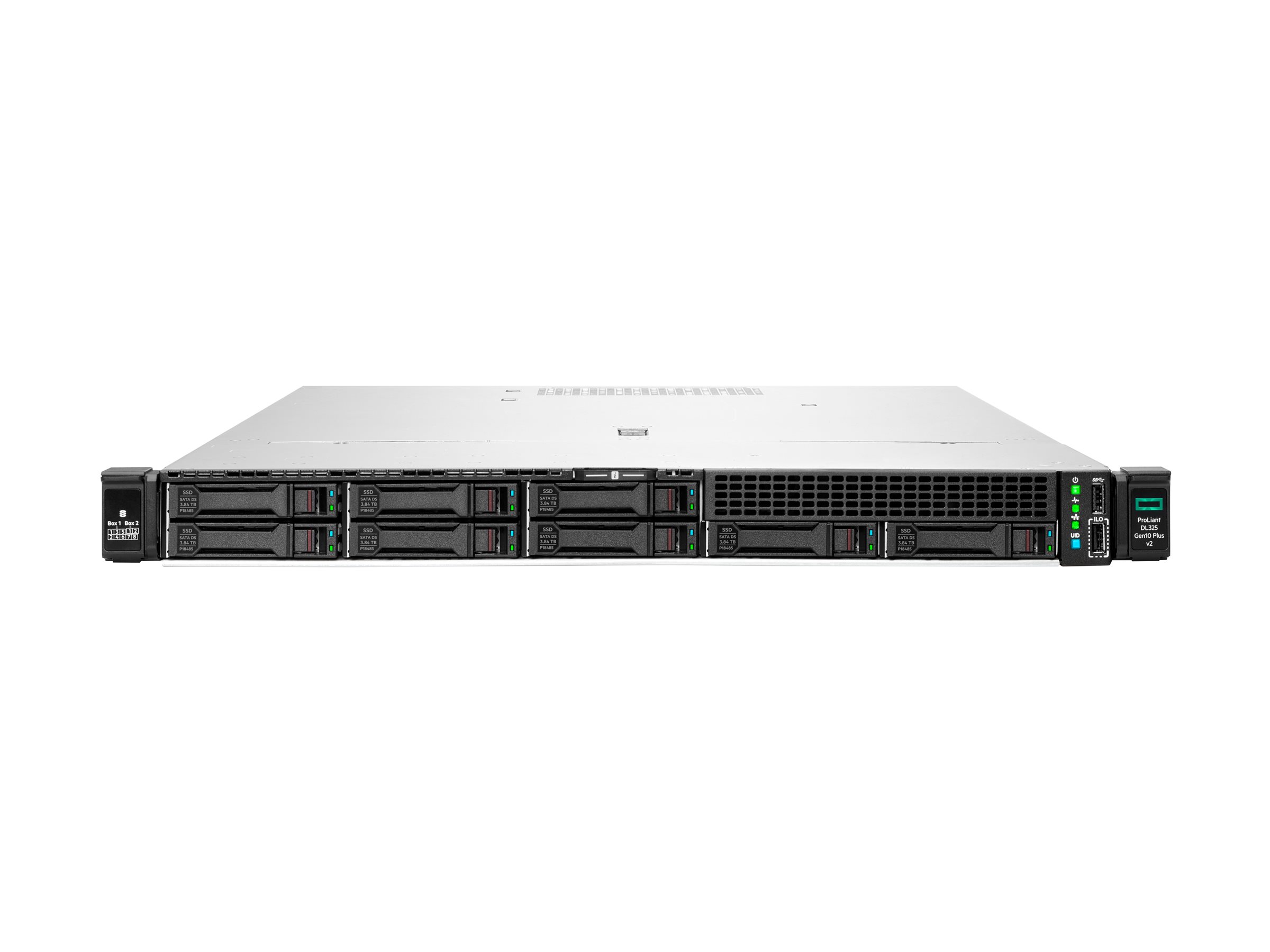

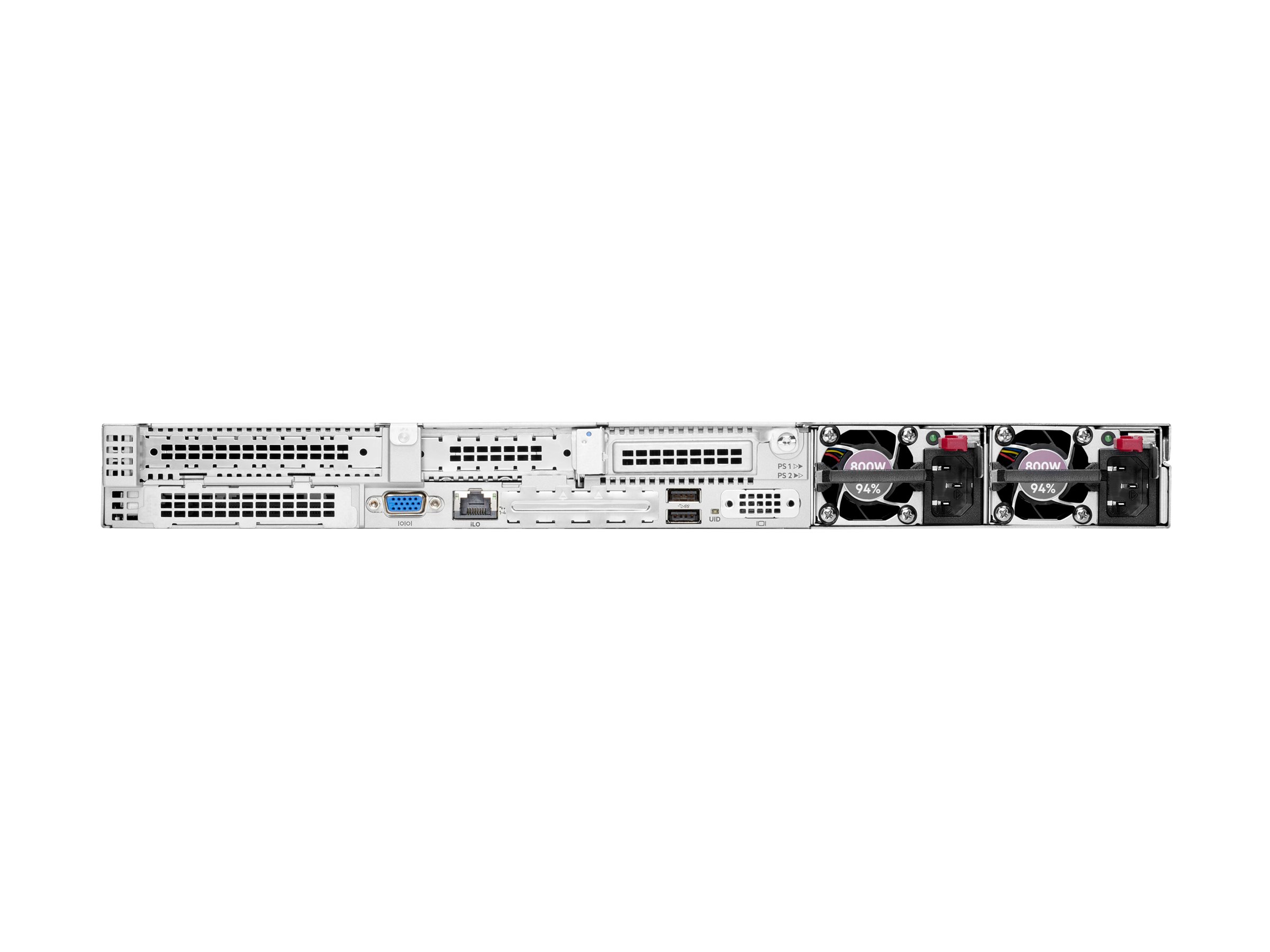

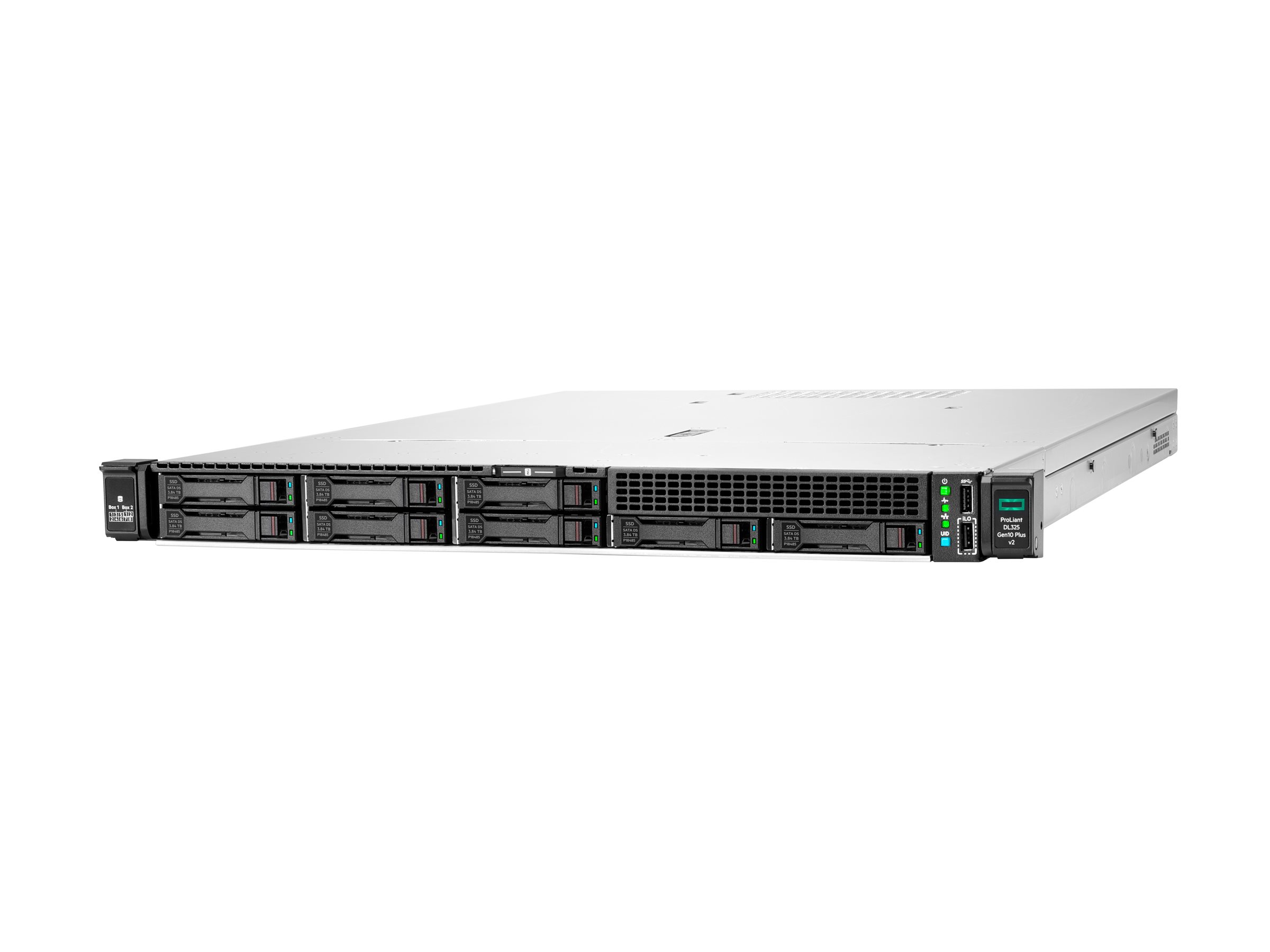

HPE ProLiant DL325 Gen10 Plus V2 Base
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
HPE ProLiant DL325 Gen10 Plus V2 Base
- Server
- rack-mountable 1U
- 1-way
- 1 x EPYC 7203P / up to 3.4 GHz
- RAM 32 GB
- SATA/SAS/NVMe
- hot-swap 2.5" bay(s)
- no HDD
- Gigabit Ethernet
- monitor: none
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | P72998-371 |
| SHI Part #: | 48192718 |
| Category: | Servers |
| UNSPSC: | 43211501 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
CD/DVD/Blu-Ray Drives
- 8x/8x/5x
- Serial ATA
- internal
- HP jack black
- for Nimble Storage dHCI Medium Solution with HPE ProLiant DL325 Gen10
MSRP $161.00
$97.00
- Serial ATA
- internal
- HP jack black
- for Nimble Storage dHCI Medium Solution with HPE ProLiant DL325 Gen10
MSRP $124.00
$75.00
Hard Disk Drives (HDD)
- 12 TB
- hot-swap
- 3.5" LFF
- SAS 12Gb/s
- 7200 rpm
- with low profile carrier
MSRP $2,342.00
$1,065.00
| General Information | |
|---|---|
| Category | Servers |
| Description | HPE ProLiant DL325 Gen10 Plus V2 Base - Server - rack-mountable 1U - 1-way - 1 x EPYC 7203P / up to 3.4 GHz - RAM 32 GB - SATA/SAS/NVMe - hot-swap 2.5" bay(s) - no HDD - Gigabit Ethernet - monitor: none |
| Manufacturer | Hewlett Packard Enterprise |
| MSRP | $9,211.00 |
| UNSPSC | 43211501 |
| Main Specifications | |
| Chassis / Form Factor | Rack-mountable |
| Chassis / Server Storage Bays | Hot-swap |
| Chassis / Server Swappable Drive Interface | SATA/SAS/NVMe |
| Dimensions & Weight / Depth | 64.43 cm |
| Dimensions & Weight / Height | 4.29 cm |
| Dimensions & Weight / Weight | 12.19 kg |
| Dimensions & Weight / Width | 43.46 cm |
| Display / Type | None. |
| Header / Brand | HPE |
| Header / Country Kits | Asia Pacific |
| Miscellaneous / Product Color |
|
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 2.8 GHz |
| Processor / Manufacturer | AMD |
| Processor / Number of Cores | 8-core |
| Processor / Processor Number | 7203P |
| Processor / Type | EPYC |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Memory Speed | 3200 MHz |
| RAM / Technology | DDR4 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 0 GB |
| System / Type | Server |
| Cache Memory | |
| Cache Per Processor | 64 MB |
| Installed Size | L3 cache - 64 MB |
| Dimensions & Weight | |
| Depth | 64.43 cm |
| Height | 4.29 cm |
| Weight | 12.19 kg |
| Width | 43.46 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Bays | 8 (total) / 8 (free) x hot-swap 2.5" SFF |
| Interfaces |
|
| Slots |
|
| General | |
| Embedded Security | Trusted Platform Module (TPM) Security Chip |
| Hot-Swap Bays Qty | 8 |
| Localization | Region: Asia Pacific |
| Product Form Factor | Rack-mountable - 1U |
| Server Scalability | 1-way |
| Type | Server |
| Graphics Controller | |
| Video Interfaces | VGA |
| Video Memory | 16 MB |
| Hard Drive | |
| Type | No HDD |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| Miscellaneous | |
| Compliant Standards | ACPI 6.1, SMBIOS 3.1, UEFI, Redfish API |
| Included Accessories | SFF Easy install rails, 8 maximum performance fans |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Data Link Protocol | Gigabit Ethernet, Ethernet, Fast Ethernet |
| Ethernet Controller | Broadcom BCM5719 |
| Ethernet Ports | 4 x Gigabit Ethernet |
| Features | Wake on LAN (WoL), PXE support |
| Interface (Bus) Type | Open Compute Project mezzanine (OCP) 3.0 |
| Remote Management Protocol | SNMP 3, SMASH CLP |
| Operating System / Software | |
| OS Certified | Microsoft Windows Server 2016, Microsoft Windows Server 2019, Red Hat Enterprise Linux 8.3, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 15 SP2, VMware ESXi 6.7 update 3, VMware vSphere Hypervisor 7.0 (ESXi) Update 1, VMware vSphere Hypervisor 7.0 (ESXi) Update 2 |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| 80 PLUS Certification | 80 PLUS Platinum |
| Device Type | Power supply |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Provided | 500 Watt |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Processor / Chipset | |
| Clock Speed | 2.8 GHz |
| CPU | AMD EPYC 7203P |
| CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Max CPU Qty | 1 |
| Max Turbo Speed | 3.4 GHz |
| Number of Cores | 8-core |
| RAM | |
| Configuration Features | 1 x 32 GB |
| Effective Memory Speed | 3200 MHz |
| Features | Registered, HPE SmartMemory |
| Form Factor | DIMM 288-pin |
| Installed Size | 32 GB (installed) / 1 TB (max) |
| RAM Supported |
|
| Rated Memory Speed | 3200 MHz |
| Slots | 16 (total) / 15 (empty) |
| Technology | DDR4 SDRAM |
| Storage Controller | |
| Buffer Size | 4 GB |
| Channel Qty | 16 |
| Controller Interface Type | Serial ATA-600 / SAS 3.0 / PCI Express (NVMe) |
| Storage Controller Name | HPE MR416i-a Gen10 |
| Type | 1 x RAID |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 4.0 |
