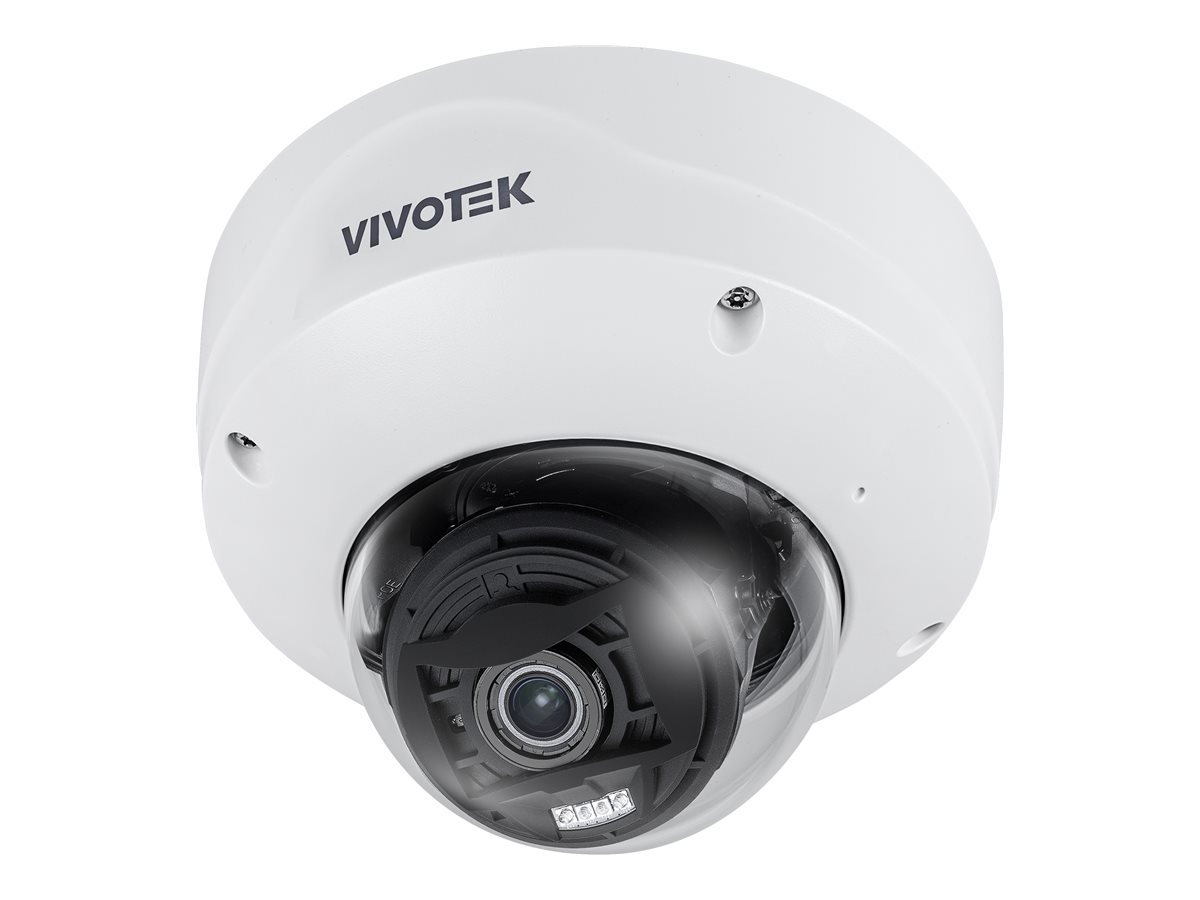

Vivotek V Series FD9187-HT-V3
MSRP$1,100.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Vivotek V Series FD9187-HT-V3
- Network surveillance camera
- dome
- indoor
- weatherproof
- color (Day&Night)
- 5 MP
- 2560 x 1920
- auto iris
- vari-focal
- audio
- LAN 10/100
- MJPEG, H.264, H.265
- DC 12 V / PoE Class 0
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,100.00 |
| Mfr Part #: | FD9187-HT-V3 |
| SHI Part #: | 48055753 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | Vivotek |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Vivotek V Series FD9187-HT-V3 - Network surveillance camera - dome - indoor - weatherproof - color (Day&Night) - 5 MP - 2560 x 1920 - auto iris - vari-focal - audio - LAN 10/100 - MJPEG, H.264, H.265 - DC 12 V / PoE Class 0 |
| Manufacturer | Vivotek |
| MSRP | $1,100.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 17.36 cm |
| Dimensions & Weight / Height | 12.26 cm |
| Dimensions & Weight / Weight | 1.1 kg |
| Dimensions & Weight / Width | 17.36 cm |
| Header / Brand | Vivotek |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Service & Support / Type |
|
| System Requirements / OS Required |
|
| Camera | |
| Digital Video Format | MJPEG, H.264, H.265 |
| Digital Zoom | 48 |
| Exposure Range | 1/5 sec - 1/32000 sec |
| Features | 802.1x authentication, embedded SOC processor, Wide Dynamic Range (WDR) Pro, Removable IR-Cut Filter, Smart Stream III, 3 video streams, 70dB signal-to-noise ratio, 120 dB dynamic range, bit rate control, AE speed adjustment, anti-overexposure, brightness control, contrast control, Defog, exposure control, gamma control, saturation control, sharpness control, Pixel Calculator, Privacy Mask Function, LED indicator, Smart IR, 10 access users, digest authentication, HTTPs encryption, password protection, secure boot, security audit log, signed firmware, user access log, user account management, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, People Detection, Vehicle Detection, motor vehicle detection, crowd detection, deep learning function, face detection, line-crossing detection, loitering detection, missing object detection, smart intrusion detection, Smart Motion Detection, Smart VCA, unattended object detection, Video Motion Detection (VMD), alarm function, Audio Detection, Camera Tampering Detection, e-mail alerts, shock detection, NAS-Ready, DORI coverage, full duplex audio, white balance, 3D Noise Reduction Technology, ePTZ, Backlight Compensation (BLC), Highlight Compensation (HLC), 5m microphone pickup range, deblur, 157.3m detect distance (wide), 378.2 detection distance (tele), 62.7m observe distance (wide), 151.3m observe distance (tele), 31.4m recognize distance (wide), 75.9m recognize distance (tele), 15.7m identify distance (wide), 37.9m identify distance (tele) |
| Flash Memory | 8 GB |
| Infrared Distance | 50 m |
| Max Digital Video Resolution | 2560 x 1920 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 2 GB |
| Type | Color - Day&Night - fixed - indoor - weatherproof |
| Video Capture |
|
| Environmental Parameters | |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Relative Humidity (operating) | 98% RH (non-condensing) |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.711, G.726, AAC-LC, MPEG 2 Audio |
| Audio Support | Yes: two-way audio capability, built-in microphone |
| Camera Mount Type | Ceiling mount |
| Connectivity Technology | Wired |
| Depth | 17.36 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 12.26 cm |
| Weight | 1.1 kg |
| Width | 17.36 cm |
| Image Sensor | |
| Type | 5 MP Progressive Scan CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | ARP, Bonjour, CIFS, SMB, DDNS, DHCP, DNS, FTP, SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QOS, CoS, DSCP, RTSP, RTP, RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP |
| Internet of Things (IoT) | |
| Supported Host Device Platform | Windows, MacOS |
| Lens Construction | |
| Diagonal Field of View (degree) | 19.4 - 50.8 |
| Focal Length | 7 mm - 22 mm |
| Focus Adjustment | Remote |
| Horizontal Field of View (degree) | 15.5 - 39.3 |
| Lens Iris | F/1.7-2.9 auto iris |
| Optical Zoom | 3.14 x |
| Type | Vari-focal |
| Vertical Field of View (degree) | 11.6 - 28.8 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | IP54, BSMI CNS 13438, CNS 14336-1, IS 13252, BS EN IEC 62368-1, EN 62368-1, IEC/EN 60950-22, IEC/EN 62368-1, IEC/EN 62471, LVD, UKCA, UL 62368-1, EN 55032, EN 55035 Class B, EN 50121-4, FCC Part 15 Subpart B Class B, BS EN 55032, RCM, CISPR 32 Class B, ICES-003 issue 7, BS EN 55035 Class A, AS/NZS CISPR 32 Class B, VCCI, IEEE 802.3af, IEEE 802.1x |
| Included Accessories | Alignment sticker, conduit bracket, I/O cable, L-shaped wrench, product labels, screw pack, sunshield, waterproof accessory pack |
| Panning | |
| Range (degree) | -175 to +175 |
| Power | |
| Power Device | 14.4 Watt |
| Power Requirements | DC 12 V / PoE Class 0 |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7 / 8 / 10, Apple macOS 10.12 |
| Software Included | Trend Micro IoT Security (3 years trial) |
| Tilting | |
| Range (degree) | 80 |
