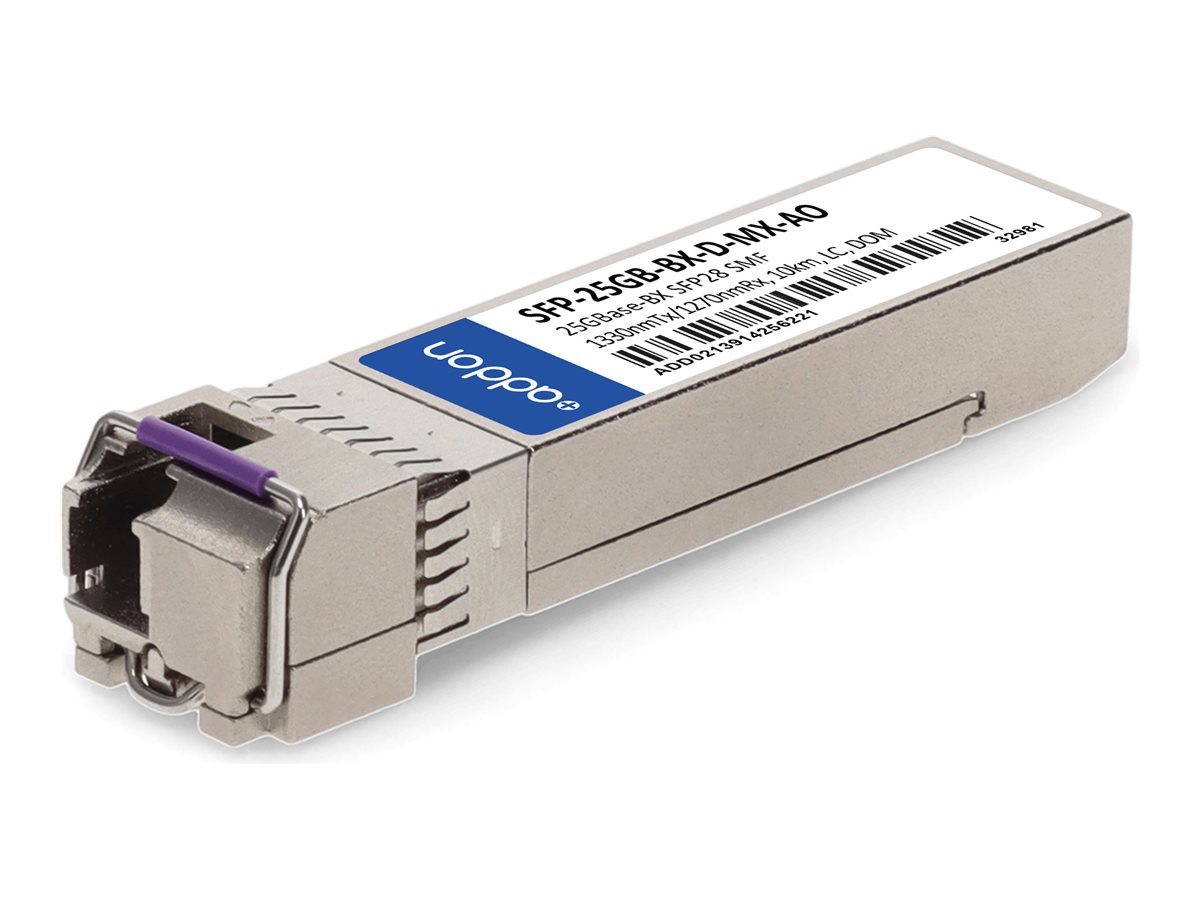

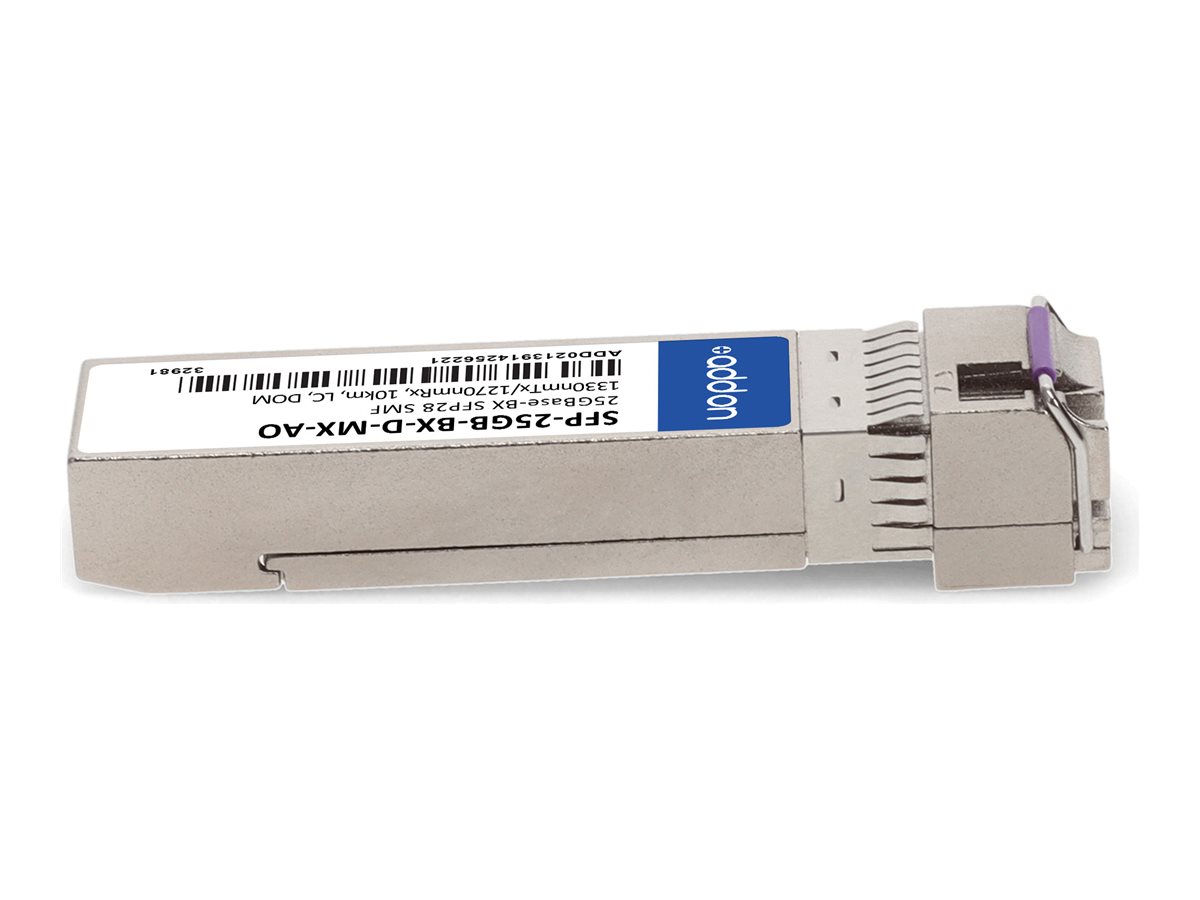

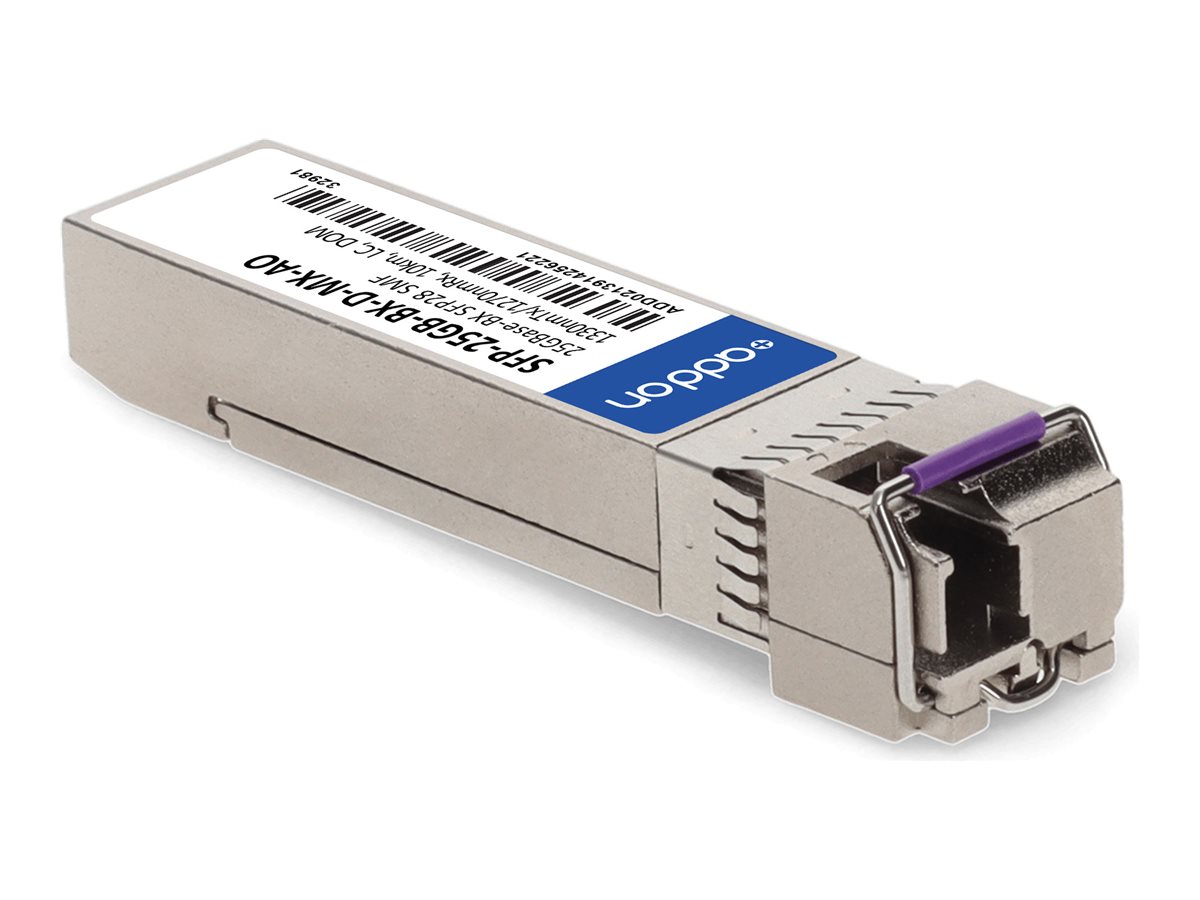

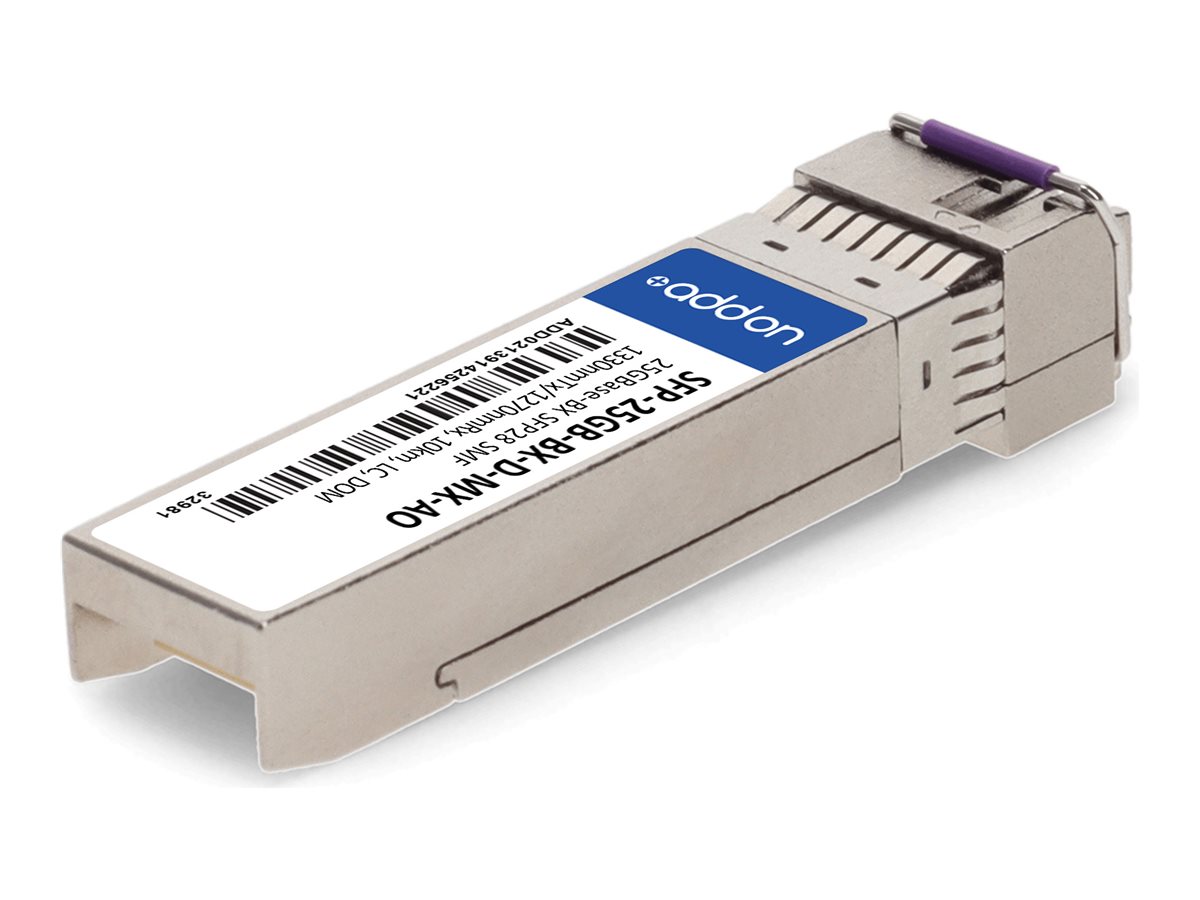

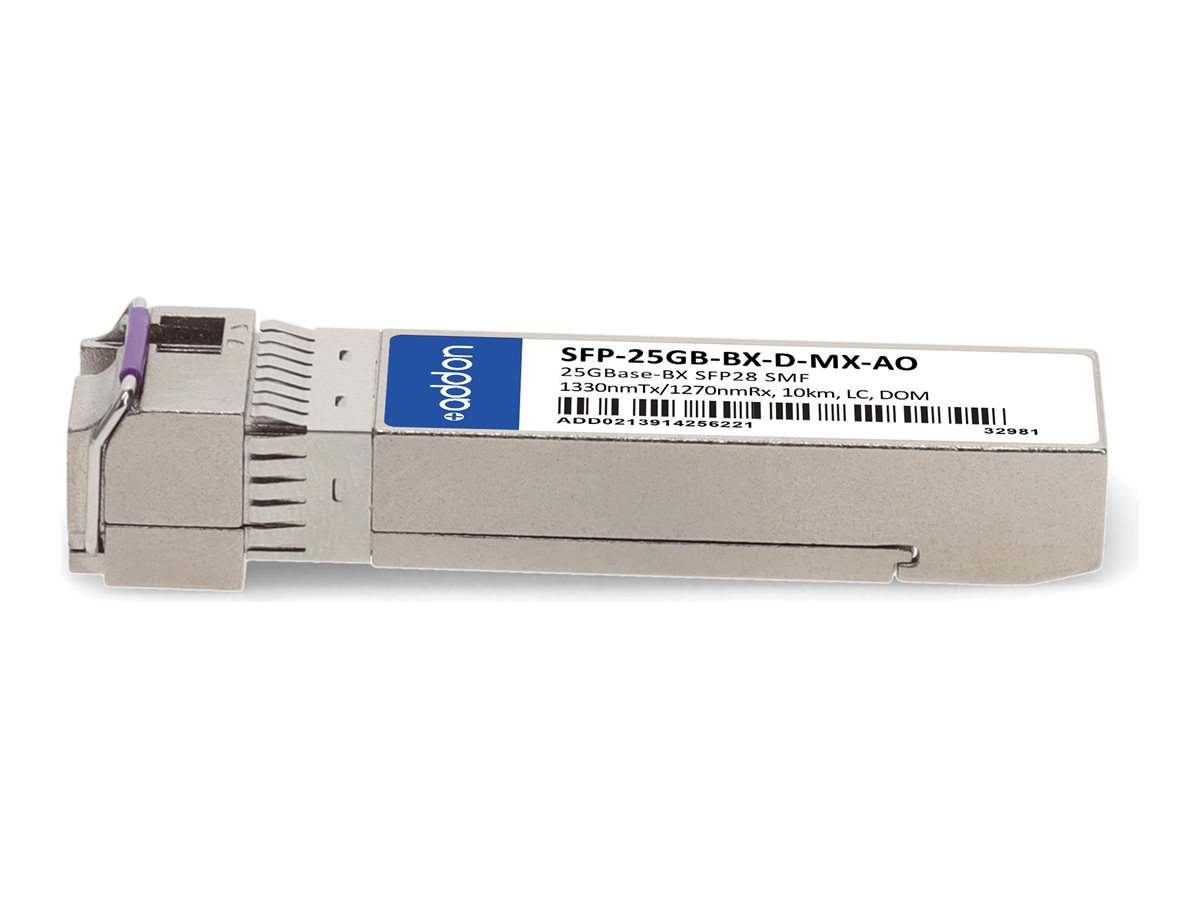

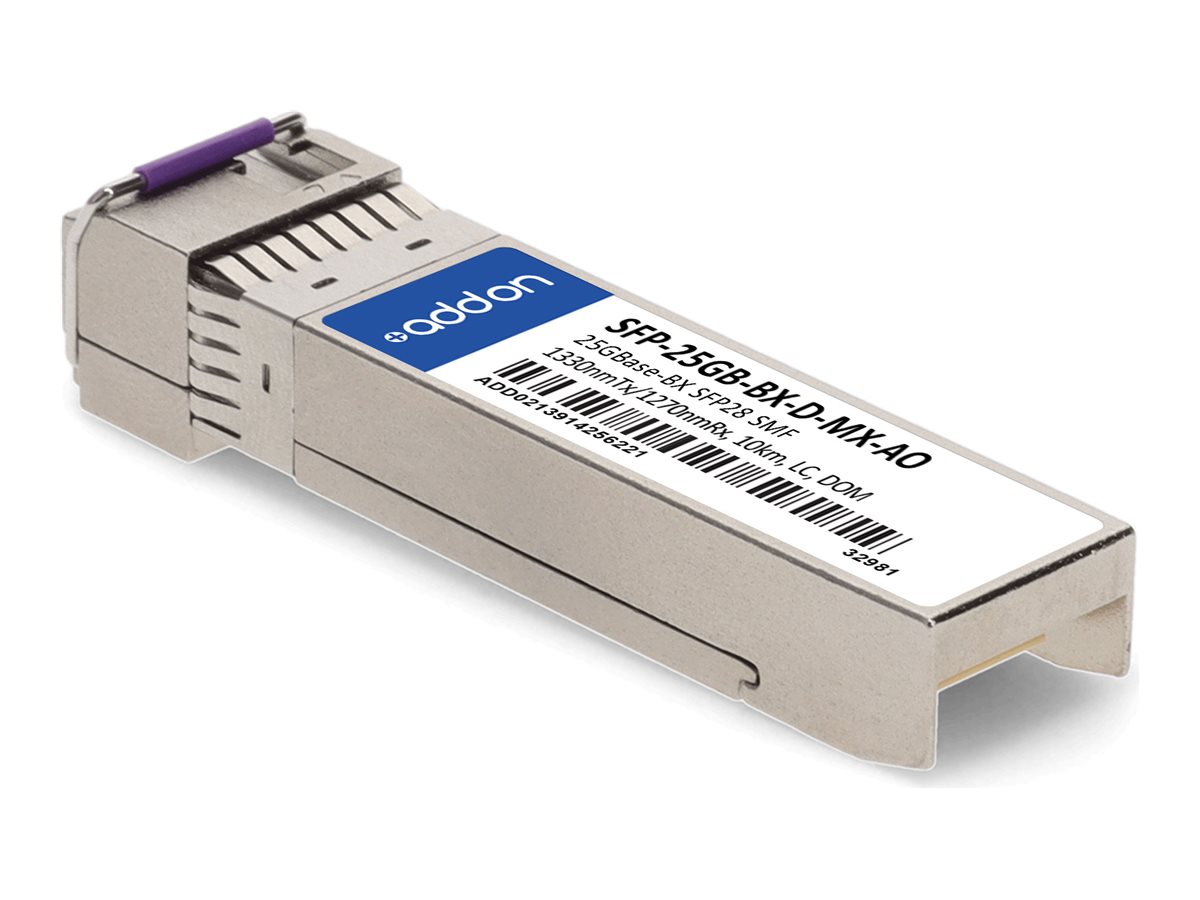

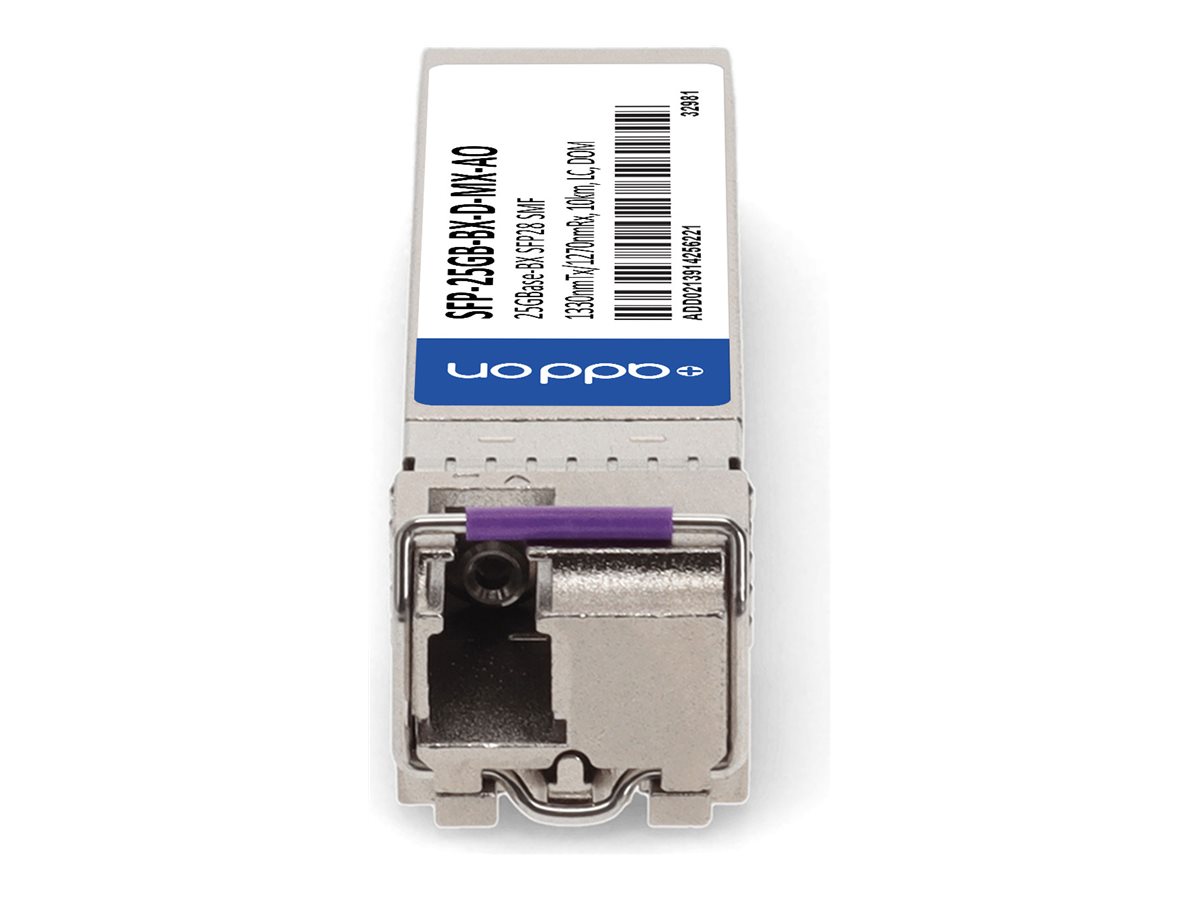

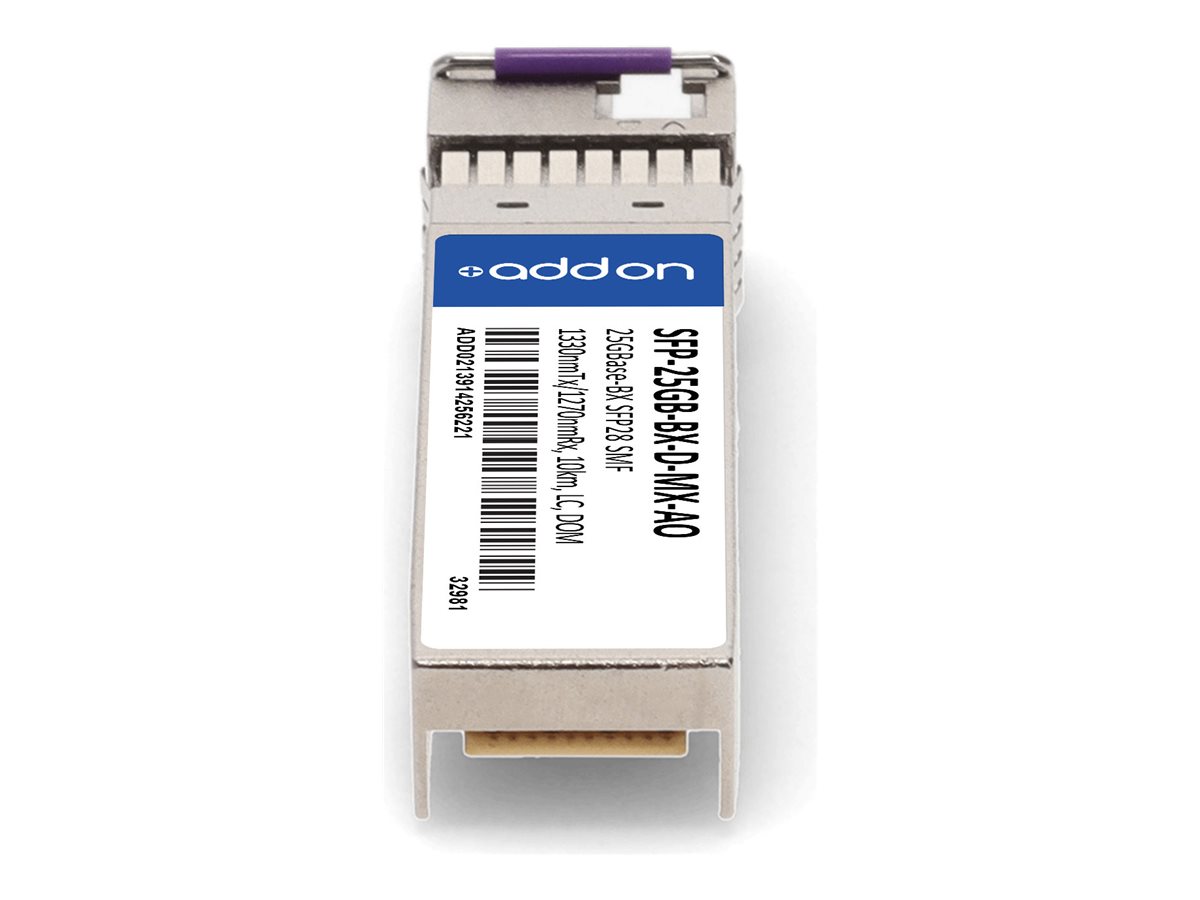

AddOn - SFP28 transceiver module (equivalent to: Mellanox SFP-25GB-BX-D-MX)
MSRP$1,100.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
AddOn - SFP28 transceiver module (equivalent to: Mellanox SFP-25GB-BX-D-MX)
- 25GbE
- 25GBase-BX
- LC single-mode
- up to 10 km
- 1330 (TX) / 1270 (RX) nm
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,100.00 |
| Mfr Part #: | SFP-25GB-BX-D-MX-AO |
| SHI Part #: | 47611137 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | AddOn Networks |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | AddOn - SFP28 transceiver module (equivalent to: Mellanox SFP-25GB-BX-D-MX) - 25GbE - 25GBase-BX - LC single-mode - up to 10 km - 1330 (TX) / 1270 (RX) nm - TAA Compliant |
| Manufacturer | AddOn Networks |
| MSRP | $1,100.00 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Header / Brand | AddOn |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | 25 Gigabit Ethernet |
| Networking / Data Transfer Rate | 25 Gbps |
| Networking / Form Factor | Plug-in module |
| Networking / Type | SFP28 transceiver module |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 12.1 cm |
| Shipping Height | 3.05 cm |
| Shipping Weight | 181 g |
| Shipping Width | 6.99 cm |
| Environmental Parameters | |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 25GBase-BX - LC single-mode |
| General | |
| Device Type | SFP28 transceiver module |
| Form Factor | Plug-in module |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | RoHS, Lead-Free, FCC Part 15 Class B, RoHS 2.0, SFF-8402, SFF-8472 |
| OEM Manufacturer Equivalent Part Number | Mellanox SFP-25GB-BX-D-MX |
| TAA Compliant | Yes |
| Networking | |
| Cabling Type | 25GBase-BX |
| Connectivity Technology | Wired |
| Data Link Protocol | 25GbE |
| Data Transfer Rate | 25 Gbps |
| Features | Digital Optical Monitoring (DOM) support, metal housing, ESD Protector, hot-pluggable, low EMI |
| Max Transfer Distance | 10 km |
| Optical Wave Length | 1330 (TX) / 1270 (RX) nm |
