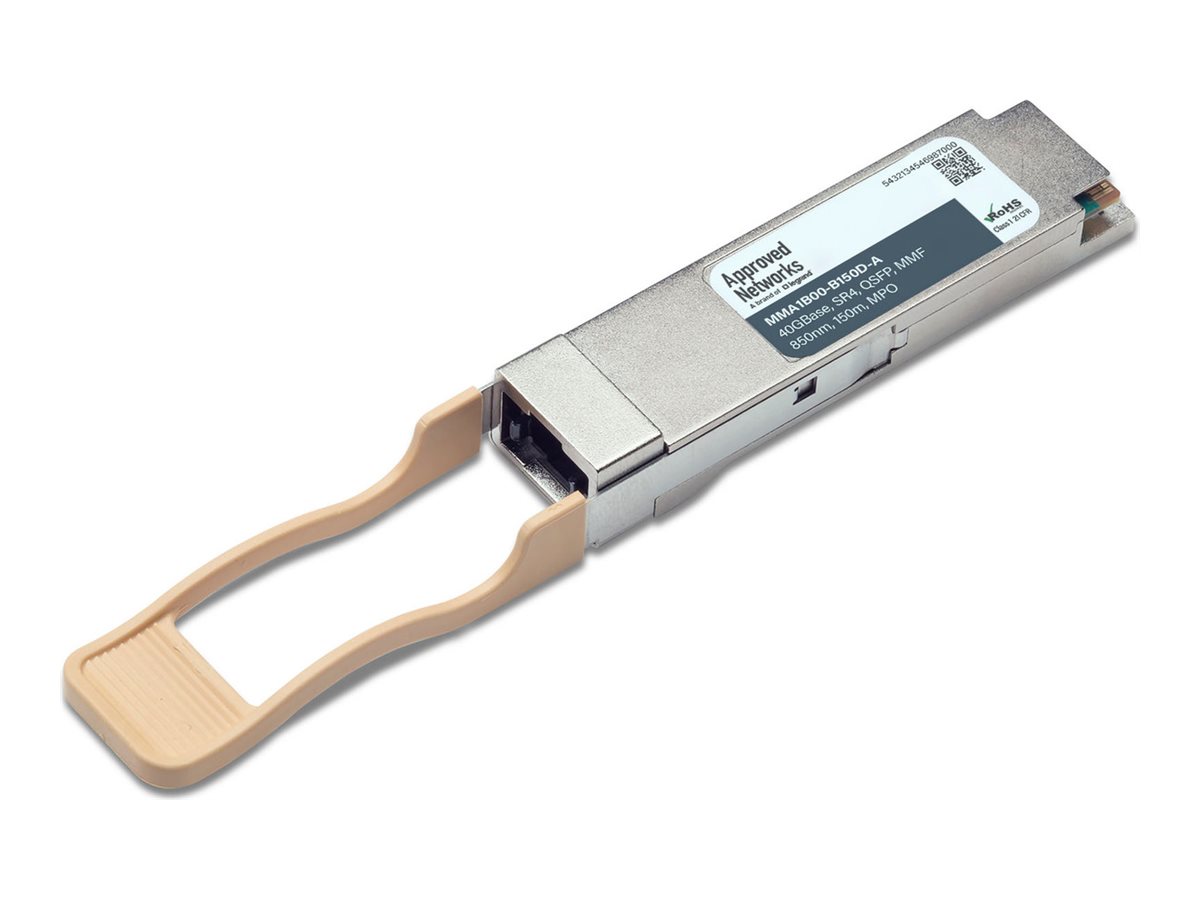

MELLANOX MMA1B00-B150DCOMPATIBLE
MSRP$106.25
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
MELLANOX MMA1B00-B150DCOMPATIBLE
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $106.25 |
| Mfr Part #: | MMA1B00-B150D-A |
| SHI Part #: | 47010521 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | MELLANOX MMA1B00-B150DCOMPATIBLE |
| Manufacturer | Legrand |
| MSRP | $106.25 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Height | 1.25 |
| Length | 12.00 |
| Width | 9.00 |
| Dimensions & Weight | |
| Depth | 7.09 cm |
| Width | 1.835 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 85% RH |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 40GBASE-SR4 - MTP/MPO multi-mode |
| General | |
| Device Type | QSFP+ transceiver module |
| Form Factor | Plug-in module |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | RoHS, MSA, OM4 |
| OEM Manufacturer Equivalent Part Number | Mellanox MMA1B00-B150D |
| Networking | |
| Cabling Type | 40GBASE-SR4 |
| Compliant Standards | IEEE 802.3ba |
| Connectivity Technology | Wired |
| Data Link Protocol | 40GbE |
| Data Transfer Rate | 42 Gbps |
| Features | InfiniBand QDR Link support, Digital Optical Monitoring (DOM) support, Digital Diagnostics Monitoring (DDM), Vertical Cavity Surface Emitting Laser (VCSEL), 1.9 dB power budget, -5.4 dBm sensivity, transmit min -7.6 dBm / max 1 dBm |
| Max Transfer Distance | 150 m |
| Optical Wave Length | 850 nm |
| Power | |
| Power Consumption Operational | 1 Watt |
