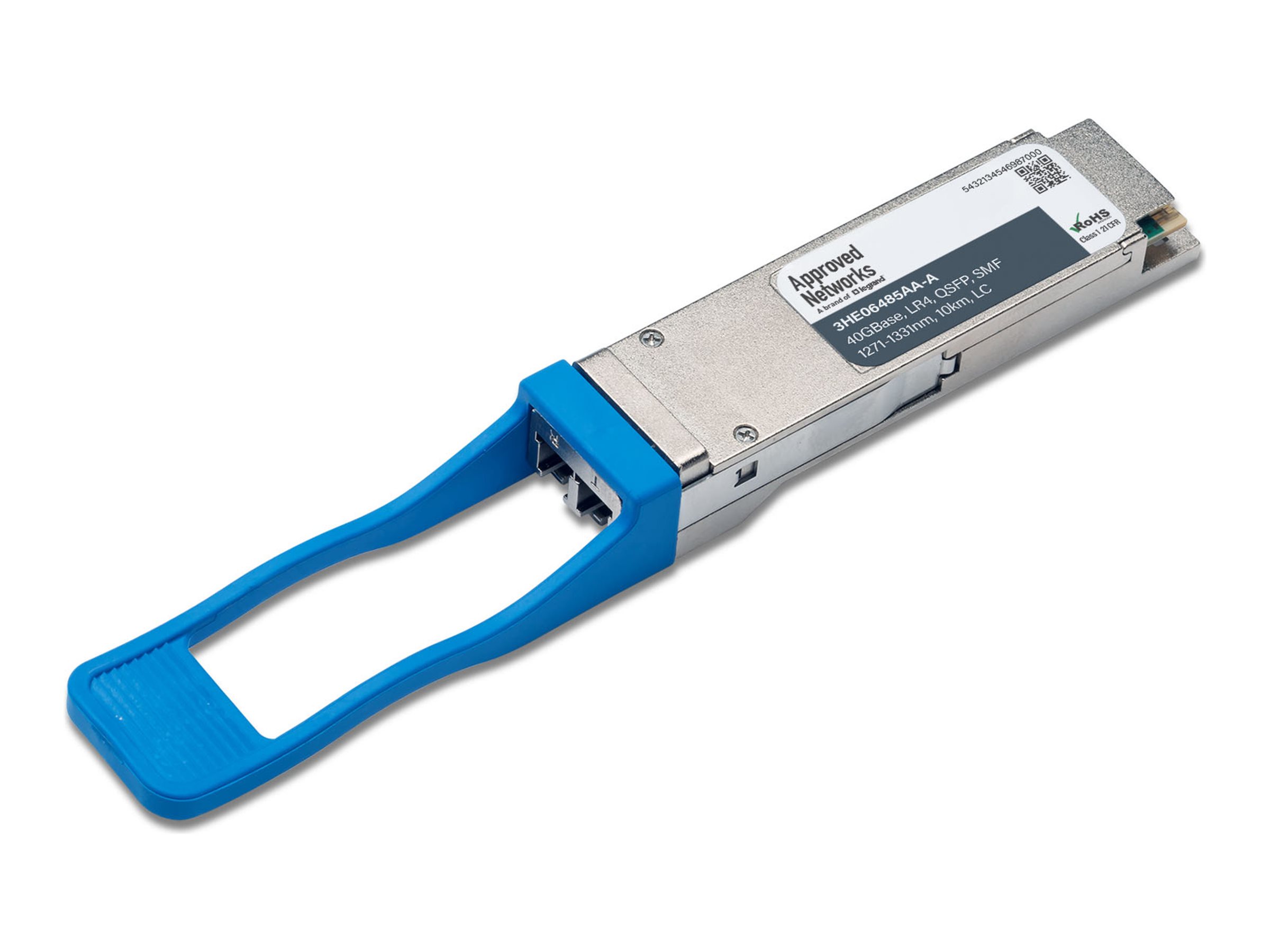

ALCATEL 3HE06485AA COMPATIBLE

MSRP$414.00

$404.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
No quick details available - View Product Specs

ALCATEL 3HE06485AA COMPATIBLE

General Information
Category	Transceivers
Description	ALCATEL 3HE06485AA COMPATIBLE
Manufacturer	Legrand
MSRP	$414.00
UNSPSC	43201553
Main Specifications
Height	1.25
Length	4.75
Width	2.75
Dimensions & Weight
Depth	7.2 cm
Height	0.85 cm
Width	1.835 cm
Environmental Parameters
Humidity Range Operating	0 - 85% RH
Max Operating Temperature	70 °C
Min Operating Temperature	0 °C
Expansion / Connectivity
Interfaces	1 x Ethernet 40GBase-LR4 - LC single-mode female x 2
General
Device Type	QSFP+ transceiver module
Form Factor	Plug-in module
Manufacturer Warranty
Service & Support	Limited warranty - lifetime
Miscellaneous
Compliant Standards	RoHS, MSA
OEM Manufacturer Equivalent Part Number	Alcatel 3HE06485AA
Networking
Cabling Type	40GBase-LR4
Compliant Standards	IEEE 802.3ba, IEEE 802.3b
Connectivity Technology	Wired
Data Link Protocol	40GbE
Data Transfer Rate	41.2 Gbps
Features	Digital Optical Monitoring (DOM) support, Digital Diagnostics Monitoring (DDM), blue pull tab, Distributed Feedback Laser (DFB), 7.5 dB power budget, transmit min -7 dBm / max 2.3 dBm, -11.5 dBm sensivity
Max Transfer Distance	10 km
Optical Wave Length	1271-1331 nm
Power
Power Consumption Operational	3.5 Watt
Voltage Required	3.3 V
