ADVA 1061702000-02 COMPATIBLE
MSRP$1,560.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

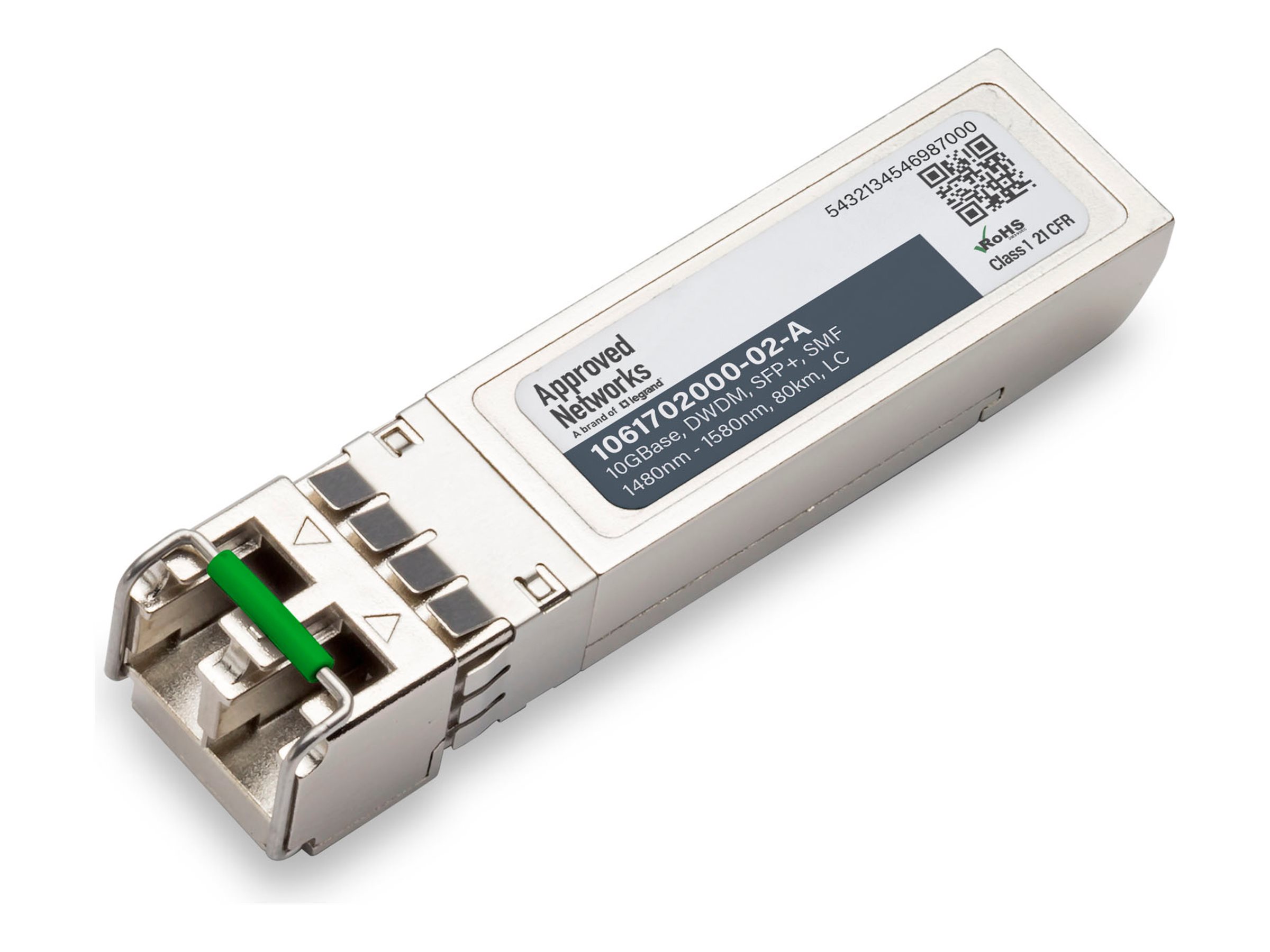

ADVA 1061702000-02 COMPATIBLE
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,560.00 |
| Mfr Part #: | 1061702000-02-A |
| SHI Part #: | 47008346 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | ADVA 1061702000-02 COMPATIBLE |
| Manufacturer | Legrand |
| MSRP | $1,560.00 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Height | 1.25 |
| Length | 4.75 |
| Width | 2.75 |
| Dimensions & Weight | |
| Depth | 5.84 cm |
| Height | 1.39 cm |
| Width | 1.39 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% RH |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10GBase-DWDM - LC single-mode female x 2 |
| General | |
| Device Type | SFP+ transceiver module |
| Form Factor | Plug-in module |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | RoHS, MSA SFF-8472, MSA SFF-8431, MSA SFF-8690 |
| OEM Manufacturer Equivalent Part Number | ADVA 1061702000-02 |
| Networking | |
| Cabling Type | 10GBase-DWDM |
| Connectivity Technology | Wired |
| Data Link Protocol | 10GbE |
| Data Transfer Rate | 9.95 Gbps |
| Features | APD Receiver, Digital Optical Monitoring (DOM) support, metal housing, Digital Diagnostics Monitoring (DDM), c-band, tunable wavelength, Electro-absorption Modulated Laser (EML), 25 dB power budget, transmit min -1 dBm / max 3 dBm, hot-pluggable, low EMI, -26 dBm sensivity |
| Max Transfer Distance | 80 km |
| Optical Wave Length | 1480-1580 nm |
| Power | |
| Power Consumption Operational | 2 Watt |
| Voltage Required | 3.3 V |
