CALIX 100-0378X53 COMPATIBLE

MSRP$198.00

$194.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
No quick details available - View Product Specs

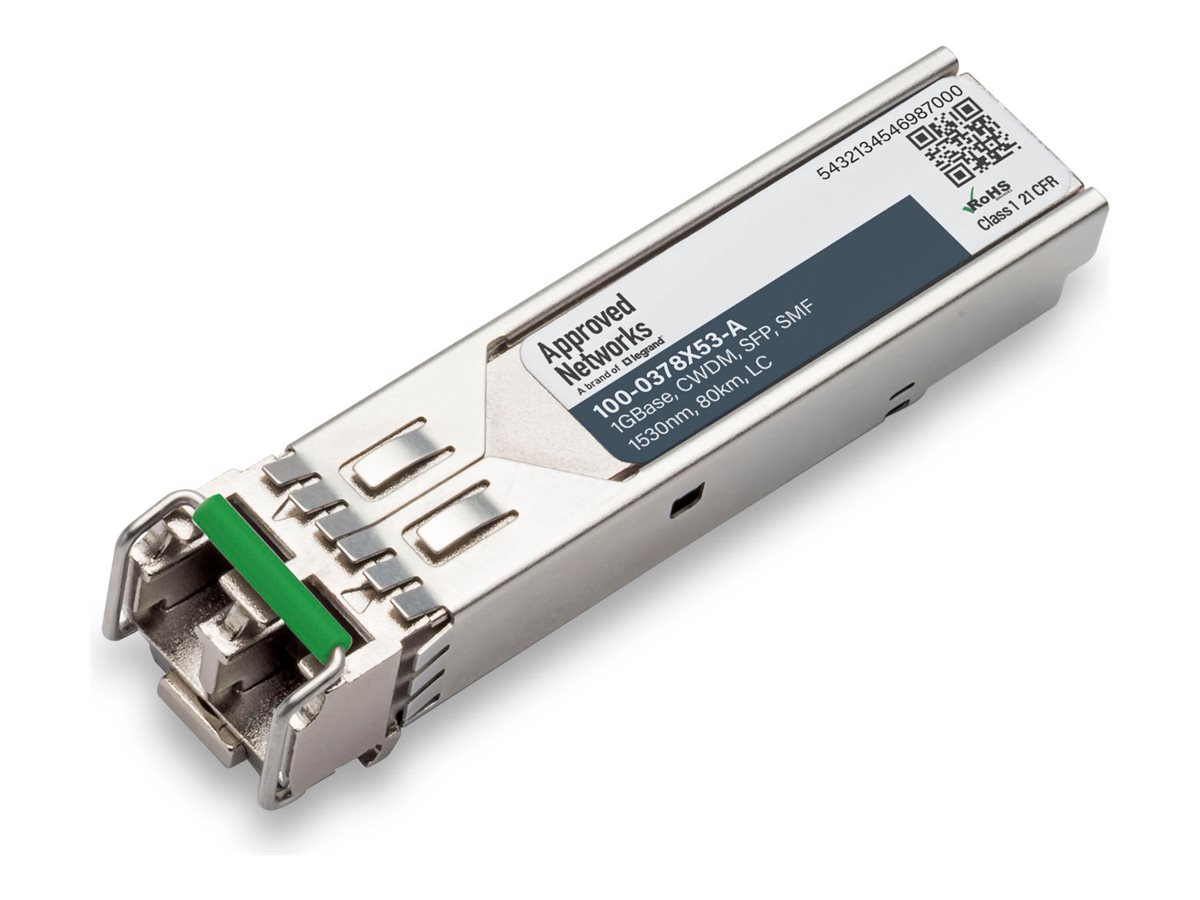

CALIX 100-0378X53 COMPATIBLE

General Information
Category	Transceivers
Description	CALIX 100-0378X53 COMPATIBLE
Manufacturer	Legrand
MSRP	$198.00
UNSPSC	43201553
Main Specifications
Height	1.25
Length	4.75
Width	2.75
Dimensions & Weight
Depth	5.84 cm
Height	1.39 cm
Width	1.39 cm
Environmental Parameters
Humidity Range Operating	0 - 85% RH
Max Operating Temperature	85 °C
Min Operating Temperature	-40 °C
Expansion / Connectivity
Interfaces	1 x Ethernet 1000Base-ZX (CWDM) - LC single-mode female x 2
General
Device Type	SFP (mini-GBIC) transceiver module
Form Factor	Plug-in module
Manufacturer Warranty
Service & Support	Limited warranty - lifetime
Miscellaneous
Compliant Standards	RoHS, Lead-Free, MSA SFF-8472
OEM Manufacturer Equivalent Part Number	Calix 100-0378X53
Networking
Cabling Type	1000Base-ZX (CWDM)
Connectivity Technology	Wired
Data Link Protocol	1GbE
Data Transfer Rate	1.25 Gbps
Features	PIN Receiver, Digital Optical Monitoring (DOM) support, Digital Diagnostics Monitoring (DDM), 19 dB power budget, green pull tab, -24 dBm sensivity, transmit min -5 dBm / max 0 dBm
Max Transfer Distance	80 km
Optical Wave Length	1530 nm
Power
Power Consumption Operational	1 Watt
