Hardware Computer Components Motherboards
Add to My Favorites
Motherboards

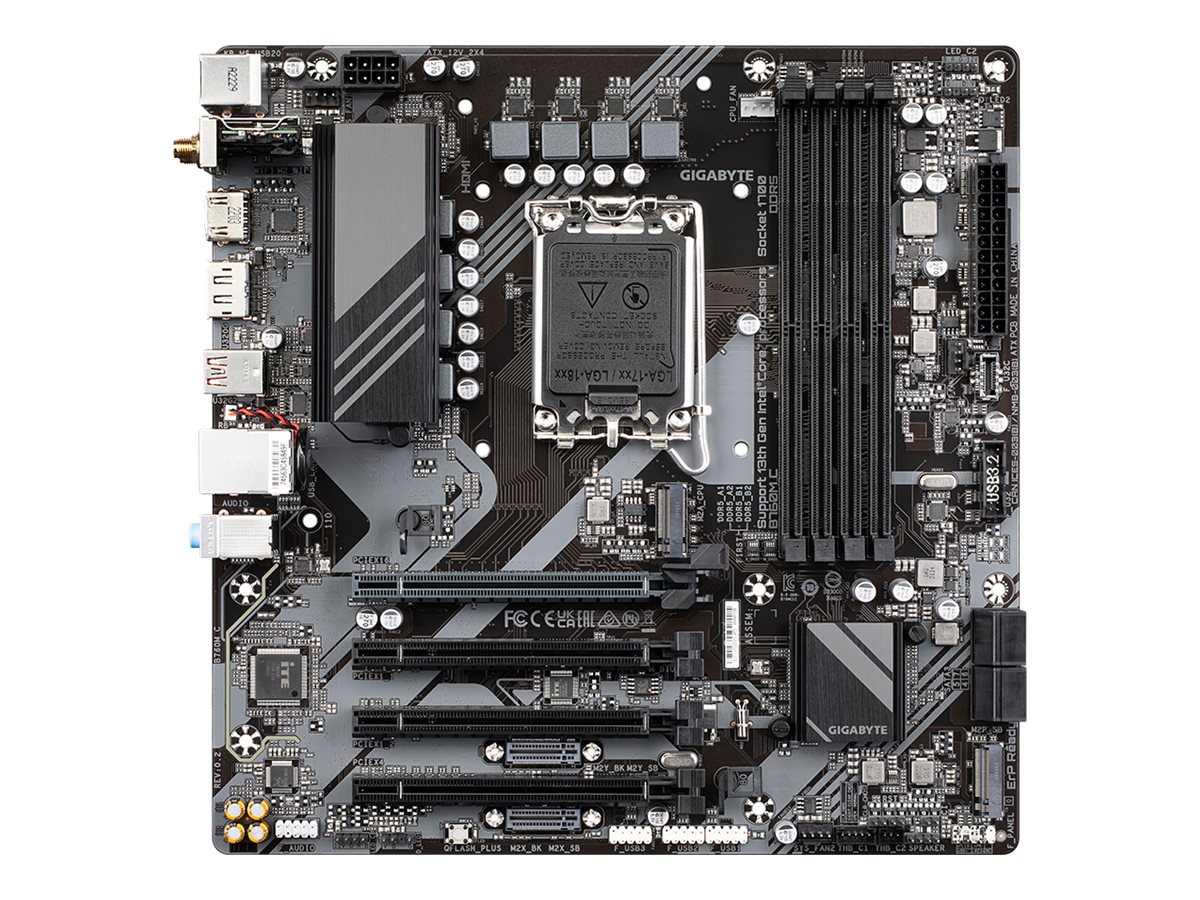

Gigabyte B760M C - 1.X

Login for Price
Gigabyte B760M C - 1.X
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • motherboard
  • micro ATX
  • LGA1700 Socket
  • B760 Chipset
  • USB 3.2 Gen 1, USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2
Gigabyte B760M C - 1.X
  • motherboard
  • micro ATX
  • LGA1700 Socket
  • B760 Chipset
  • USB 3.2 Gen 1, USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2
  • Gigabit LAN, Wi-Fi, Bluetooth
  • onboard graphics (CPU required)
  • HD Audio (8-channel)
  Additional Details
Mfr Part #: B760M C
SHI Part #: 46611196
Category: motherboards or daughterboards
UNSPSC: 43201513
Manufacturer: GIGABYTE
Product Type: Hardware
General Information
Categorymotherboards or daughterboards
DescriptionGigabyte B760M C - 1.X - motherboard - micro ATX - LGA1700 Socket - B760 Chipset - USB 3.2 Gen 1, USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2 - Gigabit LAN, Wi-Fi, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
ManufacturerGIGABYTE
UNSPSC43201513
Main Specifications
Dimensions & Weight / Depth24.4 cm
Dimensions & Weight / Width24.4 cm
Header / BrandGIGABYTE
Mainboard / Chipset TypeIntel B760
Mainboard / Processor SocketLGA1700 Socket
Networking / Data Link Protocol
  • Fast Ethernet
  • Gigabit Ethernet
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Packaged Quantity1
Video Output / TypeGraphics adapter (CPU required)
Audio
Compliant StandardsHigh Definition Audio
TypeHD Audio (8-channel)
Expansion / Connectivity
Expansion Slots
  • 1 x CPU
  • 4 x DIMM 288-pin
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 3.0 x4
  • 2 x PCIe 3.0 x1
  • 3 x M.2 socket (2280 M.2 Key M slot)
Interfaces
  • 2 x antenna
  • 1 x HDMI
  • 1 x PS/2 keyboard / mouse
  • 1 x DisplayPort
  • 1 x USB-C 3.2 Gen2x2
  • USB 3.2 Gen 2
  • 4 x USB 2.0
  • 1 x microphone - mini-jack
  • 1 x audio line-out - mini-jack
  • 1 x audio line-in
  • 1 x LAN
Internal Interfaces
  • 1 x audio - header
  • 1 x speaker - header
  • 2 x USB 3.2 Gen 1 - header
  • 2 x Thunderbolt - header
  • 6 x USB 2.0 - header
  • 1 x USB-C 3.2 Gen 1 - header
Power Connectors24-pin main power connector, 8-pin ATX12V connector
Storage Interfaces
  • SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • PCIe 3.0 -connectors: 2 x M.2
  • PCIe 4.0 -connectors: 1 x M.2
Features
BIOS FeaturesUEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support
BIOS TypeAMI
Hardware FeaturesQ-Flash Plus, Q-Flash, PCIe EZ Latch, DIY Friendly Design, GIGABYTE Smart Fan 6
Hardware MonitoringWater cooling flow rate, fan fail warning, system voltage, chassis temperature
General
Chipset TypeIntel B760
Compatible Processors(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Max Processors Qty1
Processor SocketLGA1700 Socket
Product TypeMotherboard - micro ATX
LAN
Network InterfacesGigabit Ethernet, 802.11a/b/g/n/ac, Bluetooth
Miscellaneous
Depth24.4 cm
Package DetailsBox
Software IncludedGIGABYTE Control Center, Norton Internet Security
Width24.4 cm
Supported RAM
Bus Clock4000 MHz, 4800 MHz, 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.), 7400 MHz (O.C.), 7600 MHz (O.C.)
FeaturesDual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode
Max Size192 GB
Registered or BufferedUnbuffered
Supported RAM Integrity CheckECC (operate in non-ECC mode), non-ECC
TechnologyDDR5
