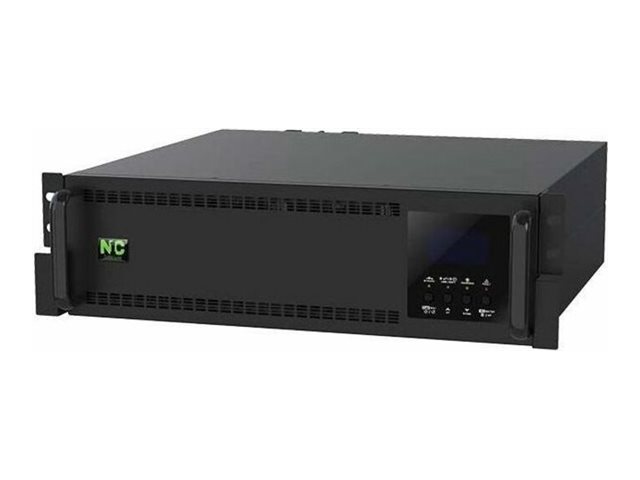

N1C LR-Series N1C.LR6000S
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
N1C LR-Series N1C.LR6000S
- UPS (rack-mountable)
- AC 240 V
- 5400 Watt
- 6000 VA
- 1-phase
- no battery
- serial, USB
- output connectors: 6
- 3U
| Additional Details | |
|---|---|
| Mfr Part #: | N1C.LR6000S |
| SHI Part #: | 46338670 |
| Category: | Uninterruptible power supplies |
| UNSPSC: | 39121011 |
| Manufacturer: | N1 Critical Technologies |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Uninterruptible power supplies |
| Description | N1C LR-Series N1C.LR6000S - UPS (rack-mountable) - AC 240 V - 5400 Watt - 6000 VA - 1-phase - no battery - serial, USB - output connectors: 6 - 3U |
| Manufacturer | N1 Critical Technologies |
| UNSPSC | 39121011 |
| Main Specifications | |
| Dimensions & Weight / Depth | 52.3 cm |
| Dimensions & Weight / Height | 21.9 cm |
| Dimensions & Weight / Weight | 62.1 kg |
| Dimensions & Weight / Width | 43.7 cm |
| General / Subcategory | UPS |
| Header / Brand | N1C |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 6 |
| Power Device / Power Capacity (VA) | 6000 VA |
| Power Device / UPS Technology | On-line |
| Power Device / Voltage Required | AC 240 V |
| Product Type | UPS |
| Service & Support / Type | 10-year warranty |
| Battery | |
| Type | No battery |
| Dimensions & Weight | |
| Depth | 52.3 cm |
| Height | 21.9 cm |
| Weight | 62.1 kg |
| Width | 43.7 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 3U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years |
| Miscellaneous | |
| Included Accessories | 4-post rail kit, SNMP card |
| Networking | |
| Remote Management Interface | Serial, USB |
| Remote Management Protocol | SNMP |
| Power Device | |
| Frequency Required | 60 Hz |
| Input Connectors | 1 x hardwire |
| Input Voltage | AC 240 V |
| Input Voltage Range | AC 175 - 290 V |
| Input Wiring | 1-phase |
| Output Voltage | AC 120 V |
| Output Waveform | Sinewave |
| Power Capacity | 5400 Watt / 6000 VA |
| Power Output Connectors Details | Hardwire |
| UPS Technology | On-line |
