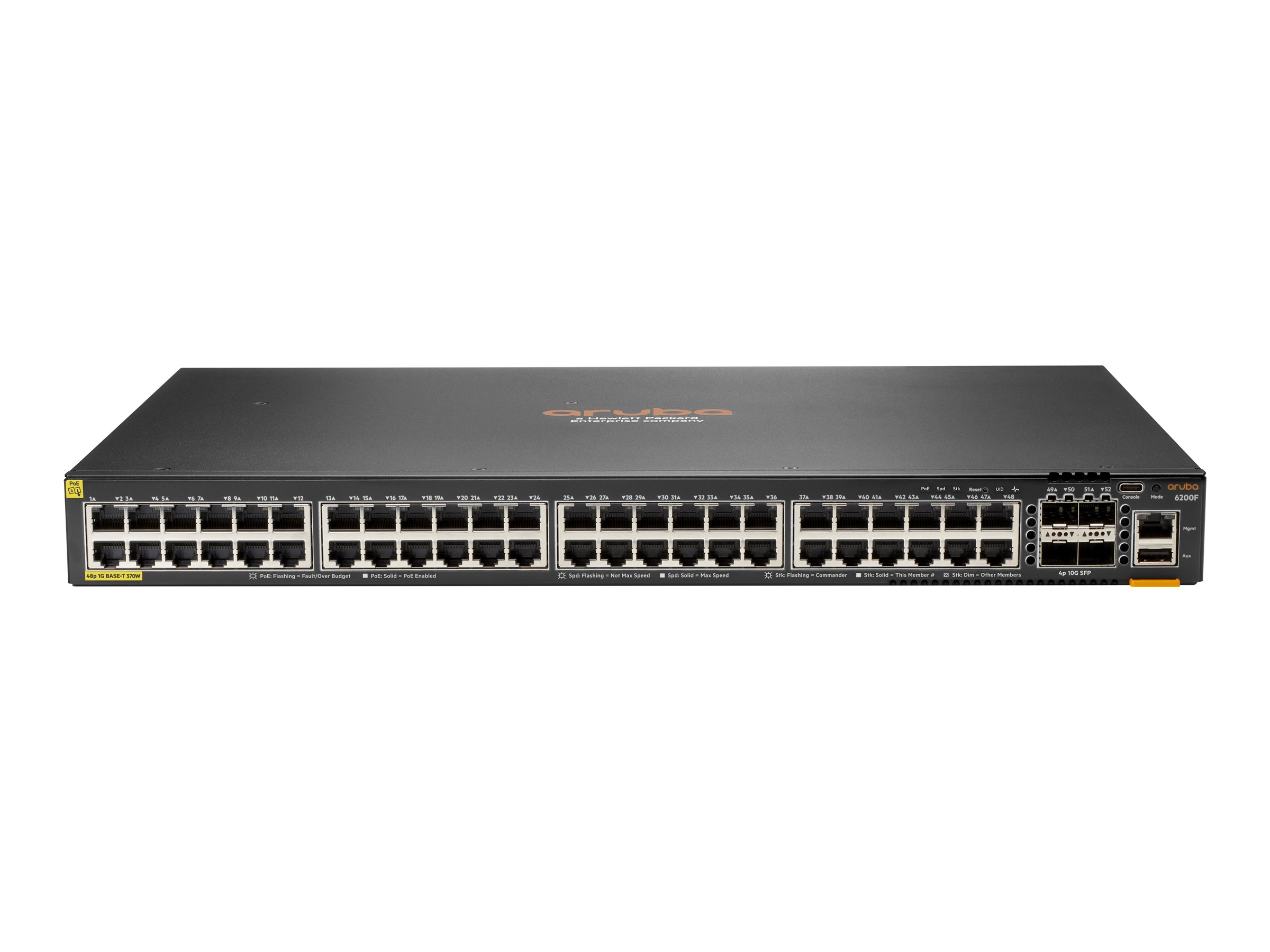

HPE Aruba Networking CX 6200F 48G Class 4 PoE 4SFP+ 370W TAA Switch


MSRP$9,519.00
$7,228.00
HPE Aruba Networking CX 6200F 48G Class 4 PoE 4SFP+ 370W TAA Switch

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • Max. Stacking Distance 10 kms
  • L3
  • managed
  • 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
HPE Aruba Networking CX 6200F 48G Class 4 PoE 4SFP+ 370W TAA Switch
  • Switch
  • Max. Stacking Distance 10 kms
  • L3
  • managed
  • 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
  • front and side to back
  • rack-mountable
  • PoE+ (370 W)
  • TAA Compliant
  Additional Details
Price: $7,228.00
MSRP: $9,519.00
Mfr Part #: S0M89A#ABA
SHI Part #: 46203557
Category: Switch matrixes
UNSPSC: 43222612
Manufacturer: Hewlett Packard Enterprise
Product Type: Hardware

Warranties

HPE Foundation Care Next Business Day Exchange Service
  • Extended service agreement
  • replacement
  • 5 years
  • shipment
  • 9x5
  • response time: NBD
$2,436.00
HPE Foundation Care Next Business Day Exchange Service
  • Extended service agreement
  • replacement
  • 3 years
  • shipment
  • 9x5
  • response time: NBD
$1,547.00
General Information
CategorySwitch matrixes
DescriptionHPE Aruba Networking CX 6200F 48G Class 4 PoE 4SFP+ 370W TAA Switch - Switch - Max. Stacking Distance 10 kms - L3 - managed - 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) - front and side to back - rack-mountable - PoE+ (370 W) - TAA Compliant
ManufacturerHewlett Packard Enterprise
MSRP$9,519.00
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth30.43 cm
Dimensions & Weight / Height4.37 cm
Dimensions & Weight / Weight4.87 kg
Dimensions & Weight / Width44.25 cm
Header / Brand
  • Aruba
  • HPE
Header / Country KitsUnited States
Header / LocalizationEnglish
Miscellaneous / Product ColorGray
Networking / Form FactorRack-mountable
Networking / Ports Qty48
Networking / TypeSwitch
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
System Requirements / OS RequiredAOS-CX
Dimensions & Weight
Depth30.43 cm
Height4.37 cm
Weight4.87 kg
Width44.25 cm
Environmental Parameters
Humidity Range Operating5 - 95% (non-condensing)
Humidity Range Storage5 - 95% (non-condensing)
Max Operating Temperature45 °C
Max Storage Temperature70 °C
Min Operating Temperature0 °C
Min Storage Temperature-40 °C
Expansion / Connectivity
Interfaces
  • 48 x 10/100/1000 Base-T (PoE+) RJ-45 PoE Class 4 - 30 W
  • 4 x 100/1000/10G SFP+ uplink
  • 1 x USB-C console
  • 1 x console RJ-45
  • 1 x management
  • 1 x USB Type A host
General
Authentication MethodSecure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
CapacityPacket buffer size: 8 MB
Compliant StandardsIEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3az, IEEE 802.1AX
Device TypeSwitch - 48 ports - L3 - managed - stackable
Enclosure TypeFront and side to back rack-mountable 1U
Encryption AlgorithmSSL, FIPS 140-2
FeaturesVirtual Route Redundancy Protocol (VRRP) support, Trusted Platform Module (TPM), Uni-Directional Link Detection (UDLD), Deficit Weighted Round Robin (DWRR), Class of Service (CoS), Type of Service (ToS), Bridge protocol data unit (BPDU), PoE Class 4, Rapid PVST+ (RPVST+), Link Layer Discovery Protocol, Unsupported Transceiver Mode (UTM), Egress Queue Shaping (EQS), Address Resolution Protocol
Flash Memory16 GB
Jumbo Frame Support9220 bytes
MAC Address Table Size32768 entries
Max Units In A Stack8
Performance
  • Latency (1 Gbps): 2.28 µs
  • Latency (10 Gbps): 1.46 µs
PoE Budget370 W
Ports48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE)PoE+
Processor1 x ARM Cortex-A72: 1.8 GHz
RAM8 GB DDR4 SDRAM
Remote Management ProtocolRMON, CLI, MIB
Routing ProtocolRIP-2, IGMPv2, IGMP, OSPFv2, IGMPv3, OSPFv3, MLDv2, MLD
SubtypeGigabit Ethernet
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Miscellaneous
Compliant StandardsEN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, Laser Class 1, EN 61000-3-3:2013, EN 60825-1:2014, IEC 62368-1: 2014 Second Edition, EN 62368-1:2014+A11:2017, EN 61000-3-2:2019, IEC 60825-1:2014 Class 1, CISPR 35: 2016, UL 62368-1 Third Edition, EN 62368-1:2020+A11:2020, KS C 9832, EN 63000:2018, IEC 62368-1:2018 Third Edition, EN 55035:2017+A11:2020, CNS 15598-1:2020, CNS 15936: 2020 Class A, CAN/CSA C22.2 No. 62368-1:19 Third Edition, GB 4943.1-2022, KC 62368-1: 2021-08, EN 55032:2015 /A11:2020, Class A, FCC 47 CFR part 15B:2021 Class A, ICES-003 Issue 7: 2020 Class A, VCCI-CISPR 32 Class A, CISPR 32:2016 Class A, AS/NZS CISPR 32:2015 Class A, IEC 63000:2018
Included Accessories2-Post Rack Kit
LocalizationEnglish / United States
TAA CompliantYes
Power
Power DeviceInternal power supply
Power Provided500 Watt
Voltage RequiredAC 100-120/200-240 V
Software / System Requirements
OS RequiredAOS-CX
