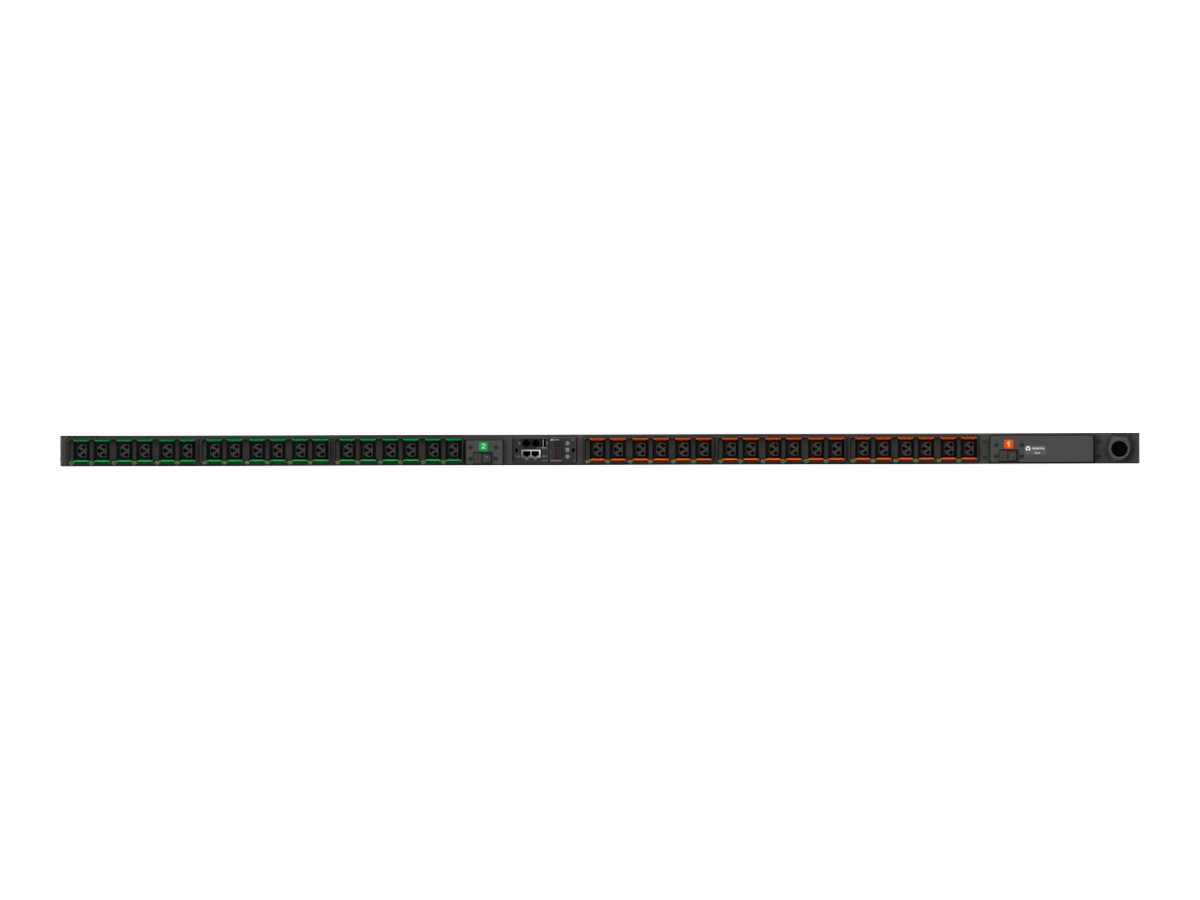

Geist Switched Unit Level Monitoring EC
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Geist Switched Unit Level Monitoring EC
- Power distribution unit (rack-mountable)
- AC 208 V
- 4.9 kW
- RS-232, USB, Ethernet 10/100/1000
- input: NEMA L6-30P
- output connectors: 36 (IEC 60320 C13/C19)
- 0U
- 3 m cord
- black powder coat
- TAA Compliant
| Additional Details | |
|---|---|
| Mfr Part #: | VP5N3002 |
| SHI Part #: | 45526008 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Vertiv |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Geist Switched Unit Level Monitoring EC - Power distribution unit (rack-mountable) - AC 208 V - 4.9 kW - RS-232, USB, Ethernet 10/100/1000 - input: NEMA L6-30P - output connectors: 36 (IEC 60320 C13/C19) - 0U - 3 m cord - black powder coat - TAA Compliant |
| Manufacturer | Vertiv |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.6 cm |
| Dimensions & Weight / Height | 177.8 cm |
| Dimensions & Weight / Width | 5.1 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Geist |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 36 |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 5-year warranty with product registration |
| Dimensions & Weight | |
| Depth | 6.6 cm |
| Height | 177.8 cm |
| Width | 5.1 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 9.07 kg |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black powder coat |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | RoHS, FCC Part 15 A, IEC 62053-21, ANSI C12.1, UL/CUL 62368-1, Buy American Act |
| Features | LED display, LED indicators, vertical orientation, remote outlet switching, switched, Visible Light Communication (VLC) technology, IP reset button, hard reboot button, upgradeable, scrolling/rotatable digital display |
| Rack Mounting Kit | Included |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | RS-232, USB, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, SMTP, NTP, DHCP, IPv4, IPv6, JSON, RSTP, TACACS+, LDAP, RADIUS, Syslog, Modbus TCP |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L6-30P |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 200 - 240 V |
| Max Electric Current | 60 A |
| Output Voltage | AC 208 V |
| Power Capacity | 4.9 kW |
