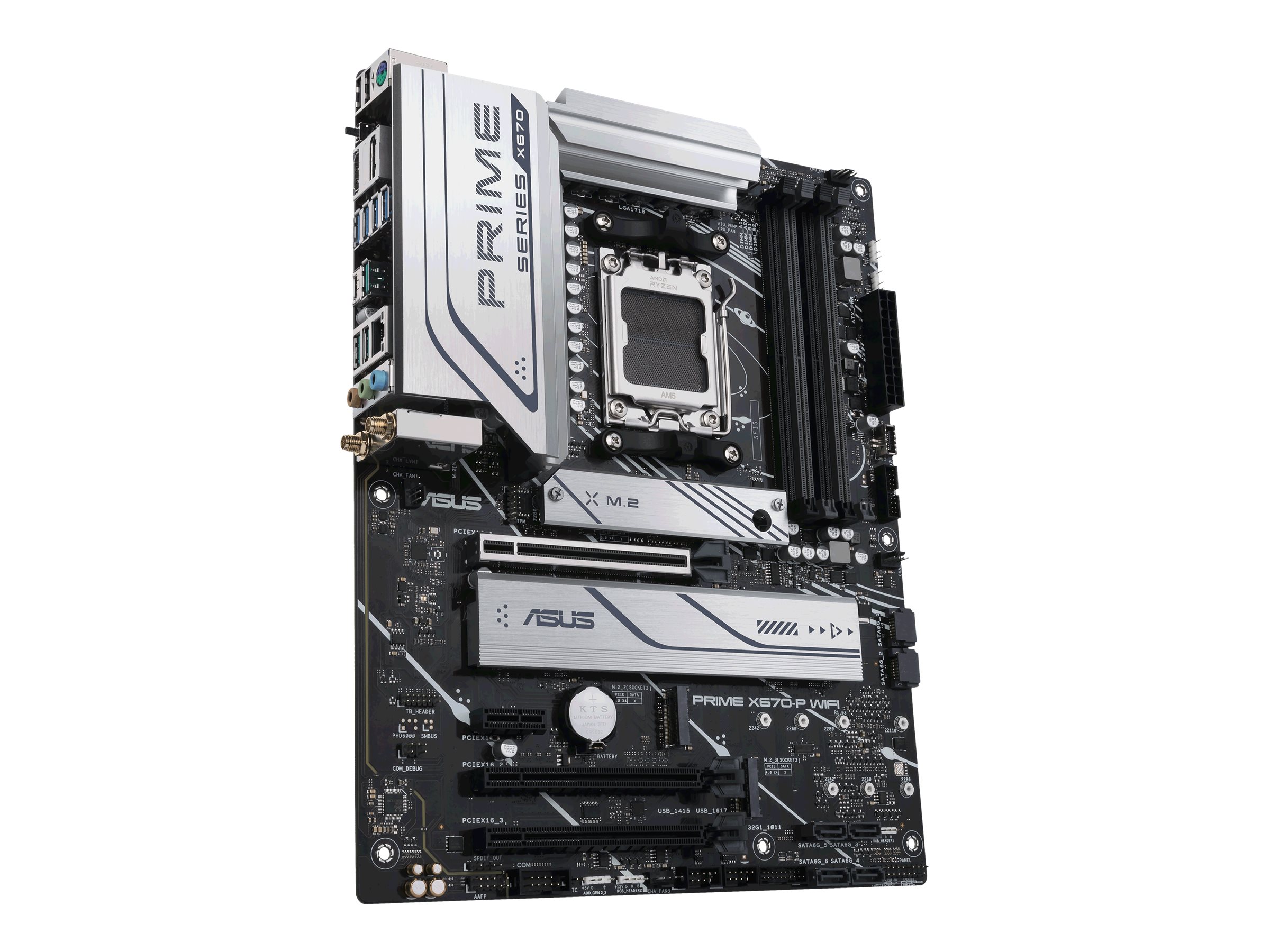

ASUS Prime X670-P WIFI
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
ASUS Prime X670-P WIFI
- Motherboard
- ATX
- Socket AM5
- AMD X670 Chipset
- USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 1
- 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth
- onboard graphics (CPU required)
- HD Audio (8-channel)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PRIME X670-P WIFI |
| SHI Part #: | 45427863 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASUS |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASUS Prime X670-P WIFI - Motherboard - ATX - Socket AM5 - AMD X670 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel) |
| Manufacturer | ASUS |
| MSRP | $289.99 |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24.4 cm |
| Dimensions & Weight / Width | 30.5 cm |
| Header / Brand | ASUS |
| Mainboard / Chipset Type |
|
| Mainboard / Compatible Processors | Ryzen |
| Mainboard / Processor Socket |
|
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Type | Graphics adapter (CPU required) |
| Audio | |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces |
|
| Features | |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3 |
| BIOS Type | AMI |
| Hardware Features | Jack retasking, ASUS Q-Design, ESD Guards, ASUS TurboV EVO, Stack Cool 3+, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), Clear CMOS Button, ASUS Stainless Steel Back I/O, LANGuard, 6 Layer PCB, overvoltage protection, ASUS 5X Protection III, M.2 heatsink, ASUS ProCool, Water Pump Header, ASUS Aura Sync, ASUS OptiMem II, ASUS SafeSlot Core+, 12+2 DrMOS power stages, DIY Friendly Design, M.2 Q-Latch, Q-LED Core, VRM heatsink design, BIOS FlashBack button, BIOS FlashBack LED, 60A Power Stage |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| General | |
| Chipset Type | AMD X670 |
| Compatible Processors | Ryzen (supports Ryzen 7000 Series) |
| Max Processors Qty | 1 |
| Processor Socket | Socket AM5 |
| Product Type | Motherboard - ATX |
| LAN | |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Miscellaneous | |
| Cables Included | 2 x Serial ATA cable |
| Compliant Standards | DisplayPort 1.4 |
| Depth | 24.4 cm |

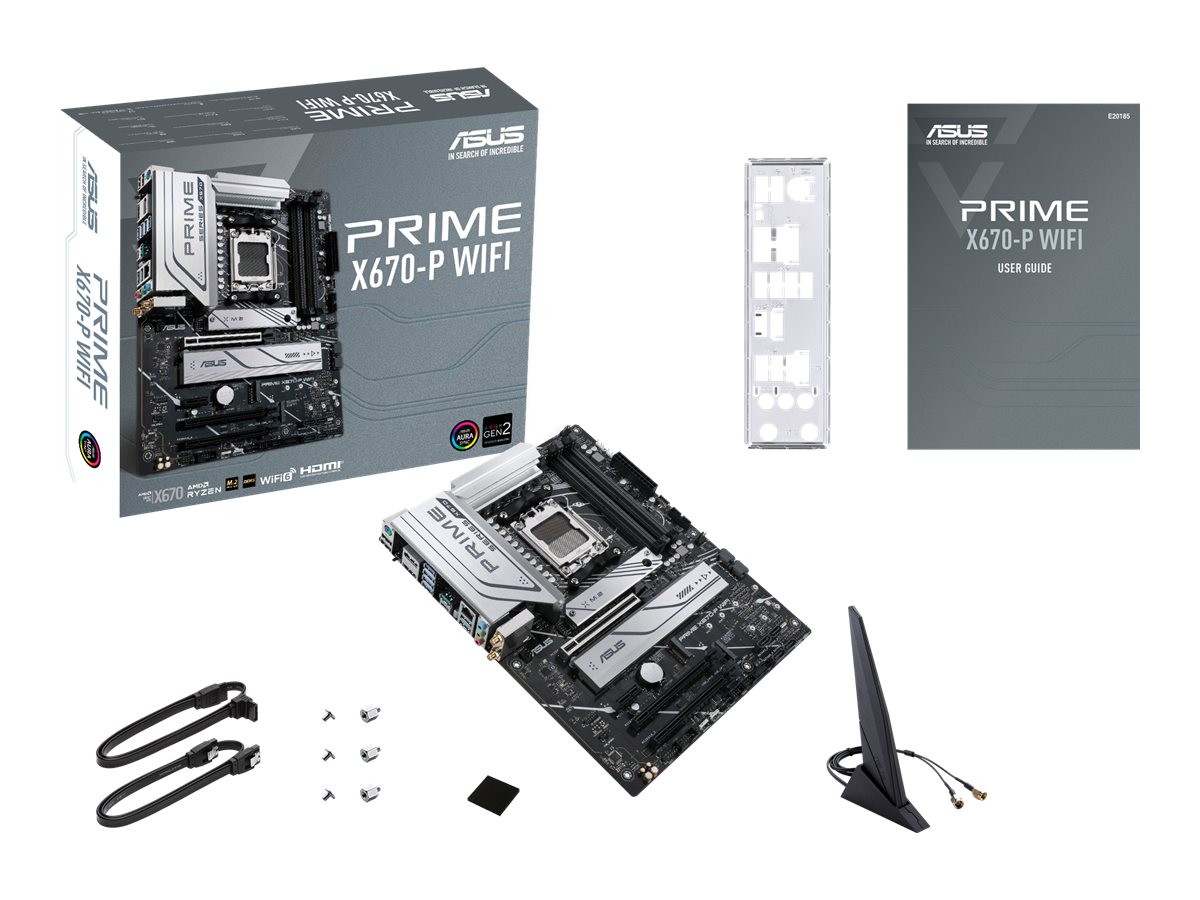

| Included Accessories | IO shield, ASUS Wi-Fi moving antenna, 1 x M.2 rubber package, 2 x M.2 screw package |
| Software Included | ASUS CPU-Z, ASUS AI Suite III, WinRAR, Norton AntiVirus (Trial), MyAsus, Armoury Crate |
| Width | 30.5 cm |
| Supported RAM | |
| Bus Clock | 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 5200 MHz, 5000 MHz |
| Features | Dual channel memory architecture, AMD EXPO technology |
| Max Size | 128 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC, ECC, on-die ECC |
| Technology | DDR5 |
