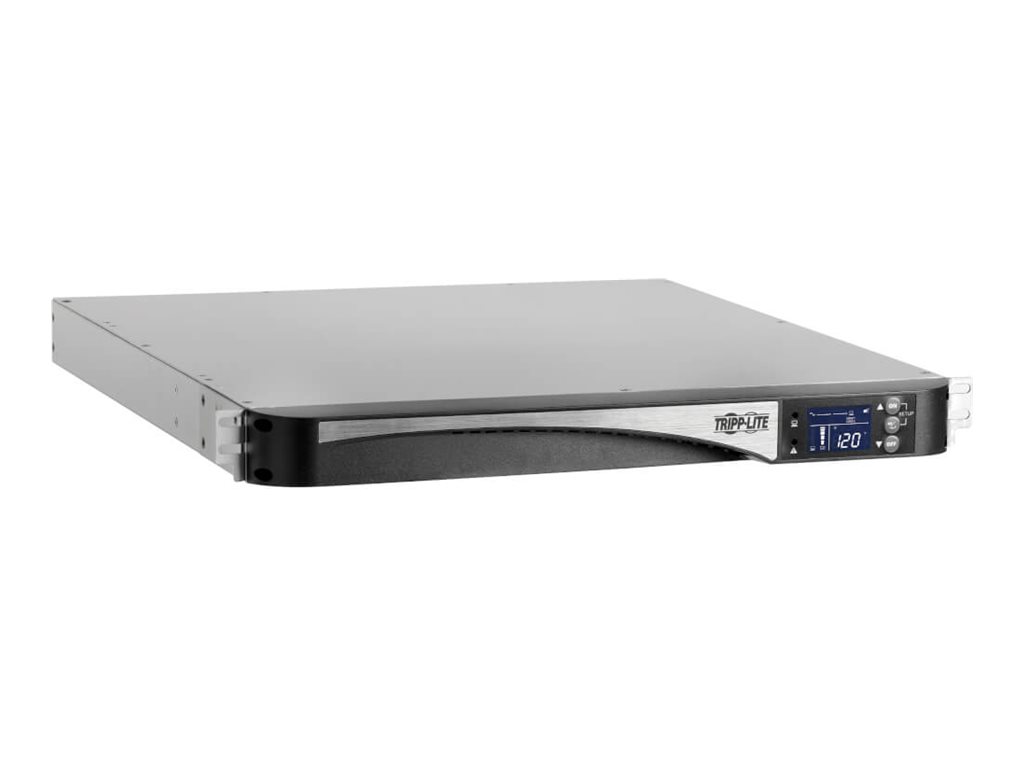

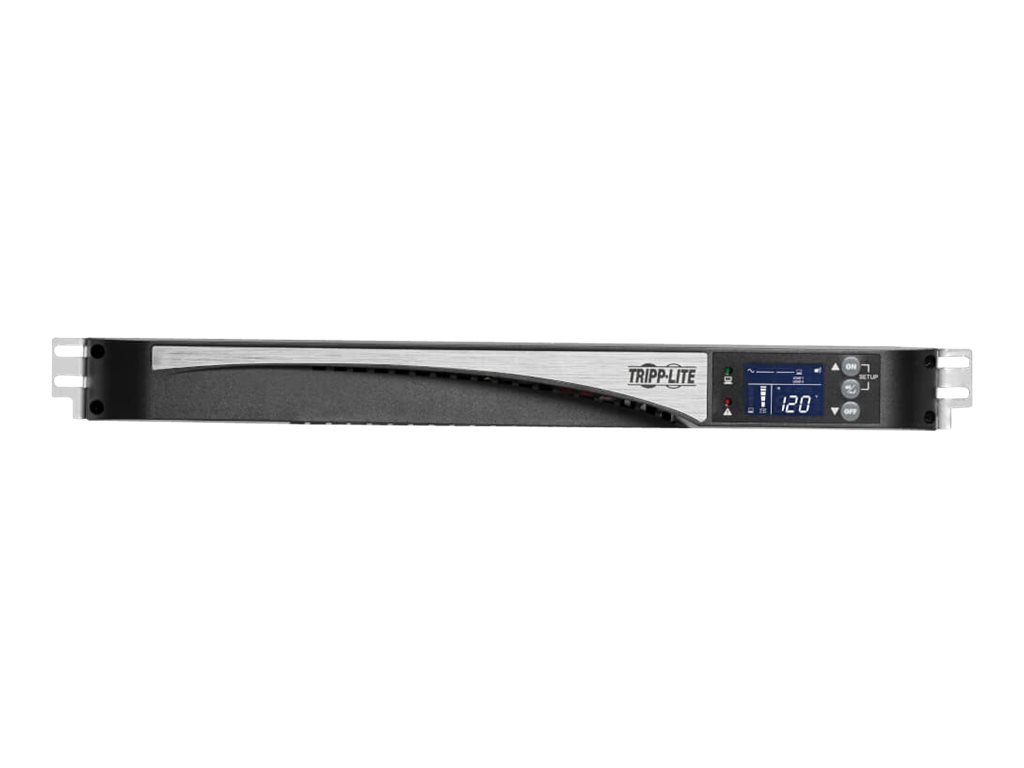

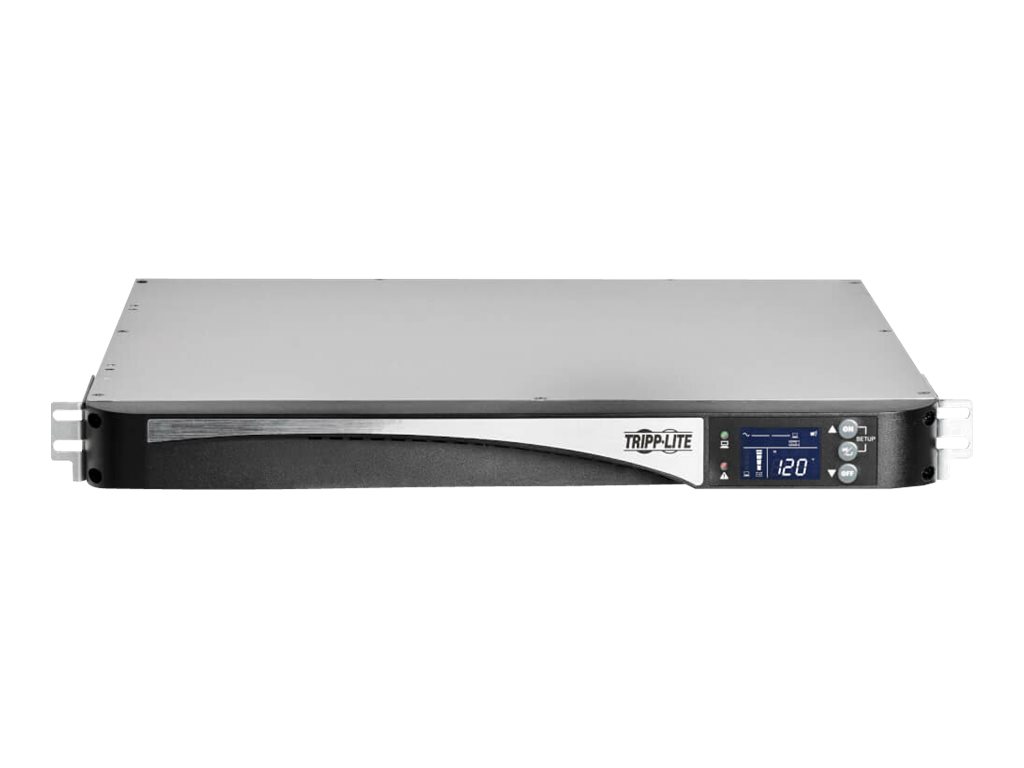

Tripp Lite SmartPro 1000VA 600W 120V Line-Interactive Sine Wave UPS, AVR


MSRP$909.00
$632.00
Tripp Lite SmartPro 1000VA 600W 120V Line-Interactive Sine Wave UPS, AVR - 4 NEMA 5-15R Outlets, Network Card Option,...

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • 4 NEMA 5-15R Outlets, Network Card Option, LCD, USB, 1U Rack/Tower
  • UPS (rack-mountable)
  • 15 A
  • AC 120 V
  • 600 Watt
Tripp Lite SmartPro 1000VA 600W 120V Line-Interactive Sine Wave UPS, AVR
  • 4 NEMA 5-15R Outlets, Network Card Option, LCD, USB, 1U Rack/Tower
  • UPS (rack-mountable)
  • 15 A
  • AC 120 V
  • 600 Watt
  • 1000 VA
  • 1-phase
  • USB
  • output connectors: 4
  • 1U
  • 19"
  • for Tripp Lite PDU Hot-Swap with Manual Bypass 120V 15
  Additional Details
Price: $632.00
MSRP: $909.00
Mfr Part #: SMC1000RT1U
SHI Part #: 45417210
Category: Rechargeable batteries
UNSPSC: 26111701
Manufacturer: Tripp Lite
Product Type: Hardware
General Information
CategoryRechargeable batteries
DescriptionTripp Lite SmartPro 1000VA 600W 120V Line-Interactive Sine Wave UPS, AVR - 4 NEMA 5-15R Outlets, Network Card Option, LCD, USB, 1U Rack/Tower - UPS (rack-mountable) - 15 A - AC 120 V - 600 Watt - 1000 VA - 1-phase - USB - output connectors: 4 - 1U - 19" - for Tripp Lite PDU Hot-Swap with Manual Bypass 120V 15
ManufacturerTripp Lite
MSRP$909.00
UNSPSC26111701
Main Specifications
Dimensions & Weight / Depth55.4 cm
Dimensions & Weight / Height4.4 cm
Dimensions & Weight / Weight14.8 kg
Dimensions & Weight / Width44 cm
General / SubcategoryUPS
Header / BrandTripp Lite
Miscellaneous / Product Color
  • Black
  • Silver
Networking / Remote Management InterfaceUSB
Packaged Quantity1
Power Device / Form FactorRack-mountable
Power Device / Output Connector Qty4
Power Device / Power Capacity (VA)1000 VA
Power Device / UPS TechnologyLine interactive
Power Device / Voltage RequiredAC 120 V
Product TypeUPS
Service & Support / Type3-year warranty with product registration
Battery
FeaturesValve-regulated, hot-swappable
Recharge Time6 hours
Run Time (Up To)
  • 3 min at full load
  • 10 min at half load
Transfer Time8 ms
Voltage ProvidedDC 36 V
Compatibility Information
Designed For
  • Tripp Lite 1.4kW Single-Phase Monitored PDU with LX Platform Interface, 120V Outlets (16 5-15R), 10 ft. Cord w/5-15P Plug, 0U, TAA, 1.4kW Single-Phase Switched PDU with LX Platform Interface, 120V Outlets (16 5-15R), 10 ft. Cord w/5-15P, 0U, TAA, 1.4kW Single-Phase Switched PDU, LX Platform Interface, 120V Outlets (8 5-15R), NEMA 5-15P, 12 ft. Cord, 1U Rack, TAA, 1-Year Extended Warranty for select Products, 2-Year Extended Warranty for select Products, 3-Year Extended Warranty for select Products, On-Site UPS Installation Service, Select 1-3 kVA UPS, Under 50 lb., USA, Normal Business Hours, On-Site UPS Installation Service, Select 1-3 kVA UPS, Under 50 lb., USA, Outside Business Hours, PDU Basic 120V 1.44kW 15A 5-15R 14 Outlet 5-15P Vertical 0URM, PDU Basic 120V 1.8kW 15A 5-15R 13 Outlet 5-15P Horizontal 1URM, PDU Dual Source Hot Swap 100-127V 12A 8 5-15R Horizontal 2URM, PDU Hot-Swap with Manual Bypass 120V 15A Single-Phase - 6 NEMA 5-15R Outlets, 2 5-15P Inputs, 1U Rack/Wall, PDU Metered 120V 15A 5-15R 13 Outlet 5-15P Horizontal 1URM, PDU Metered 120V 15A 5-15R 16 Outlet 5-15P Vertical 0URM, PDU Monitored 120V 15A 5-15R 8 Outlet 5-15P Horizontal 1URM, UPS Web Management Accessory Card SNMP Remote Monitoring HTML5
  • Tripp Lite SmartRack 4-Post Rack-Mount Shelf Kit Universal for Wallmount Racks 1U
Dimensions & Weight
Depth55.4 cm
Height4.4 cm
Weight14.8 kg
Width44 cm
Environmental Parameters
Humidity Range Operating0 - 95% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Sound Emission45 dBA
Environmental Standards
ENERGY STARYes
Expansion / Connectivity
Expansion Slots1 (total) / 1 (free) x expansion slot
Interfaces
  • 1 x USB
  • 1 x EPO (emergency power off)
General
Device TypeUPS - rack-mountable
Height (Rack Units)1U
Rack Size19"
Manufacturer Warranty
Service & SupportLimited warranty - 3 years
Miscellaneous
Cables Included
  • Power cable - integrated - 1.8 m
  • USB cable
Compliant StandardsUL 1778, RoHS, EMI, Mexico NOM, RETIE, CAN/CSA C22.2 No. 107.3
Equipment Protection Value250000 US Dollars
FeaturesVMware Ready, tower mountable, back panel grounding lug, fan ready, isolated HID USB port, audible alarm, emergency power off, LCD display, Automatic Voltage Regulation (AVR), cold-start function, remote ON/OFF function, hot-swappable batteries, VRLA battery support, battery backup capability, overvoltage correction, undervoltage correction, pure sinewave output, Auto Probe
Included AccessoriesEPO/ROO connector
Rack Mounting KitIncluded
Networking
Remote Management InterfaceUSB
Power Device
Circuit ProtectionCircuit breaker
Efficiency97% at 100% Load
Frequency Provided50/60 Hz
Input Connectors1 x power NEMA 5-15P
Input VoltageAC 120 V
Input Voltage Margin+ 6% / - 10%
Input Wiring1-phase
Max Electric Current15 A
Output VoltageAC 100/120/127 V ± 5% - 50/60 Hz
Output WaveformSinewave
Power Capacity600 Watt / 1000 VA
Power Factor (PF)0.6
Power Output Connectors Details4 x power NEMA 5-15R
Surge Energy Rating540 Joules
Surge SuppressionYes
UPS TechnologyLine interactive
Software / System Requirements
Software IncludedTrippLite PowerAlert
