Axiom C3300n Series - SSD
MSRP$262.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

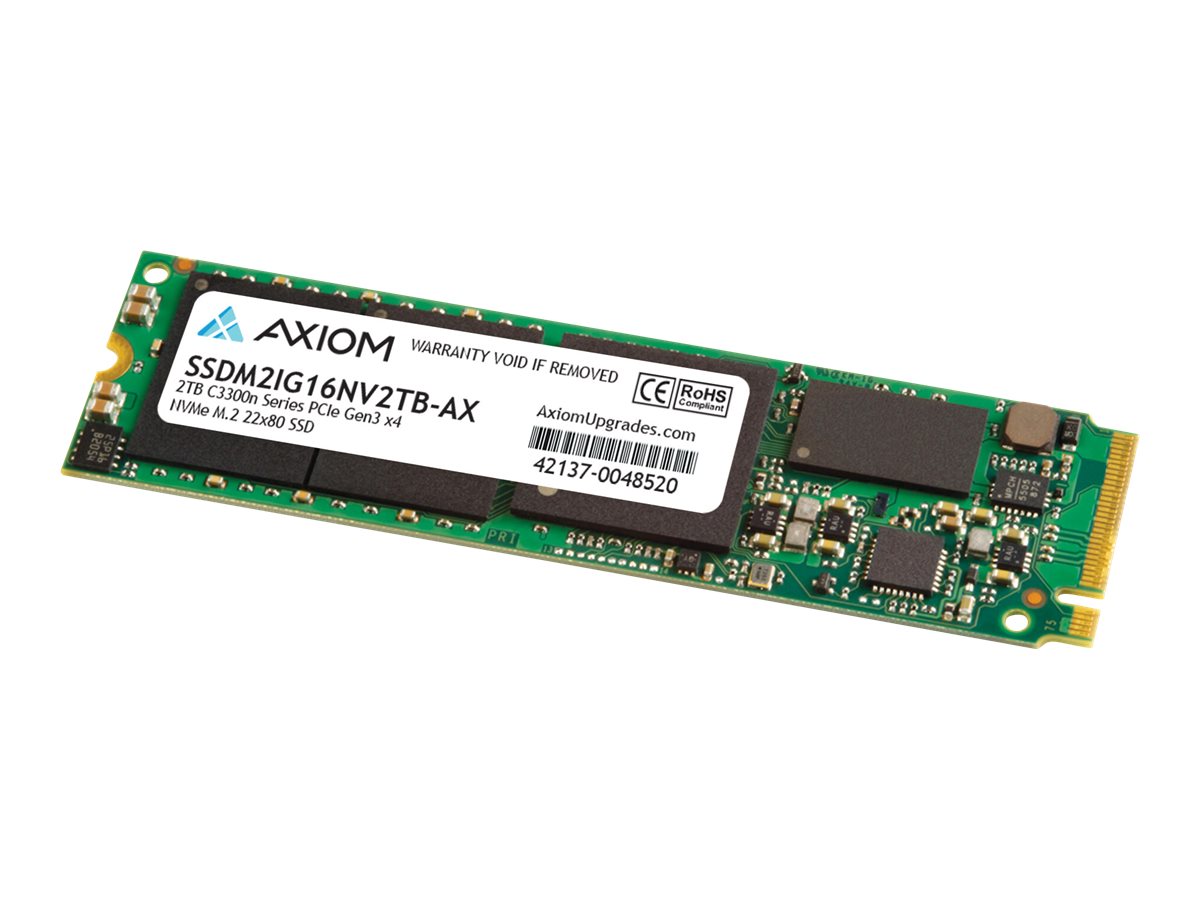

Axiom C3300n Series - SSD
- 2 TB
- internal
- M.2 2280
- PCIe 3.0 x4 (NVMe)
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $262.00 |
| Mfr Part #: | SSDM2IG16NV2TB-AX |
| SHI Part #: | 45382352 |
| Category: | Hard drives |
| UNSPSC: | 43201803 |
| Manufacturer: | Axiom Memory |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Axiom C3300n Series - SSD - 2 TB - internal - M.2 2280 - PCIe 3.0 x4 (NVMe) |
| Manufacturer | Axiom Memory |
| MSRP | $262.00 |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 80 mm |
| Dimensions & Weight / Weight | 39.9 g |
| Dimensions & Weight / Width | 22 mm |
| Hard Drive / Capacity | 2 TB |
| Hard Drive / Form Factor | M.2 2280 |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | PCI Express 3.0 x4 (NVMe) |
| Hard Drive / Interface | PCI Express 3.0 x4 (NVMe) |
| Header / Brand | Axiom |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% RH |
| Max Operating Temperature | 70 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (operating) | 3.1 g @ 2-500 Hz |
| Expansion & Connectivity | |
| Compatible Bay | M.2 2280 |
| Interfaces | 1 x PCI Express 3.0 x4 (NVMe) |
| General | |
| Bytes per Sector | 512 |
| Capacity | 2 TB |
| Depth | 80 mm |
| Device Type | Solid state drive - internal |
| Features | 3D NAND Technology, NVM Express (NVMe) 1.4, LDPC error correction, Error Correction Code (ECC), End-to-end data path protection, Global Wear Leveling, NVMe Security Erase support, InnoGrit IG5216, SLC cache, StaticDataRefresh Technology, Garbage Collection technology, NVM Express (NVMe) deallocate support, HMB (Host Memory Buffer) supported, Dynamic and Static Wear Leveling, S.M.A.R.T. |
| Form Factor | M.2 2280 |
| Interface | PCIe 3.0 x4 (NVMe) |
| NAND Flash Memory Type | Single-level cell (SLC) |
| Weight | 39.9 g |
| Width | 22 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | RoHS |
| Performance | |
| Drive Writes Per Day (DWPD) | 0.46 |
| Internal Data Rate | 3250 MBps (read) / 2900 MBps (write) |
| Maximum 4KB Random Read | 370000 IOPS |
| Maximum 4KB Random Write | 275000 IOPS |
| SSD Endurance | 1000 TB |
| Power | |
| Power Consumption |
|
| Voltage Required | DC 3.3 V |
| Reliability | |
| MTBF | 1,500,000 hours |
| Non-Recoverable Errors | 1 per 10^15 |
