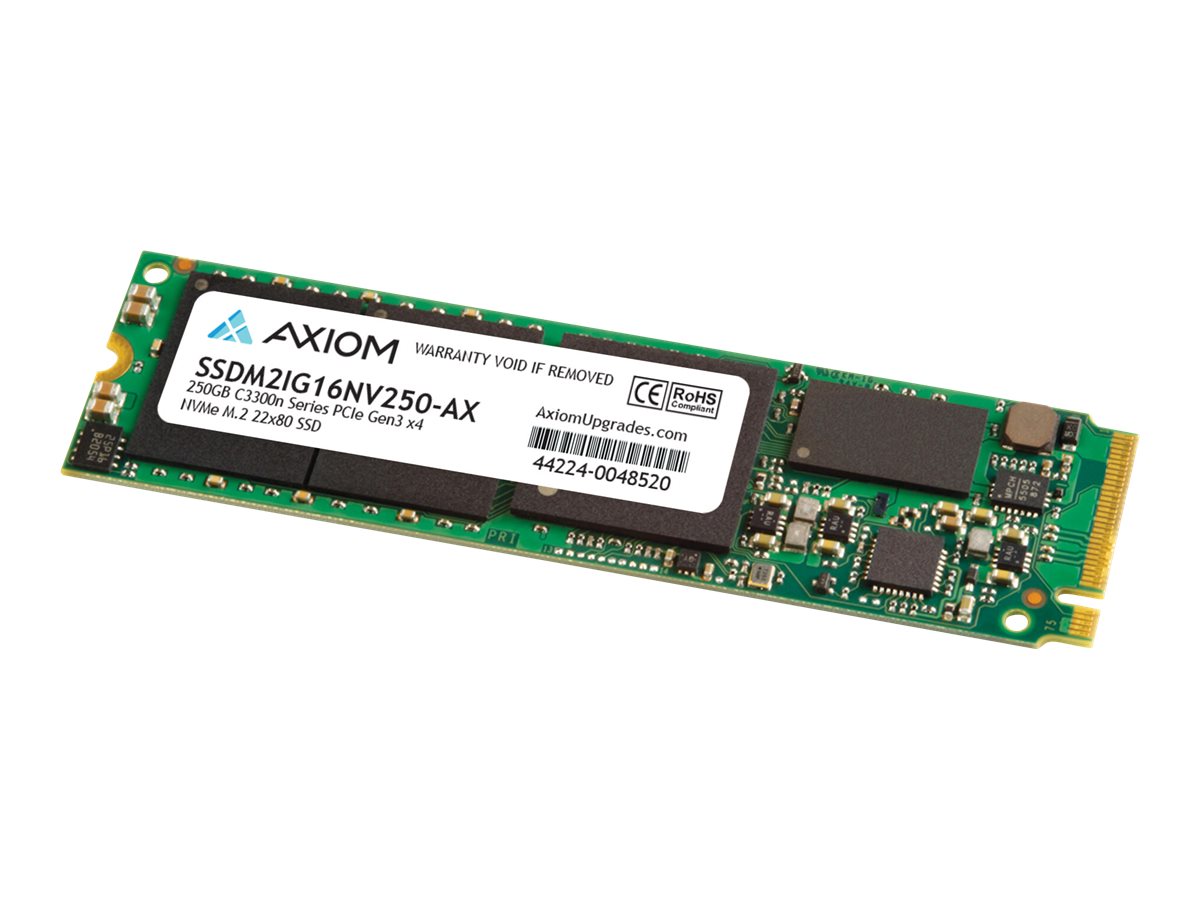

Axiom C3300n Series - SSD
MSRP$56.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Axiom C3300n Series - SSD
- 250 GB
- internal
- M.2 2280
- PCIe 3.0 x4 (NVMe)
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $56.00 |
| Mfr Part #: | SSDM2IG16NV250-AX |
| SHI Part #: | 45382351 |
| Category: | Solid state drive SSD |
| UNSPSC: | 43201830 |
| Manufacturer: | Axiom Memory |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Solid state drive SSD |
| Description | Axiom C3300n Series - SSD - 250 GB - internal - M.2 2280 - PCIe 3.0 x4 (NVMe) |
| Manufacturer | Axiom Memory |
| MSRP | $56.00 |
| UNSPSC | 43201830 |
| Main Specifications | |
| Dimensions & Weight / Depth | 80 mm |
| Dimensions & Weight / Weight | 39.9 g |
| Dimensions & Weight / Width | 22 mm |
| Hard Drive / Capacity | 250 GB |
| Hard Drive / Form Factor | M.2 2280 |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | PCI Express 3.0 x4 (NVMe) |
| Hard Drive / Interface | PCI Express 3.0 x4 (NVMe) |
| Header / Brand | Axiom |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% RH |
| Max Operating Temperature | 70 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (operating) | 3.1 g @ 2-500 Hz |
| Expansion & Connectivity | |
| Compatible Bay | M.2 2280 |
| Interfaces | 1 x PCI Express 3.0 x4 (NVMe) |
| General | |
| Bytes per Sector | 512 |
| Capacity | 250 GB |
| Depth | 80 mm |
| Device Type | Solid state drive - internal |
| Features | Dynamic and Static Wear Leveling, StaticDataRefresh Technology, Garbage Collection technology, Error Correction Code (ECC), End-to-end data path protection, LDPC error correction, 3D NAND Technology, Global Wear Leveling, SLC cache, NVM Express (NVMe) deallocate support, HMB (Host Memory Buffer) supported, NVM Express (NVMe) 1.4, NVMe Security Erase support, InnoGrit IG5216, S.M.A.R.T. |
| Form Factor | M.2 2280 |
| Interface | PCIe 3.0 x4 (NVMe) |
| NAND Flash Memory Type | Single-level cell (SLC) |
| Weight | 39.9 g |
| Width | 22 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | RoHS |
| Performance | |
| Drive Writes Per Day (DWPD) | 0.46 |
| Internal Data Rate | 3100 MBps (read) / 1400 MBps (write) |
| Maximum 4KB Random Read | 100000 IOPS |
| Maximum 4KB Random Write | 275000 IOPS |
| SSD Endurance | 125 TB |
| Power | |
| Power Consumption |
|
| Voltage Required | DC 3.3 V |
| Reliability | |
| MTBF | 1,500,000 hours |
| Non-Recoverable Errors | 1 per 10^15 |
