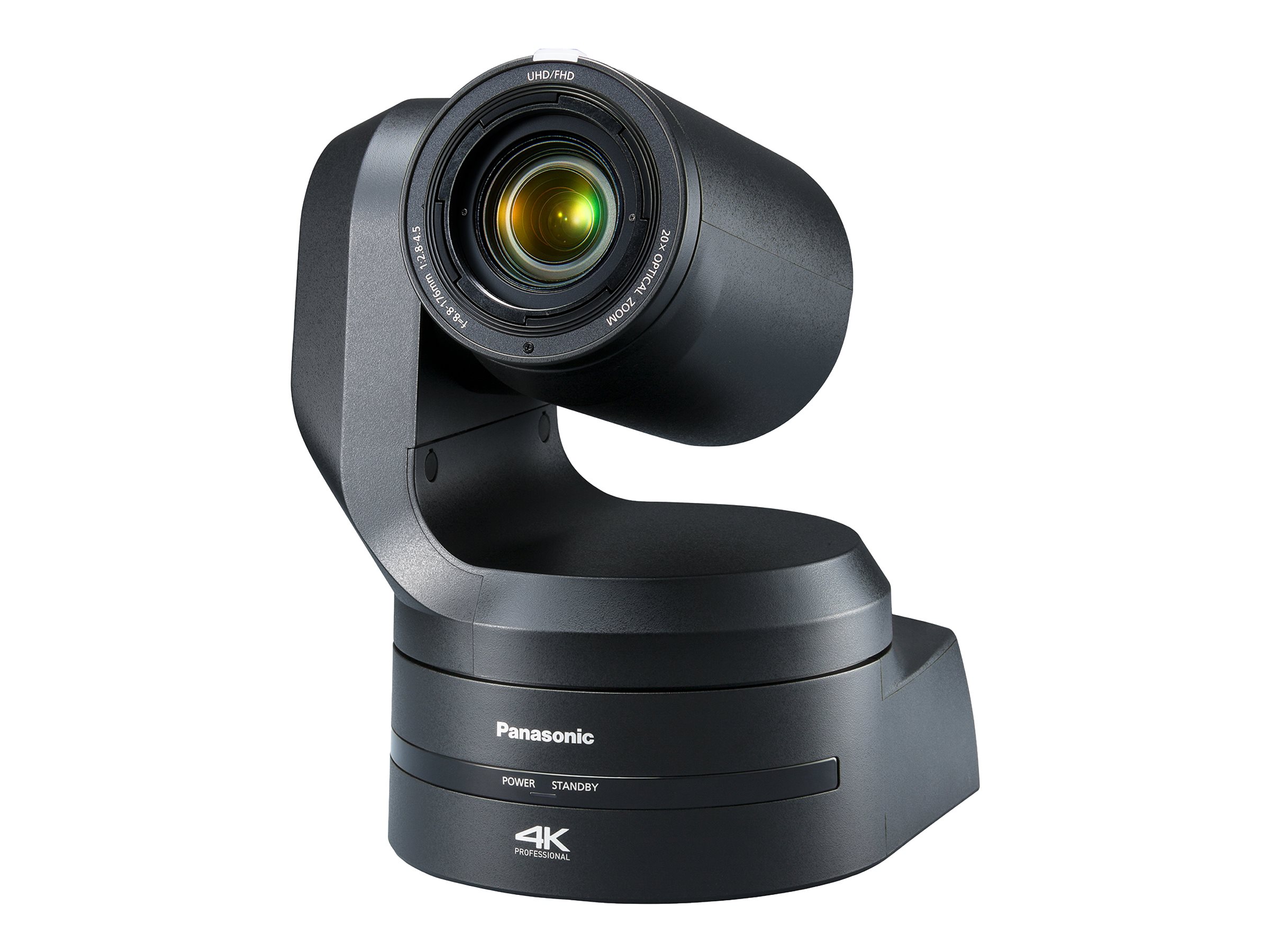

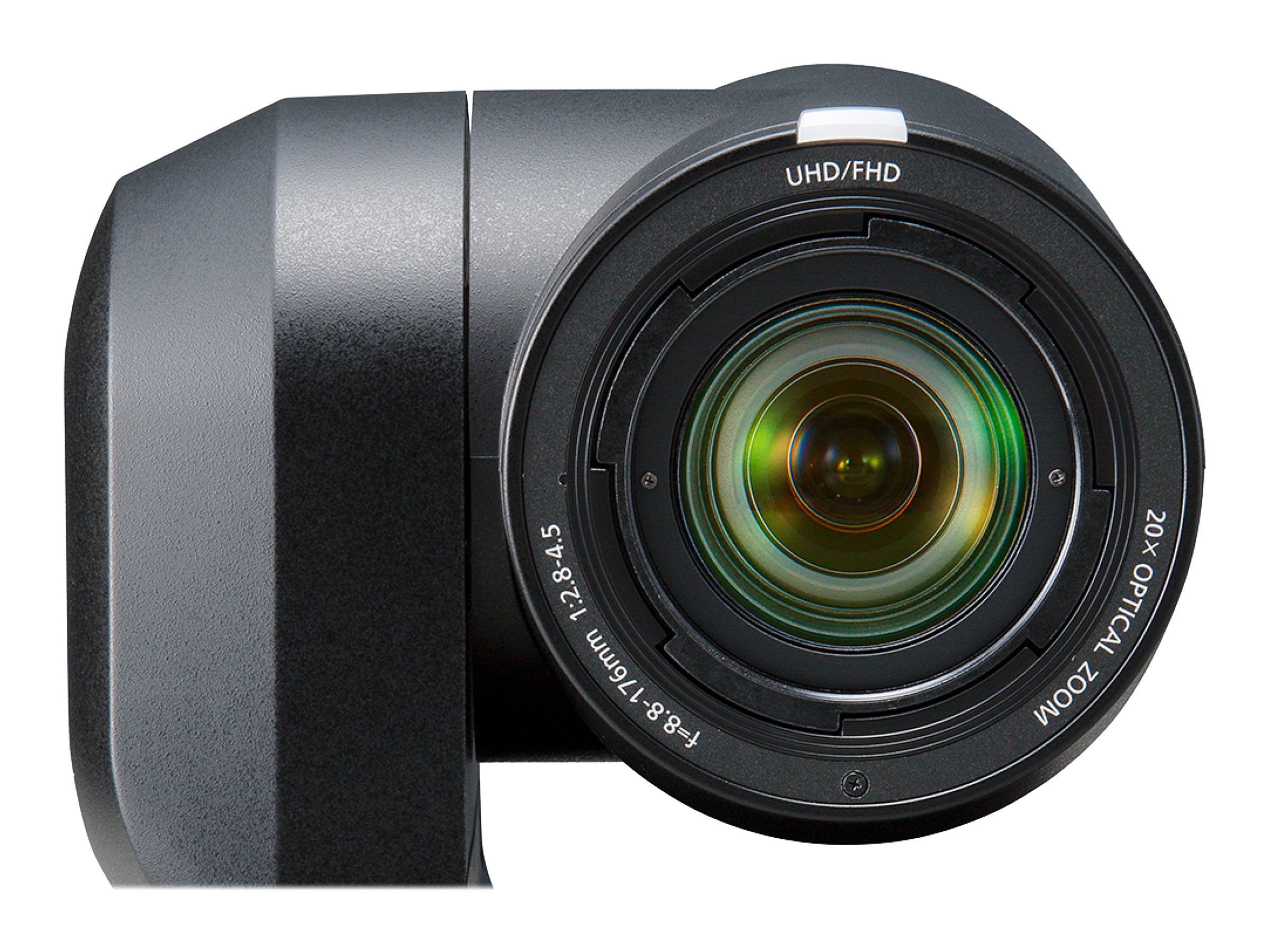

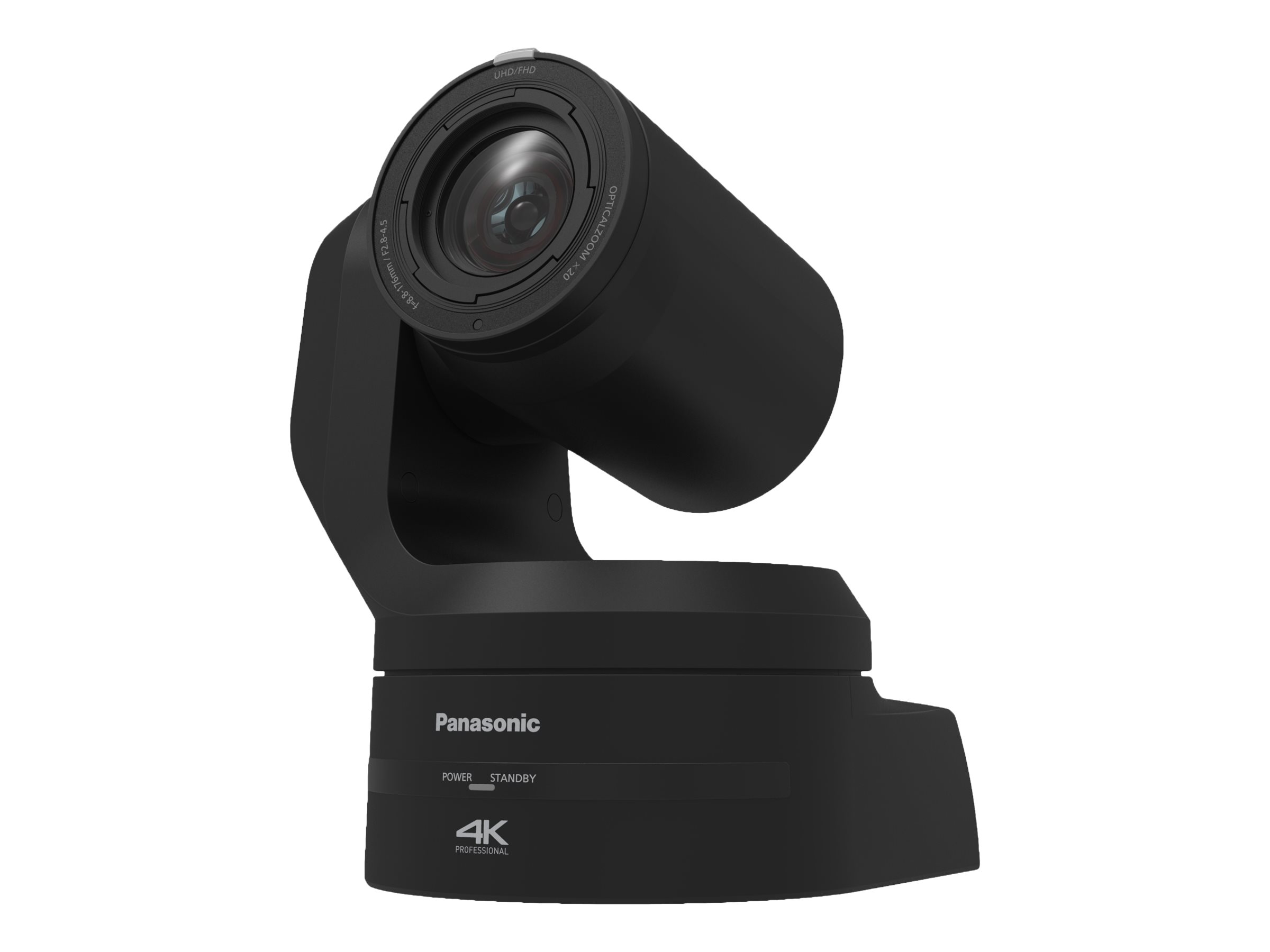

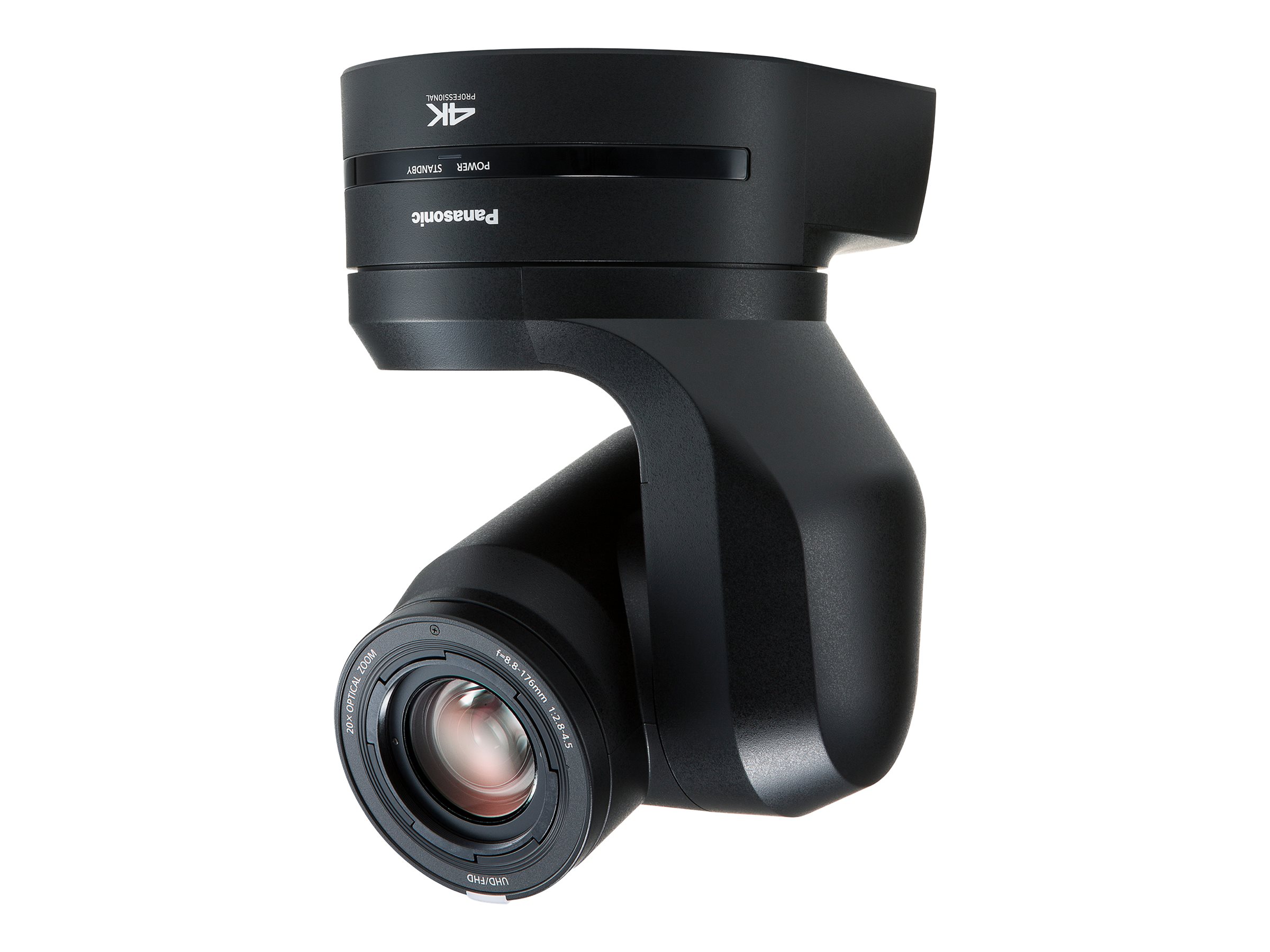

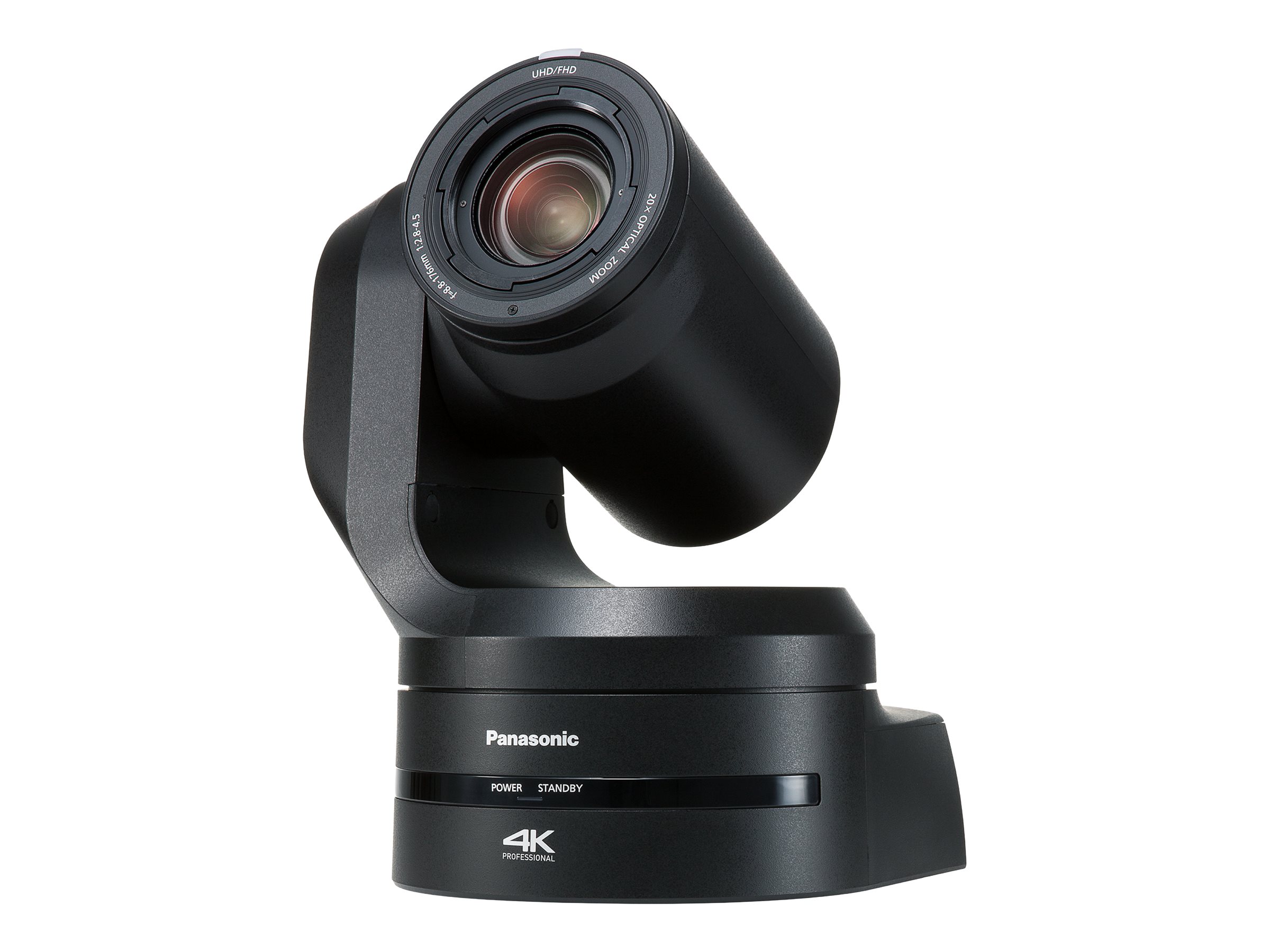

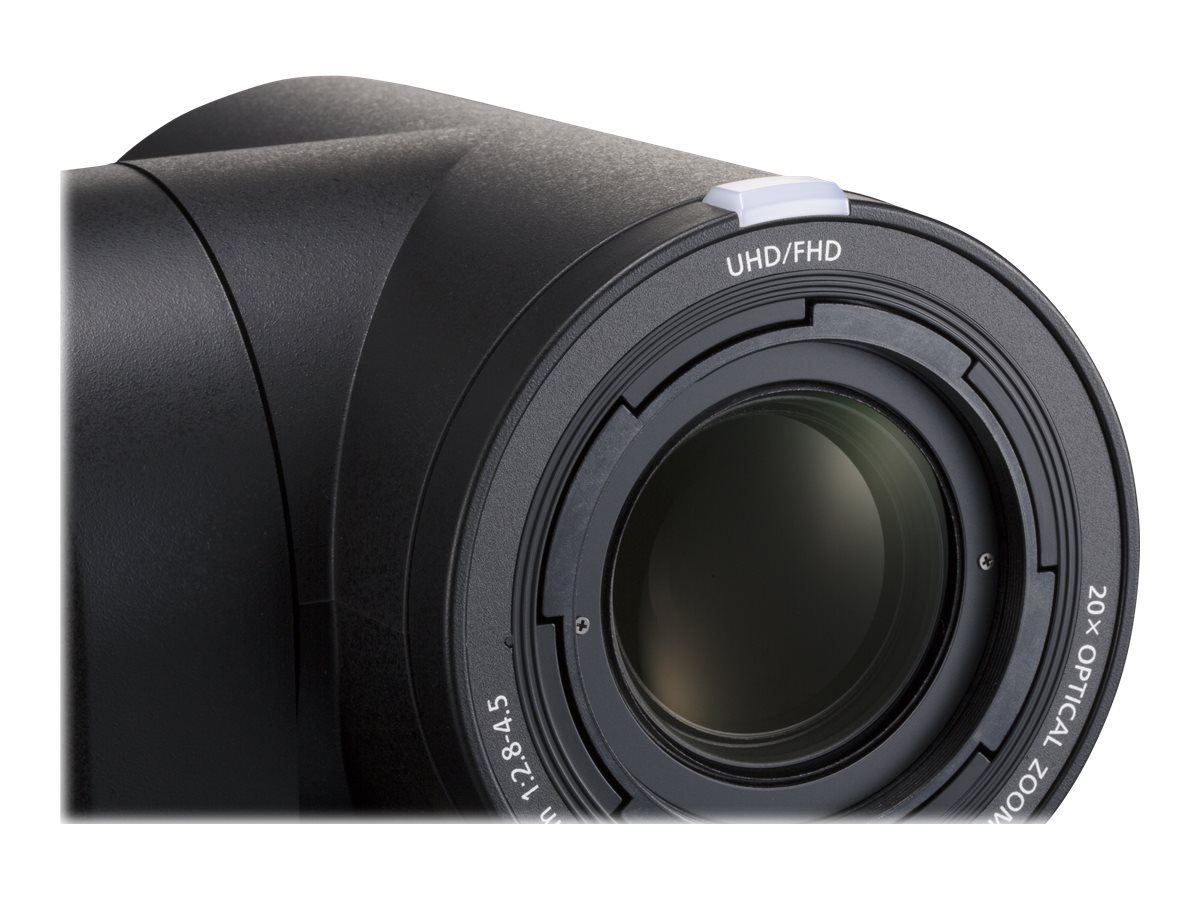

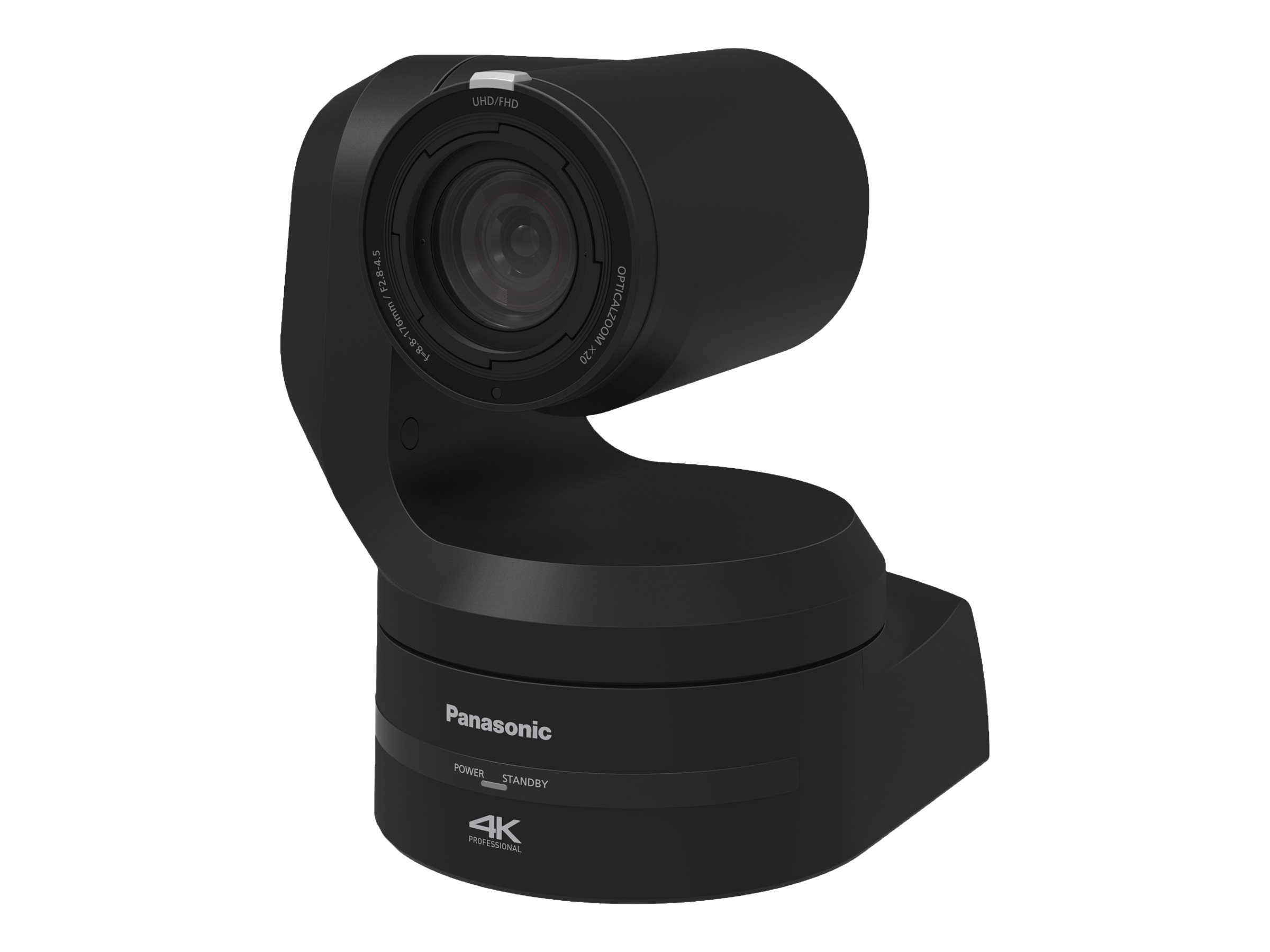

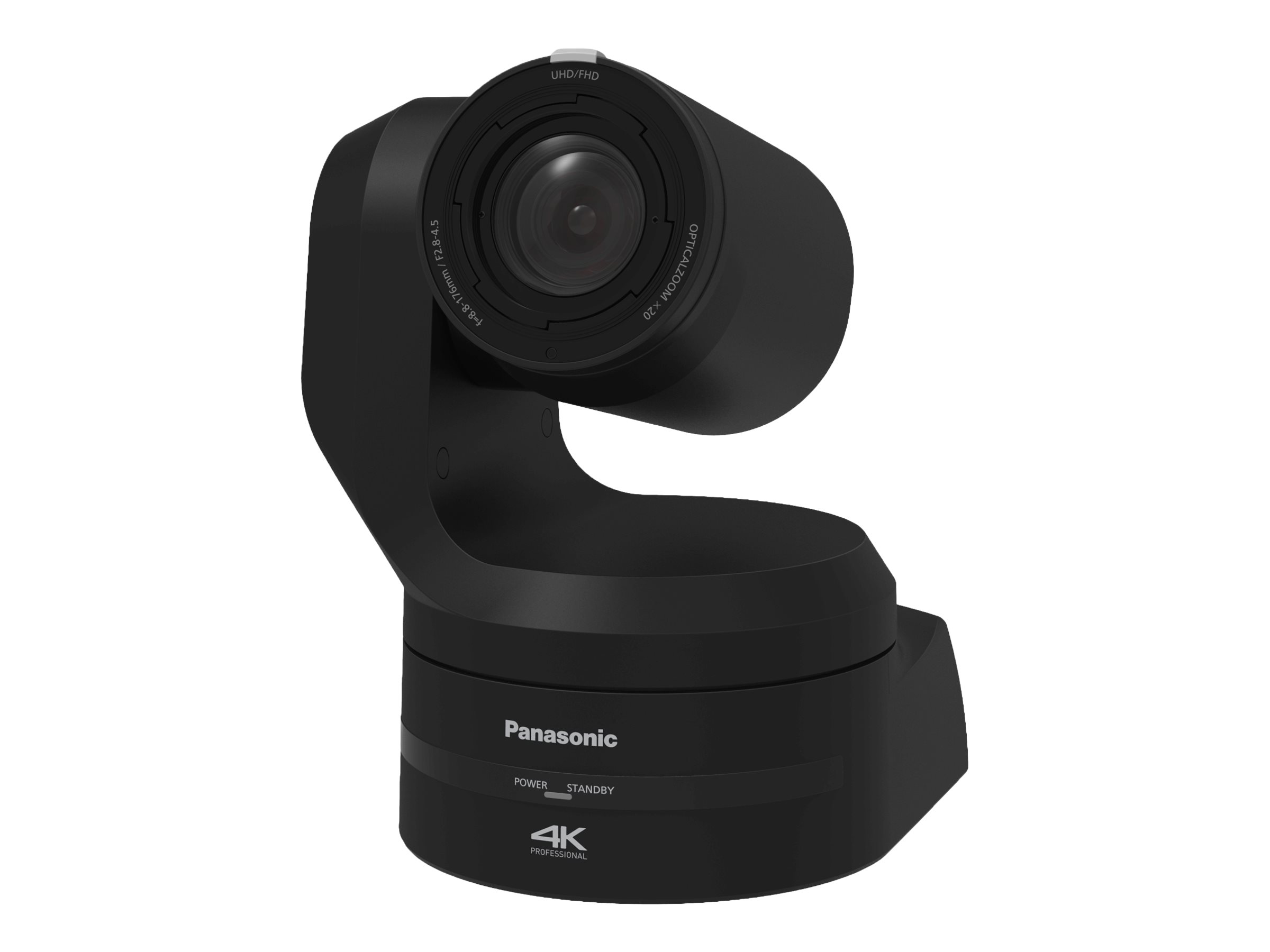

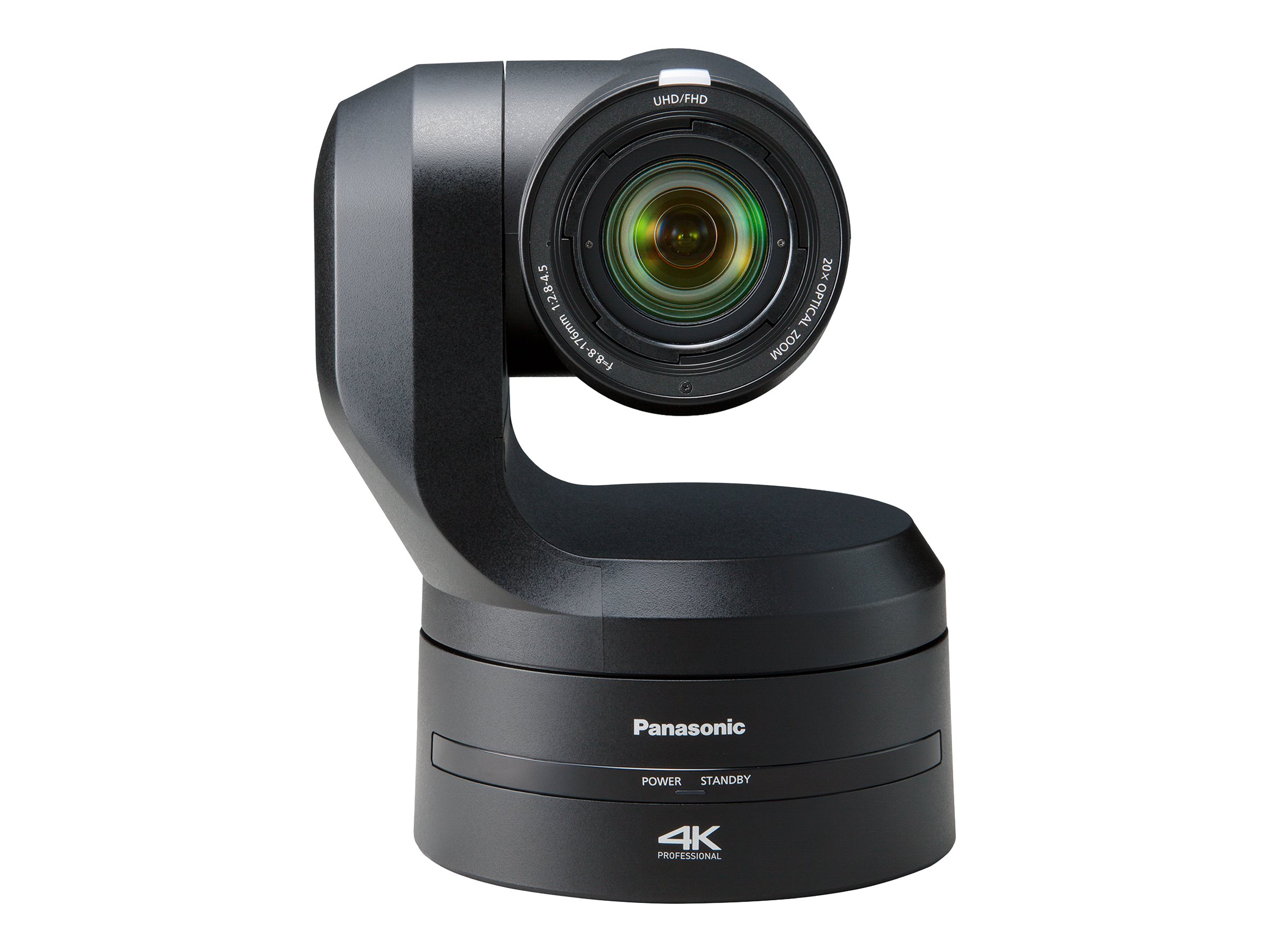

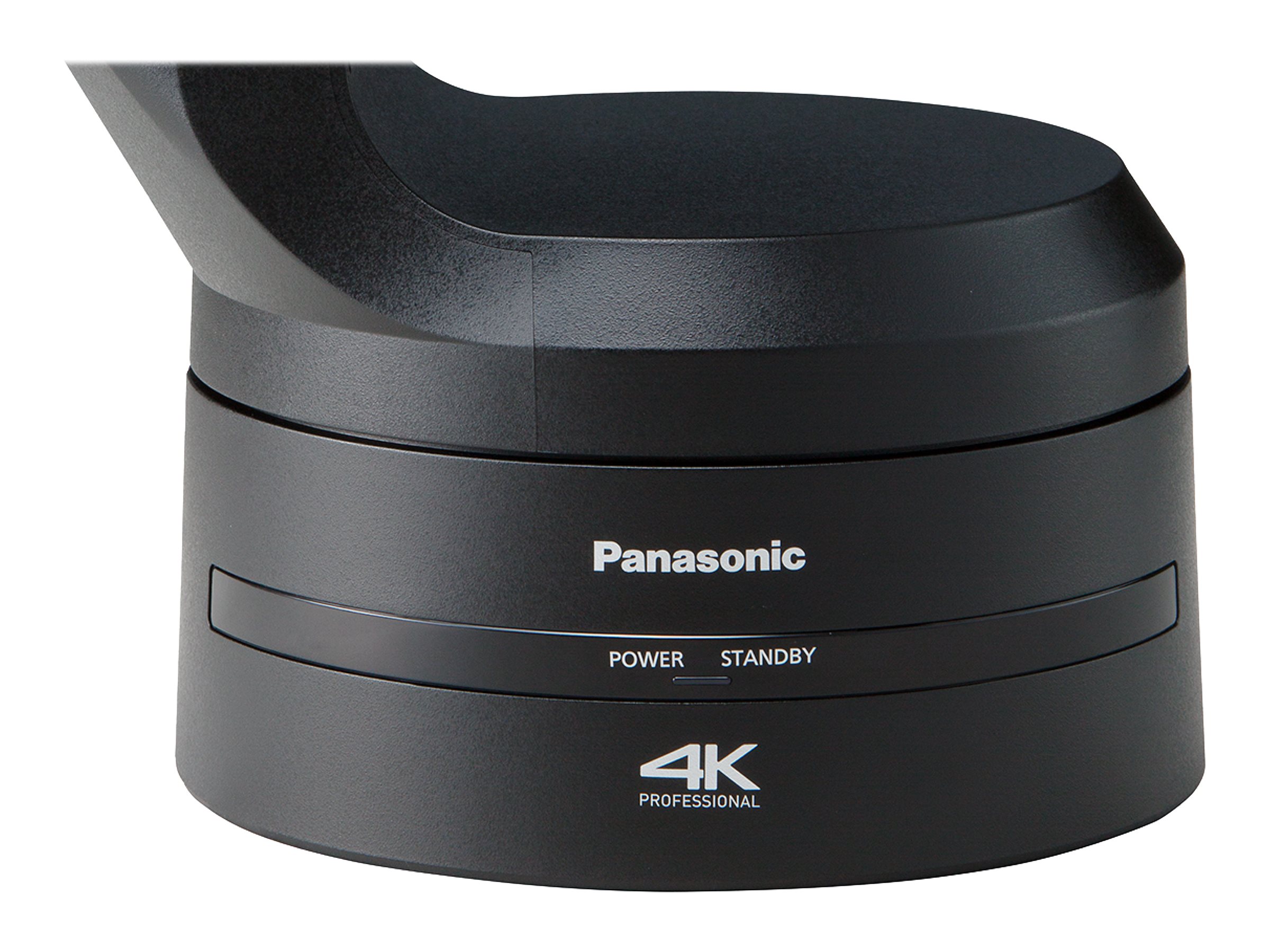

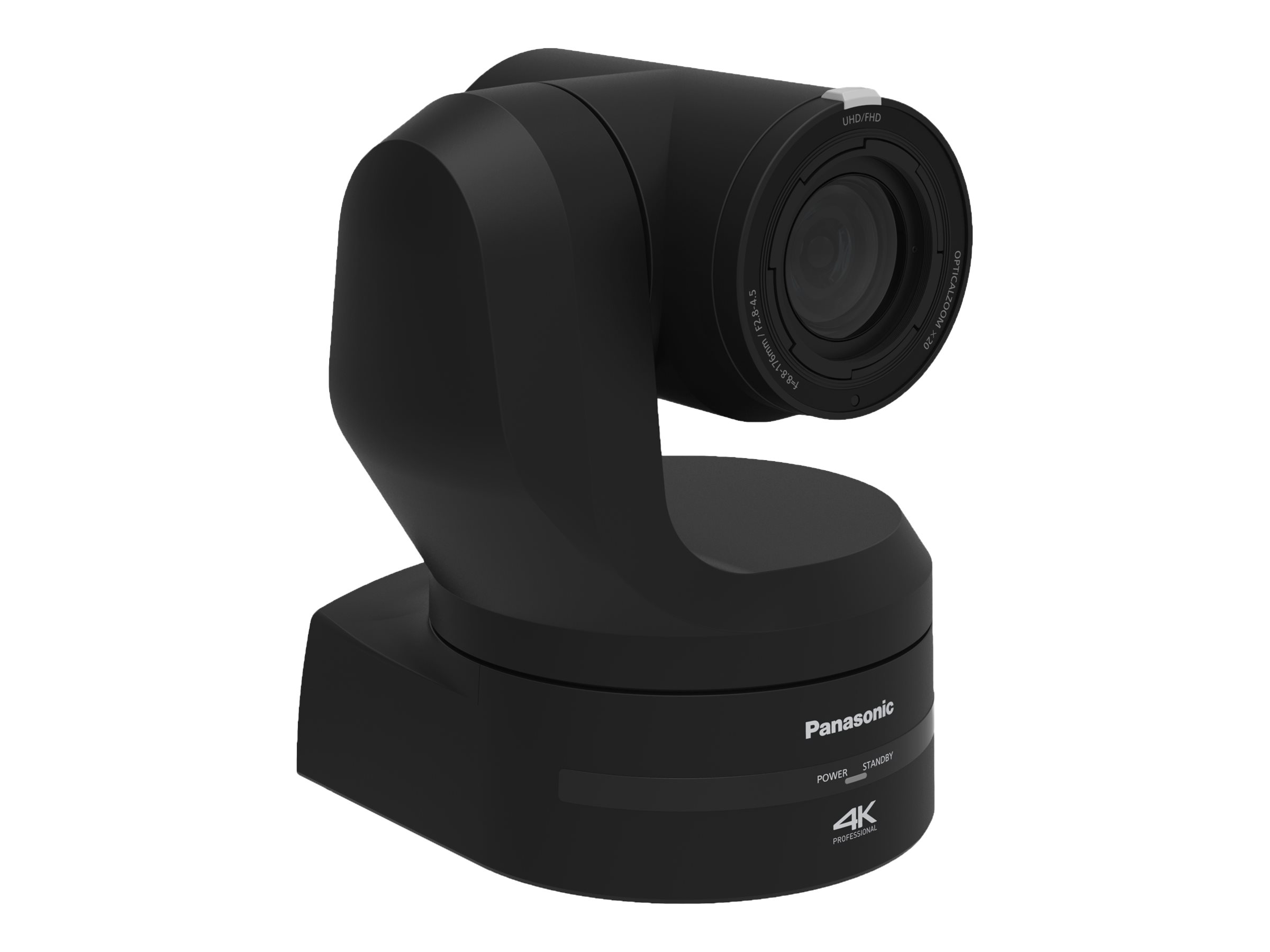

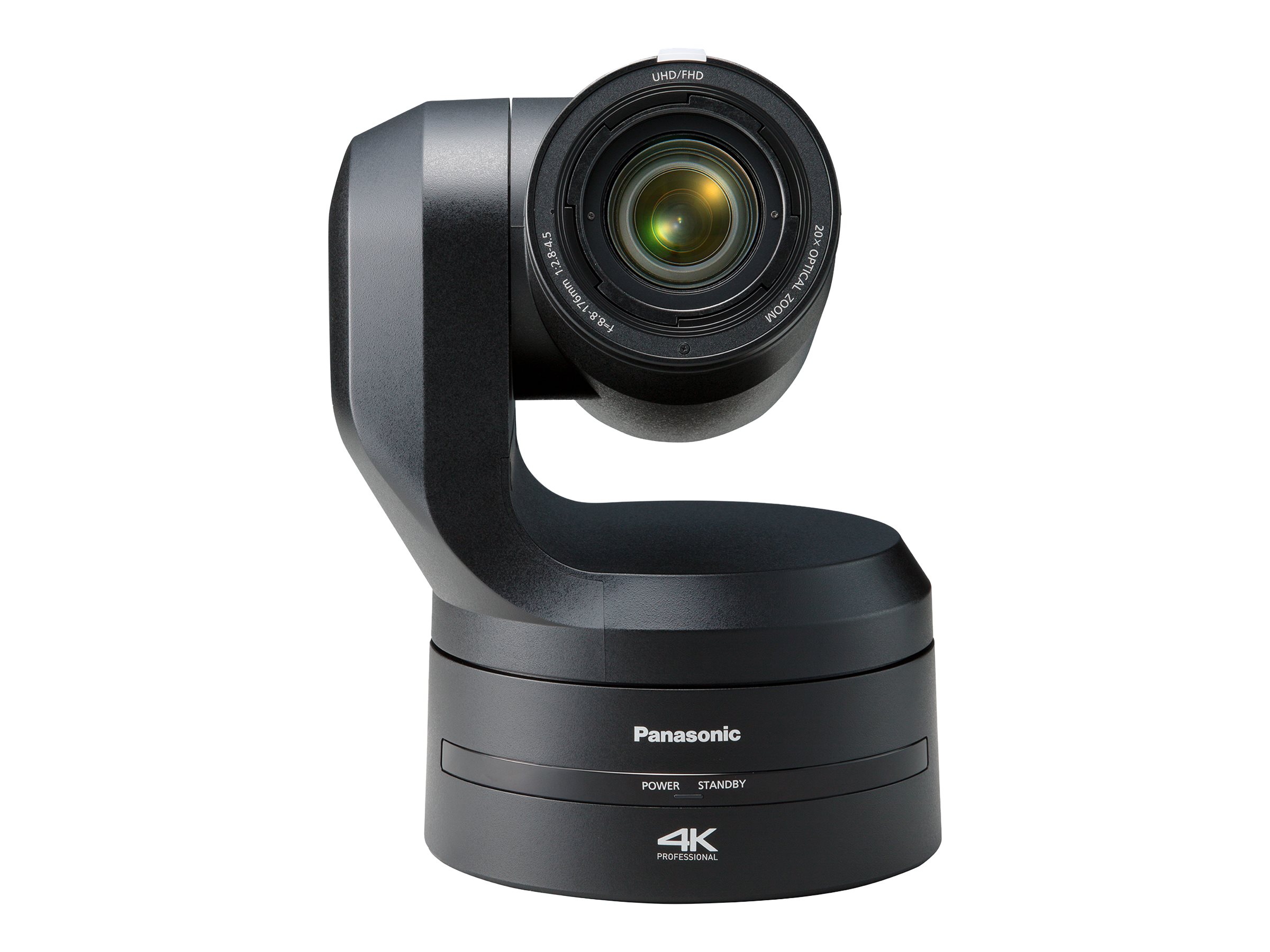

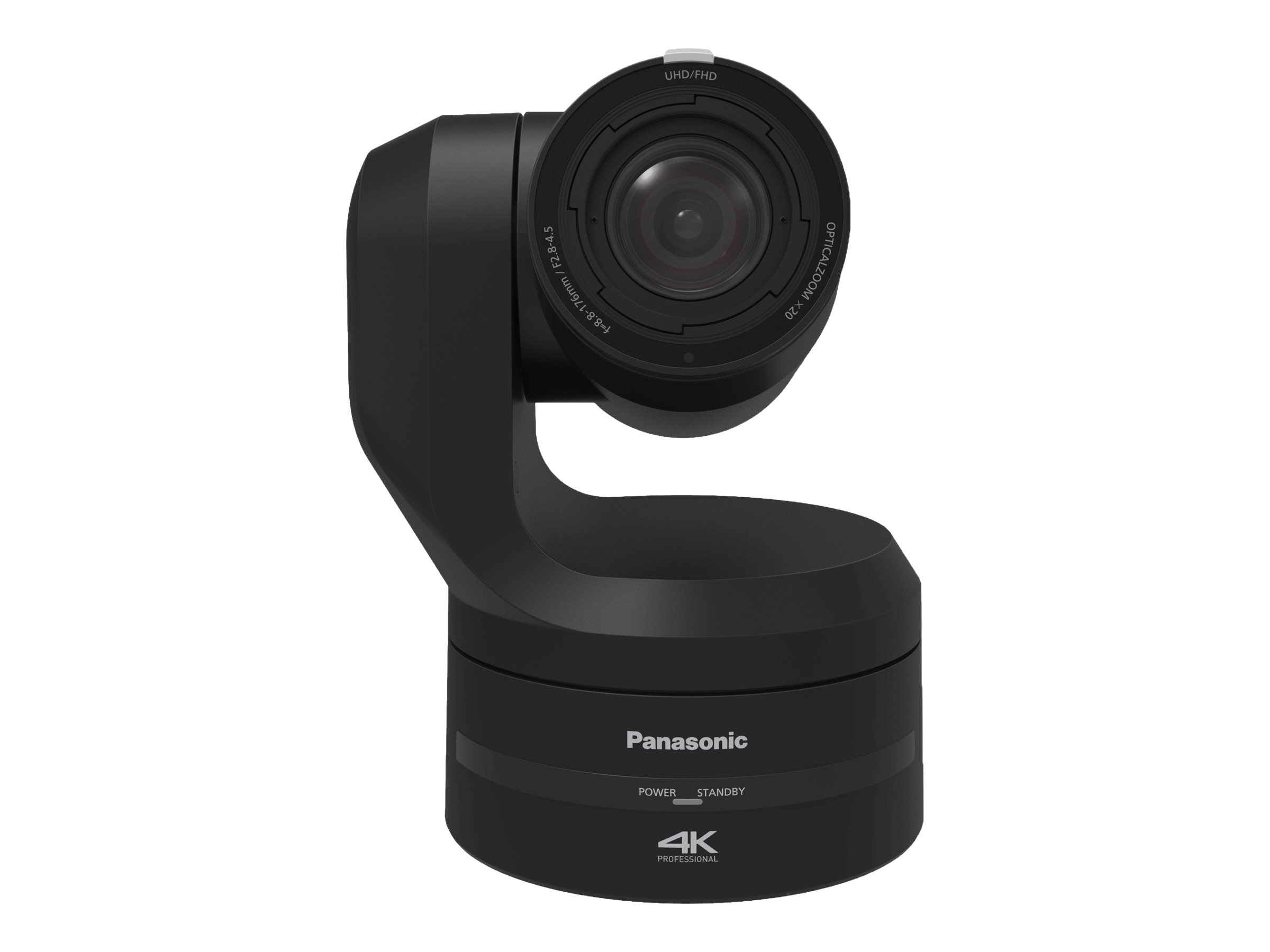

Panasonic AW-UE150K - Conference camera
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Panasonic AW-UE150K - Conference camera
- PTZ
- color (Day&Night)
- 20.2 MP
- 3840 x 2160
- motorized
- 1600 TVL
- audio
- HDMI, 3G-SDI, 12G-SDI
- LAN
- MJPEG, H.264, H.265
- DC 10.8
- 13.2 V / PoE++
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | MOD1AW-UE150K |
| SHI Part #: | 45298349 |
| Category: | Video conference cameras |
| UNSPSC: | 45121506 |
| Manufacturer: | Panasonic |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Video conference cameras |
| Description | Panasonic AW-UE150K - Conference camera - PTZ - color (Day&Night) - 20.2 MP - 3840 x 2160 - motorized - 1600 TVL - audio - HDMI, 3G-SDI, 12G-SDI - LAN - MJPEG, H.264, H.265 - DC 10.8 - 13.2 V / PoE++ |
| Manufacturer | Panasonic |
| MSRP | $13,850.00 |
| UNSPSC | 45121506 |
| Main Specifications | |
| Dimensions & Weight / Depth | 21.9 cm |
| Dimensions & Weight / Height | 26.7 cm |
| Dimensions & Weight / Weight | 4.2 kg |
| Dimensions & Weight / Width | 21.3 cm |
| Header / Brand | Panasonic |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| System Requirements / OS Required |
|
| Camera | |
| Digital Video Format | MJPEG, H.264, H.265 |
| Digital Zoom | 10 |
| Exposure Range | 1/25 sec - 1/10000 sec |
| Features | Built-in optical ND filters, adjustable gain control, auto white balance, Automatic Tracing White (ATW), Optical Low Pass Filter (OLFP), High Dynamic Range (HDR), Hybrid Log-Gamma (HLG) recording, optical image stabilizer, tally light, web interface |
| Horizontal Resolution (TV Lines) | 1600 |
| Max Digital Video Resolution | 3840 x 2160 |
| Minimum Illumination | 2 lux F2.8 - 50 IRE |
| Type | Color - Day&Night - pan / tilt / zoom |
| Video Capture | 3840 x 2160 @ 60 fps |
| Video Modes | 1080/24p, 1080/50i, 720/50p, 1080/50p, 1080/30p, 1080/25p, 2160/24p, 2160/25p, 2160/50p, 1080/59.94i, 1080/59.94p, 720/59.94p, 1080/25PsF, 1080/23.98p, 1080/23.98PsF, 1080/29.97PsF, 2160/23.98p, 2160/29.97p, 2160/59.94p |
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Relative Humidity (operating) | 20 - 90% (non-condensing) |
| Expansion / Connectivity | |
| Ports |
|
| General | |
| Audio Formats | AAC-LC |
| Audio Support | Yes |
| Camera Mount Type | Ceiling mount |
| Connectivity Technology | Wired |
| Depth | 21.9 cm |
| Device Type | Conference camera |
| Height | 26.7 cm |
| Weight | 4.2 kg |
| Width | 21.3 cm |
| Image Sensor | |
| Type | 20.2 MP MOS 1" |
| Interfaces | |
| Control Interface | RS-422A |
| Network Interface | LAN |
| Network Protocols | DDNS, DHCP, DNS, HTTP, NTP, TCP/IP, UDP/IP, ARP, ICMP, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, RTCP, IGMP, MLD, RTMP |
| Video | HDMI, 3G-SDI, 12G-SDI |
| Lens Construction | |
| Diagonal Field of View (degree) | 4.6 - 82.8 |
| Focal Length | 8.8 mm - 176 mm |
| Focus Adjustment | Automatic, manual |
| Horizontal Field of View (degree) | 4 - 75.1 |
| Lens Iris | F/2.8-4.5 |
| Min Focus Distance | 10 cm |
| Optical Zoom | 20 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 2.3 - 46.7 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years |
| Miscellaneous | |
| Color | Black |
| Compliant Standards | IEEE 802.3bt, SMPTE ST-2082-1 |
| Panning | |
| Range (degree) | -175 to +175 |
| Speed (degree/sec) | Up to 180 |
| Power | |
| Power Requirements | DC 10.8 - 13.2 V / PoE++ |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7, Windows 10, Apple MacOS X 10.11, Apple macOS 10.12, Apple macOS 10.13, Apple iOS 11.4.1 |
| Tilting | |
| Range (degree) | -30 to +210 |
| Speed (degree/sec) | Up to 180 |
