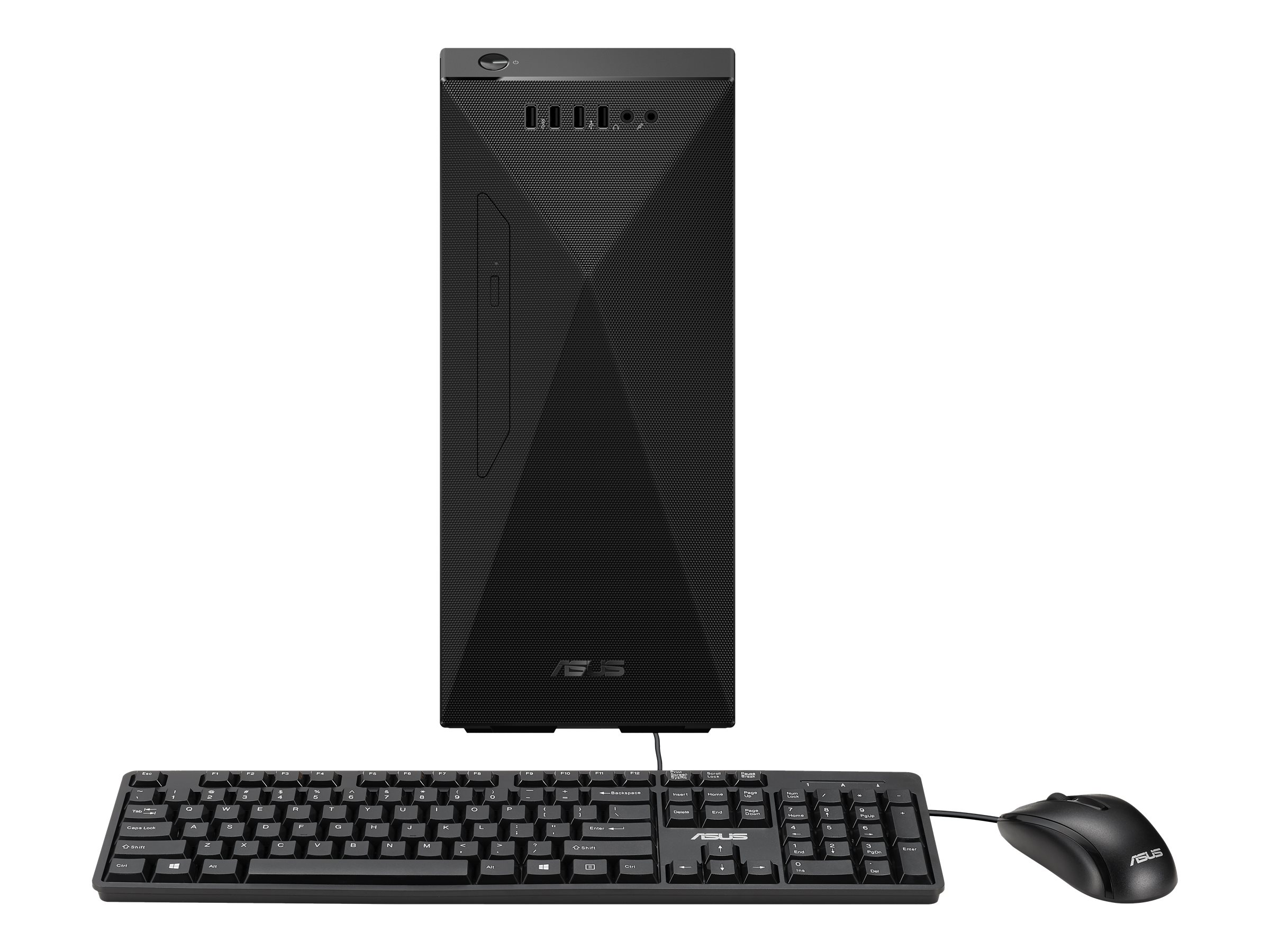

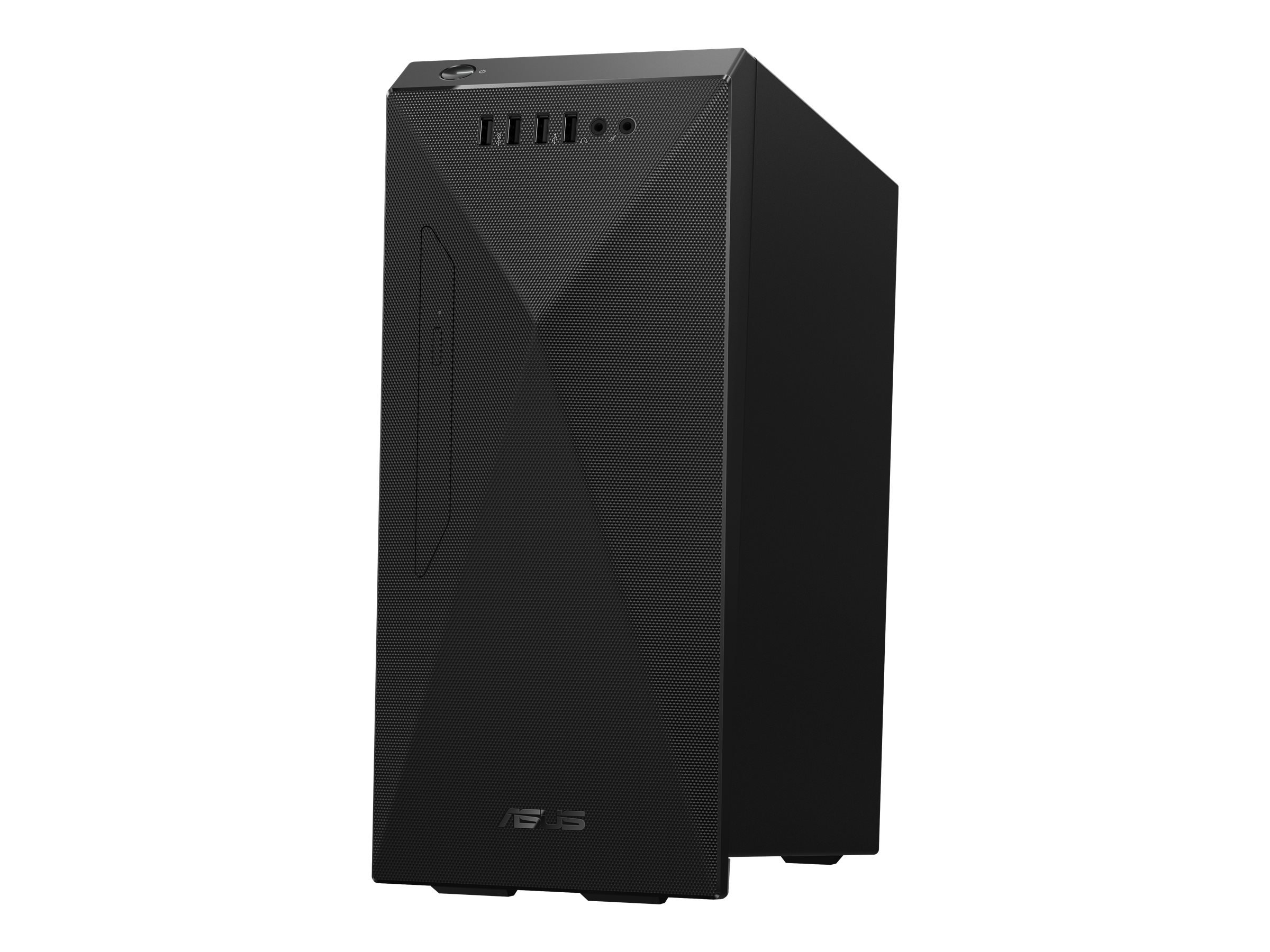

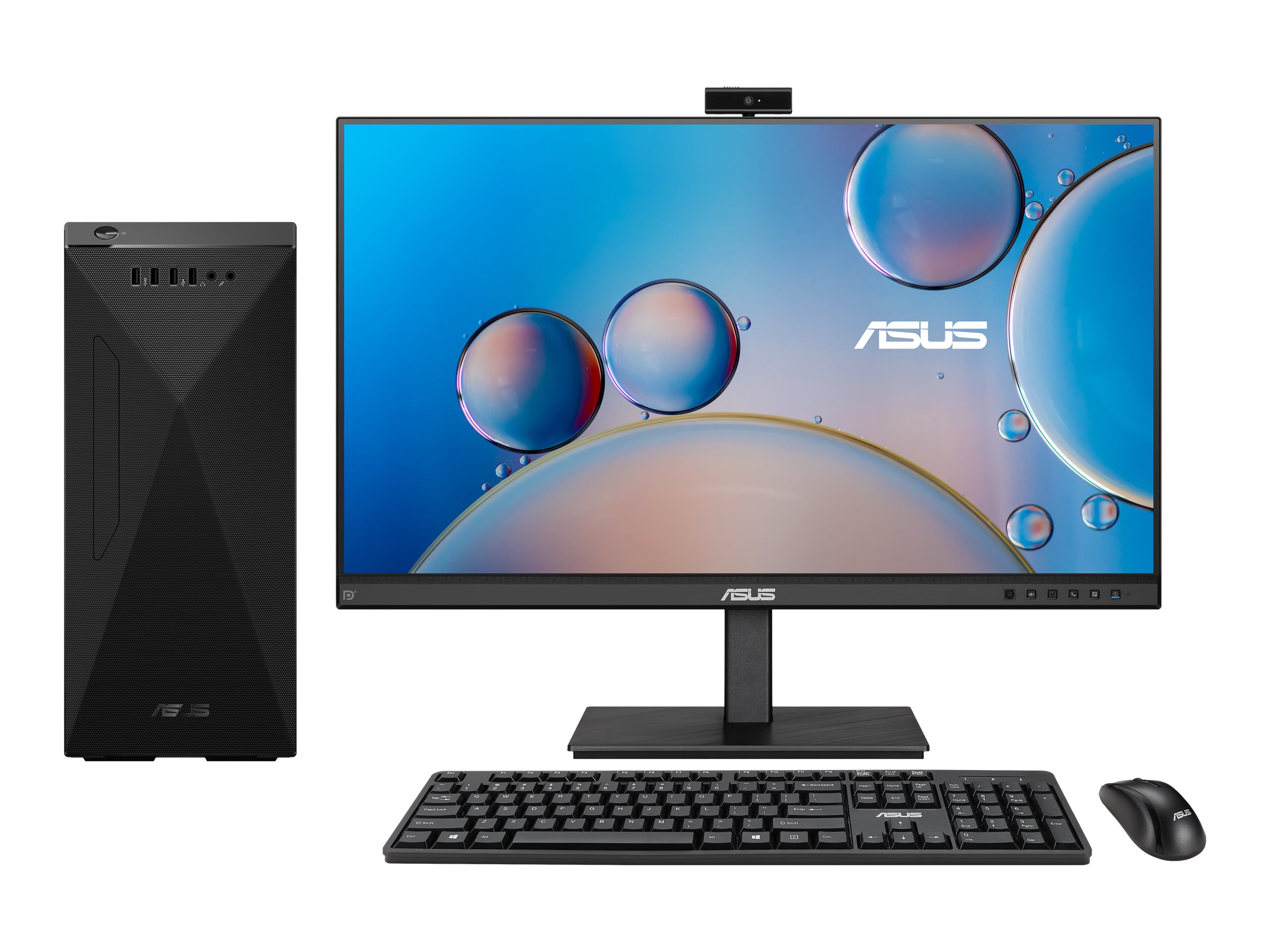

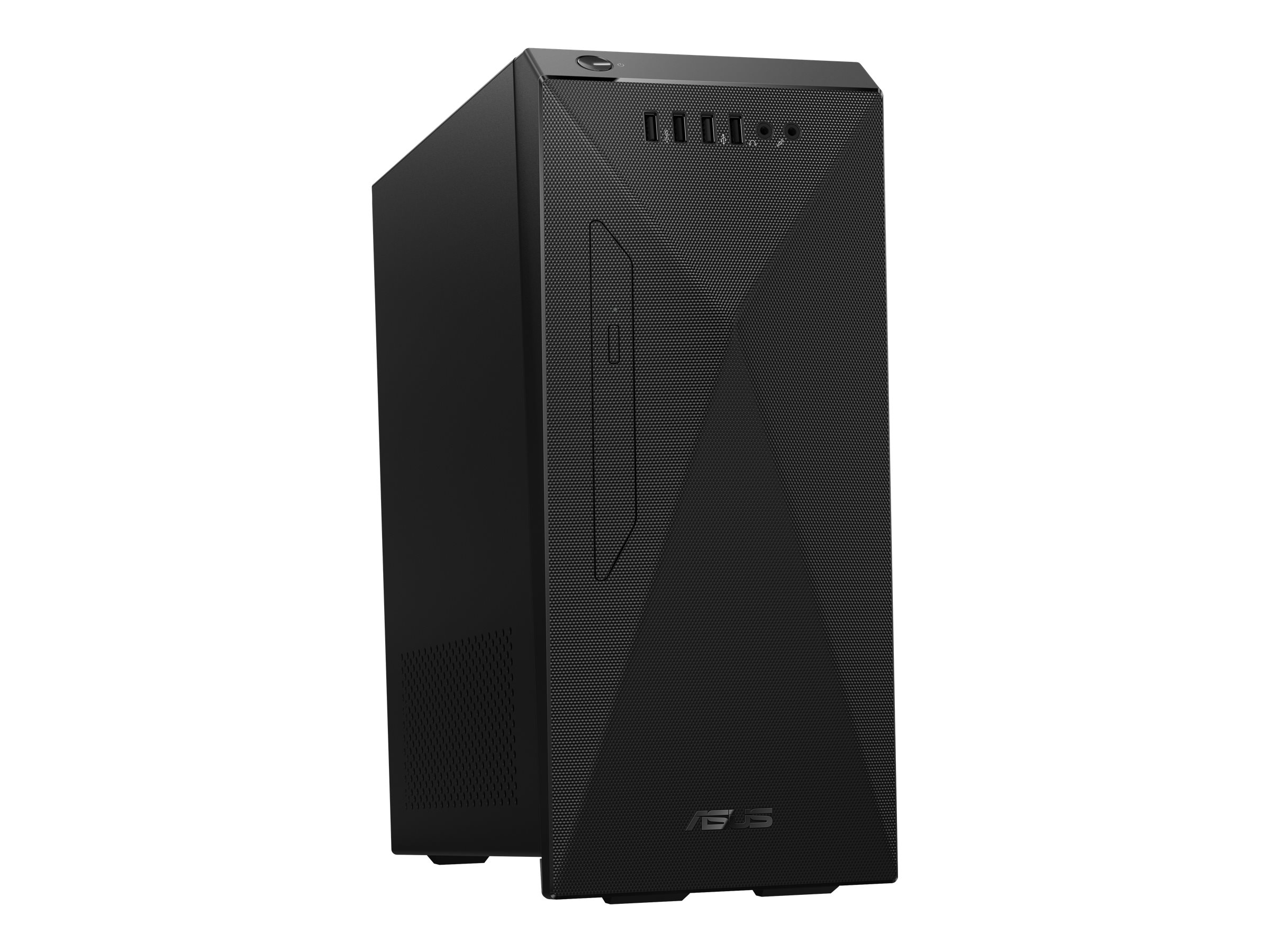

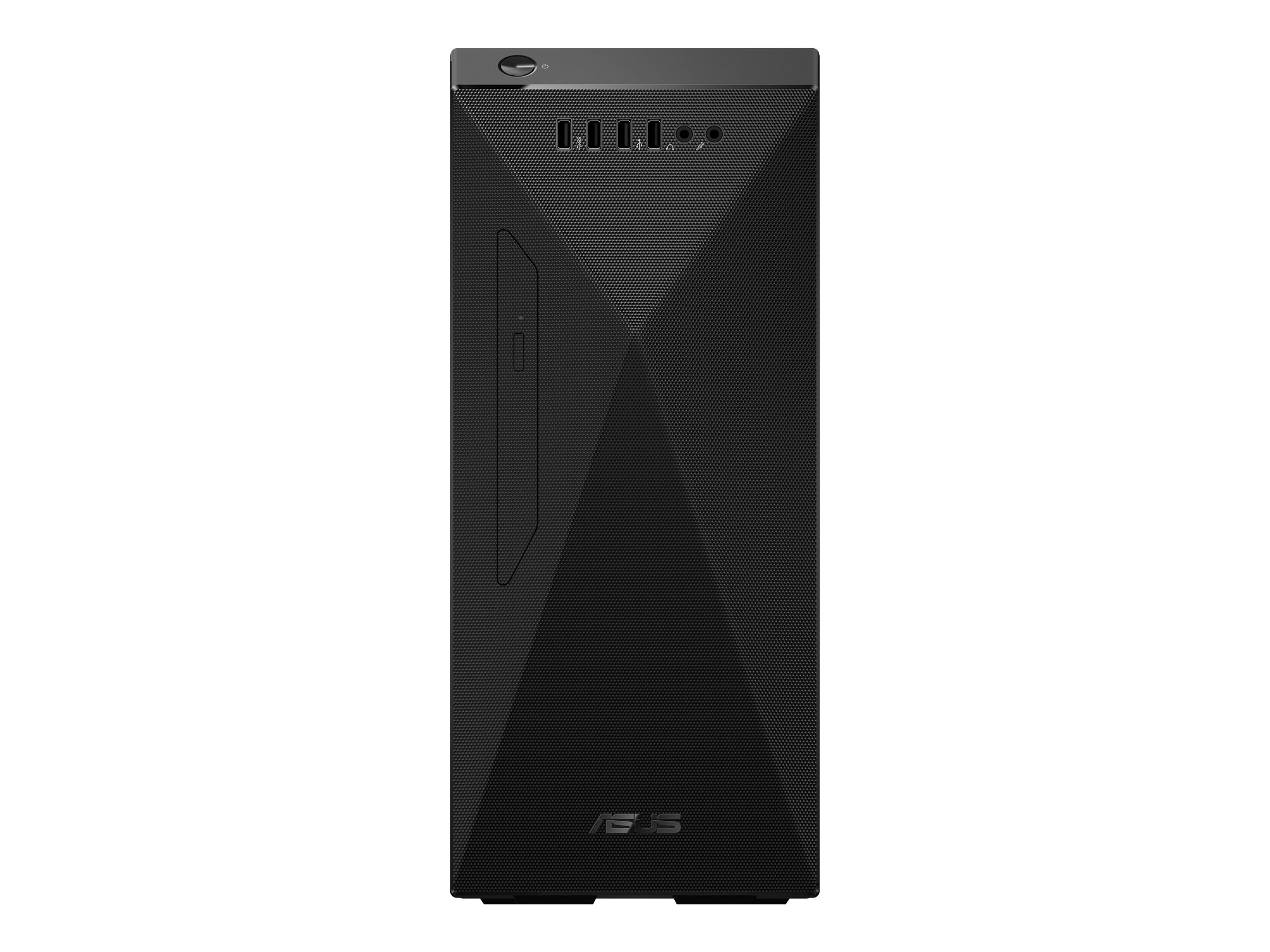

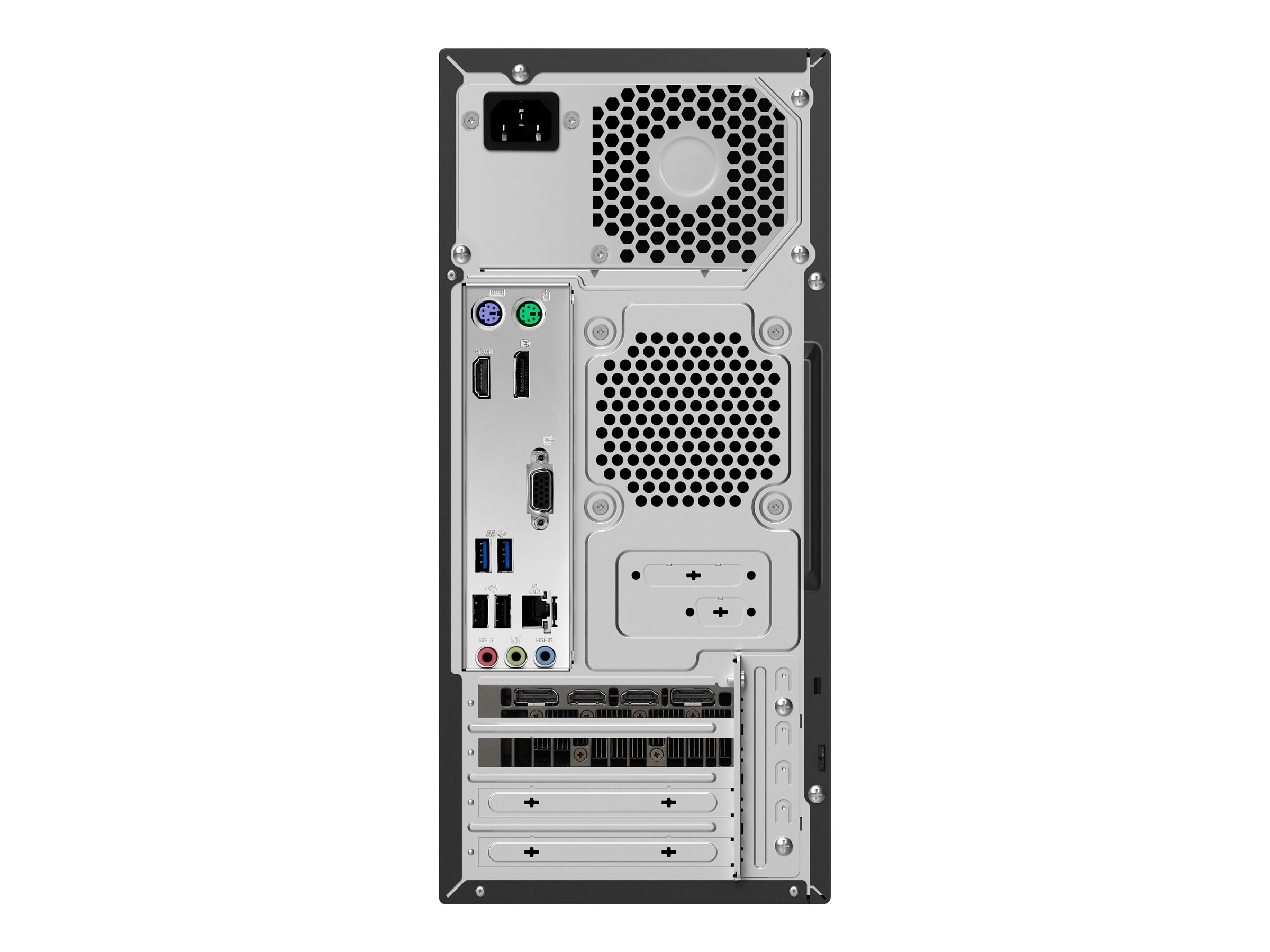

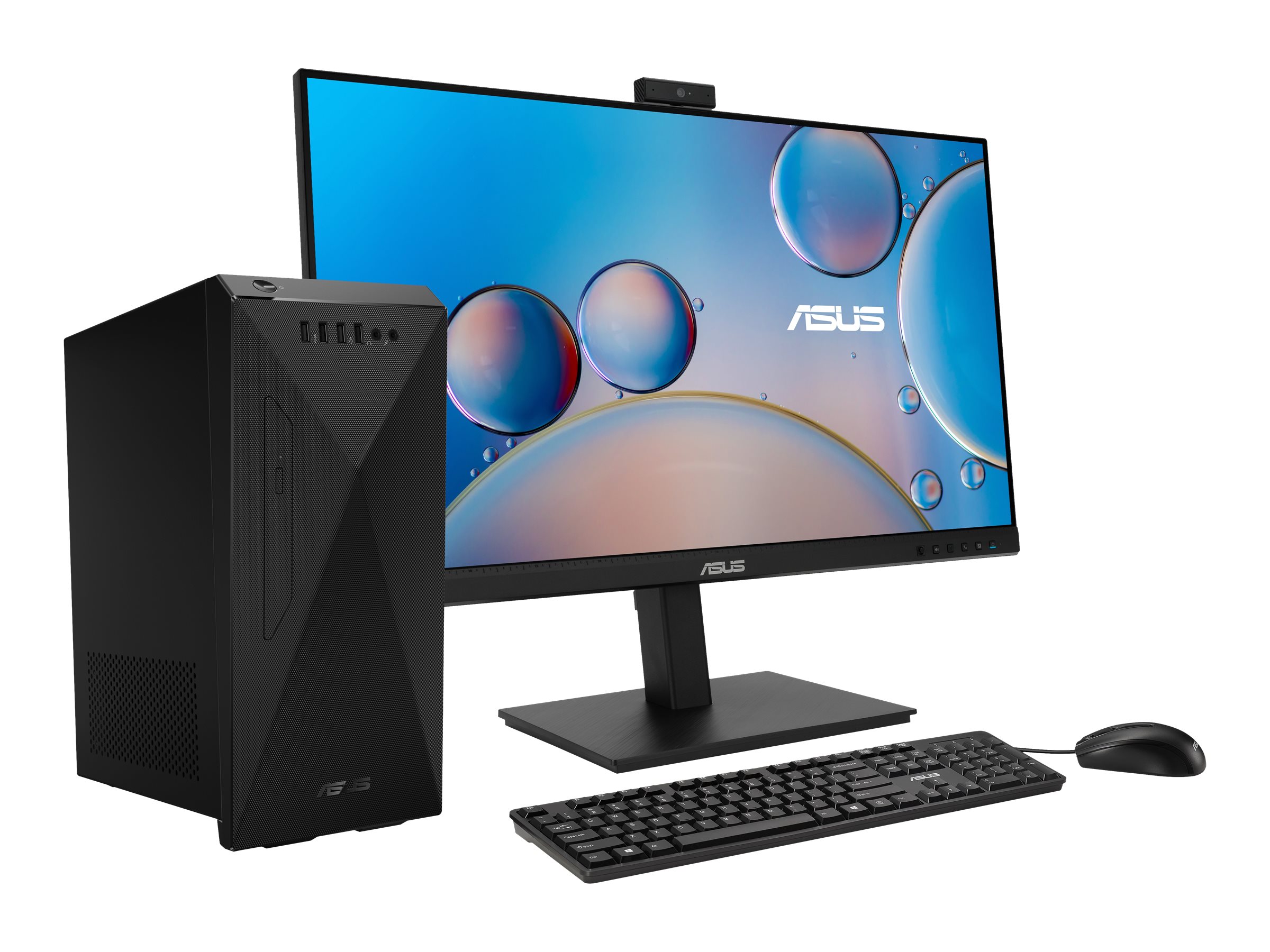

ASUS S501MD DB504 - MT
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
ASUS S501MD DB504 - MT
- Core i5 12400 / up to 4.4 GHz
- RAM 16 GB
- SSD 512 GB
- NVMe
- DVD-Writer
- UHD Graphics 730
- Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6)
- Win 11 Home
- monitor: none
- black
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | S501MD-DB504 |
| SHI Part #: | 45280684 |
| Category: | Desktop computers |
| UNSPSC: | 43211507 |
| Manufacturer: | ASUS |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Desktop computers |
| Description | ASUS S501MD DB504 - MT - Core i5 12400 / up to 4.4 GHz - RAM 16 GB - SSD 512 GB - NVMe - DVD-Writer - UHD Graphics 730 - Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6) - Win 11 Home - monitor: none - black |
| Manufacturer | ASUS |
| MSRP | $799.00 |
| UNSPSC | 43211507 |
| Main Specifications | |
| Chassis / Form Factor | Tower |
| Dimensions & Weight / Depth | 31.89 cm |
| Dimensions & Weight / Height | 36.78 cm |
| Dimensions & Weight / Weight | 5.9 kg |
| Dimensions & Weight / Width | 16 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 512 GB |
| Hard Drive / Interface | PCI Express 3.0 |
| Hard Drive / Interface Type | PCI Express 3.0 |
| Header / Brand | ASUS |
| Mainboard / Chipset Type | Intel B660 |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Networking / Wireless LAN Supported | Yes |
| Networking / Wireless Protocol |
|
| Optical Storage / Drive Type | DVD-Writer |
| Optical Storage / Type | DVD-Writer |
| OS Provided / Type | Windows 11 Home |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 2.5 GHz |
| Processor / Generation | 12 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 6-core |
| Processor / Processor Number | I5-12400 |
| Processor / Type | Core i5 |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Technology | DDR4 SDRAM |
| Service & Support / Type | 1-year warranty |
| System / Hard Drive Capacity | 512 GB |
| System / Type | Personal computer |
| Video Output / Graphics Processor | Intel UHD Graphics 730 |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Sound Output Mode | 7.1 channel surround |
| Cache Memory | |
| Cache Per Processor | 18 MB |
| Installed Size | L3 cache - 18 MB |
| Dimensions & Weight | |
| Depth | 31.89 cm |
| Height | 36.78 cm |
| Weight | 5.9 kg |
| Width | 16 cm |
| Expansion / Connectivity | |
| Interfaces |
|
| Slots |
|
| General | |
| Color | Black |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Product Form Factor | MT |
| Type | Personal computer |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics 730 |
| Video Interfaces | VGA, HDMI, DisplayPort |
| Hard Drive | |
| Capacity | 1 x 512 GB |
| Features | NVM Express (NVMe) |
| Interface Type | PCI Express 3.0 |
| Type | SSD - M.2 |
| Input Device | |
| Type | Mouse, keyboard |
| Keyboard | |
| Interface | USB |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Compliant Standards | RoHS, REACH |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Monitor | |
| Monitor Type | None. |
| Mouse | |
| Interface | USB |
| Technology | Optical |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6) |
| Ethernet Controller | Intel I219-V |
| Features | Dual stream (2x2) |
| Wireless LAN Supported | Yes |
| Operating System / Software | |
| OS Provided | Windows 11 Home |
| Optical Storage | |
| Type | DVD-Writer |
| Power | |
| 80 PLUS Certification | 80 PLUS Bronze |
| Device Type | Power supply |
| Power Provided | 300 Watt |
| Processor / Chipset | |
| Chipset Type | Intel B660 |
| Clock Speed | 2.5 GHz |
| CPU | Intel Core i5 (12th Gen) 12400 |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Max Turbo Speed | 4.4 GHz |
| Number of Cores | 6-core |
| Processor Main Features | Intel Smart Cache |
| RAM | |
| Configuration Features | 2 x 8 GB |
| Features | Unbuffered |
| Form Factor | DIMM 288-pin |
| Installed Size | 16 GB (installed) / 64 GB (max) |
| Slots | 2 (total) / 0 (empty) |
| Technology | DDR4 SDRAM |
| Storage Controller | |
| Channel Qty | 4 |
| Controller Interface Type | SATA 6Gb/s |
| Type | 1 x SATA |
