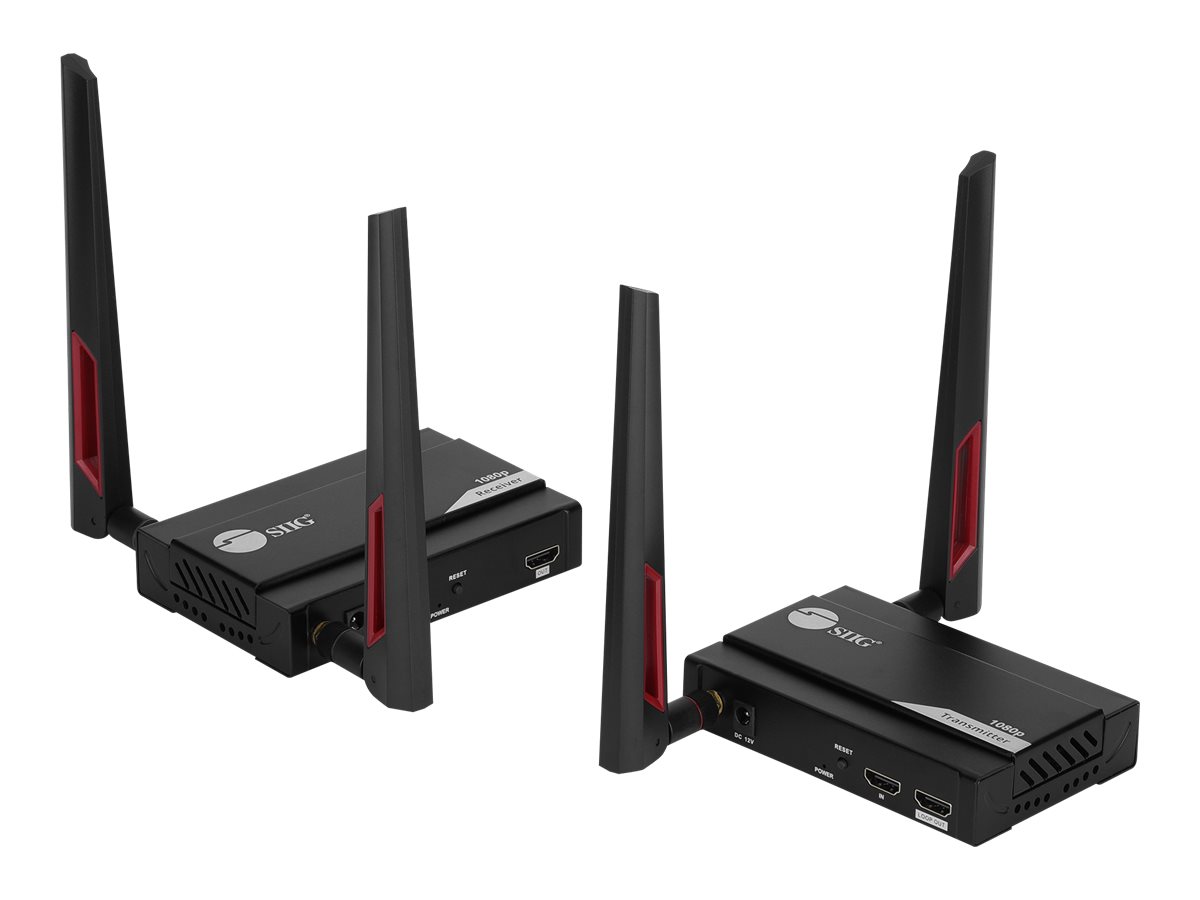

SIIG 1 to 4 Wireless HDMI Extender Kit


$377.00
SIIG 1 to 4 Wireless HDMI Extender Kit - video/audio/infrared extender - HDMI, infrared

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Video/audio/infrared extender
  • HDMI, infrared
  • up to 200 m
SIIG 1 to 4 Wireless HDMI Extender Kit
  • Video/audio/infrared extender
  • HDMI, infrared
  • up to 200 m
  Additional Details
Price: $377.00
Mfr Part #: CE-H27611-S1
SHI Part #: 45053834
Category: Serial port cards
UNSPSC: 43201559
Manufacturer: SIIG
Product Type: Hardware
General Information
CategorySerial port cards
DescriptionSIIG 1 to 4 Wireless HDMI Extender Kit - Video/audio/infrared extender - HDMI, infrared - up to 200 m
ManufacturerSIIG
MSRP$349.99
UNSPSC43201559
Main Specifications
Header / BrandSIIG
Networking / Connectivity TechnologyWireless
Networking / Data Link Protocol
  • HDMI
  • Infrared
Networking / Data Transfer Rate10.2 Gbps
Networking / Form FactorExternal
Networking / TypeVideo/audio/infrared extender
Packaged Quantity1
Service & Support / Type2-year warranty
Dimensions & Weight
Dimensions (WxDxH) / Weight Details
  • Transmitter: 12.5 cm x 10.2 cm x 2.79 cm / 150 g
  • Receiver: 12.5 cm x 10.2 cm x 2.79 cm / 150 g
Dimensions & Weight (Shipping)
Shipping Depth15.3 cm
Shipping Height9.3 cm
Shipping Weight739 g
Shipping Width25.7 cm
Environmental Parameters
Humidity Range Operating5 - 90% (non-condensing)
Max Operating Temperature60 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Interfaces
  • 1 x IR (transmitter) - mini jack
  • 1 x HDMI input (transmitter) - 19 pin HDMI Type A
  • 1 x HDMI output (transmitter) - 19 pin HDMI Type A
  • 1 x IR (receiver) - mini jack
  • 1 x HDMI output (receiver) - 19 pin HDMI Type A
  • 2 x antenna (transmitter)
  • 2 x antenna (receiver)
General
ColorBlack
Device TypeVideo/audio/infrared extender
Form FactorExternal
Manufacturer Warranty
Service & SupportLimited warranty - 2 years
Miscellaneous
Compliant StandardsPlug and Play, UL, FCC, RoHS, HDCP 1.3
Networking
Compliant StandardsHDCP 1.3
Connectivity TechnologyWireless
Data Link ProtocolHDMI, infrared
Data Transfer Rate10.2 Gbps
FeaturesReset button, metal housing, HDMI loop out, LPCM 2.0 support
Frequency Band5 GHz
Max Resolution1920 x 1080 / 1080p @ 60 Hz
Max Transfer Distance200 m
Power
Installed Qty2
Power DeviceExternal power adapter
Voltage RequiredAC 100-240 V (50/60 Hz)
