Tripp Lite SMX2200XLRT2U UPS SMART
MSRP$2,383.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Tripp Lite SMX2200XLRT2U UPS SMART
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $2,383.00 |
| Mfr Part #: | SMX2200XLRT2U |
| SHI Part #: | 44910939 |
| Category: | Hardware and accessories |
| UNSPSC: | 43210000 |
| Manufacturer: | Eaton |
| Product Type: | Other |
| General Information | |
|---|---|
| Category | Hardware and accessories |
| Description | Tripp Lite SMX2200XLRT2U UPS SMART |
| Manufacturer | Eaton |
| MSRP | $2,383.00 |
| UNSPSC | 43210000 |
| Main Specifications | |
| Dimensions & Weight / Weight | 73.51 |
| Height | 9.055 |
| Lead Time | 28 |
| Lead Time Effective Date | 12/03/22 |
| Length | 24.015 |
| List Price | 1106.77 |
| Quantity Measurement | EA |
| Unit of Measure | IN |
| UNSPSC Code | 39121011 |
| UPC | 037332124562 |
| Width | 20.866 |
| Battery | |
| Recharge Time | 4 hours |
| Run Time (Up To) | 5 min at full load |
| Technology | Lead acid |
| Type | Expandable |
| Voltage Provided | 48 V |
| Dimensions & Weight | |
| Depth | 48.3 cm |
| Height | 9 cm |
| Weight | 27.5 kg |
| Width | 44.5 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 51 cm |
| Shipping Height | 23 cm |
| Shipping Weight | 32.4 kg |
| Shipping Width | 59.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Interfaces |
|
| General | |
| Battery Enclosure Type | Internal |
| Color | Attractive black |
| Device Type | UPS - external |
| Height (Rack Units) | 2U |
| Rack Size | 19" |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |

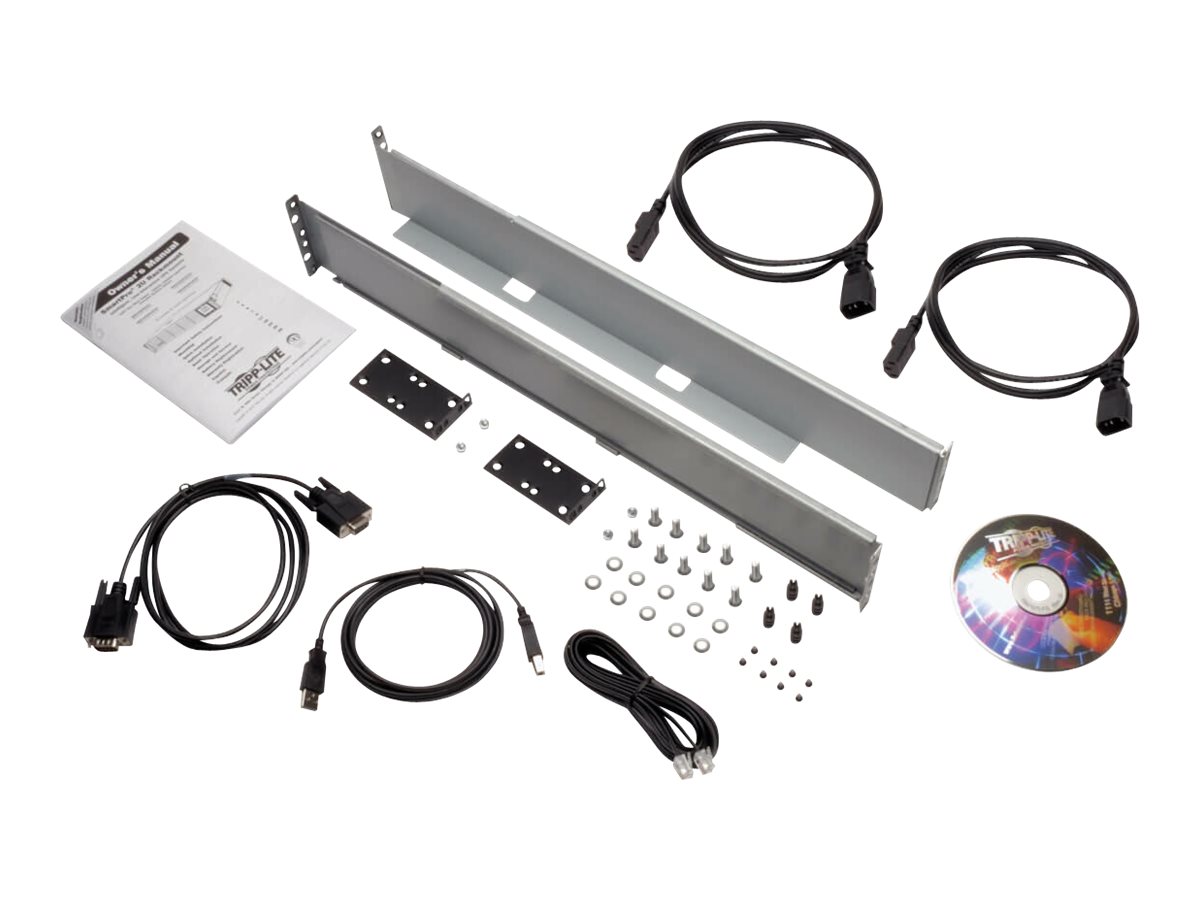

| Cables Included | 3 x power cable - external |
| Compliant Standards | FCC Class A certified, TUV GS, GOST, SASO, RoHS |
| Features | Audible alarm, emergency power off, Automatic Voltage Regulation (AVR), LED indicators |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |

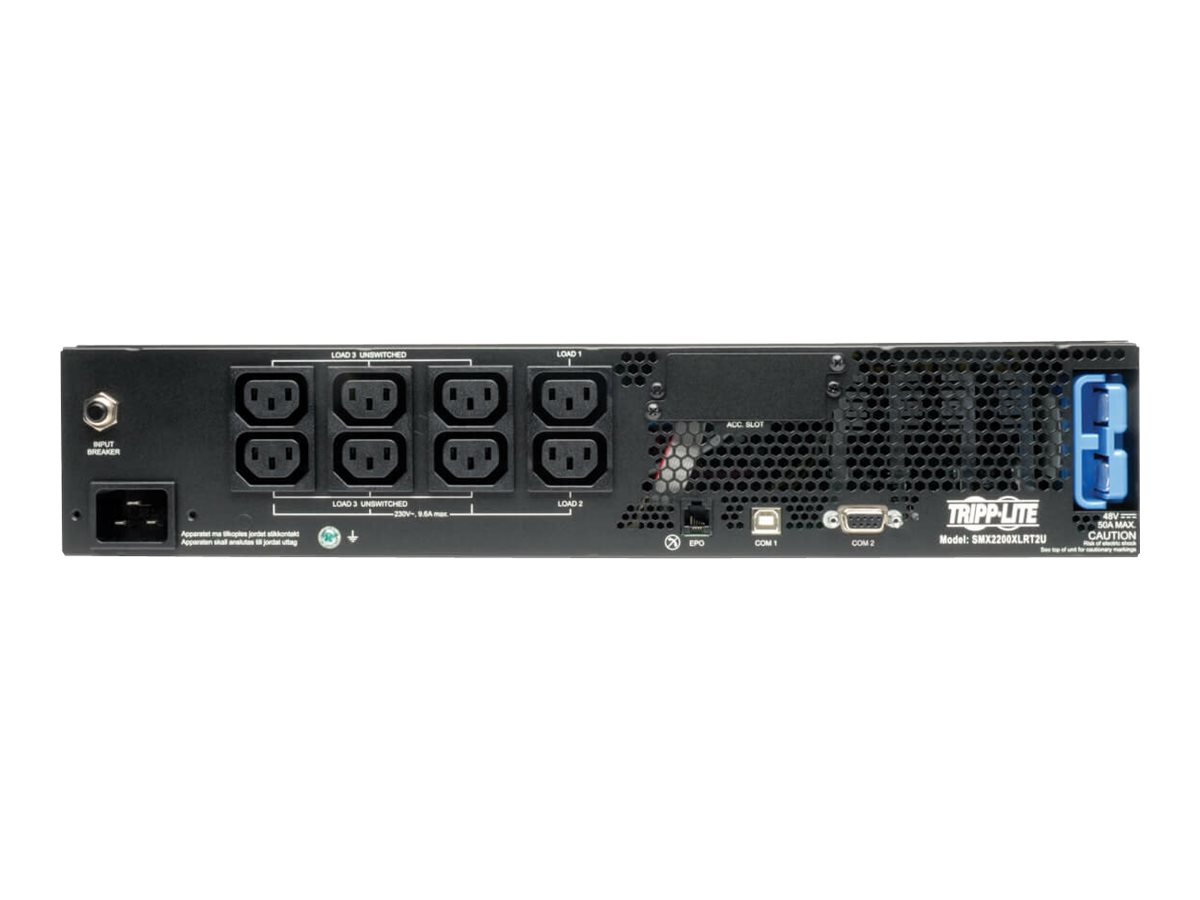

| Input Connectors | 1 x power IEC 60320 C20 |
| Input Voltage | AC 220/230/240 V |
| Input Voltage Range | AC 158 - 290 V |
| Output Voltage | AC 220/230/240 V + 8% / - 19% - 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 1920 Watt / 2200 VA |
| Power Output Connectors Details | 8 x power IEC 60320 C13 |
| Surge Energy Rating | 350 Joules |
| Surge Suppression | Yes |
| UPS Technology | Line interactive |
| Software / System Requirements | |
| Software Included | TrippLite PowerAlert |
