Hardware Cables Audio/Video Cables
Add to My Favorites
Audio/Video Cables

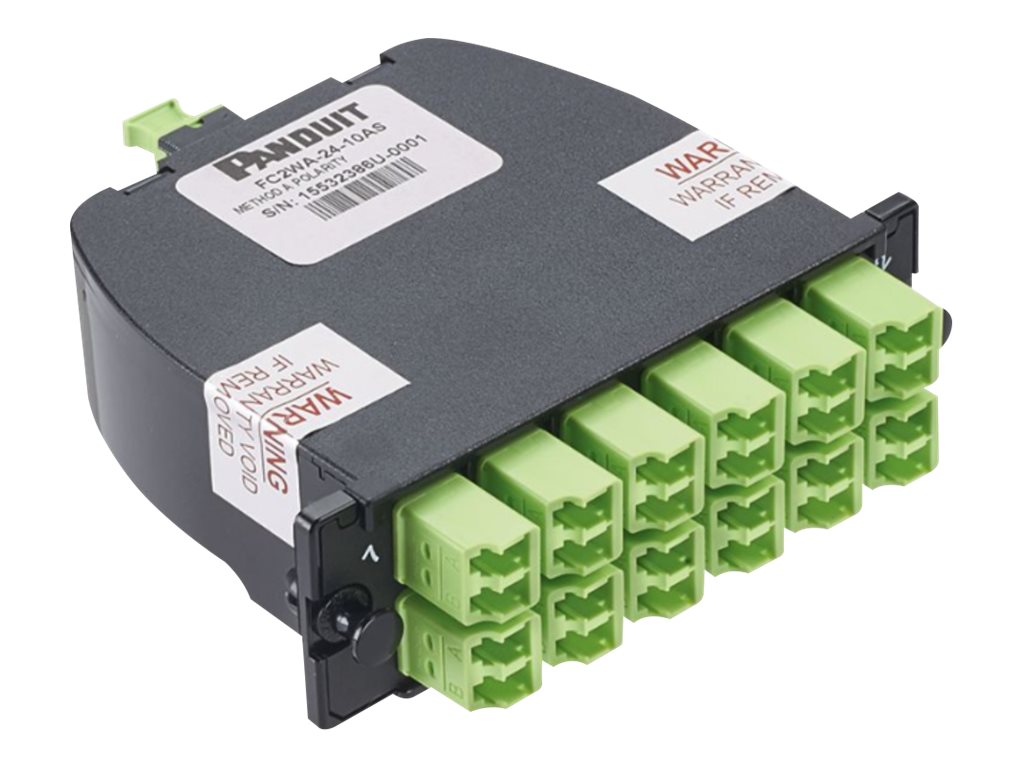

OPTICOM CASS OM5 2 MPO/12 DUP LC ULTEA

MSRP$2,199.76
$1,429.00
OPTICOM CASS OM5 2 MPO/12 DUP LC ULTEA
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
OPTICOM CASS OM5 2 MPO/12 DUP LC ULTEA
  Additional Details
Price: $1,429.00
MSRP: $2,199.76
Mfr Part #: FC2WA-24-10AF
SHI Part #: 44865427
Category: Signal cable
UNSPSC: 26121604
Manufacturer: Panduit
Product Type: Hardware
General Information
CategorySignal cable
DescriptionOPTICOM CASS OM5 2 MPO/12 DUP LC ULTEA
ManufacturerPanduit
MSRP$2,199.76
UNSPSC26121604
Main Specifications
Dimensions & Weight / Depth12.5 cm
Dimensions & Weight / Height3.5 cm
Dimensions & Weight / Width10.9 cm
Header / BrandPanduit
Miscellaneous / Product Color
  • Black
  • Green
Packaged Quantity1
Product TypeFiber optic cassette
Service & Support / Type1-year warranty
Cabling & Wiring
Compliant StandardsOM5
Connector Provided
  • 24 x LC multi-mode female
  • 1 x MPO multi-mode male
Core / Cladding Diameter50 / 125 micron
FeaturesUp to 24 fibers, lime green adapter color
TechnologyFiber optic
Environmental Parameters
Max Operating Temperature70 °C
Min Operating Temperature0 °C
General
Depth12.5 cm
Enclosure ColorLime green
Height3.5 cm
Product TypeFiber optic cassette - modified method A, ultra IL
Width10.9 cm
Manufacturer Warranty
Service & SupportLimited warranty - 1 year
Miscellaneous
Compliant StandardsRoHS, TIA/EIA-568-C.3, ANSI/TIA-568.3-D, 2002/95/EC
FeaturesZirconia ceramic sleeves, modifed method A, pair flipped, ultra low loss, max insertion loss (0.35 dB), min return loss (26 dB)
