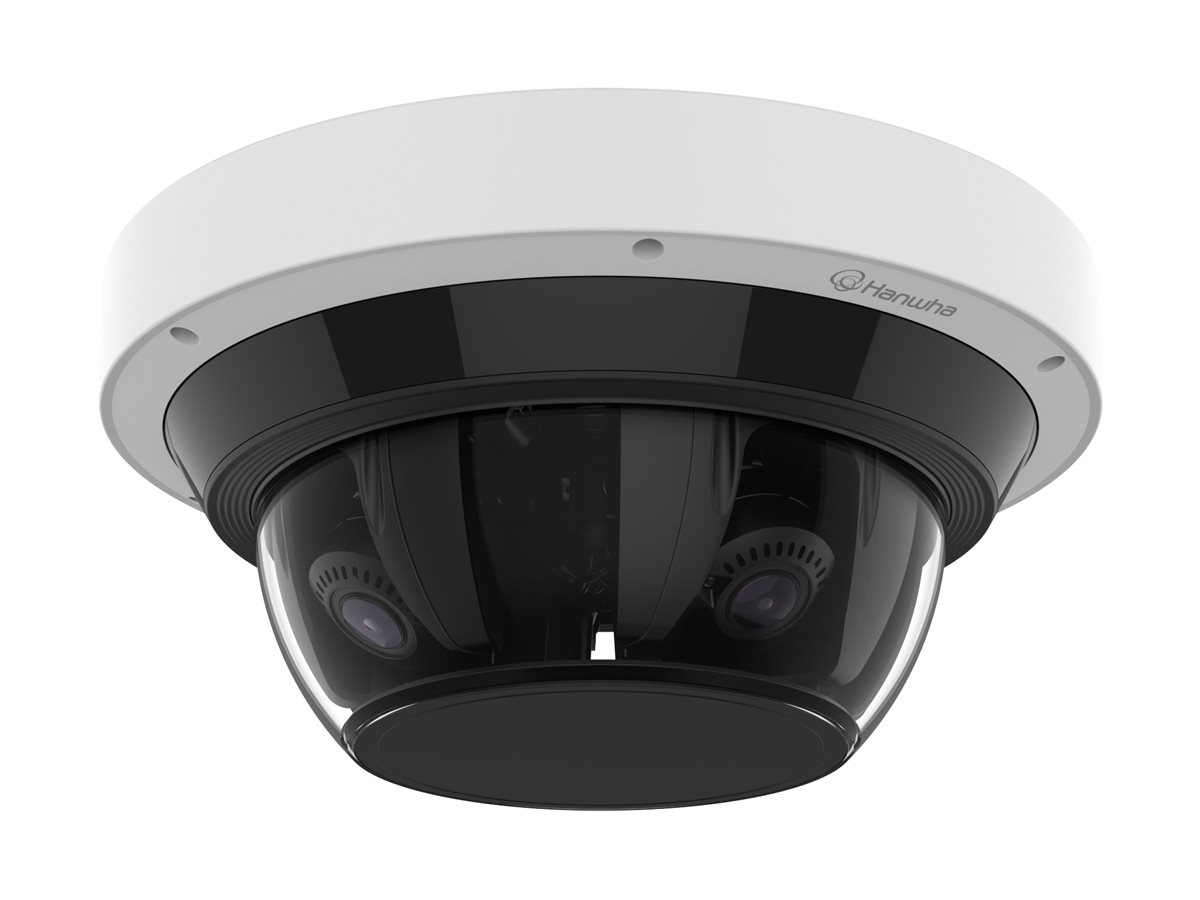

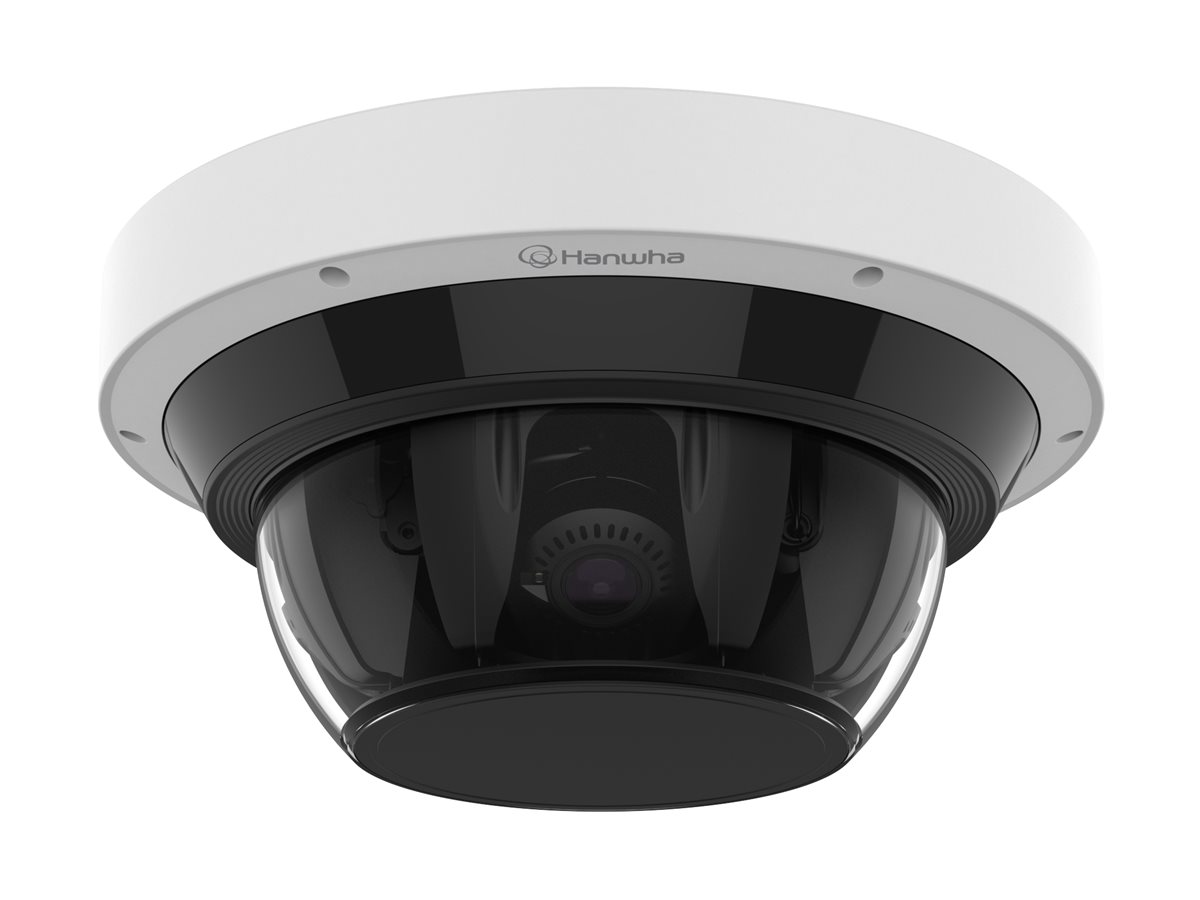

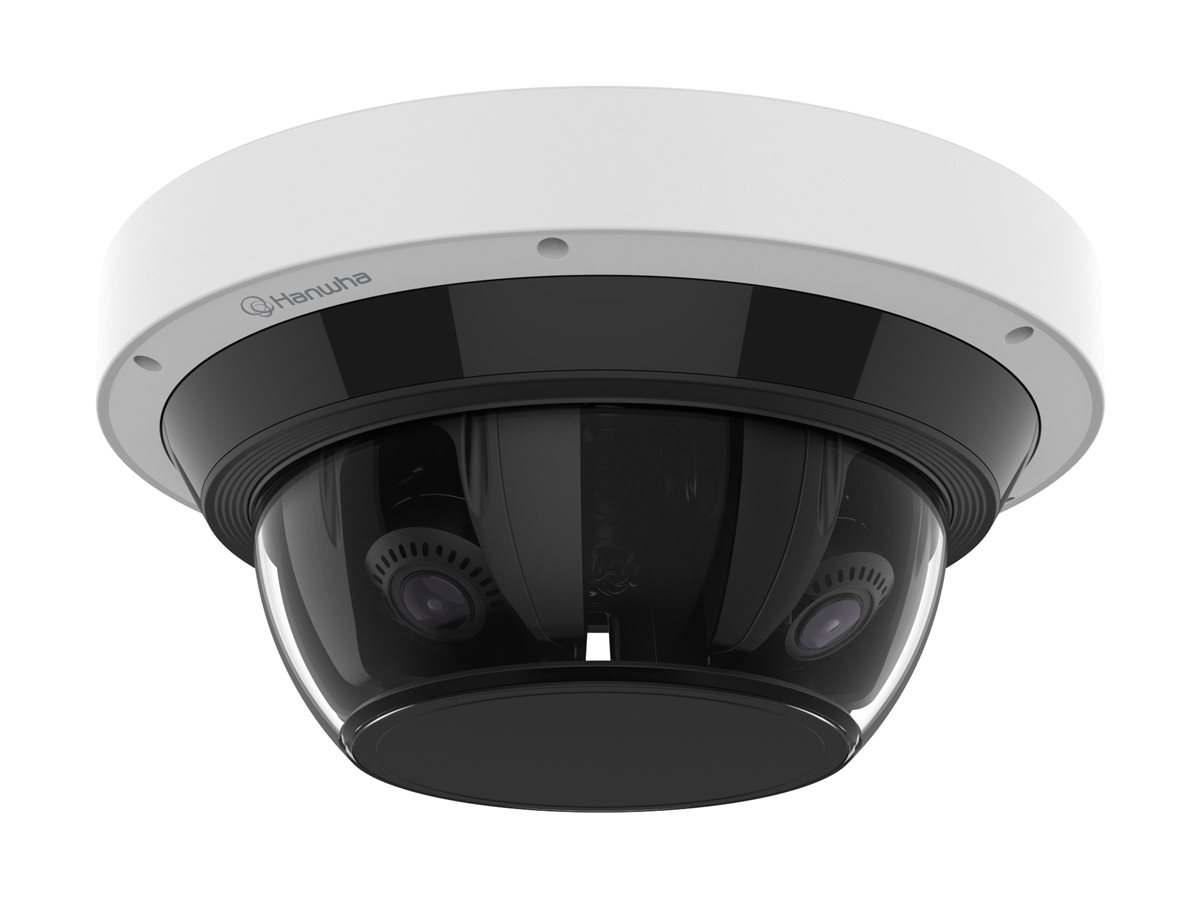

Hanwha Techwin WiseNet P PNM-9085RQZ1


MSRP$3,800.00
$2,898.00
Hanwha Techwin WiseNet P PNM-9085RQZ1

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Network surveillance camera
  • PTZ
  • dome
  • dust resistant / water resistant / shock resistant / corrosion resistant
  • color (Day&Night)
Hanwha Techwin WiseNet P PNM-9085RQZ1
  • Network surveillance camera
  • PTZ
  • dome
  • dust resistant / water resistant / shock resistant / corrosion resistant
  • color (Day&Night)
  • 5 MP
  • 2560 x 1920
  • auto iris
  • motorized
  • audio
  • GbE
  • MJPEG, H.264, H.265
  • High PoE
  Additional Details
Price: $2,898.00
MSRP: $3,800.00
Mfr Part #: PNM-9085RQZ1
SHI Part #: 44672571
Category: Firewall appliances
UNSPSC: 43222501
Manufacturer: Hanwha Techwin
Product Type: Hardware
General Information
CategoryFirewall appliances
DescriptionHanwha Techwin WiseNet P PNM-9085RQZ1 - Network surveillance camera - PTZ - dome - dust resistant / water resistant / shock resistant / corrosion resistant - color (Day&Night) - 5 MP - 2560 x 1920 - auto iris - motorized - audio - GbE - MJPEG, H.264, H.265 - High PoE
ManufacturerHanwha Techwin
MSRP$3,800.00
UNSPSC43222501
Main Specifications
Dimensions & Weight / Depth31.5 cm
Dimensions & Weight / Height14.59 cm
Dimensions & Weight / Weight5.2 kg
Dimensions & Weight / Width31.5 cm
Header / BrandHanwha Techwin
Miscellaneous / Product ColorWhite
Packaged Quantity1
Camera
Digital Video Capture Resolution1280 x 720, 720 x 480, 640 x 480, 1280 x 960, 320 x 240, 1600 x 1200, 1024 x 768, 720 x 576, 1280 x 1024, 800 x 600, 2560 x 1920, 1920 x 1080, 640 x 360, 2560 x 1440, 800 x 448
Digital Video FormatMJPEG, H.264, H.265
Exposure Range2 sec - 1/12000 sec
FeaturesBacklight Compensation (BLC), image flip, image mirror, Wide Dynamic Range (WDR), face detection, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Highlight Compensation (HLC), Digital Image Stabilization (DIS), Lens Distortion Compensation (LDC), tamper-detection, Automatic Tracing White (ATW), Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, Defog, video analytics, Defocus Detection, ONVIF (Profile S) support, loitering detection, entrance / exit detection, appearing / disappearing detection, digest authentication, Samsung Super Noise Reduction (SSNRV), WiseStream II support, DORI coverage, IP address filtering, fog detection, motion detection, Unicast Streaming, ONVIF (Profile T) support, Virtual Line detection, Directional Detection, built-in 4 head multi-directional camera, Gain Control, user access log, Automatic White Balance Control (AWC)
Flash Memory1280 MB
Frame Rate (max)30 frames per second
Infrared Distance30 m
Infrared LEDsYes
Max Digital Video Resolution2560 x 1920
Minimum Illumination
  • 0.11 lux - color - F1.92 - 30 IRE
  • 0 lux - B&W - infrared LEDs on
Motion DetectionYes
RAM5 GB
TypeColor - Day&Night - pan / tilt / zoom - dust resistant / water resistant / shock resistant / corrosion resistant
Environmental Parameters
Max Operating Temperature55 °C
Min Operating Temperature-40 °C
Relative Humidity (operating)0 - 90% RH
Expansion / Connectivity
Ports
  • LAN/power - RJ-45
  • Audio line in
  • Audio line out
Supported Memory CardsmicroSD Card, microSDHC Card, microSDXC Card
General
Audio FormatsG.726, ADPCM, AAC-LC, G.711, U-LAW
Audio SupportYes: two-way audio capability
Connectivity TechnologyWired
Depth31.5 cm
Device TypeNetwork surveillance camera
Form FactorDome
Height14.59 cm
Weight5.2 kg
Width31.5 cm
Image Sensor
Type5 MP CMOS 1/1.8"
Interfaces
Alarm Inputs Qty1
Alarm Outputs Qty1
Network InterfaceEthernet 10Base-T/100Base-TX/1000Base-T
Network ProtocolsDDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, EAP, PIM-SM, LLDP
Lens Construction
Diagonal Field of View (degree)46.85 - 112.46
Focal Length4.13 mm - 9.4 mm
Horizontal Field of View (degree)37.34 - 87.58
Lens IrisF/1.92-2.67 auto iris
Min Focus Distance1.2 m
Optical Zoom2.3 x
TypeMotorized zoom
Vertical Field of View (degree)28.04 - 64.58
Miscellaneous
ColorWhite, RAL 9003
Compliant StandardsNEMA Type 4X, IK10, IP66, IEEE 802.1x, EN 62676-4
Panning
Range (degree)360
Power
Power DevicePoE splitter 45 Watt
Power RequirementsHigh PoE
Tilting
Range (degree)35 to 80
