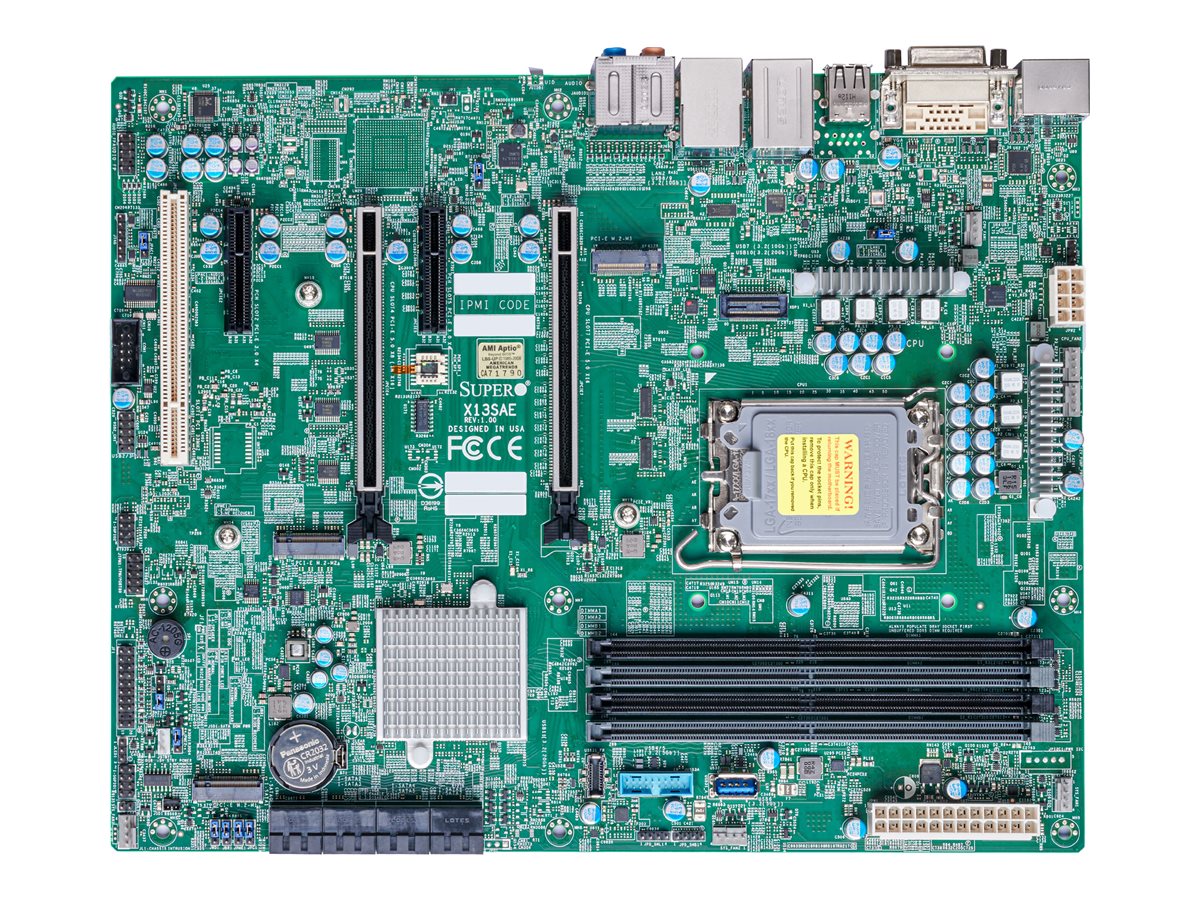

SUPERMICRO X13SAE - Motherboard


$496.00
SUPERMICRO X13SAE - Motherboard

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • ATX
  • LGA1700 Socket
  • W680 Chipset
  • USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2
  • Gigabit LAN, 2.5 Gigabit LAN
SUPERMICRO X13SAE - Motherboard
  • ATX
  • LGA1700 Socket
  • W680 Chipset
  • USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2
  • Gigabit LAN, 2.5 Gigabit LAN
  • onboard graphics (CPU required)
  • HD Audio
  • for S5 GS5A-754K; SC732 D3-903B, D4-668B, D4-903B; SC842 TQC-668B
  Additional Details
Price: $496.00
Mfr Part #: MBD-X13SAE-O
SHI Part #: 44456454
Category: motherboards or daughterboards
UNSPSC: 43201513
Manufacturer: Super Micro Computer
Product Type: Hardware
General Information
Categorymotherboards or daughterboards
DescriptionSUPERMICRO X13SAE - Motherboard - ATX - LGA1700 Socket - W680 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2 - Gigabit LAN, 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio - for S5 GS5A-754K; SC732 D3-903B, D4-668B, D4-903B; SC842 TQC-668B
ManufacturerSuper Micro Computer
UNSPSC43201513
Main Specifications
Dimensions & Weight / Depth24.38 cm
Dimensions & Weight / Width30.48 cm
Header / BrandSupermicro
Mainboard / Chipset Type
  • Intel W480
  • Intel W680
Mainboard / Compatible Processors
  • Core i3
  • Core i5
  • Core i7
  • Core i9
  • Xeon W
Mainboard / Processor Socket
  • LGA1200 Socket
  • LGA1700 Socket
Networking / Data Link Protocol
  • 2.5 Gigabit Ethernet
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Packaged Quantity1
Service & Support / Type3-year warranty
Video Output / TypeGraphics adapter (CPU required)
Audio
Audio CodecRealtek ALC888S
Compliant StandardsHigh Definition Audio
TypeHD Audio
Compatibility Information
Designed For
  • Supermicro S5 GS5A-754K
  • Supermicro SC732 D3-903B, D4-668B, D4-903B
  • Supermicro SC842 TQC-668B
Expansion / Connectivity
Expansion Slots
  • 1 x CPU
  • 4 x DIMM 288-pin (1.1 V)
  • 2 x PCIe 5.0 x16 (x16/x0, x8/x8 modes)
  • 1 x PCI (5 V)
  • 2 x PCIe 3.0 x4
  • 3 x M.2 socket (2280 M.2 Key M slot)
Interfaces
  • 1 x LAN (Gigabit Ethernet)
  • 1 x LAN (2.5Gigabit Ethernet)
  • 2 x USB 2.0
  • 1 x USB-C 3.2 Gen2x2
  • 3 x USB 3.2 Gen 2
  • 1 x HDMI
  • 1 x DVI
  • 1 x DisplayPort
  • 1 x microphone - mini-jack
  • 1 x audio line-in - mini-jack
  • 1 x audio line-out - mini-jack
  • 1 x audio line-out (center/subwoofer) - mini-jack
  • 1 x audio line-out (rear) - mini-jack
  • 1 x USB 3.2 Gen 1
Internal Interfaces
  • 2 x USB 3.2 Gen 1 - header
  • 2 x USB 2.0 - header
  • 1 x USB-C 3.2 Gen 2x2 - header
  • 1 x serial - header
  • 1 x SPI - header
Power Connectors24-pin main power connector, 8-pin ATX12V connector
Storage Interfaces
  • SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 5
Features
BIOS FeaturesPower failure recovery (AC loss resume), SMBIOS 3.0 support, ACPI 6.0 support
BIOS TypeAMI
Hardware FeaturesDiagnostic LEDs, chassis intrusion detection, WatchDog Timer
Hardware MonitoringCPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage, fan control
Sleep / Wake UpWake on LAN (WOL)
General
Chipset TypeIntel W680
Compatible ProcessorsCore i5, Core i3, Core i7, Core i9 (Maximum TDP 150 Watt)
Max Processors Qty1
Processor SocketLGA1700 Socket
Product TypeMotherboard - ATX
LAN
Network ControllerIntel I225-V / Intel I219LM
Network InterfacesGigabit Ethernet, 2.5 Gigabit Ethernet
Manufacturer Warranty
Service & SupportLimited warranty - 3 years
Miscellaneous
Cables Included4 x Serial ATA cable
Compliant StandardsPlug and Play, RoHS
Depth24.38 cm
Included AccessoriesI/O back plate
Package TypeRetail
Software IncludedSuperDoctor 5
Width30.48 cm
Supported RAM
Bus Clock4000 MHz, 3600 MHz, 4400 MHz
Max Size192 GB
Registered or BufferedUnbuffered
Supported RAM Integrity CheckNon-ECC, ECC
TechnologyDDR5
